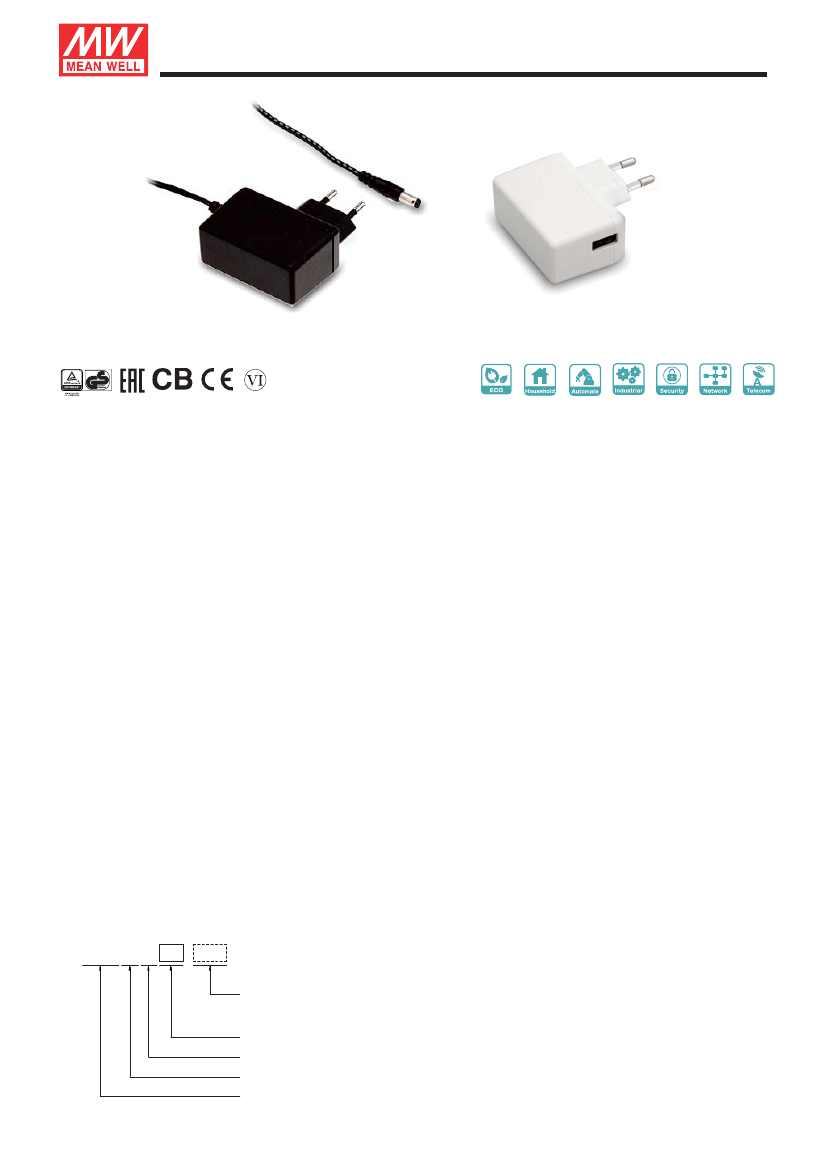

12W AC-DC High Reliability Slim Wall-mounted Adaptor
SGA12E
series
(
Cable connection )
(
USB connection )
EN60950-1
IEC60950-1
■
Features
•
Ultra slim
•
Universal AC input / Full range
•
2 pole EURO plug, Class
Ⅱ
power unit
•
No load power consumption <0.075W
•
Energy efficiency Level
Ⅵ
•
Comply with EU ErP and meet CoC version 5
•
Protections: Short circuit / Overload / Over voltage
•
Fully enclosed plastic case
•
Pass LPS
•
3 years warranty
■
Description
■
Applications
•
Consumer electronic devices
•
Telecommunication devices
•
Office facilities
•
Industrial equipments
SGA12E is a 12W ultra slim wall-mounted style single-output green adaptor series, which is compact and
convenient for carry. SGA12E is a class
Ⅱ
power unit (no FG) equipped with the standard 2-Pin
European plug, accepting the input range from 90VAC to 264VAC. The whole series provides different
models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various
types of consumer electronic devices.
With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGA12E
is compliant with EU ErP and meet CoC version 5. The supreme feature allows the adaptor to save the
energy when it is under either the operating mode or the standby mode. The entire series is approved
for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it
can effectively prevent users from electric hazards.
■
Model Encoding
SGA 12 E 05 - P1J
DC plug type
Output voltage
European 2 pin AC plug
Rated wattage
Series name
{
P1J: Plug for standard model, 2.1
ψ×
5
.
5
ψ×
11mm,
C+ tuning fork type
USB: USB (type A) for 5V standard model only
Other options available by customer requested (see Page 4~5)
File Name:SGA12E-SPEC 2018-04-19
12W AC-DC High Reliability Slim Wall-mounted Adaptor
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
OUTPUT
SGA12E05-
□
□=P1J,
USB
SGA12E05
Note.2
5V
SGA12E
series
SGA12E07-P1J SGA12E09-P1J SGA12E12-P1J SGA12E15-P1J SGA12E18-P1J SGA12E24-P1J SGA12E48-P1J
SGA12E07
7.5V
1.6A
0 ~ 1.6A
12W
50mVp-p
±5.0%
±1.0%
±5.0%
SGA12E09
9V
1.33A
0 ~ 1.33A
12W
80mVp-p
±5.0%
±1.0%
±5.0%
SGA12E12
12V
1A
0 ~ 1A
12W
80mVp-p
±3.0%
±1.0%
±3.0%
SGA12E15
15V
0.8A
0 ~ 0.8A
12W
80mVp-p
±3.0%
±1.0%
±3.0%
SGA12E18
18V
0.666A
0 ~ 0.666A
12W
80mVp-p
±3.0%
±1.0%
±3.0%
SGA12E24
24V
0.5A
0 ~ 0.5A
12W
100mVp-p
±2.0%
±1.0%
±2.0%
SGA12E48
48V
0.25A
0 ~ 0.25A
12W
100mVp-p
±2.0%
±1.0%
±2.0%
2.4A
0 ~ 2.4A
12W
RIPPLE & NOISE (max.)
Note.3
50mVp-p
VOLTAGE TOLERANCE
Note.4
±5.0%
LINE REGULATION
LOAD REGULATION
Note.5
±1.0%
Note.6
±5.0%
SETUP, RISE, HOLD UP TIME
1300ms, 50ms, 12ms/230VAC
90 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
47 ~ 63Hz
80%
0.5A / 115VAC
0.25mA / 240VAC
83%
1300ms, 50ms, 12ms/115VAC at full load
83%
60A / 230VAC
83%
84.5%
85%
85%
86%
0.25A / 230VAC
Cold start 30A / 115VAC
110 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
-20 ~ +60
℃

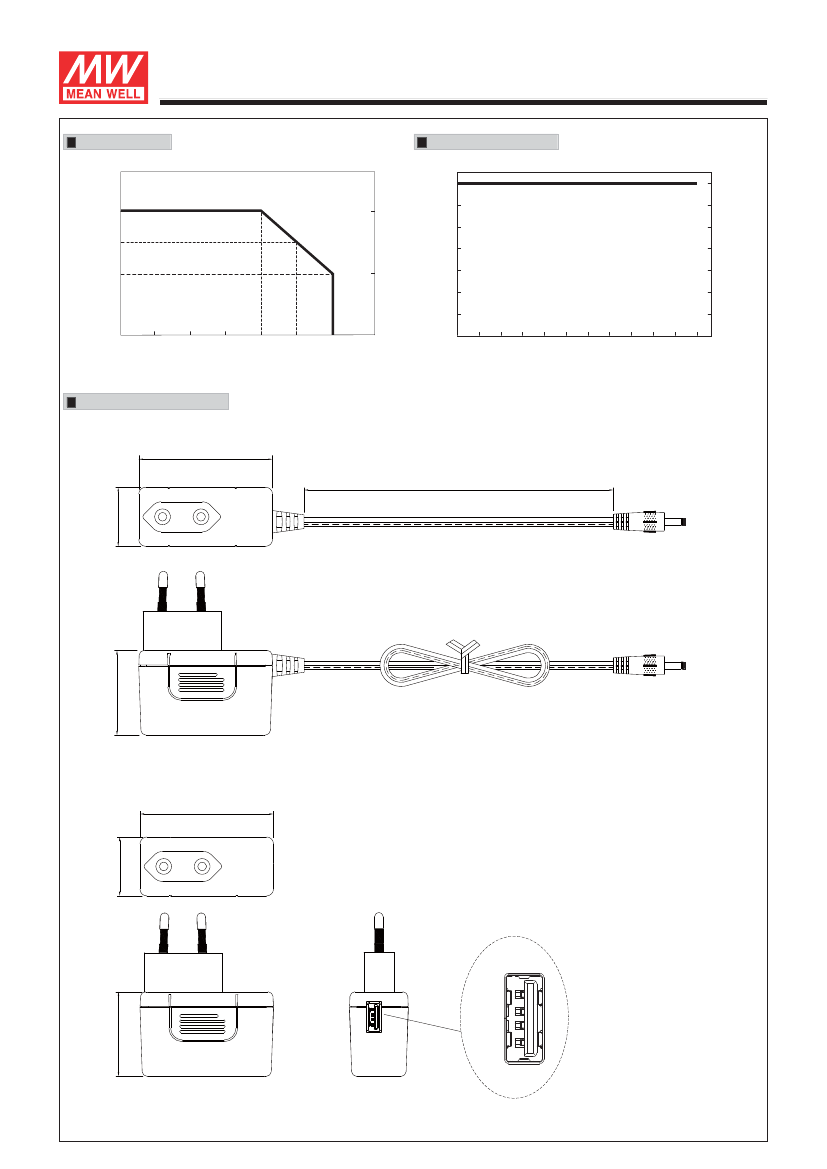

(Refer to "Derating Curve")
20% ~ 90% RH non-condensing
-20 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03% /
℃
(0 ~ 40
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
TUV EN60950-1,
EAC TP TC 004
approved
I/P-O/P:4242VDC
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
120 ~ 250% rated output power
Parameter
Conducted emission
EMC EMISSION
SAFETY &
EMC
(Note. 7)
Standard
EN55032
(CISPR32)
EN55032
(CISPR32)
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 3, 8KV air; Level 2, 4KV contact
Level 2, 3V/m
Level 2, 1KV
Level 3, 1KV/L-N
Level 2, 3V
Level 1, 1A/m
＞
95% dip 0
.
5 periods, 30% dip 25 periods,
＞
95% interruptions 250 periods
Radiated emission
Harmonic current
Voltage flicker
Parameter
ESD
RF field
susceptibility
EMC IMMUNITY
EFT bursts
Surge susceptibility
Conducted susceptibility
Magnetic field
immunity
Voltage dips , interruption
LIFE
OTHERS
MTBF
DIMENSION
PACKING
PLUG
CABLE
3 years : 100% load 40
℃
, 8hours / day
265Khrs min. MIL-HDBK-217F(25
℃
)
62.2*27.4*39.7mm (L*W*H)
100g ; 90pcs / 10kg / CARTON for cable connection ; 59.5g ; 90pcs / 8kg / CARTON for USB connection
See page 4~5 ; Other type available by customer requested
See page 4~5 ; Other type available by customer requested
CONNECTOR
NOTE
1.All parameters are specified at 230VAC input, rated load, 25
℃
70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1
μ
f & 47
μ
f capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:SGA12E-SPEC 2018-04-19
12W AC-DC High Reliability Slim Wall-mounted Adaptor
SGA12E
A
OD
5
.
5
6.5
7.4
B
ID
3.4
4.4
C
L
11.0
11.0
D
series

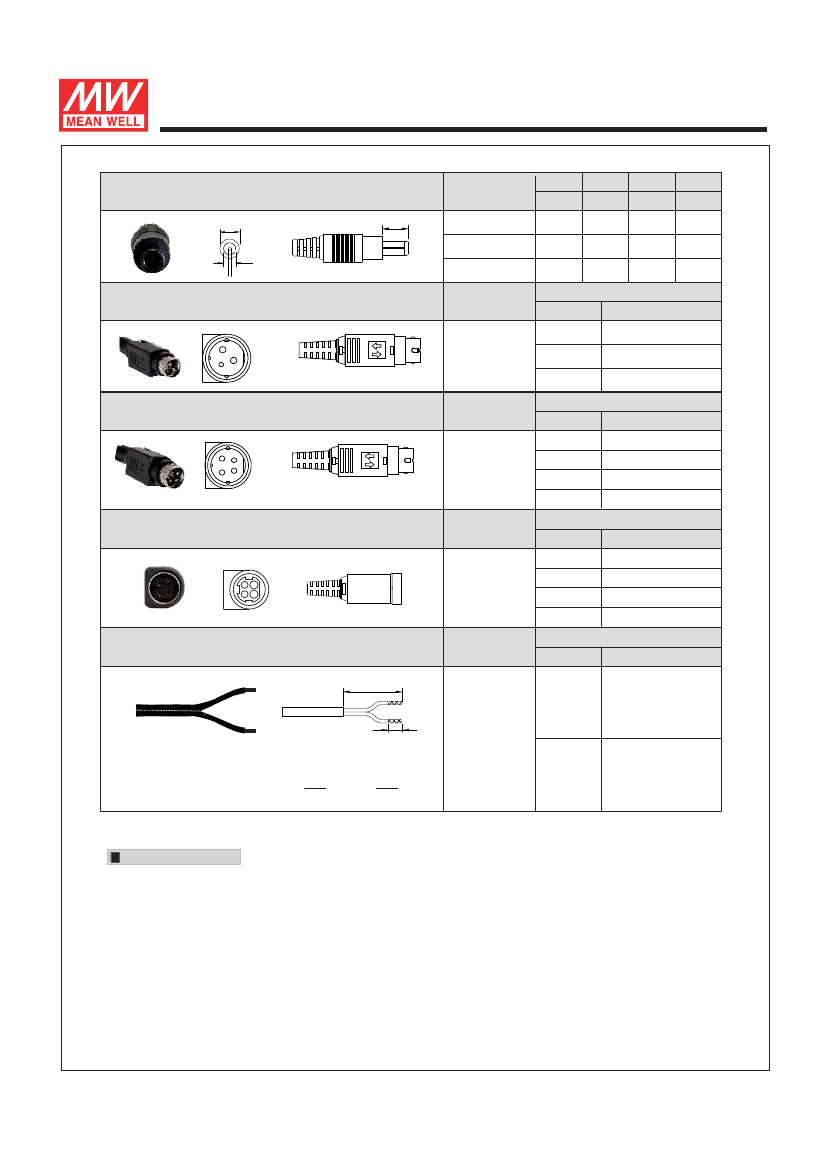

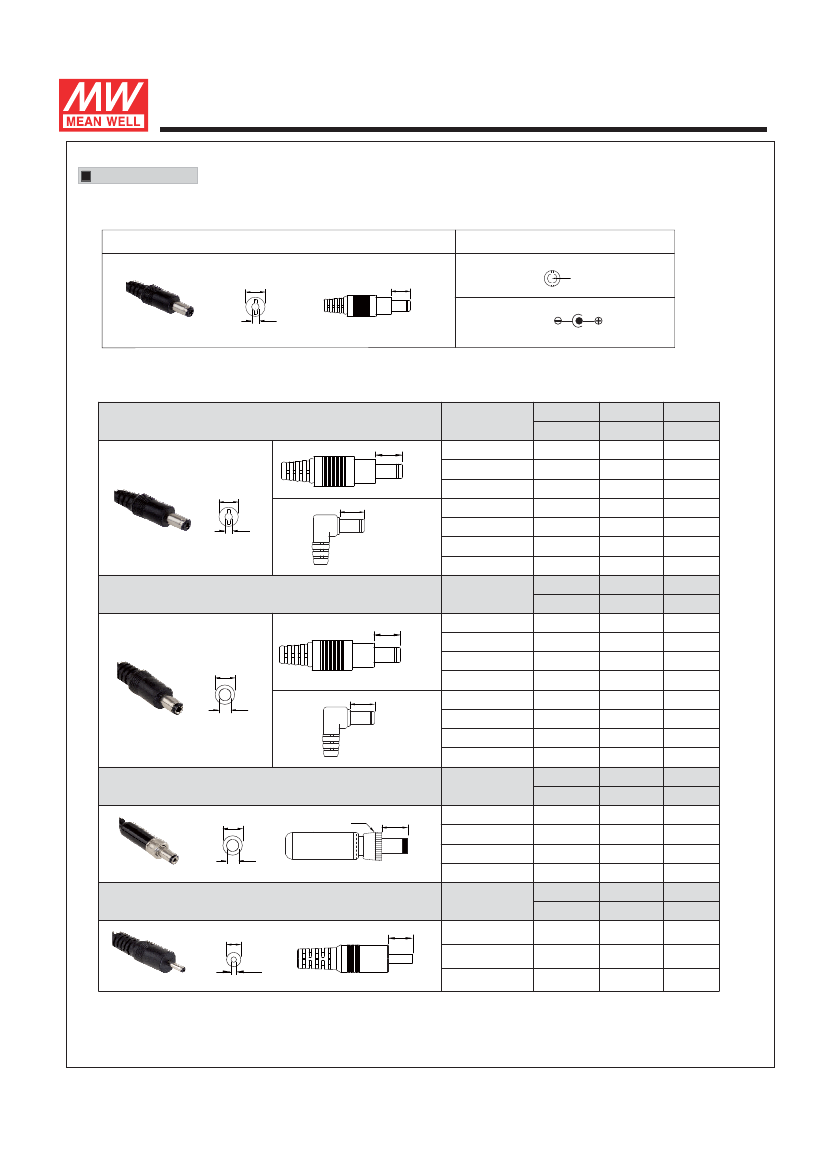

Center Pin Style
A
B
D
Type No.
C
Center Pin
P4A
P4B
P4C
Type No.
1.0
1.4
EIAJ equivalent
Min. DIN 3 Pin with Lock (male)
1
2
3
11.0
0.6
5.1
Pin Assignment
Output
PIN No.
+Vo
1
2
3
-Vo
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
R6B
KYCON
KPPX
-
3P equivalent
Min. DIN 4 Pin with Lock (male)
2 3
1 4
KYCON
KPPX
-
4P equivalent
Type No.
R7B
Min. DIN 4 Pin with Lock (female)
Type No.
23
14
KYCON KPJX-CM-4S equivalent
R7BF
Stripped and tinned leads
L
Type No.
1
2
L1
Length of Land L1 by request
( MW’s standard length, L: 25 mm, L1: 10 mm)
1
( Ribbed )
by customer
2
( Letter )
+Vo
-Vo
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:SGA12E-SPEC 2018-04-19
