SHR-06V-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SHR-06V-S

SHR-06V-S: Description6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP; CategoryThe connector; File Size156KB，3 Pages; ManufacturerETC2

Download Datasheet Parametric View All

SHR-06V-S Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

SHR-06V-S Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Total number of contacts	6
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	SH
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	FEMALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Number of load rows	1
Terminal type	CRIMP
UL flammability code	94V-0

Preview

Download Datasheet

View All

CONNECTOR

Emboss Tape

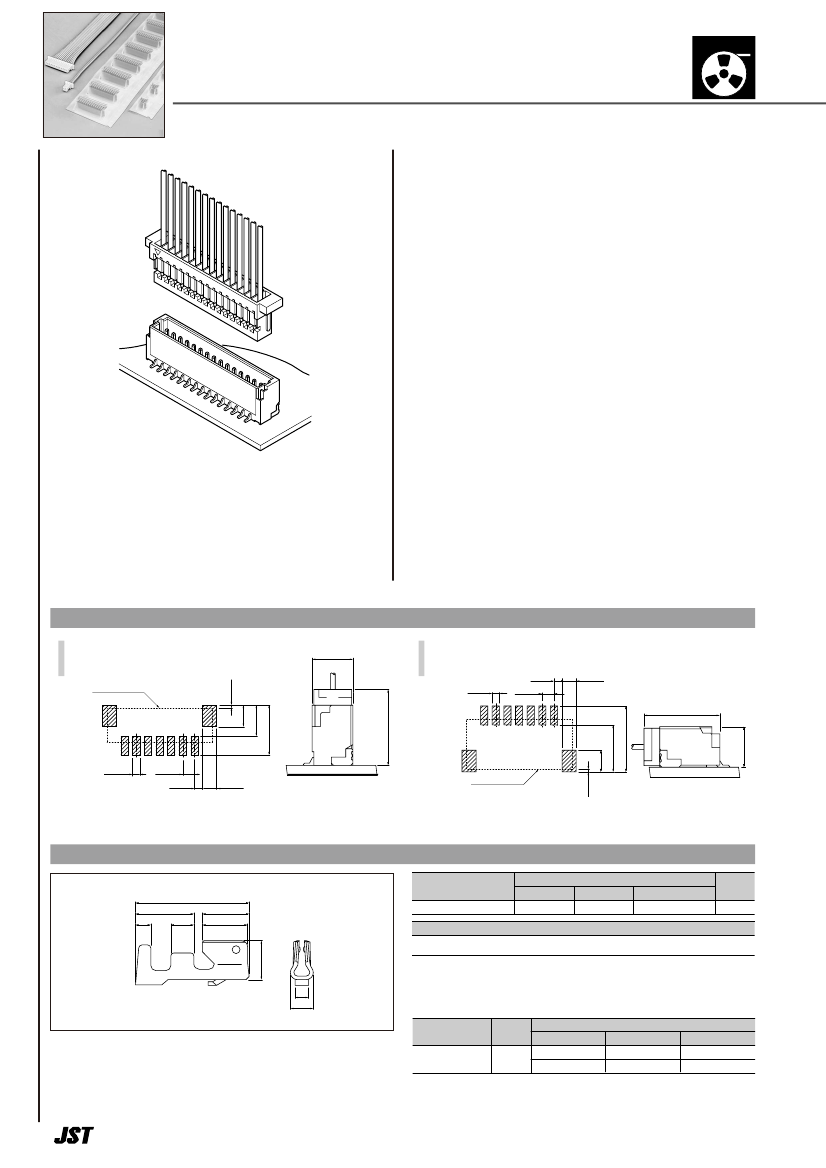

1.0mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #28)

• Voltage rating: 50V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/40m

Ω

max.

• Insulation resistance:

100M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: Conductor size/AWG #32 to #28

Insulation O.D./0.4 to 0.8mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

±0.1

The world's first 1.0mm pitch crimp style

connector.

• Compact, low profile design

• Compatible with the SR insulation

displacement connectors

• Housing lances

PC board layout (viewed from component side) and Assembly layout

Top entry type

Header outline

0.2

±0.1

2.9

2.65

±0.1

1.8

4.2

±0.1

6.3

4.0

±0.1

5.55

±0.1

0.6

±0.05

1.0

±0.05

0.7

±0.1

1.2

±0.1

0.2

±0.1

Header outline

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

Contact

Model No.

3.9

2.0

0.5

0.8

1.6

1.55

Applicable wire

Insulation O.D. (mm)

AWG#

32∼28

0.4∼0.8

1.8

±0.1

Q'ty /

reel

23,000

SSH-003T-P0.2-H

0.032∼0.08

Material and Finish

Phosphor bronze, tin-plated (reflow treatment)

1.35

RoHS compliance

Note: Contact JST for gold-plated products.

0.45

0.8

Contact

Crimping

machine Crimp applicator

MKS-L-10-3

*MKS-SC

Applicator

Dies

Crimp applicator with dies

SSH-003T-P0.2-H

AP-K2N

MK/SSH/L-003-02 APLMK SSH/L003-02

SC/SSH/L-003-02 APLSC SSH/L003-02

Note: *Strip-crimp applicator

Contact JST for applicable wires in case that it is not usable due to wire size.

2.95

Standards ––––––––––––––––––––––

Certified LR20812

Side entry type

Recognized E60389

0.7

±0.1

0.6

±0.05

1.0

±0.05

1.2

±0.1

6.25
