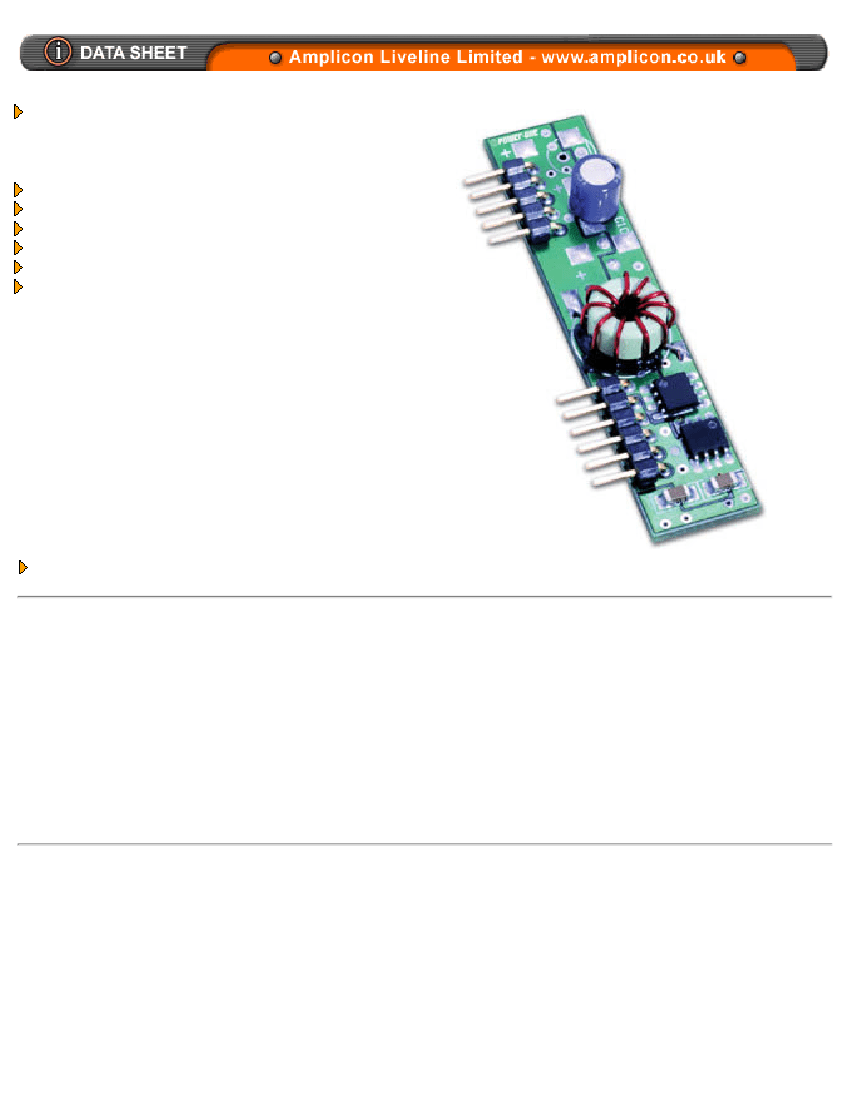

Power-One SIS series - Amplicon
3A, 7A and 12A switching regulators
Power-One SIS series
Thru-hole mount configuration
Single outputs, 3A, 7A and 12A versions
Efficiency in excess of 93%
Output over-current protection
Remote On/Off for system sequencing
Output voltage trim
SPECIFICATIONS
INPUT
Input voltage:
Turn-on input voltage:
Under voltage lockout:
Turn-on time:
Inrush current:
External capacitor, required:
See product selector table
4.3Vdc for 5Vdc nominal input 10.4Vdc for 12Vdc nominal input
4.19Vdc for 5Vdc nominal input 8.2Vdc for 12Vdc nominal input
15ms maximum into 100% resistive load
0.04A²s
4.7µF for 3A versions 100µF for 7A and 12A versions
OUTPUT
Output setpoint accuracy:
Line regulation:
Load regulation:
Total output regulation:
±1.5% Vout
1% Vout
0.5% Vout
3% Vout, all load, input voltage and temperature conditions
http://www.amplicon.co.uk/data/sisseries.html (1 of 5)24/03/2005 03:32:42 ã
Power-One SIS series - Amplicon
Dynamic regulation:
Admissible load capacitance:
Output current limit:
Switching frequency:
Temperature coefficient:
Trim range:
External capacitor required:
On/Off control voltage:
50-25-50 Iout load change Peak deviation: ±50mV pk-pk Settling time: 30µs
nominal
1000µF: 3A versions 2000µF: 7A and 12A versions
115 to 150% of Iout
300kHz nominal, V series 200kHz nominal, X series
0.01%/°C
90 to 110% Vout
4.7µF, 3A versions 100µF, 7A versions 220µF, 12A versions
5.5Vdc referenced to ground
ENVIRONMENTAL AND MECHANICAL
Operating temperature range:
-40* to +55°C
* A ceramic input capacitor for operation down to -40°C of the following value is
needed 4.7µF: 3A versions 100µF: 7A versions 220µF: 12A versions
-40 to +125°C
50g minimum, half-sine wave
1, GR-63-Core, section 5.A.2
5.4 million hours, per Bell core TR-NWT-000332

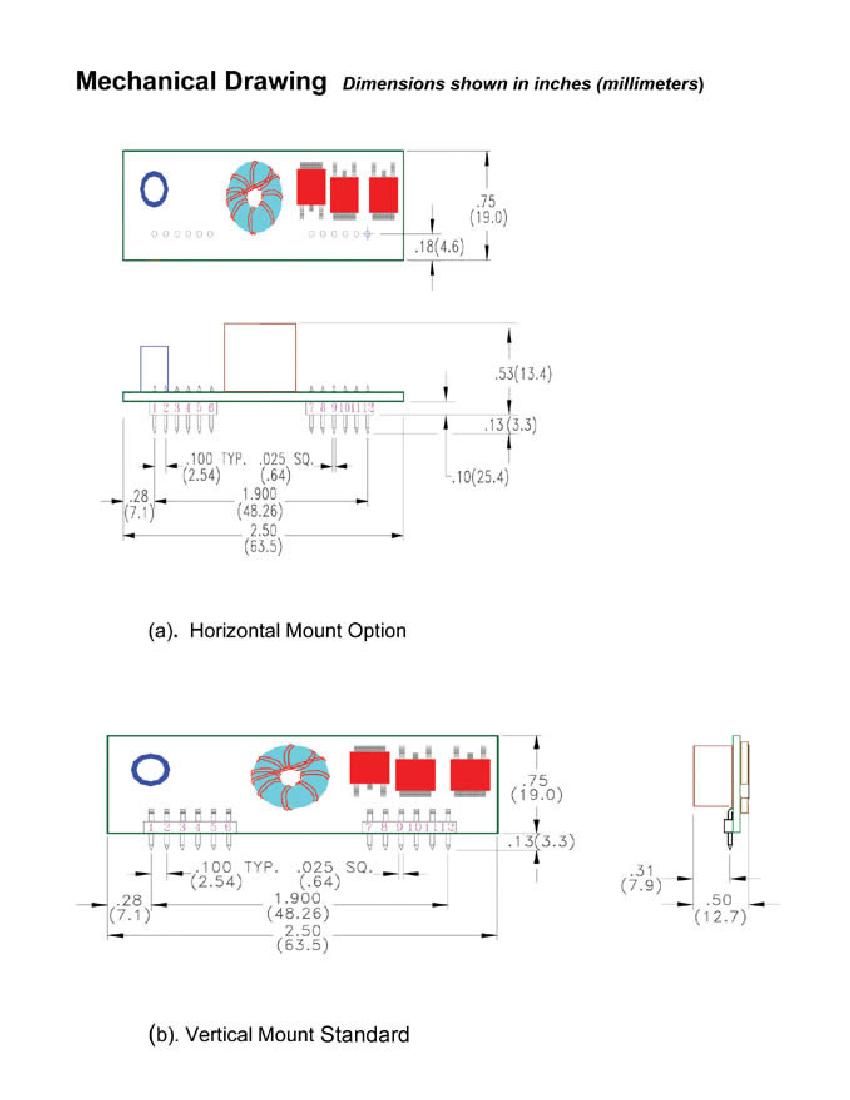

63.5 x 14.0 x 10.4mm vertical mounting 63.5 x 15.0 x 14.0mm horizontal
mounting
Pin outs
Storage temperature range:
Shock 3-axis:
Sinusoidal vibration:
MTBF:
Size:
Connections:
All models
1
Vout +ve
7
Vin +ve
2
Vout +ve
8
Vin +ve
3
+sense
9
Vin +ve
4
Vout +ve
10
trim
5
common
11
on/off
6
common
3A product selector
Type
SIS03VE
SIS03VD
SIS03V2.1
SIS03VB
SIS03VA
Input
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
Output
3.3Vdc @ 3A
2.5Vdc @ 3A
2.1Vdc @ 3A
1.8Vdc @ 3A
1.5Vdc @ 3A
%
93
91
90
88
86
Product Code
96037880
96037881
96037882
96037883
96037884
Price
£16.26
£16.26
£16.26
£16.26
£16.26
http://www.amplicon.co.uk/data/sisseries.html (2 of 5)24/03/2005 03:32:42 ã
Power-One SIS series - Amplicon
SIS03VY
SIS03XE
SIS03XD
SIS03X2.1
SIS03XB
SIS03XA
4.5-5.5Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
1.2Vdc @ 3A
3.3Vdc @ 3A
2.5Vdc @ 3A
2.1Vdc @ 3A
1.8Vdc @ 3A
1.5Vdc @ 3A
84
91
90
88
86
84
96037885
96037886
96037887
96037888
96037889
96037890
£16.26
£16.26
£16.26
£16.26
£16.26
£16.26
7A product selector
Type
SIS07VE
SIS07VD
SIS07V2.1
SIS07VB
SIS07VA
SIS07VY
SIS07XE
SIS07XD
SIS07X2.1
SIS07XB
SIS07XA
Input
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
10.8-13.21Vdc
Output
3.3Vdc @ 7A
2.5Vdc @ 7A
2.1Vdc @ 7A
1.8Vdc @ 7A
1.5Vdc @ 7A
1.2Vdc @ 7A
3.3Vdc @ 7A
2.5Vdc @ 7A
2.1Vdc @ 7A
1.5Vdc @ 7A
1.2Vdc @ 7A
%
91
90
89
87
85
83
90
88
86
83
80
Product Code
96037891
96037892
96037893
96037894
96037895
96037896
96037897
96037898
96037899
96037900
96037901
Price
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
£18.97
12A product selector
Type
SIS12VE
SIS12VD
SIS12V2.1
SIS12VB
SIS12VA
SIS12VY
SIS12XE
SIS12XD
SIS12X2.1
SIS12XB
SIS12XA
Input
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
Output
3.3Vdc @ 12A
2.5Vdc @ 12A
2.1Vdc @ 12A
1.8Vdc @ 12A
1.5Vdc @ 12A
1.2Vdc @ 12A
3.3Vdc @ 12A
2.5Vdc @ 12A
2.1Vdc @ 12A
1.8Vdc @ 12A
1.5Vdc @ 12A
%
91
88
86
84
80
77
88
86
84
81
78
Product Code
96037902
96037903
96037904
96037905
96037906
96037907
96037908
96037909
96037910
96037911
96037912
Price
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
£21.68
http://www.amplicon.co.uk/data/sisseries.html (3 of 5)24/03/2005 03:32:42 ã
Power-One SIS series - Amplicon
http://www.amplicon.co.uk/data/sisseries.html (4 of 5)24/03/2005 03:32:42 ã
Power-One SIS series - Amplicon
Centenary Industrial Estate, Hollingdean Road, Brighton, UK, BN2 4AW
website : www.amplicon.co.uk email : sales@amplicon.co.uk
