Ordering number : ENA1753A
SMA3107
MMIC
Amplifier, 3V, 6mA, 0.1 to 2.8GHz, MCPH6
Features
•
•
•
•
http://onsemi.com
High Gain
Wideband response
Low current
Port impedance
: Gp=23.5dB typ. @1GHz
: fu=2.8GHz
: ICC=6mA typ.
: input/output 50
Ω
Specifications
Absolute Maximum Ratings
at Ta=25
°
C
Parameter
Supply Voltage
Circuit Current
Allowable Power Dissipation
Operating Temperature
Storage Temperature
Symbol
VCC
ICC
PD
Topr
Tstg
Conditions
Ratings
5
15
280
--40 to +85
-
-55 to +150
Unit
V
mA
mW
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7022A-018
SMA3107-TL-E
Product & Package Information
• Package
: MCPH6
• JEITA, JEDEC
: SC-88, SC-70-6, SOT-363
• Minimum Packing Quantity : 3,000 pcs./reel
2.0
0.25
6
5
4
0.15
Packing Type : TL
Marking
LOT No.
LOT No.
2.1
1.6
0 to 0.02
LE
0.25
1
0.65
2
3
0.3
TL
0.85
1
2
3
1 : VCC
2 : GND
3 : OUT
4 : GND
5 : GND
6 : IN
MCPH6
0.07
6
5
4
Semiconductor Components Industries, LLC, 2013
August, 2013
D0512 TKIM TC-00002857/62310AM TKIM TC-00002385 No. A1753-1/7
SMA3107
Recommended Operating Condition
at Ta=25
°
C
Parameter
Supply Voltage
Operating Ambient Temperature
Symbol
VCC
Topr
Conditions
Ratings
min
2.7
--40
typ
3
+25
max
3.3
+85
Unit
V
°C
Electrical Characteristics
at Ta=25°C, VCC=3V, Zs=ZL=50
Ω
Parameter
Circuit Current
Power Gain
Isolation
Input Return Loss
Output Return Loss
Noise Figure
Gain 1dB Compression Output Power
Upper Limit Operating Frequency
Symbol
ICC
Gp
ISL
RLin
RLout
NF
Po(1dB)
fu
f=1GHz
f=2.2GHz
f=1GHz
f=2.2GHz
f=1GHz
f=2.2GHz
f=1GHz
f=2.2GHz
f=1GHz
f=2.2GHz
f=1GHz
f=2.2GHz
3dB down below flat gain at f =1GHz
--10
-
-11.5
Conditions
Ratings
min
4.3
21.0
22.0
33.0
40.0
18.0
10.0
27.0
10.0
typ
6.0
23.5
24.5
38.0
45.0
23.0
13.0
32.0
13.0
3.1
3.6
--8
-
-9.5
2.8
4.3
4.3
max
7.7
26.0
27.0
Unit
mA
dB
dB
dB
dB
dB
dBm
GHz
Note) Pay attention to handling since it is liable to be affected by static electricity due to the high frequency process adopted.
Ordering Information
Device
SMA3107-TL-E
Package
MCPH6
Shipping
3,000pcs./reel
memo
Pb Free
Test Circuit
100pF
IN
6
5
4
1
2
3
100pF
OUT
1000pF
VCC
Connect 2, 4 and 5 with GND.
IT15570
No. A1753-2/7
SMA3107
Evaluation Board
IN
C1
C2
C3
OUT
VCC
Symbol
C1, C2
C3
Value
100pF
1000pF
10
ICC -- VCC
Circuit Current, ICC -- mA
8
6
4
2
0
0
1
2
3
4
IT15571
0
Circuit Voltage, VCC -- V
35
Gp -- f
RLin -- f
3.3V
Input Return Loss,
RLin
-- dB
30
3.0V
Power Gain , Gp -- dB
25
3.3V
2.7V
--10
3.0V
2.7
V
--20
20
--30
15
10
--40
5
0
1000
2000
3000
4000
IT15572
--50
0
1000
2000
3000
4000
IT15573
Frequency, f -- MHz
Frequency, f -- MHz
No. A1753-3/7
SMA3107
--20
ISL -- f
Output Return Loss,
RLout
-- dB
0
RLout -- f
--30
--10
Isolation, ISL -- dB
2.7V
--40
--60
--40
--70
0
1000
2000
3000
4000
IT15574
--50
0
1000
2.7
V
2000
--50
3.3
V
--30
3.0V
3.3
V
3.0V
--20
3000
4000
IT15575
Frequency, f -- MHz
5
Pout -- Pin
Frequency, f -- MHz
5
Pout -- Pin
VCC=3.0V
f=1.0GHz
0
VCC=3.0V
f=2.2GHz
0
Output Level, Pout -- dBm
--5
Output Level, Pout -- dBm
--20
--5
--10
--10
--15
--15
--20
--20
--25
--60
--50
--40
--30
--10
0
IT15576
--25
--60
--50
--40
--30
--20
--10
0
IT15577
Input Level, Pin -- dBm
Input Level, Pin -- dBm
S Parameter
S11
50
25
10
100
250
25
10
S22
50
100
250
2GHz
0
10
25
50
3GHz
100
250
3GHz
0
10
25
50
1GHz
100
250
1GHz
2GHz
--10
--25
--50
--250
--100
IT15578
--10
--250
--25
--50
--100
IT15579
No. A1753-4/7
SMA3107

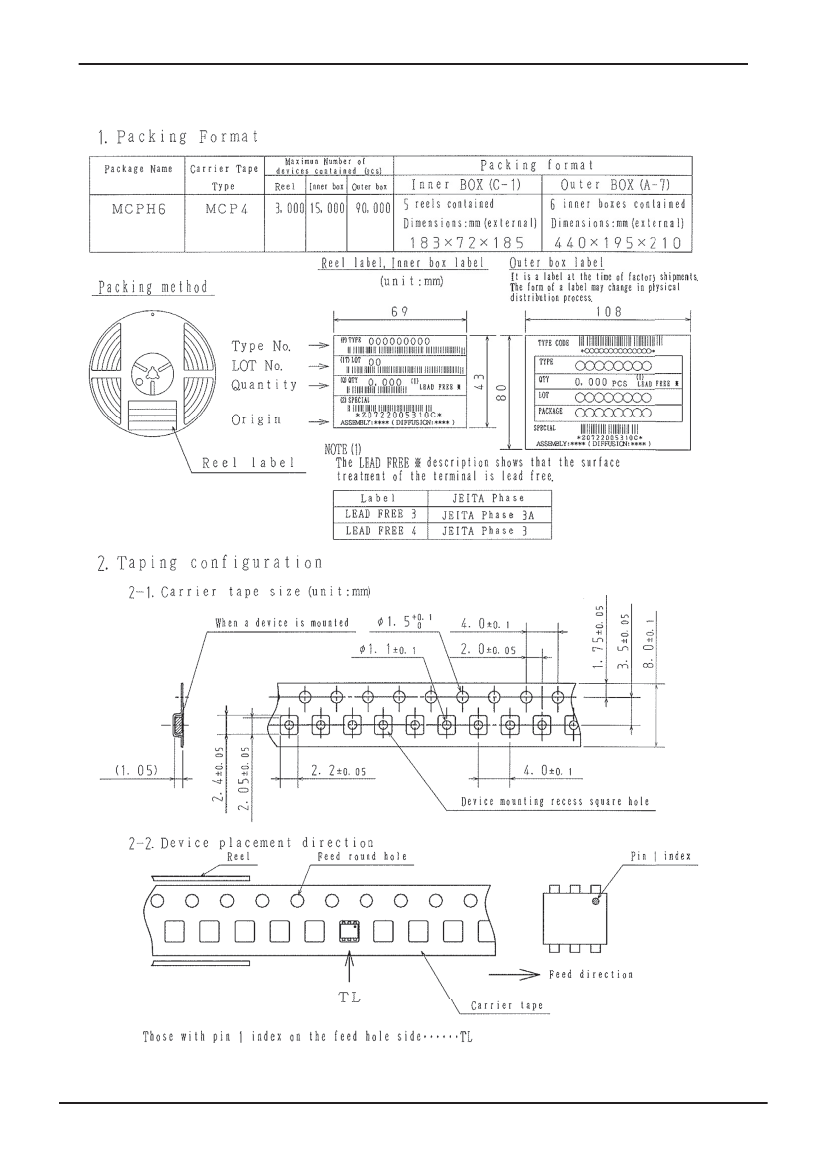

Embossed Taping Specification
SMA3107-TL-E
No. A1753-5/7
