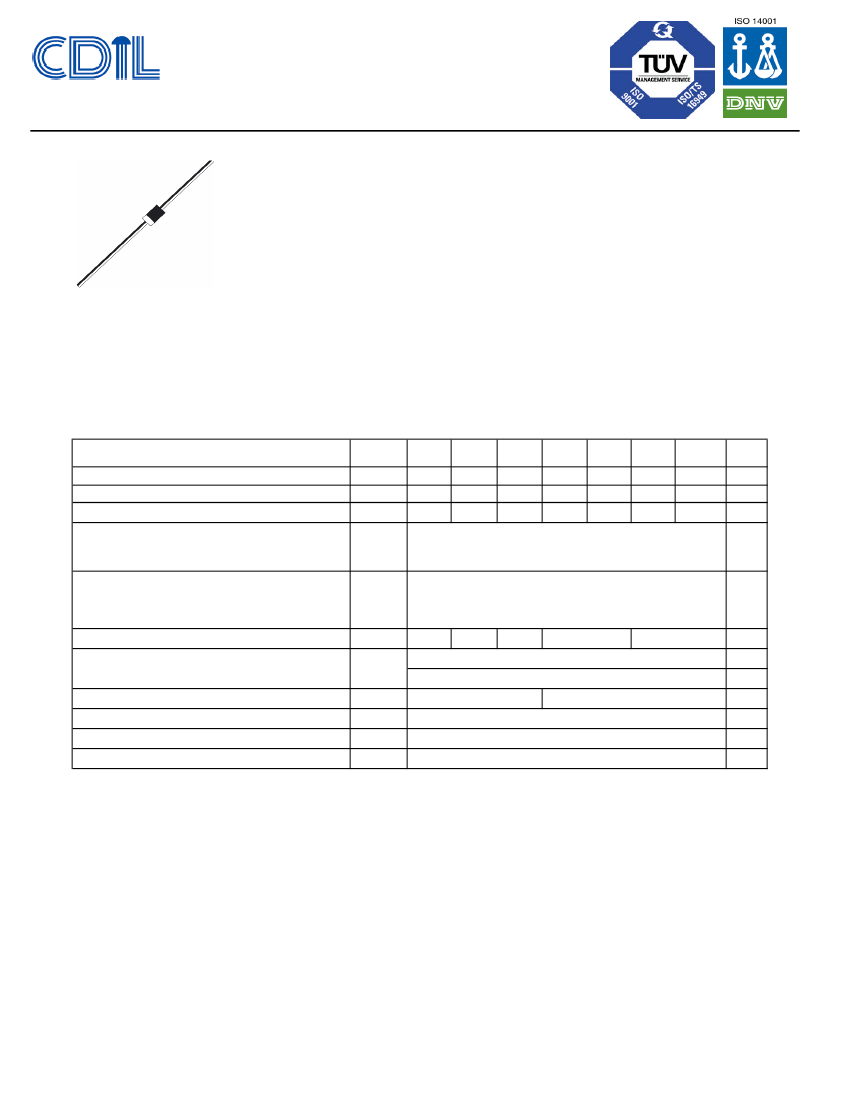

SCHOTTKY BARRIER RECTIFIERS
SR120 to SR1100
DO-41P
Axial Lead Plastic
Package
For use in Low Voltage, High Frequency Inverters, Free Wheeling and Polarity Protection Applications
Polarity: Colour band denotes cathode end
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at T
a
=25 C Ambient Temperature unless otherwise specified. Single phase, half wave, 60Hz,
resistive or inductive load. For capacitive load, derate current by 20%
ELECTRICAL CHARACTERISTICS
DESCRIPTION
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
0.375" (9.5mm) Lead Length at T
L
=100ºC
Peak Forward Surge Current, 8.3ms single
half sine wave superimposed on rated load
(JEDEC method)
Maximum Forward Voltage at 1.0 A
Maximum DC Reverse Current
at T
j
=25 C
o
o
o
SYMBOL SR120 SR130 SR140 SR150 SR160 SR180 SR1100 UNIT
V
RRM
V
RMS
V
DC
I
(AV)
20
14
20
30
21
30
40
28
40
50
35
50
1.0
60
42
60
80
56
80
100
70
100
V
V
V
A
I
FSM
V
F
I
R
*C
J
**R
th (J-L)
T
J
T
stg
110
0.45
0.55
0.6
40
0.7
1.0
10
80
15
- 55 to +150
- 55 to +150
o
A
0.85
V
mA
mA
pF
C/W
o
o
at Rated DC Blocking Voltage at T
j
=100 C
Typical Junction Capacitance
Typical Thermal Resistance
Operating Junction Temperature Range
Storage Temperature Range
C
C
*Measured at 1MHz and applied reverse voltage of 4.0 V
**Thermal Resistance Junction to Lead
SR120_1100 Rev110607E
Continental Device India Limited
Data Sheet
Page 1 of 5
SR120 to SR1100
DO-41P
Axial Lead Plastic
Package
DO-41P Axial Lead Plastic Package
52mm - DO-41P Package
DIM
Min Max
A
25.40
B
4.20 5.20
C
0.70 0.90
D
2.00 2.70
All Dimensions are in mm
26mm - DO-41P Package
DIM
Min
Max
A
14.60
B
4.10
5.20
C
0.71
0.86
D
2.00
2.70
All Dimensions are in mm
SR120_1100 Rev110607E
Continental Device India Limited
Data Sheet
Page 2 of 5
SR120 to SR1100
DO-41P
Axial Lead Plastic
Package

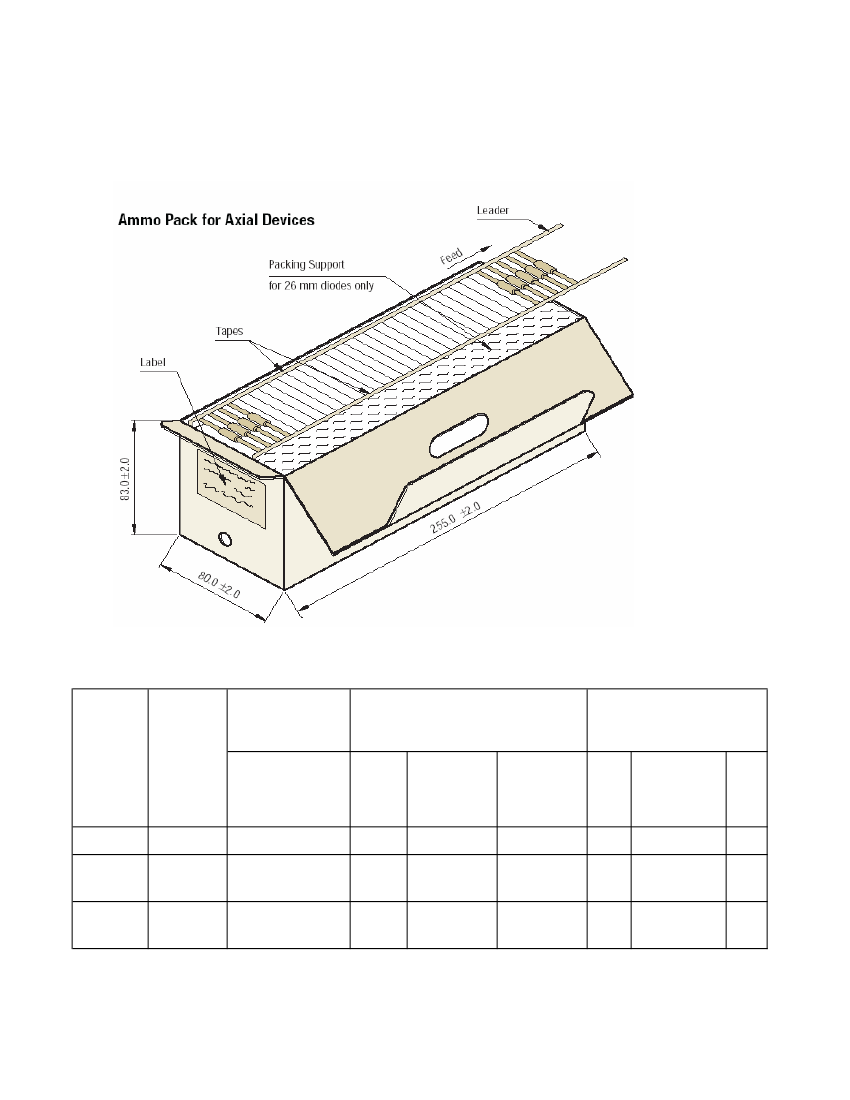

AMMO PACKING FOR DO-41P
All Dimensions are in mm
Packaging Information
Std. Packing
Inner Carton
Outer Carton
Package/
Packaging
Type
Case Type
Qty
Qty
Size L x W x
Gross Weight
H
(cm)
(Kg)
1.96
Qty
Gross
Size L x W x H Weig
ht
(cm)
(Kg)
17.5
DO-41P
(52mm)
DO-41P
(26mm)
T&A
5,000
5K
27 x 8 x 14
45K
46 x 35 x 25
T&A
3,000
50 x 6.5 x 31
T & A: Tape and Ammo Pack
SR120_1100 Rev110607E
Continental Device India Limited
Data Sheet
Page 3 of 5
SR120 to SR1100
DO-41P
Axial Lead Plastic
Package
AXIAL TAPE FOR DO-41P
DO-41P 52 mm Tape
DIM
A
B
Min
50.0
Max
54.0
DO-41P 26 mm Tape
DIM
A
B
C
D
E
F
Min
26.0
50.0
5.00
4.50
Max
26.4
60.0
6.00
1.5R
5.50
0.8
95.0 105.0
C
5.60 6.50
D
1.5R
E
9.50 10.50
F
1.25
All Dimensions are in mm
TAPE SPECIFICATIONS
1. 300 mm (Min) leader tape on every roll.
2. No. of empty places allowed 0.25% without consecutive empty places.
3. Ends of leads shall normally not protrude beyond the tapes.
4. Components shall be held sufficiently in the tape or tapes so that
they can not come free in normal handling.
SR120_1100 Rev110607E
Continental Device India Limited
Data Sheet
Page 4 of 5
SR120 to SR1100
DO-41P
Axial Lead Plastic
Package
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE)
.
Customer Note
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for
application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to
confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on
the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdilsemi.com
SR120_1100 Rev140607E
Continental Device India Limited
Data Sheet
Page 5 of 5
