GENERAL INFORMATION

AVX SR Series

Conformally Coated Radial Leaded MLC

Temperature Coefficients:

C0G (NP0), X7R, Z5U

200, 100, 50 Volts (300V, 400V & 500V also available)

Case Material:

Epoxy

Lead Material:

Solderable

L.S.

.762/.030

Nom.

Max.

Styles SR22, SR27

1.0" Min.

H Max.

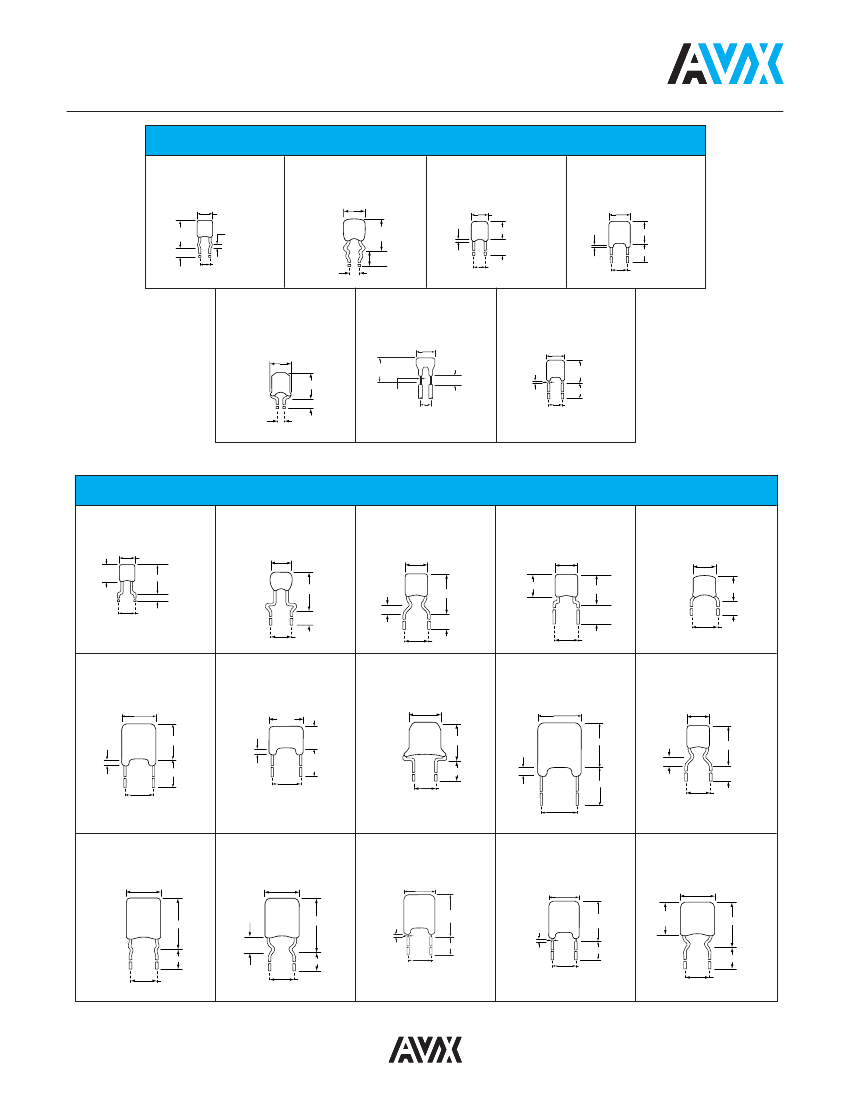

Dimensions: Millimeters (Inches)

Max.

H Max.

Max.

1.52/.060

Max.

1.0" Min.

Nom.

Max.

See Note

L.S.

.762/.030

Styles SR15, SR20,

SR30, SR40, SR50

H Max.

Nom.

Max.

See Note

1.0" Min.

L.S.

.762/.030

Note: Coating clean .784/.031 min.

above seating plane

Style SR21

HOW TO ORDER

SR21

AVX Style

SR15

SR20

SR21

SR22

SR27

SR30

SR40

SR50

Voltage

5 = 50V

1 = 100V

2 = 200V

9 = 300V

8 = 400V

7 = 500V

Temperature

Coefficient

A = C0G (NP0)

C = X7R

E = Z5U

104

Capacitance

First two digits are the significant

figures of capacitance. Third digit

indicates the additional number of

zeros. For example, order

100,000 pF as 104. (For values

below 10pF use “R” in place of

decimal point, e.g., 1R4 = 1.4pF.)

Capacitance

Tolerance

C0G (NP0):

C = ±.25pF

D = ±.5pF

F = ±1%

(>50pF only)

G = ±2%

(>25pF only)

J = ±5%

K = ±10%

X7R:

J = ±5%

K = ±10%

M = ±20%

Z5U:

M = ±20%

Z = +80%

-20%

Failure Rate

A = Not Applicable

Leads

T = Trimmed Leads

.230" ± .030"

A = Long Leads

1.0" minimum

(Other lead lengths

are available,

contact AVX)

R = RoHS

Long Lead

1.0" minimum

MARKING

FRONT

XXX

X X X

Capacitance Code

Tolerance Code

Voltage Code

Temp. Char. Code

PACKAGING REQUIREMENTS

BACK

XXX

A XX

3 Digit Date Code

Lot Code

AVX Logo

SR15, 20, 21, 22, 27, 30

SR40, 50

Quantity per Bag

1000 Pieces

500 Pieces

Note: SR15, SR20, SR21, SR30, and SR40 available on tape and reel per EIA

specifications RS-468. See Pages 29 and 30.
