TA020-060-40-35
REV.0_11/20/2008
2.0 – 6.0 GHz 35dBm Amplifiers
FEATURES
•
P
-1
dB: 35dBm(min.)
•
Noise Figure: 4.5dB
•
Bias Condition: 4.2 A @ 12 V
•
Small Signal Gain: 40dB(min.)
ELECTRICAL SPECIFICATIONS (Specified at 25
°
C)
Symbol
FREQ
SSG
GOF
P
-1
dB
IP3
NF
VSWR, IN
VSWR, OUT
Vdc
Idc
OTR
Description
Frequency Range
Small Signal Gain
Small Signal Gain Flatness
Output Power at 1 dB Gain Compression
The 3
rd
intercept Point
Noise Figure
Input VSWR
Output VSWR
DC Supply Voltage(internal regulator included)
Min.
2
40
35
Typ.
44
±
1.0
45
4.5
Max.
6
Unit
GHz
dB
dB
dBm
dB
-
-
Volt
A
°C
11
-30
Current Supply
Operating Temperature Range
12
4.2
2.0:1
2.0:1
15
70

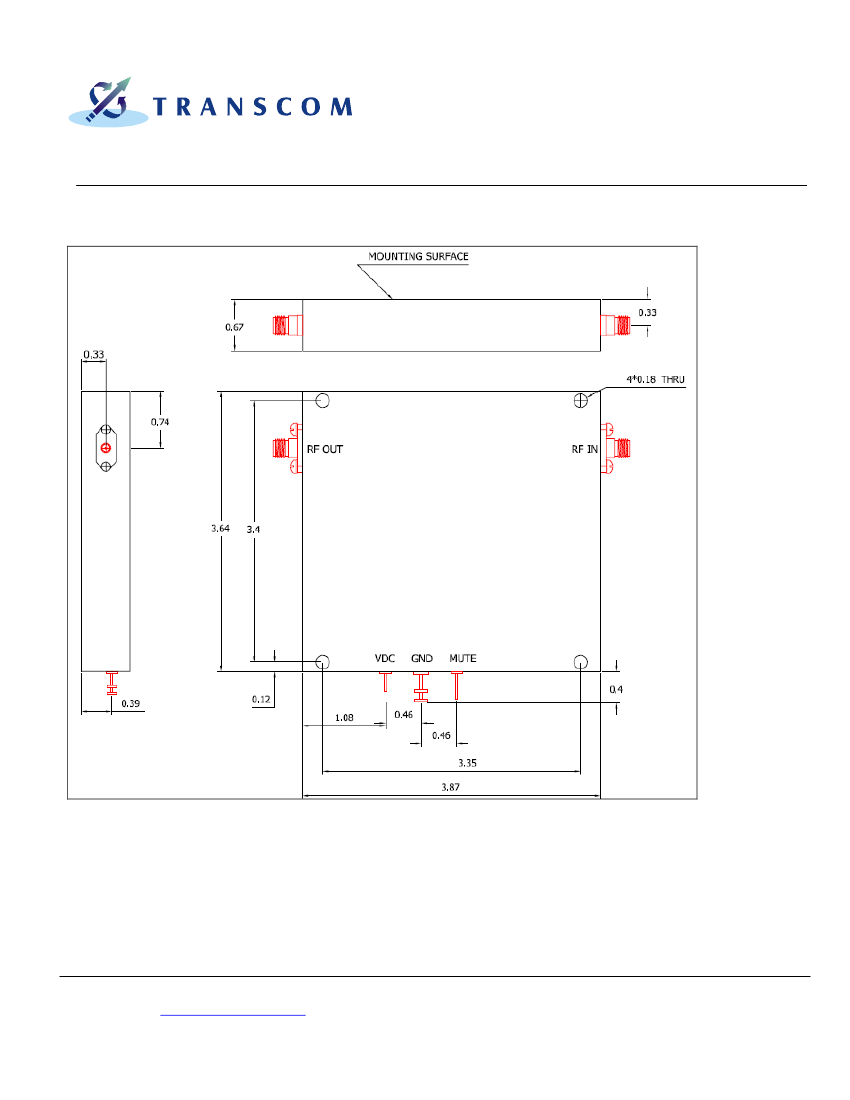

CASE: HA2, as shown attached, unit is in inch.
TRANSCOM, INC.,
90 Dasoong 7
th
Road, Tainan Science-Based Industrial Park, Hsin-She Dist., Tainan City., Taiwan
Web-Site: www.transcominc.com.tw
Phone: 886-6-5050086
Fax: 886-6-5051602
P1/2
TA020-060-40-35
REV.0_11/20/2008
(Not functional)
TRANSCOM, INC.,
90 Dasoong 7
th
Road, Tainan Science-Based Industrial Park, Hsin-She Dist., Tainan City., Taiwan
Phone: 886-6-5050086
Fax: 886-6-5051602
Web-Site:
www.transcominc.com.tw
P2/2
