TGL2207-SM
2.0-6.5 GHz 100 Watt VPIN Limiter
Applications
•
Receive Chain Protection
•
Commercial and Military Radar
5 mm x 5 mm QFN Package
Product Features
•
•
•
•
•
•
•
•
•
Frequency Range: 2.0 to 6.5 GHz
Insertion Loss: < 1.0 dB
Peak Power Handling: 100 W (pulsed)
Flat Leakage: < 15.5 dBm
Passive (no DC bias required)
Integrated DC Block on output
Spike Leakage < 16.0 dBm
Recovery time < 115 ns
Package Dimensions: 5.0 mm x 5.0 mm x 1.45 mm

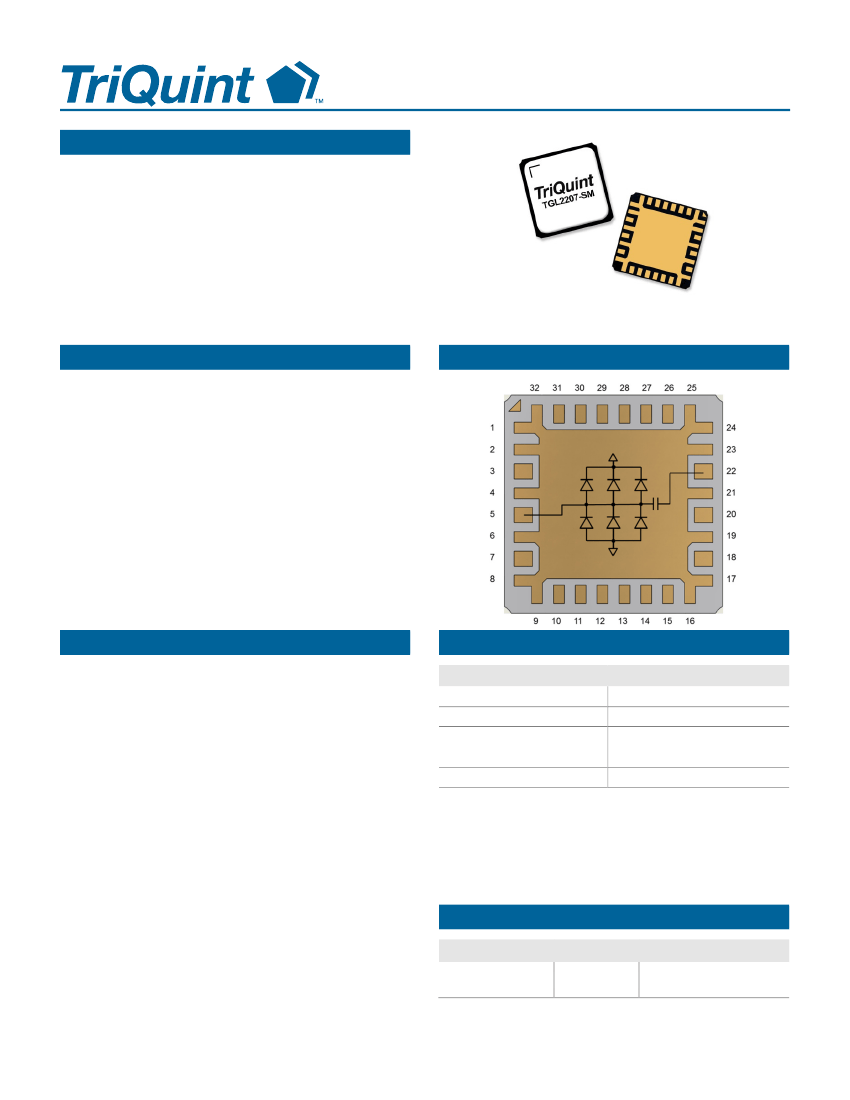

Functional Block Diagram
General Description
The TriQuint TGL2207-SM is a high power, wideband
GaAs VPIN limiter capable of protecting sensitive
receive channel components against high power
incident signals. The TGL2207-SM does not require DC
bias and achieves a low insertion loss all in a small form
factor. These features allow for simple integration with
minimal impact to system performance.
The TGL2207-SM operates from 2.0 to 6.5 GHz with
low insertion loss of less than 1.0 dB. It can limit up to
100 W incident pulsed-power with a low flat leakage of
less than 15.5 dBm.
The TGL2207-SM is offered in a 5x5 mm air-cavity QFN
packaged limiter comprised of an aluminum-nitride
base with a plastic epoxy-sealed lid. It is well suited for
both commercial and defense related applications.
Lead-free and RoHS compliant.
Evaluation boards available on request.
Datasheet: Rev - 05-14-14
© 2014 TriQuint
Pad Configuration
Pad Number
5
22
Symbol
RF Input
RF Output
1, 2, 4, 6, 8, 9, 16, 17, 19,
GND
21, 23, 24, 25, 32
3, 7, 10-15, 18, 20, 26-31 No connection
NOTE: the RF Input and Output ports are not
interchangeable.
Ordering Information
Part
TGL2207-SM
ECCN
EAR99
Description
2.0-6.5 GHz 100W
VPIN Limiter
- 1 of 11 -
Disclaimer: Subject to change without notice
www.triquint.com
TGL2207-SM
2.0-6.5 GHz 100 Watt VPIN Limiter
Absolute Maximum Ratings
Parameter
Incident Power, CW or Pulsed, 50
Ω,
25 °
C
Incident Power, CW or Pulsed, 50
Ω,
85 °
C
Mounting Temperature
(30 Seconds)
Storage Temperature
Recommended Operating Conditions
Value
100W
70W
320 °
C
Parameter
Passive – No bias
Value
Electrical specifications are measured at specified test
conditions. Specifications are not guaranteed over all operating
conditions.
-40 to 150 °
C
Operation of this device outside the parameter ranges
given above may cause permanent damage. These are
stress ratings only, and functional operation of the device
at these conditions is not implied.
Electrical Specifications
Test conditions unless otherwise noted: 25 C, Tuned EVB Results
Parameter
Operational Frequency Range
Insertion Loss
Input Return Loss
Output Return Loss
Flat Leakage Power at P
IN
> 30 dBm
Pulse Recovery Time
Spike Leakage
Insertion Loss Temperature Coefficient
Min
2.0
Typical
< 1.0
15
15
< 15.5
< 115
< 16.0
0.003
Max
6.5
Units
GHz
dB
dB
dB
dBm
ns
dBm
dB/ °
C
Thermal and Reliability Information
Parameter
Incident Power
(168 Hours RF Operational Life Test
(1)
)
Test Conditions
Frequency = 4.5 GHz, CW, 50
Ω,
25 °
C
Frequency = 4.5 GHz, Pulsed, PW=10 us,
DC=10%, 50
Ω,
25 °
C
Value
31
100
Units
W
W
Notes:
1. Test was terminated at 168 hours. Insertion Loss remained
≤
1 dB for device under test.
Datasheet: Rev - 05-14-14
© 2014 TriQuint
- 2 of 11 -
Disclaimer: Subject to change without notice
www.triquint.com
TGL2207-SM
2.0-6.5 GHz 100 Watt VPIN Limiter

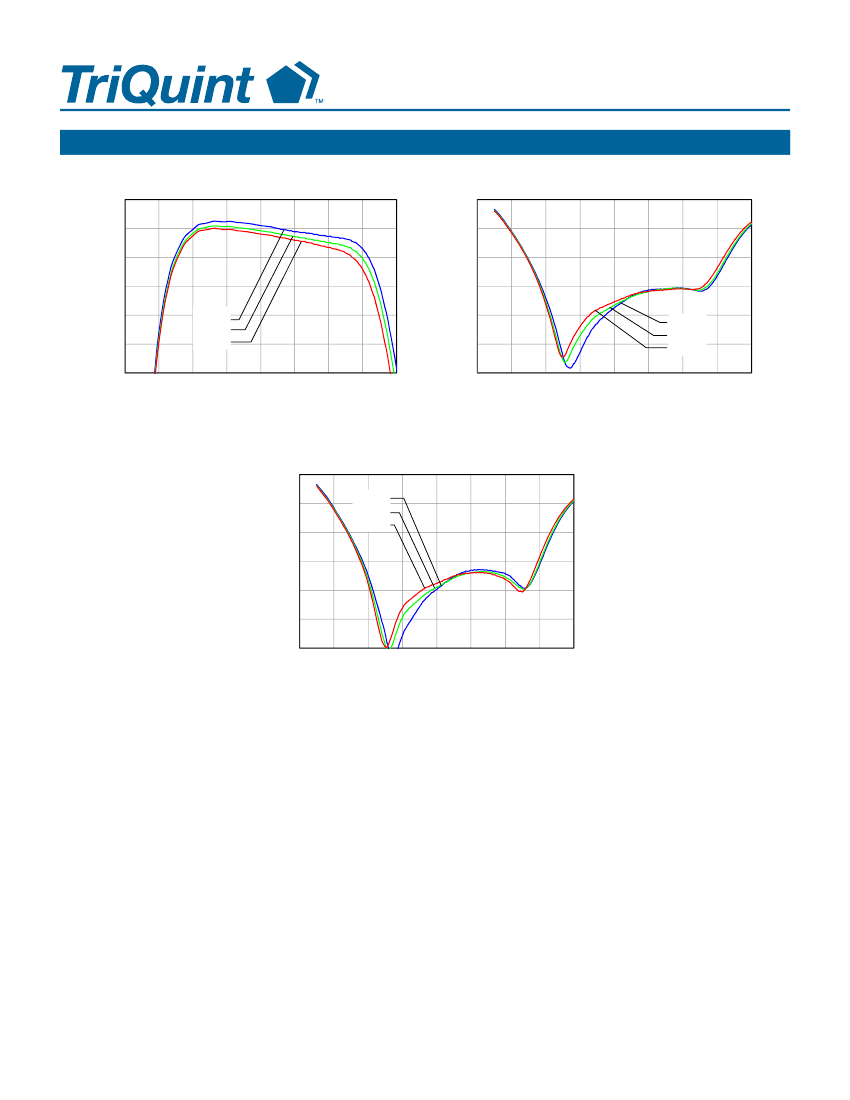

Typical Performance – Tuned EVB Performance
Test conditions unless otherwise noted: 25 °
C
0.0
-0.5
Insertion Loss vs. Frequency vs. Temp.
Input Return Loss (dB)
0
-5
-10
-15
-20
-25
-30
Input Return Loss vs. Freq. vs. Temp.
Insertion Loss (dB)
-1.0
-1.5
-2.0
-2.5
-3.0
0
1
2
3
4
5
6
7
8
- 40 °
C
+25 °
C
+85 °
C
- 40 °C
+25 °
C
+85 °
C
0
1
2
3
4
5
6
7
8
Frequency (GHz)
Frequency (GHz)
0
Output Return Loss vs. Freq. vs. Temp.
- 40 °
C
+25 °
C
+85 °
C
Output Return Loss (dB)
-5
-10
-15
-20
-25
-30
0
1
2
3
4
5
6
7
8
Frequency (GHz)
Datasheet: Rev - 05-14-14
© 2014 TriQuint
- 3 of 11 -
Disclaimer: Subject to change without notice
www.triquint.com
TGL2207-SM
2.0-6.5 GHz 100 Watt VPIN Limiter

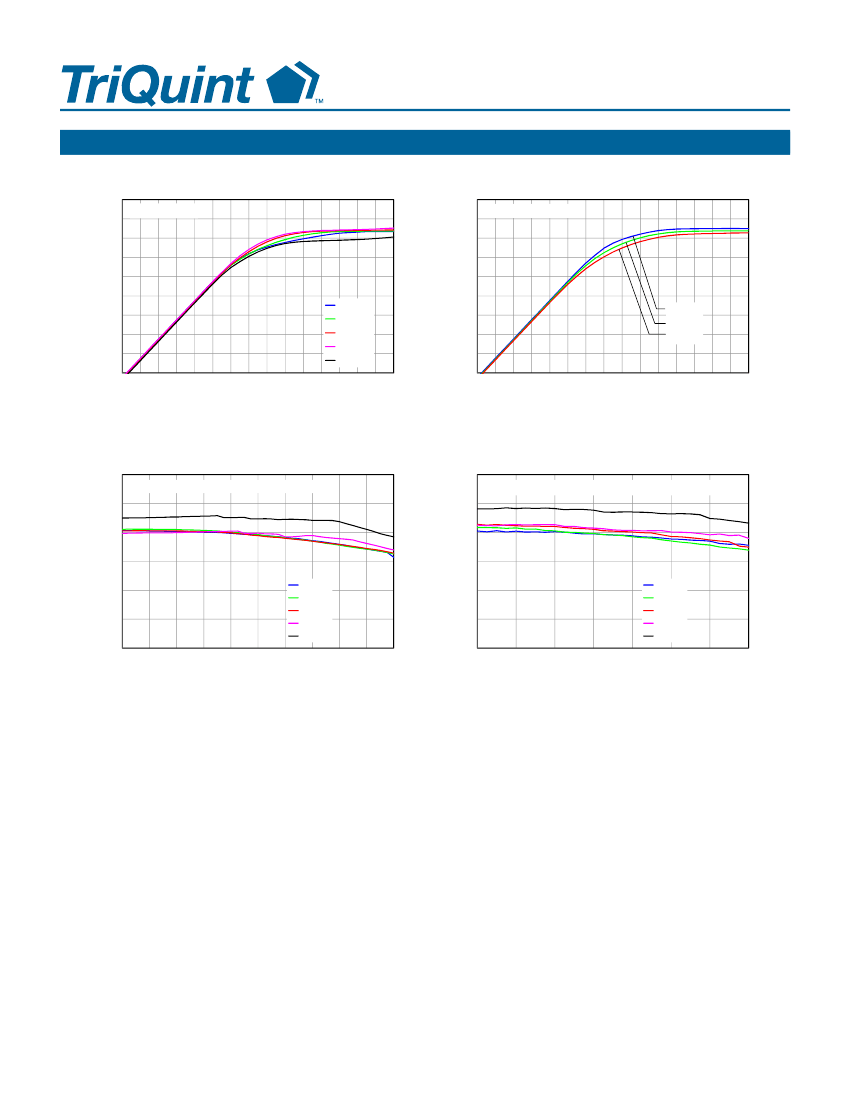

Typical Performance – Tuned EVB Performance
Test conditions unless otherwise noted: 25 ° CW Input Power
C,
18
16
Output Power vs. Input Power vs. Freq.
Temp. = 25
°C
18
16
Output Power vs. Input Power vs. Temp.
Frequency = 3.5 GHz
14
12
10
8
6
4
2
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
2.0 GHz
3.0 GHz
4.0 GHz
5.0 GHz
6.0 GHz
Output Power (dBm)
Output Power (dBm)
14
12
10
8
6
4
2
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
- 40 °
C
+25 °C
+85 °C
Input Power (dBm)
Input Power (dBm)
17
16
15
14
13
12
11
30
Output Power vs. Pin vs. Frequency
CW Pin, Temp. = 25
°C
17
16
15
14
13
12
11
Output Power vs. Pin vs. Frequency
Pulsed Pin: 100us/10%, Temp. = 25
°C
Output Power (dBm)
2.1 GHz
2.5 GHz
3.0 GHz
3.5 GHz
3.7 GHz
Output Power (dBm)
2.1 GHz
2.5 GHz
3.0 GHz
3.5 GHz
3.7 GHz
32
34
36
38
40
42
44
46
48
50
36
38
40
42
44
46
48
50
Input Power (dBm)
Input Power (dBm)
Datasheet: Rev - 05-14-14
© 2014 TriQuint
- 4 of 11 -
Disclaimer: Subject to change without notice
www.triquint.com
TGL2207-SM
2.0-6.5 GHz 100 Watt VPIN Limiter

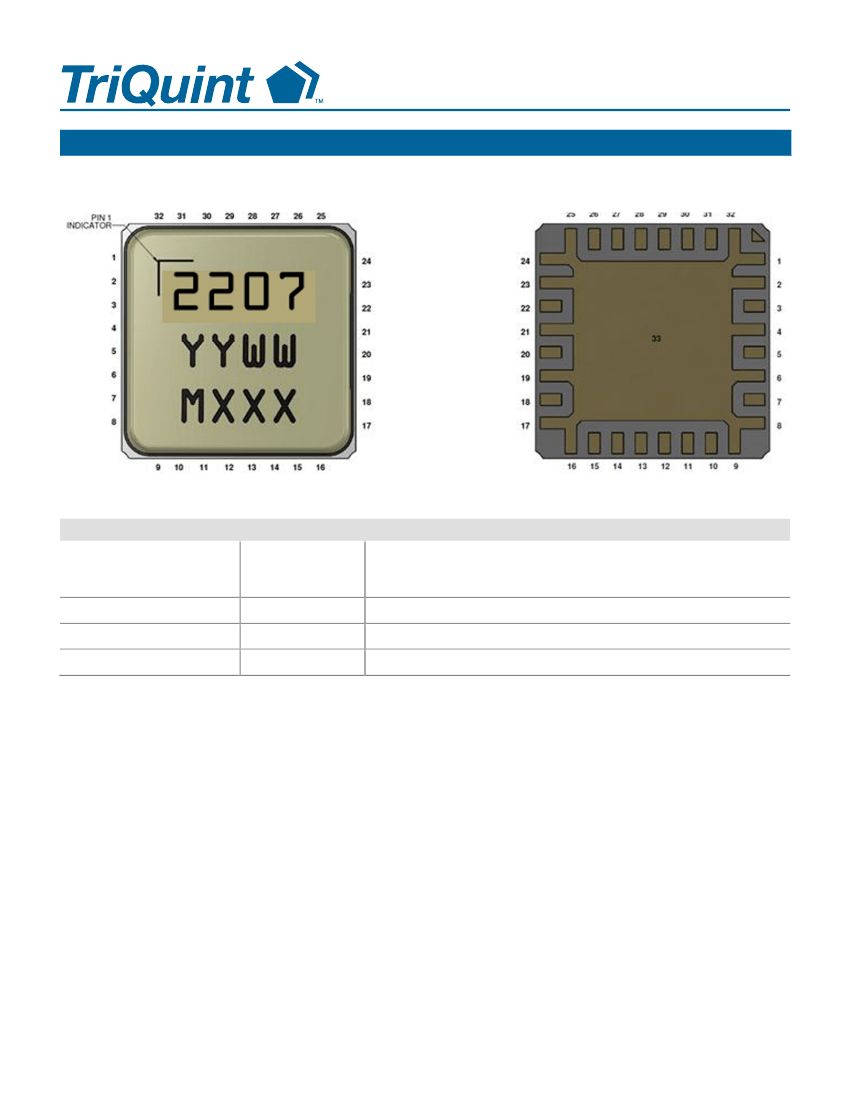

Pad Description
Package Pad
1, 2, 4, 6, 8, 9, 16, 17, 19,
21, 23, 24, 25, 32
5
22
3, 7, 10-15, 18, 20, 26-31
Symbol
GND
RF Input
RF Output
NC
Description
On PCB, multiple vias should be employed under the center pad
(33) to minimize inductance and thermal resistance; see page 9 for
suggested mounting configuration.
Input, matched to 50 Ohms, not DC blocked
Output, matched to 50 Ohms, DC blocked
No connection
NOTE: The RF Input and Output ports are not interchangeable.
Datasheet: Rev - 05-14-14
© 2014 TriQuint
- 5 of 11 -
Disclaimer: Subject to change without notice
www.triquint.com
