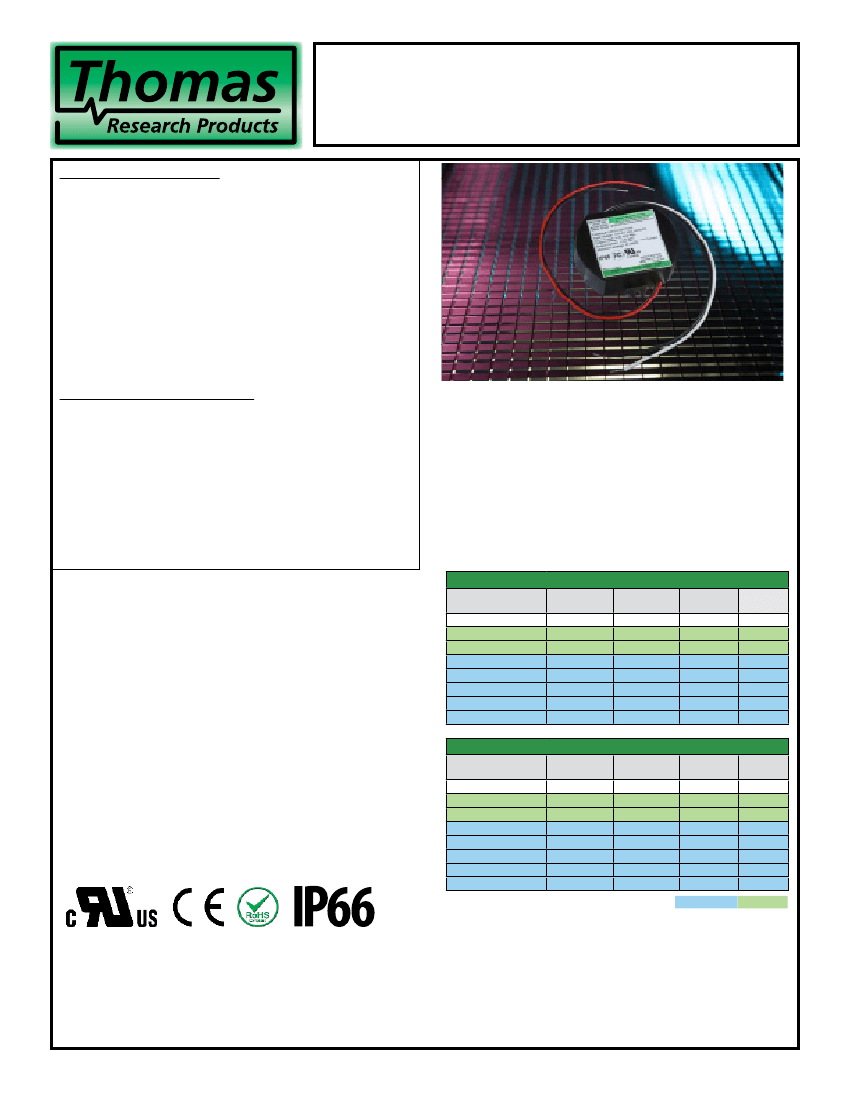

TRC-025 Series–Fixed Output and Dimmable
25W Switch Mode LED Drivers
Constant Current, Long Life
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Input Current:
Inrush Current:
Efficiency
Maximum Power:
Line Regulation:
Load Regulation:
Turn-on Time Delay:
Output Protection:
120 - 277 Nom. Vac (90 - 305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
0.32 A @ 100Vac, 0.15 A @ 220Vac
60.0 Amps @ 230Vac, 25°C Cold Start
85-85% typical @ maximum load
25W
± 3%
± 5%
3S
Over-Voltage, Over-Current,
Short Circuit Protection with Auto Recovery
Environmental Specifications
Minimum Starting Temp:
Maximum Case Temp.
Storage Temperature:
Humidity:
Cooling:
Sound Rating:
MTBF:
Lifetime:
Weight:
-20ºC
89°C
-40ºC to +85ºC
10% to 100%
Convection
Class A
484,000 Hours @ 25ºC, 80% load, 110Vac input
on 2080 mA output model (MIL-HDBK-217F)
79,000 Hours @ 45ºC, 80% load, 110Vac input
on 2080 mA output model
0.4 lbs.
• Total Power: 25 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• IP66
• High Efficiency
• High Power Factor
Constant Current Versions - Product Specifications
Model Number
TRC-025S035PS
TRC-025S045PS
TRC-025S062PS
TRC-025S070PS
TRC-025S105PS
TRC-025S140PS
TRC-025S175PS
TRC-025S208PS
Output Current Output Voltage
(mA)
Range
(Vdc)
350
450
620
700
1050
1400
1750
2080
24-72
19-56
13-40
12-36
8-24
6-18
5-14
4-12
Max. Output
Power
(W)
25
25
25
25
25
25
25
25
Typical
Efficiency
84%
84%
83%
83%
82%
81%
81%
80%
Dimmable Versions - Product Specifications
Model Number
TRC-025S035DS
TRC-025S045DS
TRC-025S062DS
TRC-025S070DS
TRC-025S105DS
TRC-025S140DS
TRC-025S175DS
TRC-025S208DS
Output Current Output Voltage
(mA)
Range
(Vdc)
350
450
620
700
1050
1400
1750
2080
24-72
19-56
13-40
12-36
8-24
6-18
5-14
4-12
Class 2:
Max. Output
Power
(W)
25
25
25
25
25
25
25
25
US/Canada
Typical
Efficiency
84%
84%
83%
83%
82%
81%
81%
80%
US Only
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 8-31-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-025 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 3

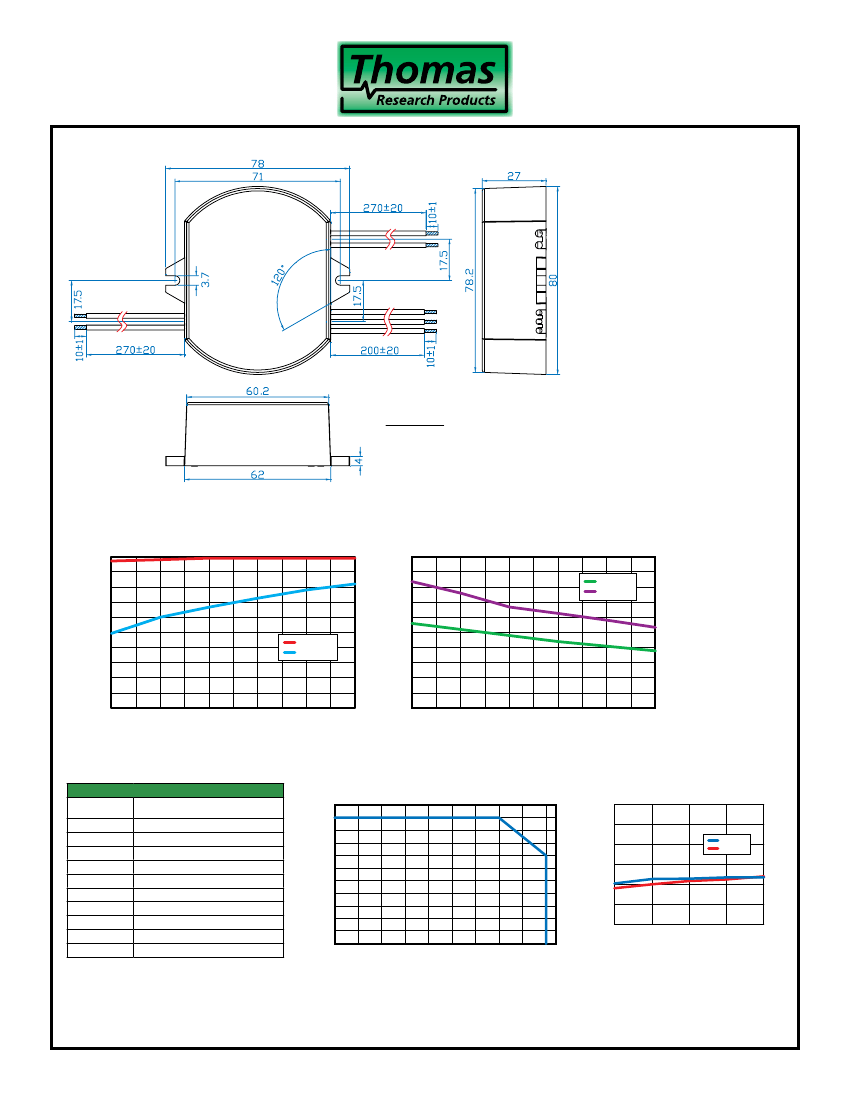

OUTPUT
Red(+)
Black(-)
INPUT
Black (L)
White (N)
Dimming Control
Yellow (10V Out)
Purple (1-10V In)
Green (GND)
WIRE SPECS:
AC Input:
#18AWG
DC Output:
#18AWG
Dimming Control:
#22AWG
1.00
0.95
0.90
0.85
0.75
0.70
0.65
0.60
0.55
0.50
50%
0.80
Power Factor / Load
25%
20%
15%
10%
5%
0%
50%
THD / Load
120Vac
277Vac
120Vac
277Vac
60%
70%
Load
80%
90%
100%
THD
PF
60%
70%
Load
80%
90%
100%
Safety and EMC Compliance
CUL
CE
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
EN 61547
UL 8750
EN 61347-1, EN61347-2-13
Conducted emission
Harmonic current emissions
Voltage fluctuations and flicker
Electrostatic discharge
RFE Field Susceptibility test
Electrical Fast Transient
Conducted Radio Frequency
Power Frequency Magnetic Field Test
Voltage Dips
Electromagnetic Immunity
Derating Curve
100
80
Typical Efficiency / Load
100%
95%
Efficiency
90%
85%
80%
75%
Load
(%)
120Vac
277Vac
60
40
20
0
-20
70%
60%
Normalized Output Voltage
70%
80%
90%
100%
-10
Ambient Temperature
(°C)
0
10
20
30
40
50
60
70
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-025 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 3
Dimming Control Details
Parameters
10V output voltage
10V output source current
Absolute maximum voltage on the 0-10V input pin
Source current on 0-10V input pin
Minimum
9.8 V
-10 mA
-2 V
0 mA
Typical
10 V
—
—
—
Maximum
10.2 V
2 mA
15 V
1 mA
The dimmer control is operated from either a potentiometer or from an input signal of 1 – 10 Vdc.
Recommended implementations are provided below.
10V Output (Yellow)
Normalized Output Current
Option 1 - Potentiometer Control
Output Current / Potentiometer
100%
80%
60%
40%
20%
0%
TRC-025xxxxDS
1-10V Input (Purple)
GND (Green)
20K
0
1
2
3
4
Vdim
(V)
5
6
7
8
9
10
Option 2 - DC Input
1-10V Input (Purple)
Normalized Output Current
100%
80%
60%
40%
20%
0%
Output Current / Dimming Voltage
TRC-025xxxxDS
1-10Vdc V
GND (Green)
0
1
2
3
4
Vdim
(V)
5
6
7
8
9
10
Notes:
1. For the driver to operate properly, the load voltage must be maintained above the minimum voltage threshold
(approx. 33% of the max. output voltage for any given model).
2. If the dimming voltage is varied from 10V down to 0V, the output current can be varied from 100% Io down to 20-30% Io.
3. Do not connect the GND of dimming to V(-) or earth ground; otherwise the LED driver will not work properly.
4. If dimming is not required, connect yellow and purple leads together to get full current output (100%).
5. It is permissible to parallel driver outputs to achieve higher output currents. However, when doing so, it is not permissible to connect
dimming control leads in parallel.
6. It is permissible to connect dimming control leads of multiple drivers in parallel to allow them to operate from a single 0-10V control.
However, when doing so, it is not permissible to interconnect output leads (red and black) across drivers.
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
