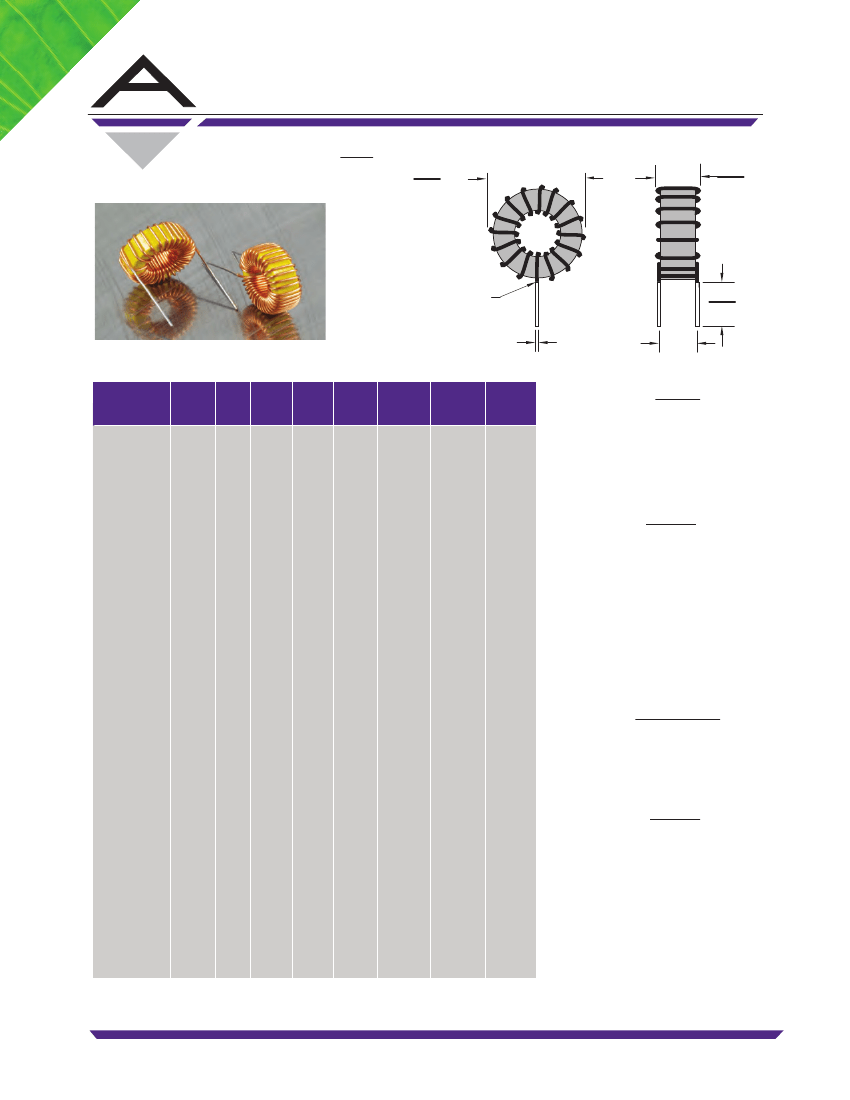

VTC5711-RC

Description
Toroidal Chokes
CategoryPassive components    inductor
File Size996KB,2 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Download Datasheet Parametric View All

VTC5711-RC Overview

Toroidal Chokes

VTC5711-RC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
Reach Compliance Codecompliant
ECCN codeEAR99
Inductor typeGENERAL PURPOSE INDUCTOR
Base Number Matches1
RoHS
Toroidal Chokes
Dimensions:
Inches
(mm)
VTC570
A
B
0.65
MAX
(16.51)
1.28
MAX
(32.51)
Tin lead to coil
0.50
(12.70)
D
C
Vertical Mount
Allied
Part
Number
VTC5701-RC
VTC5702-RC
VTC5703-RC
VTC5704-RC
VTC5705-RC
VTC5706-RC
VTC5707-RC
VTC5708-RC
VTC5709-RC
VTC5710-RC
VTC5711-RC
VTC5712-RC
VTC5713-RC
VTC5714-RC
VTC5715-RC
VTC5716-RC
VTC5717-RC
VTC5718-RC
VTC5719-RC
VTC5720-RC
VTC5721-RC
VTC5722-RC
VTC5723-RC
VTC5724-RC
VTC5725-RC
VTC5726-RC
VTC5727-RC
VTC5728-RC
VTC5729-RC
VTC5730-RC
VTC5731-RC
L(mH)
±15%
@ 1KHZ
10
25
125
275
450
25
75
400
800
1000
50
150
700
1250
1600
125
500
1100
2250
4500
250
900
1800
4000
8000
25
35
50
100
70
40
IDC
(A)
11.0
5.50
2.75
2.00
1.50
9.00
5.00
2.25
1.75
1.50
9.50
4.75
2.25
1.75
1.50
7.75
4.00
2.50
1.75
1.25
8.00
3.75
2.50
1.75
1.00
2.50
2.50
2.50
2.50
3.00
4.00
L(uH)
DCR
Ω
±15%
@I rated Max
5
12
70
150
250
15
40
225
475
575
25
85
400
750
950
65
275
650
1350
2700
125
500
1000
2100
4500
16
29
35
70
50
30
0.008
0.014
0.12
0.24
0.49
0.012
0.04
0.33
0.64
0.98
0.012
0.046
0.42
0.85
1.27
0.032
0.15
0.33
0.92
2.64
0.041
0.175
0.55
1.16
3.34
0.040
0.035
0.060
0.080
0.050
0.025
Dim
A
Nom.
0.875
0.875
0.875
0.875
0.875
1.125
1.125
1.125
1.125
1.125
1.250
1.250
1.250
1.250
1.250
1.812
1.812
1.812
1.812
1.812
2.125
2.125
2.125
2.125
2.125
0.550
0.700
0.750
0.850
0.850
0.850
Dim
B
Nom.
0.437
0.437
0.437
0.437
0.437
0.562
0.562
0.562
0.562
0.562
0.625
0.625
0.625
0.625
0.625
0.750
0.750
0.750
0.750
0.750
0.937
0.937
0.937
0.937
0.937
0.220
0.320
0.320
0.360
0.360
0.360
Dim
C
Nom.
0.32
0.30
0.30
0.30
0.30
0.45
0.42
0.42
0.42
0.40
0.53
0.50
0.50
0.48
0.48
0.68
0.65
0.65
0.65
0.65
0.79
0.75
0.75
0.74
0.74
0.21
0.30
0.28
0.33
0.33
0.34
Dim
D
Nom.
0.064
0.040
0.020
0.016
0.012
0.064
0.036
0.018
0.015
0.012
0.064
0.036
0.018
0.015
0.012
0.064
0.032
0.025
0.018
0.012
0.062
0.032
0.023
0.018
0.012
0.020
0.025
0.020
0.020
0.025
0.032
Features
Low Magnetic Radiation
High Current Capacity up to 11A
Wide Inductance Range
Electrical
Inductance Range:
10µh to 8000µh
Tolerance:
15%,
Test Frequency:
1KHz
Operating Temp:
-55ºC ~ +105ºC
IDC:
Temperature Rise 30ºC Max
@ Rated IDC
Test Equipment
(L):
100 LCR meter or equivalent
DCR:
Chen Hwa 502
Physical
Packaging:
Box
Marking:
None
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
11/05/2014
www.alliedcomponents.com
