W9825G6JH-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> W9825G6JH-5

W9825G6JH-5: Description16M X 16 SYNCHRONOUS DRAM, 5 ns, PDSO54; Categorystorage storage; File Size709KB，42 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw; Environmental Compliance

Download Datasheet Parametric View All

W9825G6JH-5 Overview

16M X 16 SYNCHRONOUS DRAM, 5 ns, PDSO54

W9825G6JH-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Winbond Electronics Corporation
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP54,.46,32
Contacts	54
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	5 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	200 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G54
length	22.22 mm
memory density	268435456 bi
Memory IC Type	SYNCHRONOUS DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	54
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP54,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	8192
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.002 A
Maximum slew rate	0.085 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

Preview

Download Datasheet

View All

W9825G6JH

4 M



4 BANKS



16 BITS SDRAM

Table of Contents-

GENERAL DESCRIPTION ......................................................................................................... 3

FEATURES ................................................................................................................................. 3

AVAILABLE PART NUMBER...................................................................................................... 3

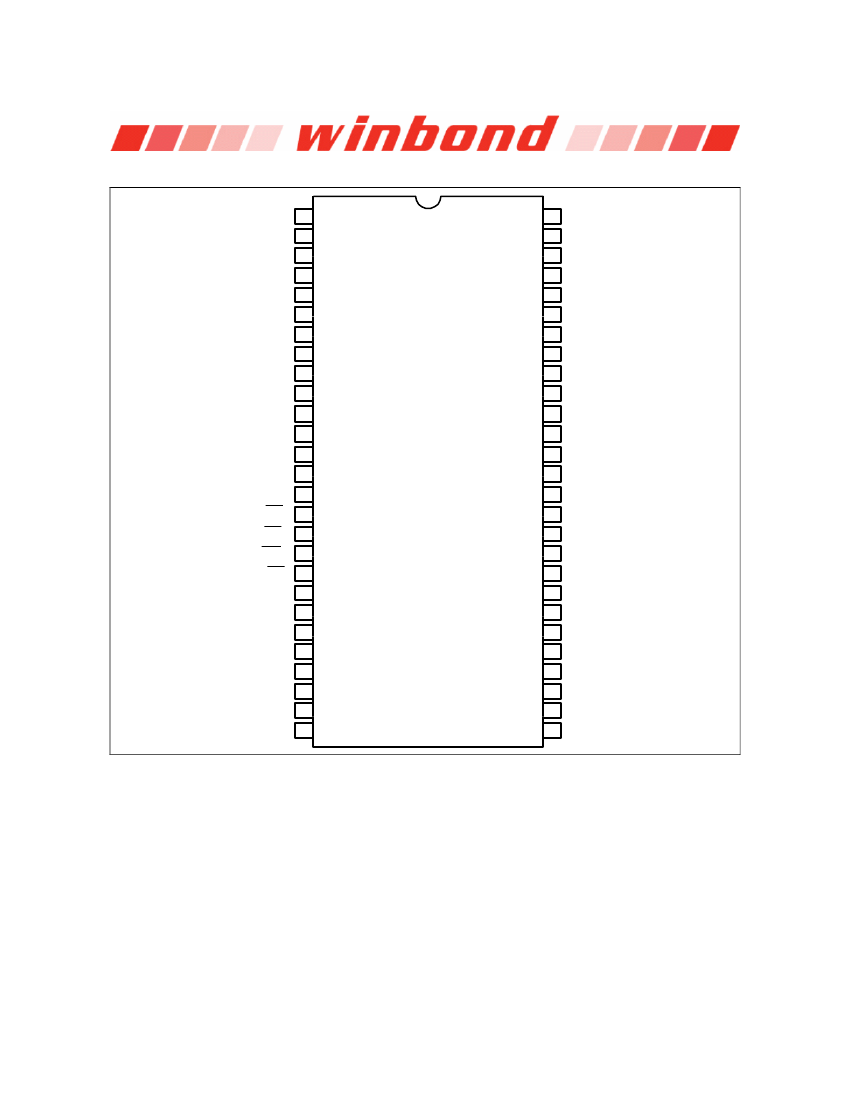

PIN CONFIGURATION ............................................................................................................... 4

PIN DESCRIPTION ..................................................................................................................... 5

BLOCK DIAGRAM ...................................................................................................................... 6

FUNCTIONAL DESCRIPTION.................................................................................................... 7

7.1

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

7.10

7.11

7.12

7.13

7.14

7.15

7.16

7.17

7.18

7.19

7.20

Power Up and Initialization ............................................................................................. 7

Programming Mode Register .......................................................................................... 7

Bank Activate Command ................................................................................................ 7

Read and Write Access Modes ...................................................................................... 7

Burst Read Command .................................................................................................... 8

Burst Write Command .................................................................................................... 8

Read Interrupted by a Read ........................................................................................... 8

Read Interrupted by a Write ............................................................................................ 8

Write Interrupted by a Write ............................................................................................ 8

Write Interrupted by a Read ............................................................................................ 8

Burst Stop Command ..................................................................................................... 8

Addressing Sequence of Sequential Mode .................................................................... 9

Addressing Sequence of Interleave Mode ...................................................................... 9

Auto-precharge Command ........................................................................................... 10

Precharge Command .................................................................................................... 10

Self Refresh Command ................................................................................................ 10

Power Down Mode........................................................................................................ 11

No Operation Command ............................................................................................... 11

Deselect Command ...................................................................................................... 11

Clock Suspend Mode .................................................................................................... 11

OPERATION MODE ................................................................................................................. 12

ELECTRICAL CHARACTERISTICS ......................................................................................... 13

9.1

9.2

Absolute Maximum Ratings .......................................................................................... 13

Recommended DC Operating Conditions .................................................................... 13
