Q-50.000000M-HC3225/4-F-30-10-E-16-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> Q-50.000000M-HC3225/4-F-30-10-E-16-TR

Preview

Q-50.000000M-HC3225/4-F-30-10-E-16-TR: DescriptionParallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size140KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

Q-50.000000M-HC3225/4-F-30-10-E-16-TR Overview

Parallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN

Q-50.000000M-HC3225/4-F-30-10-E-16-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1277785356
package instruction	ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	30 ppm
load capacitance	16 pF
Manufacturer's serial number	HC3225/4
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

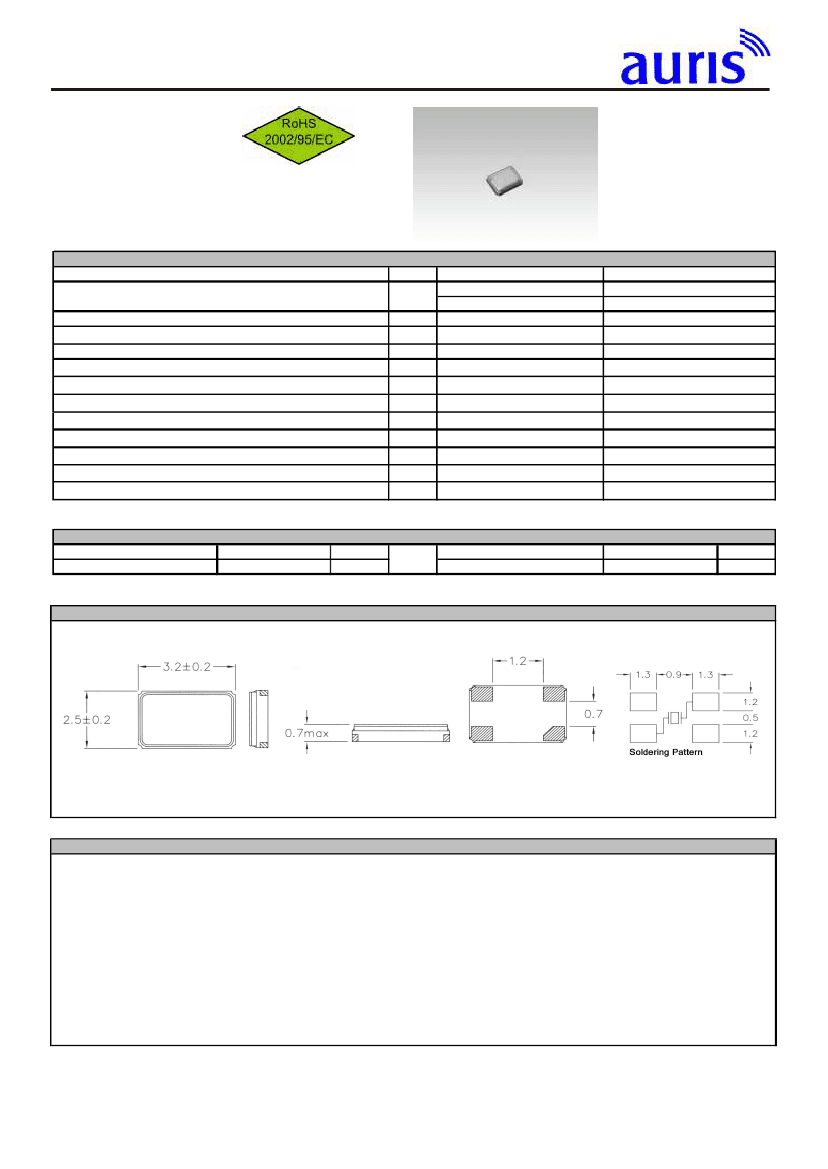

Quartz SMD, Ceramic

HC3225/4

Features:

- SMD

- High reliability

- Application: Bluetooth, wireless LAN

- Ultra thin and small leadless type

Specifications

Frequency range

Frequency tolerance,Ta=25°C

Load capacitance

Temperature tolerance

Storage temperature range

Operating temperature range

Maximum drive level

Recommended drive level

Series resistance

Shunt capacitance

Insulation resistance

Aging

Symbol

f

∆f/f

C

L

∆f/f

T

STG

T

OPR

M

DL

R

DL

R

1

C

0

I

R

∆f

A

HC3225

12.000MHz ~ 50.000MHz

-

±10ppm ~ ±30ppm

7pF ~ 32pF

±10ppm ~ ±30ppm

-40°C ~ +85°C

-20°C ~ +70°C

500µW

100µW

As per table

7pF

500M Ohm

±3ppm/Year

25°C ±3°C

Max

Min

Remarks

Fundamental mode

Please specify

Others are offered

Resistance of series resonance (ESR)

Frequency (MHz)

Mode

12 <= f < 25

Fundamental

Ohm max

100

Frequency (MHz)

25 <= f < 50

Mode

Fundamental

Ohm max

60

Drawing

HC3225/4

Dimensions in mm

Order key

Q

Part

- 30.000000M - HC3225/4

Frequency

Package

-F

Mode of

oscillation

- 30

Frequency

tolerance

±ppm

(25°C)

- 30

Temperature

tolerance

±ppm

(Temp. range)

-D

Temperature

range

A=

0°C ~ +70°C

- 16

Load

capacitance

pF

SR=series

- TR

Option

Q=Quartz

M=MHz

HC3225/4

F=fund.

TR=Tape and reel

X=Special options

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

E= -40°C ~ +85°C

F= -40°C ~ +105°C

G= -40°C ~ +125°C

H= -20°C ~ +80°C

I = -10°C ~ +50°C

/4 = 4 pads

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

2.19
