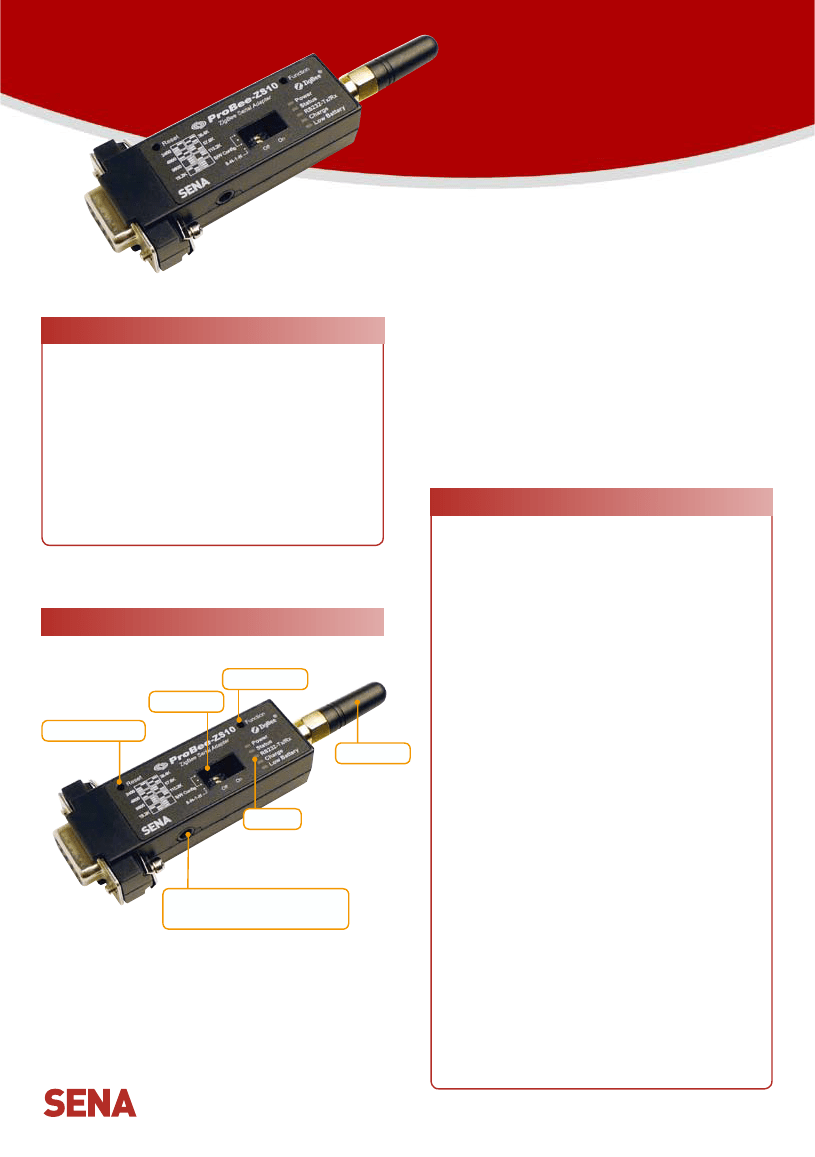

ProBee-ZS10
with integrated ZigBee core and radio/antenna circuits.
ZigBee Serial Adapter,
The ProBee-ZS10
is an ZigBee RS232 Serial Adapter
Features
· Fully supports ZigBee 2007 / ZigBee Pro stack
· Integrated 2.4GHz, IEEE 802.15.4-compliant coprocessor
· Various antenna options according to users' requirement, up
to 1.6km (1 mile) with optional 5 dBi dipole antenna
· Supports RS232 serial communication with up to 115 kbps
baud rate
· Supports remote management features wirelessly such
as firmware upgrade and system configuration by using
modem AT command set
· Enhanced portability: standard & extended battery pack
· Easy to use Windows configuration tool available
The ZS10 Serial Adapter is designed to meet specific
requirements to low cost and low power wireless applications
such as Home Automation, Smart Energy, Health care, Building
Automation and Telecom Services by adopting the ZigBee
technology.
Despite of its cost effective and low power consumptions, the
ZS10 provides high performance and robust data transfer
capability for wide range of applications. The ZS10 can transfer
data at up to 250 kbps and reach up to 1.6 km (1 mile) outdoor
line-of-sight.
Specifications
RF Characteristics
- Frequency Band: 2.4 GHz
- Interface Immunity: DSSS
- Transmit Power: +20dBm E.I.R.P (max.)
Panel Layout
Function Button
DIP Switch Set
Factory Reset Button
Stub Antenna
- Receiver Sensitivity: -102dBm @1% BER
- RF Data Rate: 250 kbps
- Working Distance: Up to 1.6km using 5 dBi dipole antenna
- Various Antenna Options from standard 1 dBi antenna to 3/5
dBi dipole antenna
- Channels: 14
- Channel Spacing: 5 MHz
ZigBee Network
- Network topology: Mesh
- Stack profile: ZigBee 2007 / ZigBee Pro
- Network addressing: Channel, PAN ID, EPID
ZigBee Data Transmission
LED Set
- Unicasting
- Multicasting
- Broadcasting
- Many-to-One Communication
On this side:
DC Connector
On the opposite side:
ON/OFF Switch
- Enhanced Reliability based on data retransmission
ZigBee Security
- Network Layer security with one Trust Center for efficient
operation
- 128 bit AES encryption algorithms
- Strong, NIST-approved security
Power Requirements
- Supply Voltage: 3.3~12.0 VDC
- TX Current: 200mA @5.0V (max.)
- RX Current: 55mA @5.0V (max.)
- Sleep Current: ≤ 10uA
www.sena.com
ProBee-ZS10
Specifications
Device Management and Configuration
- Configuration Method: AT Commands, ProBee Manager
- Remote Configuration
- Remote Firmware Upgrade using both Cloning and Pass-thru
methods
- Supports rich neighborhood device scanning and monitoring
using AT commands
ZigBee Serial Adapter,
Battery Pack
- Capacity
· 240 mAh (standard)
· 900 mAh (extended)
- Charging Power: minimum 5V/200mA
· Approximately 2 hours (standard)
· Approximately 5 hours (extended)
- Battery life (Test based on 9600bps data loopback. Actual
battery life varies by configuration, operating conditions and
other factors)
· Approximately 4.5 hours (standard)
· Approximately 16.5 hours (extended)
Antenna
- 1 dBi default Stub Antenna
- Optional Dipole Antenna: 3/5 dBi
- RP-SMA connector
Interfaces
- Serial Data Interface: RS232
- Serial Data Rate up to 115 kbps
Physical Properties
- Dimension (L x W x H)
· 73.9 x 31 x 16(mm) / 2.9 x 1.2 x 0.6(in) (No battery pack)
· 73.9 x 31 x 19.5(mm) / 2.9 x 1.2 x 0.8(in)
(with standard battery pack)
· 73.9 x 31 x 31.4(mm) / 2.9 x 1.2 x 1.2(in)
(with extended battery pack)
- Weight
· 24 g / 0.85 oz (No battery pack)
· 30 g / 1.1 oz (with standard battery pack)
· 42 g / 1.5 oz (with extended battery pack)
Power
- Power supply options
· Power via a standard AC-plug DC-adapter
· Power via USB power cable
· Power via DC power cable
· Power via pin 9 of DB9 connector
· Battery Pack (Standard & Extended)
Certification:
FCC, CE, TELEC, KCC
Warranty:
3-year limited warranty
Ordering Information
Part number
ZS10-A1
Applications
Description
· Advanced Metering Infrastructure
· Home Area Networks (HAN)
· Neighborhood Area Networks (NAN)
· Home Automation
· Advanced Lighting, Entertainment, and Climate Control Systems
· Service-based Monitoring, Security, and Awareness Systems
· Commercial Building Automation
· Climate & Lighting Control Systems
· Industrial and Domestic Applications
For more information, please visit us at
http://www.sena.com
Tel: 408-448-1997 Fax: 408-907-3738
Toll Free (US/Canada): 8668-US-SENA (866-887-7362)
ProBee ZS10 ZigBee Serial Adapter single-unit
only pack, ZigBee/ZigBee Pro, No antennas and
accessories included
ZS10-01
ProBee ZS10 ZigBee Serial Adapter single-unit pack,
ZigBee/ZigBee Pro, Int'l DC power adapter included
(US/EU), battery-pack optional
ZS10-B10
ProBee ZS10 ZigBee Serial Adapter 10-unit bulk
pack, ZigBee/ZigBee Pro, DC power adapter and
battery-pack optional
Optional Accessories
Part number
SAT-G01R
DAT-G01R
DAT5-G01R
SEC-G01R
DPA-G01
UPA-G01
OPA-G01
BPC-G02
BPC-G03
FM9GD-G01
U.S. / Canada / South America
Description
1 dBi Stub Antenna, RP-SMA Plug, Right-hand Thread
3 dBi Dipole Antenna, RP-SMA Plug, Right-hand Thread
5 dBi Dipole Antenna, RP-SMA Plug, Right-hand Thread
15cm RPSMA Antenna Extension Cable, Right-Hand Thread
DC power cable for ZS series
USB Power Cable
External Power Adaptor - Includes one of four (EU,
America, UK, Australia) regional power plugs
Standard Battery Pack for ZS10
Extended Battery Pack for ZS10
DB9 Female to Male Gender Changer
Tel: +33 (0)1 53 53 16 29 Fax: +33 (0)1 70 24 70 90
EU / Africa
Tel: +82-2-576-7362 Fax: +82-2-573-7710
Asia / Pacific
General Information: info@sena.com
Sales & Distribution: sales@sena.com
Technical Support: support@sena.com
Contact us via E-mail
www.sena.com
