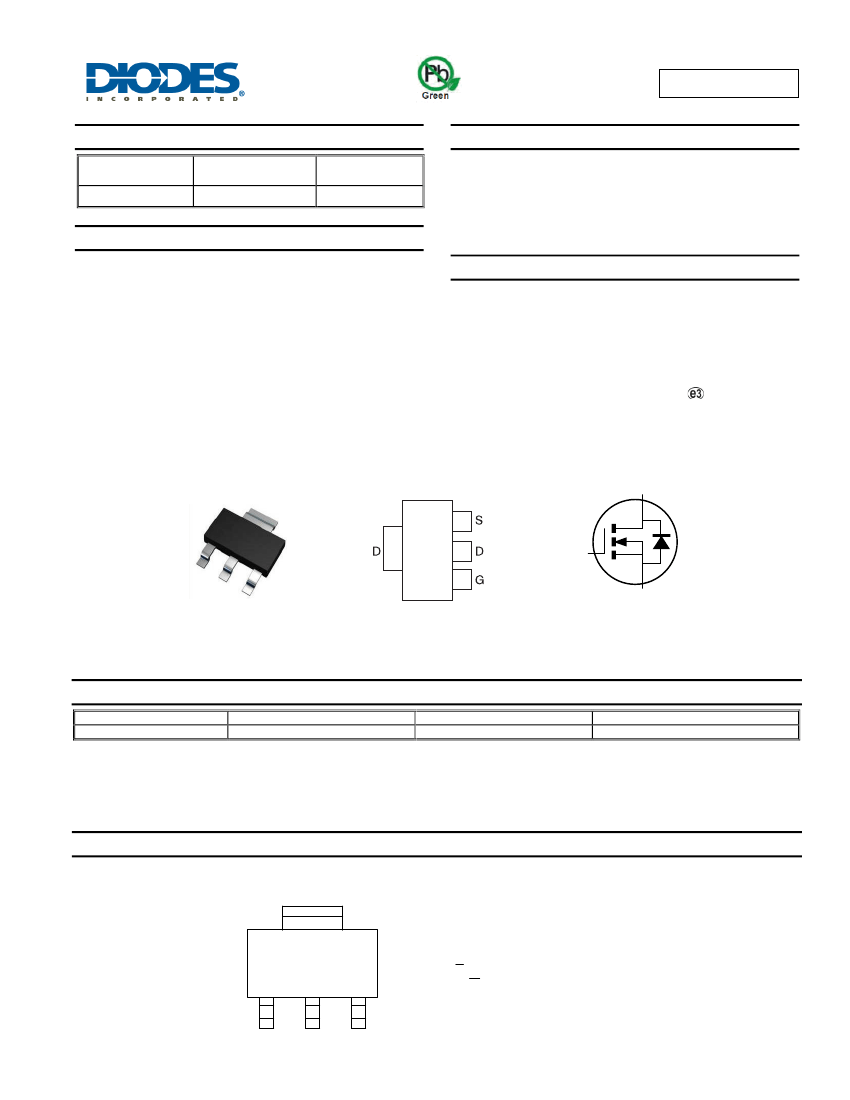

SOT223 N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
Product Summary
V
(BR)DSS
60V
1
Max R
DS(on)
@ V
GS
= 10V
Max I
D
T
A
= +25°C
°
1A
Features and Benefits
•
•
•
•
•
Repetitive avalanche rating
No transient protection required
Characterized for 5V logic drive
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
Description and Applications
•
•
Automotive Relay Drivers
Stepper Motor Driver
Mechanical Data
•
•
•
•
•
•
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
SOT223
D
G
S
Top View
Pin Out Top-view
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
ZVN4206GVTA
Notes:
Compliance
Standard
Case
SOT223
Packaging
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
