SubCompact Boards
03-23

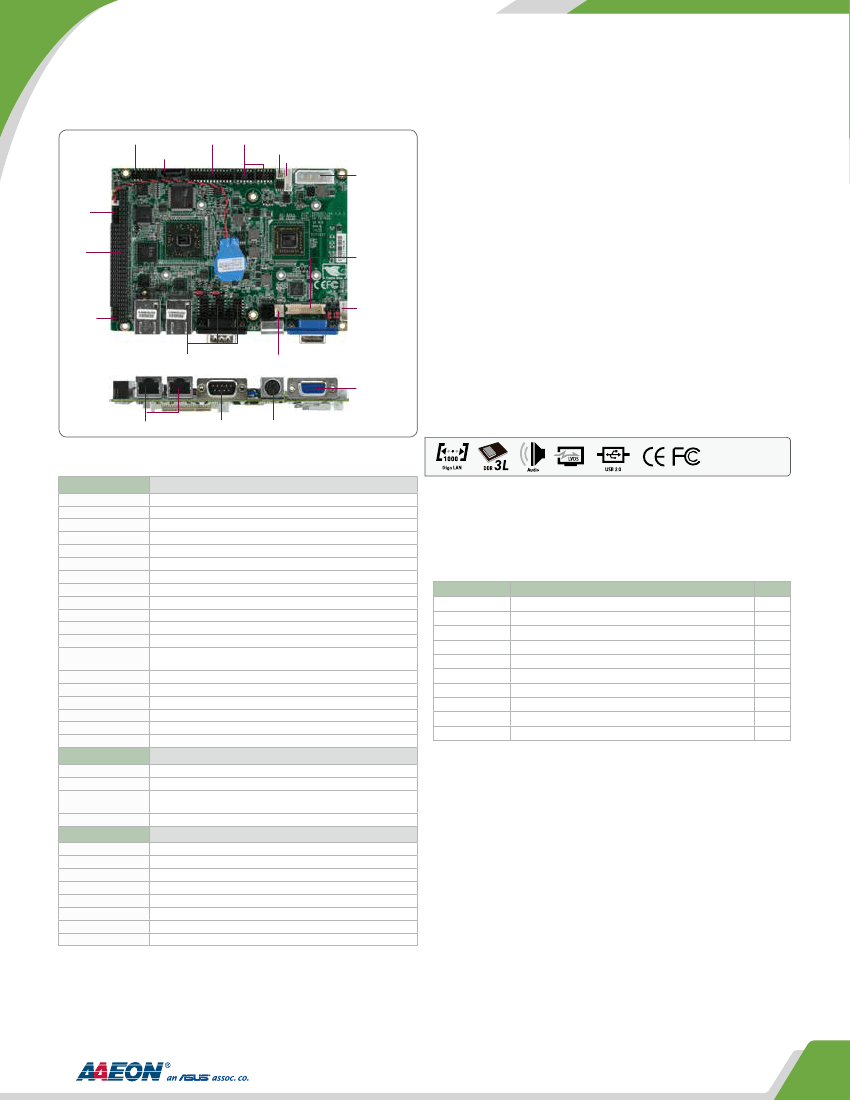

GENE-A55E
3.5” SubCompact Board with AMD G-series T16R Processor
Audio IO
SATA IO
LPT
USB2.0 x 4
5V output for SATA HDD
External +5V SB Input
Power (4P)
Features
■
■
AMD
Digital IO
PC/104
LVDS
Front Panel
Connector
LVDS Inverter/
Backlight
Connector
COM x 3
System FAN
CRT
G-series T16R Single Core 615 MHz Processor
■
■
AMD A55E
■
■
DDR3L SODIMM 1066 MHz Memory, Max. 4 GB
■
■
Gigabit Ethernet x 2
■
■
VGA, 18/24-bit Dual Channel LVDS LCD
■
■
2CH HD Audio
■
■
SATA 3.0 Gb/s x 1 & CompactFlash™ x 1
■
■
PC/104 Interface Support
■
■
Support 8-bit Digital I/O, USB2.0 x 4, COM x 4, LPT x 1
■
■
Mini-Card Slot x 1
■
■
+5V Input, AT/ATX
LAN x 2
COM x 1
PS/2 Keyboard & Mouse
Specifications
System
Form Factor
Processor
System Memory
Chipset
I/O Chipset
Ethernet
BIOS
Wake On LAN
Watchdog Timer
H/W Status Monitoring
Expansion Interface
Power Requirement
Power Consumption
(Typical)
Board Size
Gross Weight
Operation Temperature
Storage Temperature
Operation Humidity
MTBF (Hours)
3.5''
AMD G-series T16R Single core 615 MHz
204-pin DDR3L 1066 MHz SODIMM x 1, Max. 4 GB
AMD A55E
Fintek 81866D-I
Realtek RTL8111E 10/100/1000Base-TX, RJ-45 x 2
AMI BIOS
Yes
Fintek 81866D-I
Supports power supply voltage and temperature monitoring
Mini-Card slots or mSATA(Optional) x 1, LPC Bus x 1
+5V, AT/ATX
AMD T16R, with DDR3L 1066MHz 4 GB,
2.2A @+5V
5.75” (L) x 4”(W) (146mm x 101.6mm)
0.88 lb (0.4 kg)
32ºF ~ 140ºF (0ºC ~ 60ºC)
-40ºF ~ 176ºF (-40ºC ~ 80ºC)
0% ~ 90% relative humidity, non-condensing
147,000
Supports CRT/LCD, HDMI/LCD simultaneous/ dual view displays
AMD® G-series T16R processor integrated Graphics Engine
Shared memory: 512 MB/ DVMT 5.0
VGA up 1920 x 1200
LCD up to 1920 x 1200 (By Chrontel CH7511)
18/24-bit dual-channel LVDS LCD
SATA 3.0 Gb/s x 1
RS-232 x 2, RS-232/422/485 (auto flow) x 2
SPP/ECP/EPP mode x 1
USB2.0 x 4
Keyboard x 1, Mouse x 1
—
MIC-in/ Line-in/ Line-out
4 in and 4 out

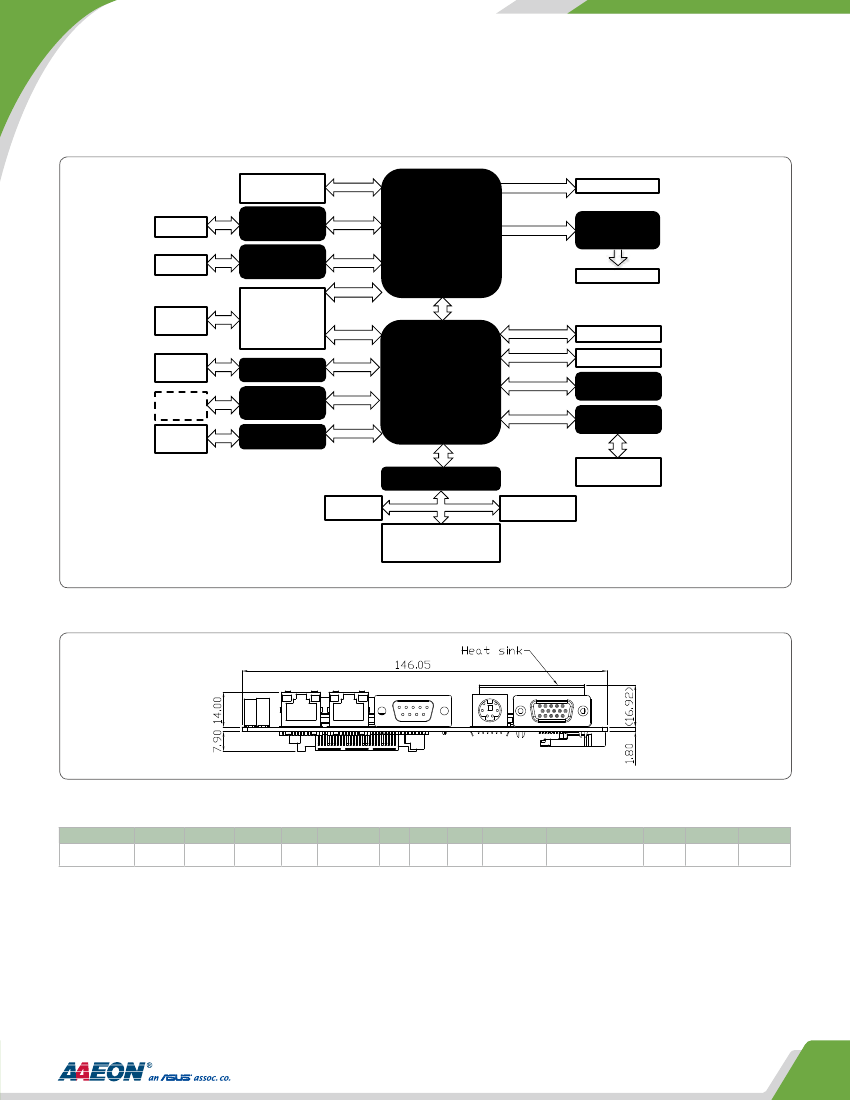

Part Number
1702200205
170204010A
1701260200
1701100206
1700140510
1709100201
1702150155
1700060192
175011901C
1709070500
Packing List
•
Product DVD
•
GENE-A55E
Optional Accessories
Description
(TF)Power Cable,■20P ATX(M), 4P 5.08mm Housing(F), +6P 2.0mm Housing, 20cm
(TF)Power Cable, 4P Housing(F), Dual 4P Housing(M), 10cm, For GENE-9455
(TF)Flat Cable, 25P D-SUB FEMALE.26P 2.00mm Pitch Housing, 20cm
(TF)Flat Cable, 9P DB 9P MALE, 10P 2.00mm Pitch Housing, 20cm
(TF)Cable, 4P/2.54 Housing RCA Jack x 3, 14P/2.0 Housing, 51cm, for Audio I/O
(TF)USB Cable, 20cm, 2.0mm, W/Bracket
(TF)Power Cable, 15P SATA(F), 2P 2.0mm Housing(PH), 15cm
(TF)Cable, 6P-6P-6P, 19cm, IVORY PS2/KB & Mouse
(TF)Battery, 3V, Maxell, CR2032M1S8-LF
(TF)SATA CABLE.7P Pitch 1.27mm.50cm
1
1
1
3
1
2
1
1
1
1
QTY
Display
Chipset
Memory
Resolution
LCD Interface
I/O
Storage
Serial Port
Parallel Port
USB
PS/2 Port
IrDA
Audio
GPIO
