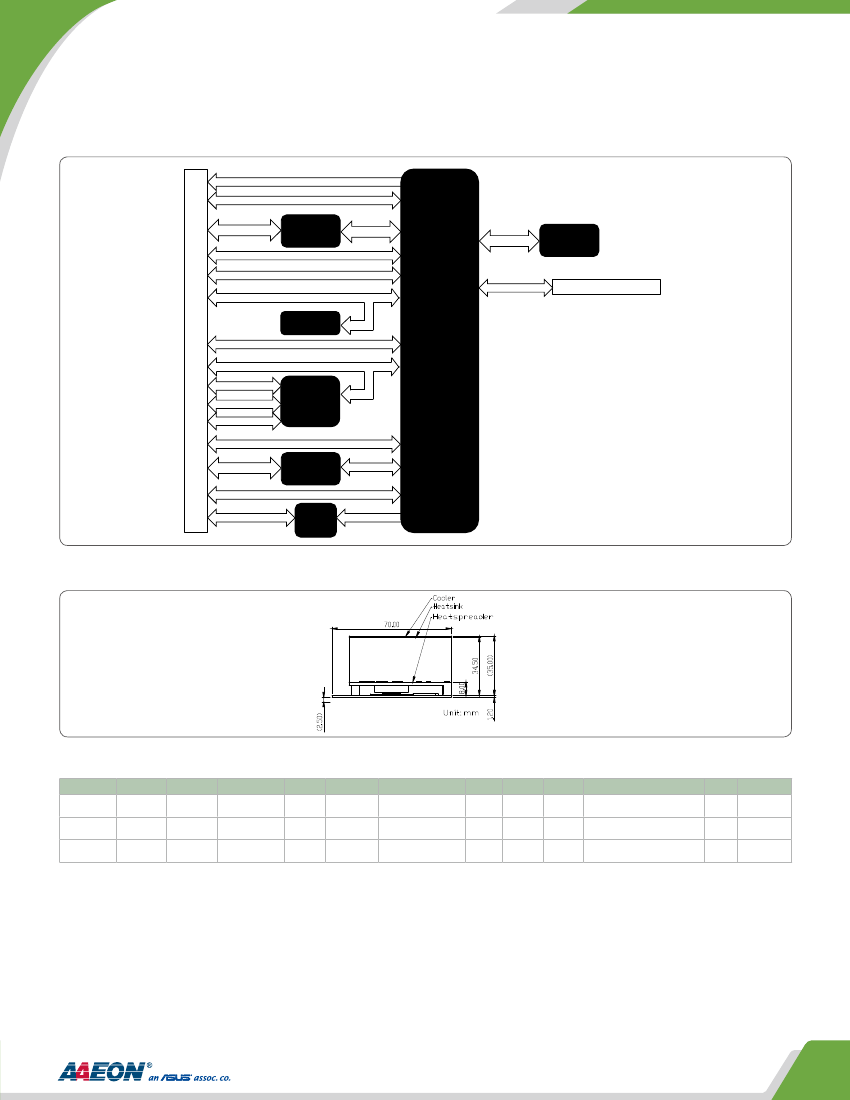

AQ7-BT-A10-0001 Overview

onboard ddr3l 2 gb memory

Preview

Download Datasheet

View All

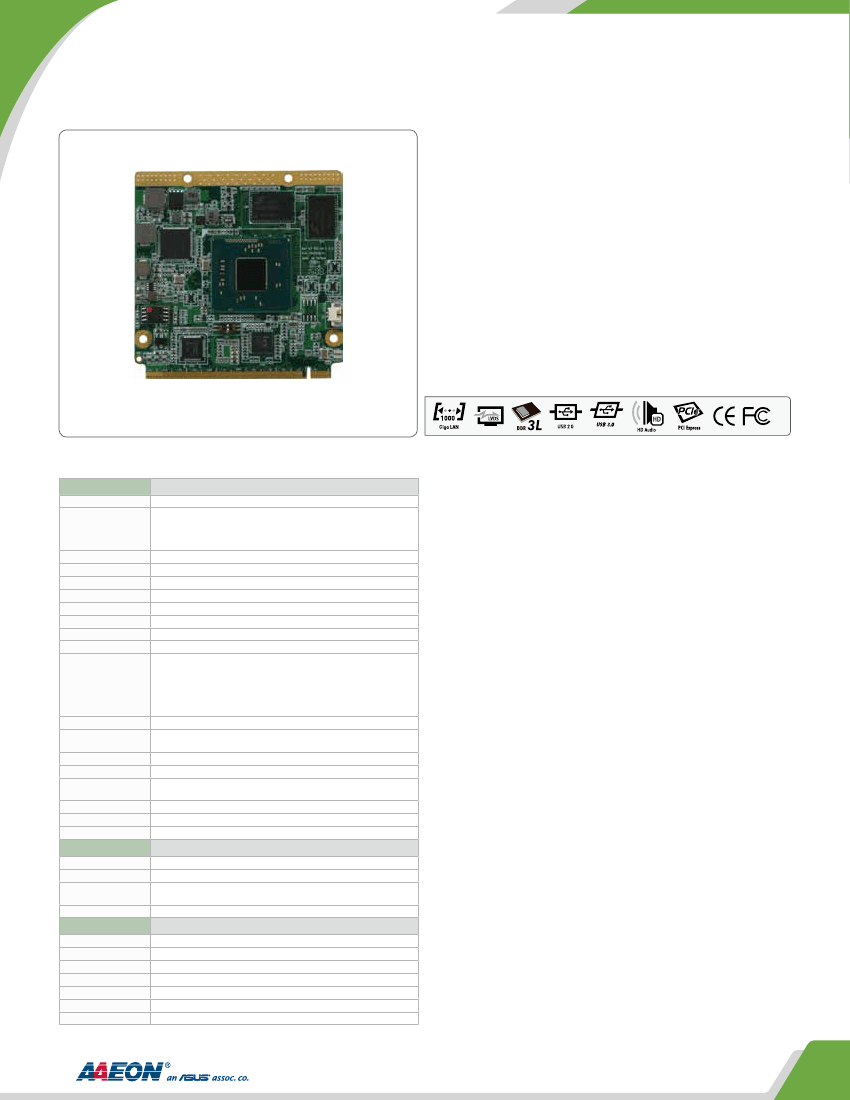

Qseven CPU Modules

AQ7-BT

Q7 CPU Module with Onboard Intel® Atom™ E3800 or Celeron® N2807 Product Family Processor SoC

Features

Atom™ E3800 or Celeron® N2807 Product Family

Processor SoC

■

Onboard DDR3L 2 GB Memory

■

Gigabit Ethernet x 1

■

18/24-bit Single Channel LVDS LCD/eDP, DDI x 1 (Default DP

Signal) High Definition Audio Interface

■

SATA x 2 (One for SSD)

■

USB2.0 x 6, USB3.0 x 1, GPIO 8-bit, PCI-Express [x1] x 3

■

Qseven Rev. 2.0, 70mm x 70mm

■

Intel®

Specifications

System

Form Factor

Processor

System Memory

Chipset

I/O Chipset

Ethernet

BIOS

Wake On LAN

Watchdog Timer

H/W Status Monitoring

Q7, 70mm x 70mm

Intel® Atom™ Processor SoC

N2807: Dual Core 1.58GHz/4.3W

E3825: Dual Core 1.33GHz/6W

E3845: Quad Core 1.91GHz/10W

Onboard DDR3L 2 GB

Intel® Atom™ E3800 or Celeron® N2807 Product Family Processor SoC

Intel® I211AT for 10/1000/1000Base-TX

AMI I210 or I211 BIOS, Legacy free BIOS

Yes

ITE IT8528VG

Supports CPU Temperature Monitoring.

PCI Express [x1] x 3

SMBUS x 1

SPI x 1

SDIO x 1

DDI x 1

I2C x 1

Normal : + 5V

E3845, Full load, 2.72A@5V

2.75” x 2.75” (70mm x 70mm)

0.44 lb (0.2 kg)

32 °F ~ 140 °F (0 °C ~ 60 °C)

-40 °F ~ 185 °F (-40 °C ~ 85 °C) by E3815

-40 °F ~ 176 °F (-40 °C ~ 85 °C)

0% ~ 90% relative humidity, non-condensing

—

Supports CRT/LCD Simultaneous/Dual view displays

Intel® Atom™ E3800 Product Family Processor SoC

—

LCD: up to 1366 x 768@ single LVDS

HDMI: Up to 1920 x 1080

18/24-bit single channel LVDS

SATA x2 (one may share with onboard SSD)

4-Wire UART x1

USB2.0 x 6, USB3.0 x 1

—

High definition audio

8-bit GPIO

SMBus, I2C, LPC, SPI, SDIO

Packing List

•

M2.5 Srews x 2

•

Product CD

•

AQ7-BT

Optional Accessories

•

ECB-970-A10

Q7 Carrier Board for x86

•

PER-A143

Heat Spreader, For AQ7-BT, Onboard CPU

•

PER-A144

Heatsink, for AQ7-BT, To be used with Heat Spreader

Expansion Interface

Power Requirement

Power Consumption

(Typical)

Board Size

Gross Weight

Operation Temperature

Storage Temperature

Operation Humidity

MTBF (Hours)

Display

Chipset

Memory

Resolution

LCD Interface

I/O

Storage

Serial Port

USB

PS/2 Port

Audio

GPIO

Others

08-5

2015/06/16

www.aaeon.com
