520C211T500EA2B datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 520C211T500EA2B

520C211T500EA2B: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 500V, 50% +Tol, 10% -Tol, 210uF, Stud Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size319KB，7 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

520C211T500EA2B Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 500V, 50% +Tol, 10% -Tol, 210uF, Stud Mount, ROHS COMPLIANT

520C211T500EA2B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	210 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	45.06 mm
dielectric materials	ALUMINUM (WET)
ESR	531 mΩ
leakage current	0.97211 mA
length	54.742 mm
Manufacturer's serial number	520C
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	500 V
ripple current	1900 mA
series	520C
surface mount	NO
Terminal pitch	19.05 mm
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

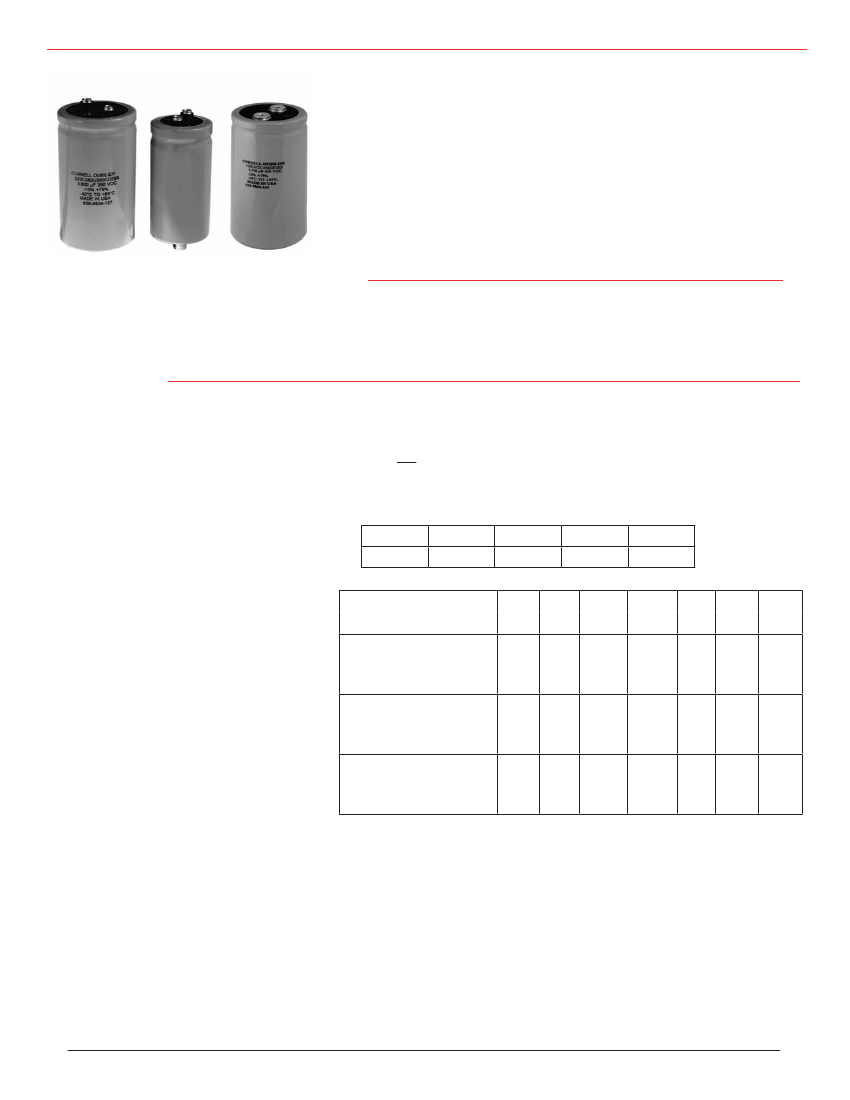

Ultra-Ripple, Long-life, Inverter Grade, 85 ºC

Type 520C

85 °C Long-life, Inverter Grade, Aluminum

Best Value High Ripple Type

Type 520C is the 85 °C version of the Type 550C Inverter-

Grade capacitor. It delivers the ripple-current capability and

exceptional life needed for motor-drive bus capacitors and

approaches the performance of the 550C at lower cost. It is

rated for 8000 hours life with full ripple current, rated voltage,

85 °C and 100 lfm airﬂow while mounted horizontally.

Horizontal mounting is more severe than vertical mounting.

The extended cathode foil of the 520C assures heat ﬂow

from the capacitor element to the can in all orientations.

• 8,000 hour load life

• Ripple current to 55 amps

• ESRs to 8 mΩ

• Best value high ripple current

• Thermal-Pak™ extended cathode construction

–40 °C to +85 °C

200 to 500 Vdc

84 µF to 39,000 µF

–10% +50%

≤3√CV (µA) 5 mA max., 5 minutes

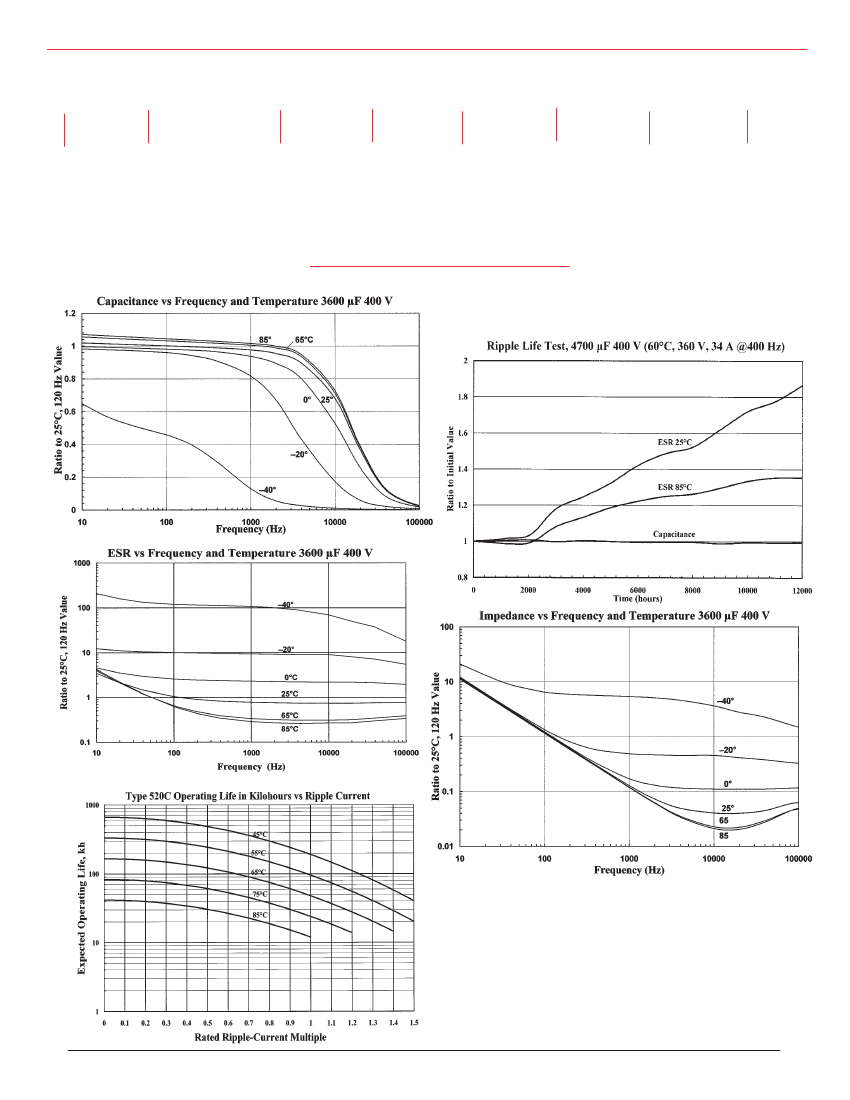

–20 °C multiple of 25 °C Z ≤3

Ambient Temperature

45 °C

1.80

55 °C

1.63

65 °C

1.45

75 °C

1.25

85 °C

1.00

10 kHz

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz

1 3/8” & 1 3/4” Diameters

200 to 350 V

400 to 500 Vx

2” & 2 1/2” Diameters

200 to 350 V

400 to 500 V

3” & 3 1/2” Diameters

200 to 350 V

400 to 500 V

0.84

0.79

0.88

0.84

1.00

1.12

1.18

1.17

1.26

1.20

1.31

1.20

1.32

0.78

0.77

0.83

0.82

1.00

1.20

1.22

1.29

1.33

1.34

1.39

1.35

1.40

0.76

0.81

1.00

1.24

1.36

1.37

1.43

1.44

1.45

& up

Highlights

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedence:

Ripple Current Multipliers:

Frequency

EIA Ripple Life:

8,000 h at full load @ +85 °C per EIA IS-749

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Life Test:

10,000 h at rated voltage and 85 °C

∆ Capacitance: ±20%

ESR: 200% of limit

DCL: 100% of limit

500 h @ 85 °C, capacitance, ESR and DCL, initial require-

Shelf Life:

ments

10 to 55 Hz, 0.06” and 10 g max, 1.5 h ea. of 2 axis

Vibration:

Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
