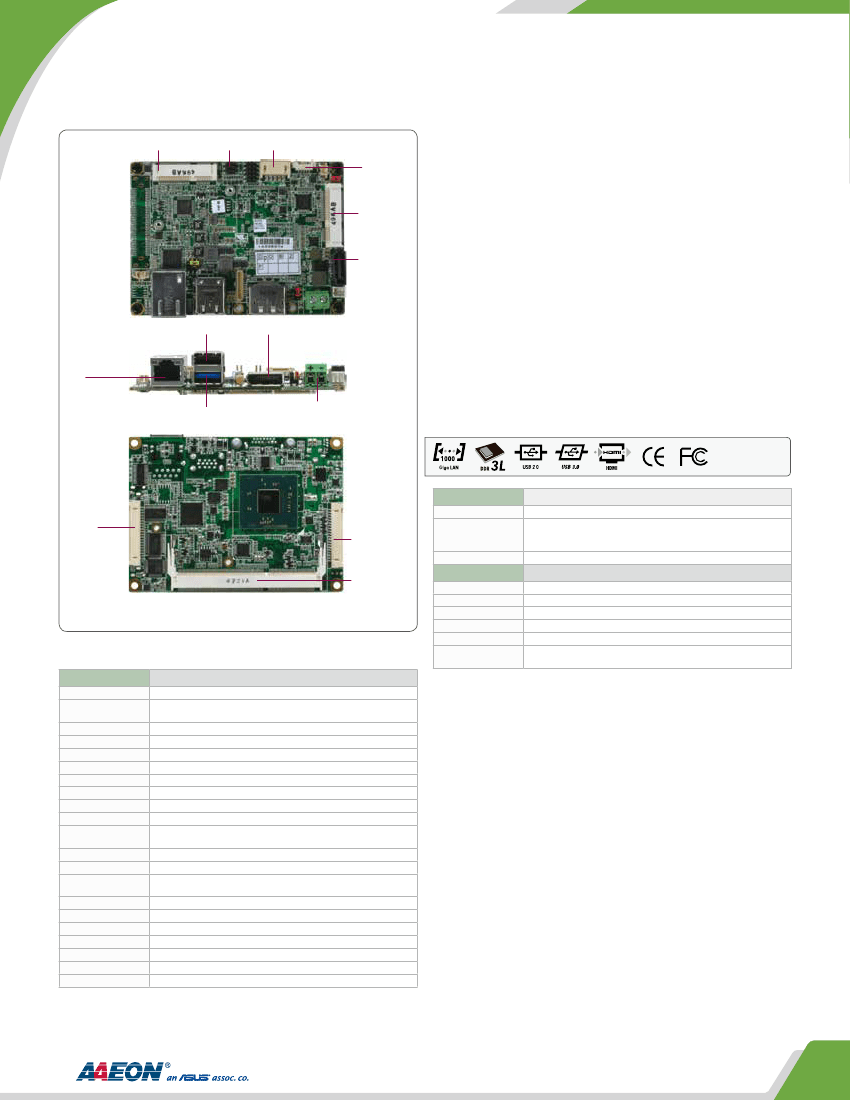

Pico-ITX Boards

LAN

PICO-BT01

Pico-ITX Board with Intel® Atom™ or Celeron® Processor SoC

Mini-Card

DIO

Backlight

USB

Features

■

Onboard Intel® Atom™ E3845/

Celeron® J1900/ N2807

mSATA/

Mini-Card

SATA

USB2.0

DP/VGA

Processor SoC

■

DDR3L 1066/1333 MHz SODIMM x 1, Up to 8 GB

■

18/24-bit LVDS, CRT Co-lay Display Port

■

SATA 3.0 Gb/s x 1

■

USB3.0 x 1, USB2.0 x 2

■

Gigabit Ethernet x 1, RJ-45 x 1

■

RS-232 x 1, RS-232/422/485 x 1

■

mSATA/Mini-Card x 1, Mini-Card x 1

■

4-bit Digital I/O

■

BIO Connector for Daughter Board

USB3.0

DC-IN

Display

Chipset

COM x 2,

line-out

LVDS

Resolution

LCD Interface

RAM slot

Supports dual simultaneous displays

Intel® Atom™E3845/ Celeron® J1900/ Celeron® N2807 Processor SoC

VGA up to 2048 x 1152 @ 60 Hz

or DP up to 2560 x 1400 @ 60 Hz

LVDS (18/24-bit) up to 1400 x 900@ 60 Hz

18/24-bit Single LVDS

SATA 3.0 Gb/s x 1, mSATA/Mini-Card x 1 (Full size)

COM1: RS-232 x 1, COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V)

USB3.0 x 1, USB 2.0 x 2, USB 1/2 total support 1.5A on rear I/O

Support 4-bit(Programmable, 2-in/2-out)

Line-out

Customize request.

BIO daughter board w/ LAN x 1 or Mini-Card x 1,USB x 2, Line-out, SMbus, GPIO

I/O

Storage

Serial Port

USB

Digital I/O

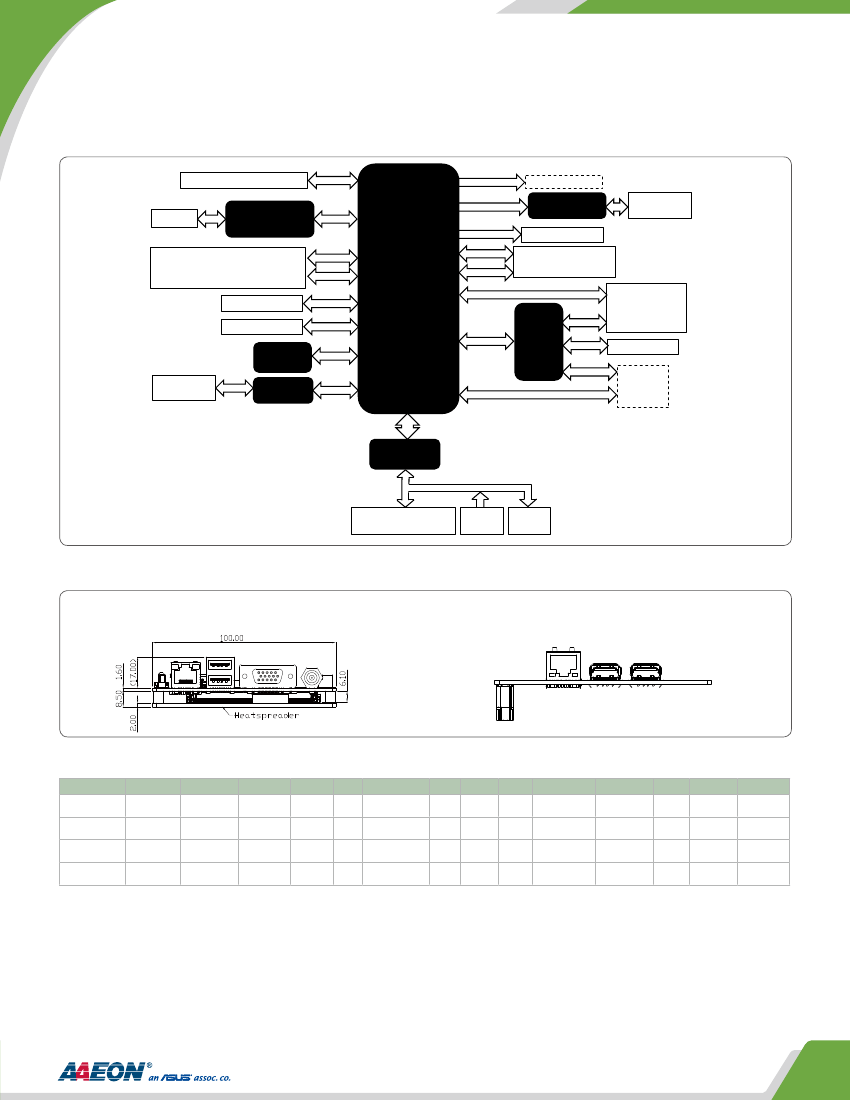

Specifications

System

Form Factor

Processor

System Memory

Chipset

I/O Chipset

Ethernet

BIOS

Wake On LAN

Watchdog Timer

H/W Status Monitoring

Expansion Interface

Battery

Power Requirement

Power Consumption

(Typical)

System Cooling

Board Size

Gross Weight

Operation Temperature

Storage Temperature

Operation Humidity

MTBF

Pico-ITX

Onboard Intel® Atom™ E3845/ Celeron® J1900/N2807 Processor SoC Up to

2.0 GHz

204-pin SODIMM DDR3L 1066/1333 MHz up to 8 GB

Intel® Atom™ E3845/ Celeron® J1900/ Celeron® N2807 Processor SoC

Fintek 81801

Gigabit Ethernet, RJ-45 x 1

AMI/SPI

Yes

1-255 steps by software program

Monitoring system temperature, voltage status

Mini-Card x 1 (Half-size), BIO [PCIe x 1, USB x 2, line-out, SMbus, GPIO, LPC]

(Optional)

Lithium battery

+12V AT/ATX(default), lockable connector optional

Intel® Celeron® J1900 2.0GHz ,DDR3L 1333 MHz 8 GB

1.14A@+12V

Fanless

3.94" x 2.83" (100mm x 72mm)

0.44 lb (0.2kg)

32°F ~ 140°F( 0°C ~ 60°C)

-40 °F ~ 176 °F (-40 °C ~ 80 °C)

0% ~ 90% relative humidity, non-condensing

80,000

Audio

BIO Interface (optional)

Packing List

•

M10BT0100

Heat Spreader

•

1703200153

COM x 2, Line-out Cable

•

Product CD

•

PICO-BT01

Optional Accessories

•

1709070500

SATA Cable

•

1702150155

SATA Power Cable

•

17592NABT0

CPU Cooler for 6-10W

•

M16BT01000

Heatsink for N2807

•

1700050207

USB Cable 20cm

05-1

2015/04/1

www.aaeon.com
