ILBB-0805
Vishay Dale
Multilayer Ferrite Beads
FEATURES
•
•
•
•
High reliability.
Surface mountable.
Magnetically self shielded.
Nickel barrier plating virtually eliminates silver migration.
MECHANICAL SPECIFICATIONS*
Solderability:
90% coverage after 5 second dip in 235°C
solder following 60 second preheat at 120°C to 150°C and
type R flux dip.
Resistance To Solder Heat:
10 seconds in 260°C solder
after preheat and flux per above.
Terminal Strength:
0.6 kilograms (1.32 pounds) minimum
for 30 seconds.
Beam Strength:
1 kilogram (2.2 pounds) minimum.
Flex:
0.079” [2mm] minimum mounted on 0.063” [1.6mm]
thick PC board.
ENVIRONMENTAL SPECIFICATIONS*
Operating Temperature:
- 55°C to + 125°C.
Thermal Shock:
100 cycles, - 40°C to + 125°C.
Biased Humidity:
85% RH at 85°C, 1000 hours at full
rated current.
STANDARD ELECTRICAL SPECIFICATIONS
Z @ 100 MHz
(
±
25%)
7
11
17
26
32
40
50
60
75
80
90
100
120
150
180
220
300
400
420
600
1000
1500
2000
2200
DCR MAX.
(Ohms)
0.06
0.06
0.06
0.06
0.06
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.30
0.30
0.30
0.35
0.40
0.50
0.60
RATED DC CURRENT
(mA)
600
600
600
600
600
300
300
300
300
300
300
300
300
300
200
200
200
200
200
200
100
100
80
80
DIMENSIONS
in inches [millimeters]
Dimensional Outline
B
Ferrite
Body
A
D
C
A
0.079
±
0.008
[2.0
±
0.2]
B
0.049
±
0.008
[1.25
±
0.2]
C
0.020
±
0.012
[0.5
±
0.3]
D
0.035
±
0.008
[0.9
±
0.2]
Suggested Pad Layout
G
PACKAGING OPTIONS
• Tape and Reel:
Embossed plastic carrier tape.
Per EIA481-1.
4000 pieces on a 7" [178mm] reel.
F
H
E
DESCRIPTION
ILBB-0805
MODEL
11
IMPEDANCE
VALUE
±
25%
IMPEDANCE
TOLERANCE
E
0.120
[3.0]
F
0.039
[1.0]
G
0.039
[1.0]
H
0.039
[1.0]
SAP PART NUMBERING GUIDELINES (INTERNAL)
I
L
B
B
0
8
SIZE
0
5
R
K
1
1
IMPEDANCE
VALUE
0
V
TOL.
PRODUCT FAMILY
See the end of this data book for conversion tables
PACKAGE
CODE
www.vishay.com
80
For technical questions, contact Magnetics@vishay.com
Document Number 34025
Revision 15-Jan-03
ILBB-0805
Multilayer Ferrite Beads

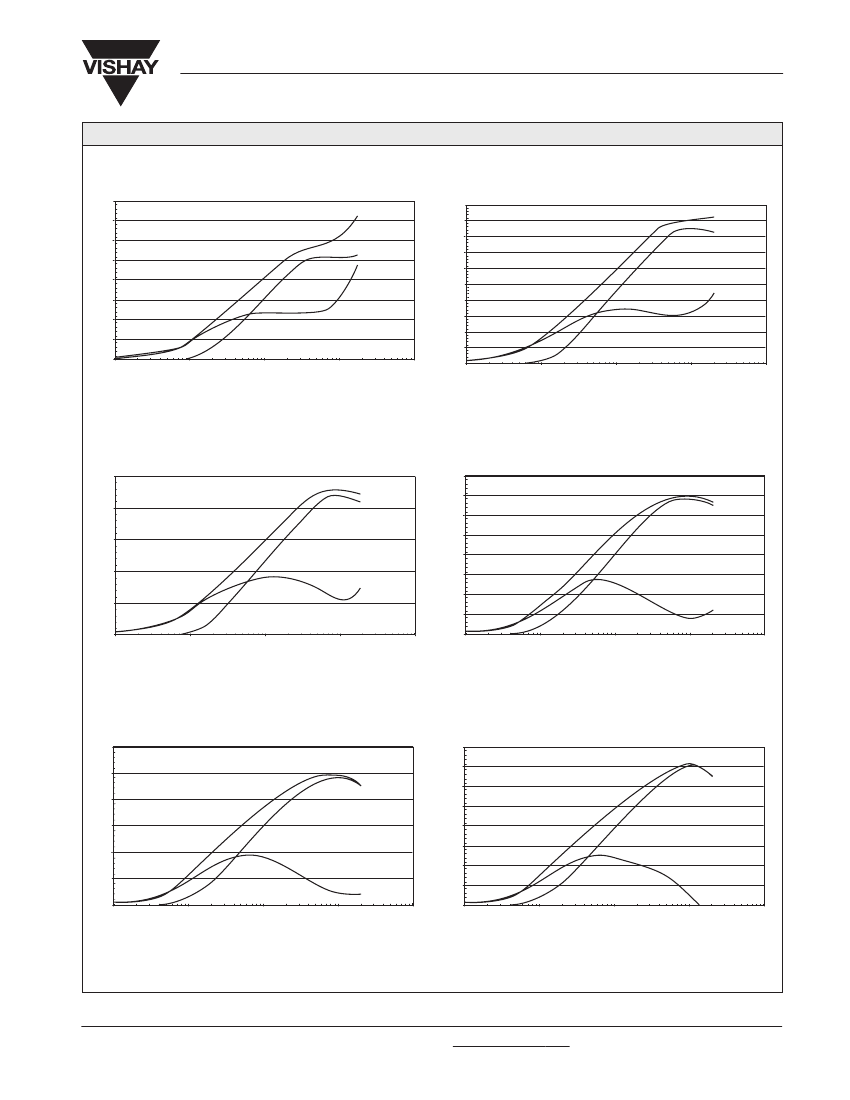

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
ILBB-0805 7
Ω
16
14
Z
12
10
R
8
X
6
4
2
0
1
10
100
1000
10000
Vishay Dale
ILBB-0805 11
Ω
20
Z
18
16
R
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
14
12
10
8
6
4
2
0
1
10
100
1000
10000
X
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 17
Ω
25
Z
35
20
R
40
ILBB-0805 26
Ω
Z
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
30
25
20
15
10
5
X
R
15
10
X
5
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 32
Ω
60
ILBB-0805 40
Ω
80
70
50
Z
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
Z
40
R
30
60
R
50
40
30
20
10
0
1
10
100
1000
10000
X
20
X
10
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
Document Number 34025
Revision 15-Jan-03
For technical questions, contact Magnetics@vishay.com
www.vishay.com
81
ILBB-0805
Vishay Dale
Multilayer Ferrite Beads

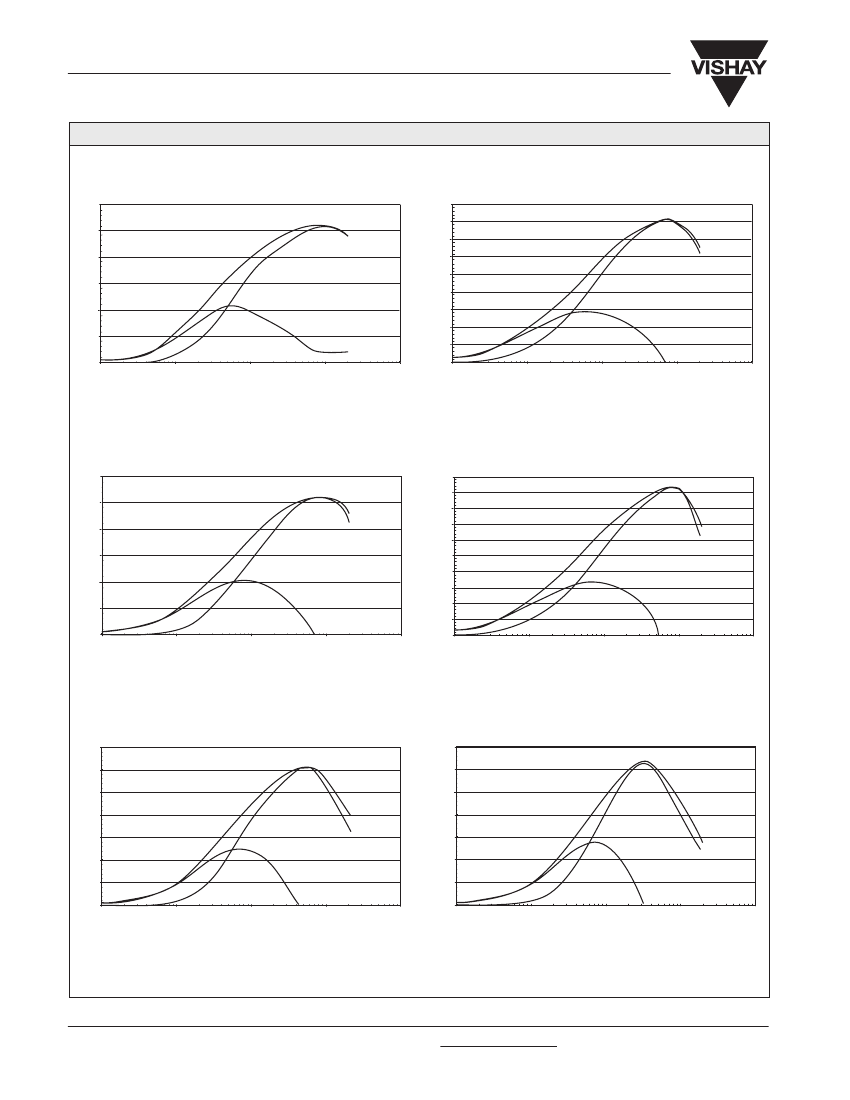

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
ILBB-0805 50
Ω
60
90
80
50
Z
Z
70
60
50
40
30
20
10
0
1
10
100
1000
10000
1
10
100
1000
10000
R
ILBB-0805 60
Ω
IMPEDANCE (OHMS)
40
R
30
20
10
X
0
IMPEDANCE (OHMS)
X
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 75
Ω
120
ILBB-0805 80
Ω
100
90
100
Z
Z
80
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
R
80
70
60
50
40
30
R
60
40
X
20
10
0
1
10
100
1000
10000
20
X
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 90
Ω
140
140
ILBB-0805 100
Ω
120
120
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
Z
100
R
80
Z
100
80
R
60
60
40
X
20
40
X
20
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
www.vishay.com
82
For technical questions, contact Magnetics@vishay.com
Document Number 34025
Revision 15-Jan-03
ILBB-0805
Multilayer Ferrite Beads

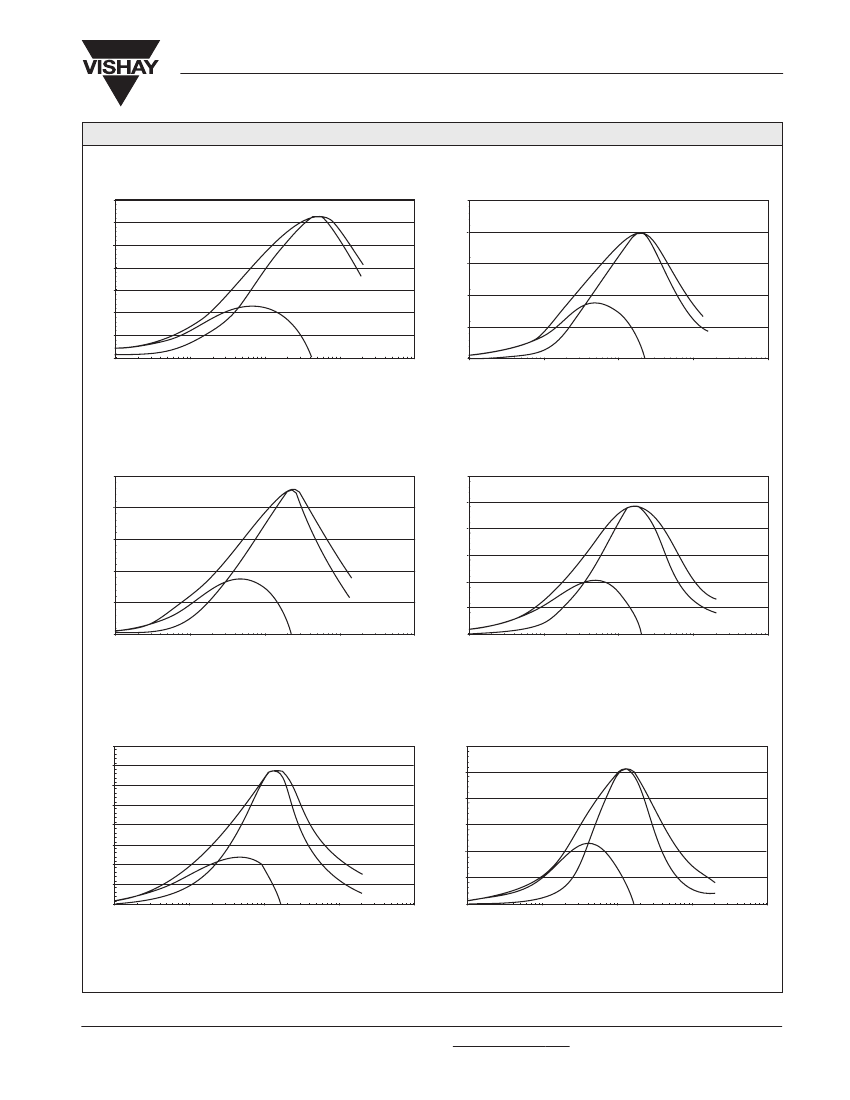

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
ILBB-0805 120
Ω
140
Vishay Dale
ILBB-0805 150
Ω
250
120
Z
200
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
100
R
80
Z
150
R
60
100
X
50
40
X
20
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 180
Ω
250
300
ILBB-0805 220
Ω
Z
200
250
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
Z
200
R
150
R
150
100
X
50
100
X
50
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 300
Ω
400
350
Z
500
600
ILBB-0805 400
Ω
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
300
250
200
150
100
X
50
0
1
10
100
1000
10000
R
Z
400
R
300
200
X
100
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
Document Number 34025
Revision 15-Jan-03
For technical questions, contact Magnetics@vishay.com
www.vishay.com
83
ILBB-0805
Vishay Dale
Multilayer Ferrite Beads

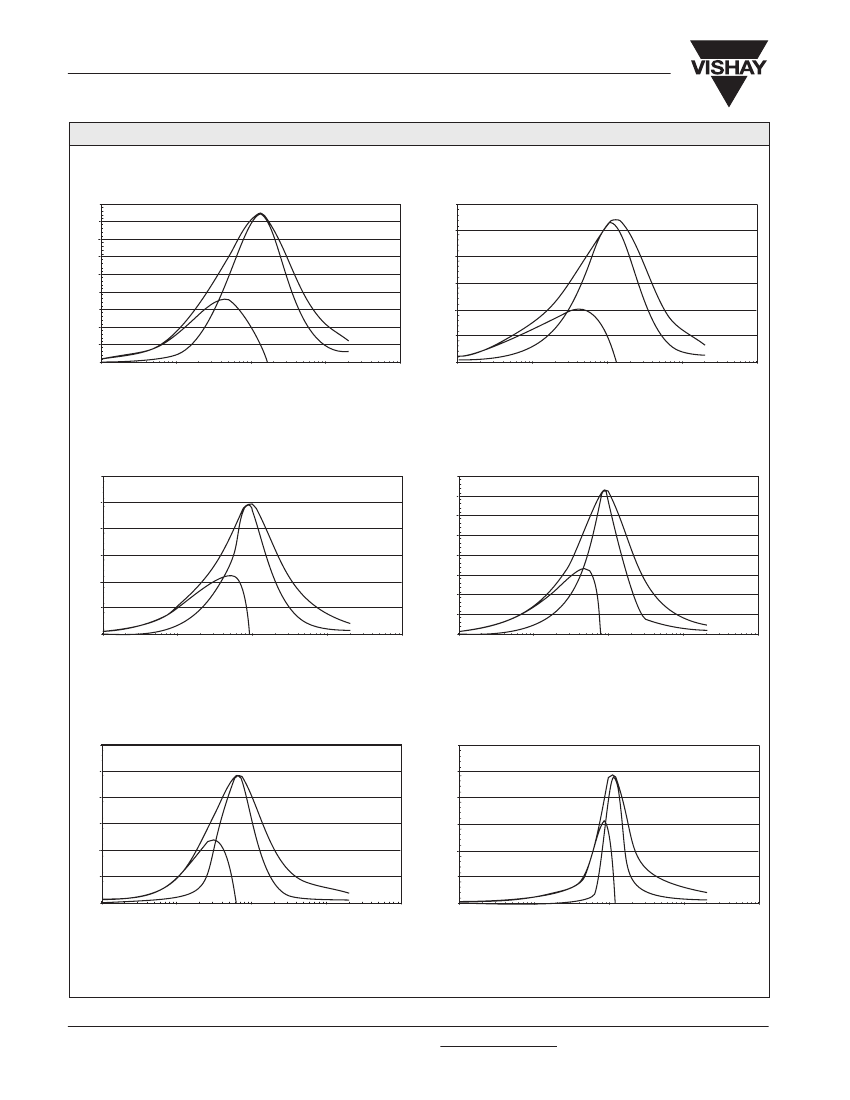

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
ILBB-0805 420
Ω
450
400
350
300
250
200
150
100
X
50
0
1
10
100
1000
10000
0
1
10
100
1000
10000
R
600
ILBB-0805 600
Ω
Z
500
IMPEDANCE (OHMS)
IMPEDANCE (OHMS)
Z
400
R
300
200
X
100
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 1000
Ω
1200
1600
1400
ILBB-0805 1500
Ω
1000
IMPEDANCE (OHMS)
800
IMPEDANCE (OHMS)
Z
Z
1200
R
1000
800
600
400
X
200
0
600
R
400
200
X
0
1
10
100
1000
10000
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 2000
Ω
3000
3000
ILBB-0805 2200
Ω
2500
2500
Z
Z
IMPEDANCE (OHMS)
2000
R
1500
IMPEDANCE (OHMS)
2000
R
1500
1000
X
500
1000
500
X
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY (MHz)
FREQUENCY (MHz)
www.vishay.com
84
For technical questions, contact Magnetics@vishay.com
Document Number 34025
Revision 15-Jan-03
