D58V0M2B3LP7: Description58V UNIDIRECTIONAL TVS DIODE ARRAY; File Size215KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet View All

D58V0M2B3LP7 Overview

58V UNIDIRECTIONAL TVS DIODE ARRAY

Preview

Download Datasheet

View All

D58V0M4U8MR

58V UNIDIRECTIONAL TVS DIODE ARRAY

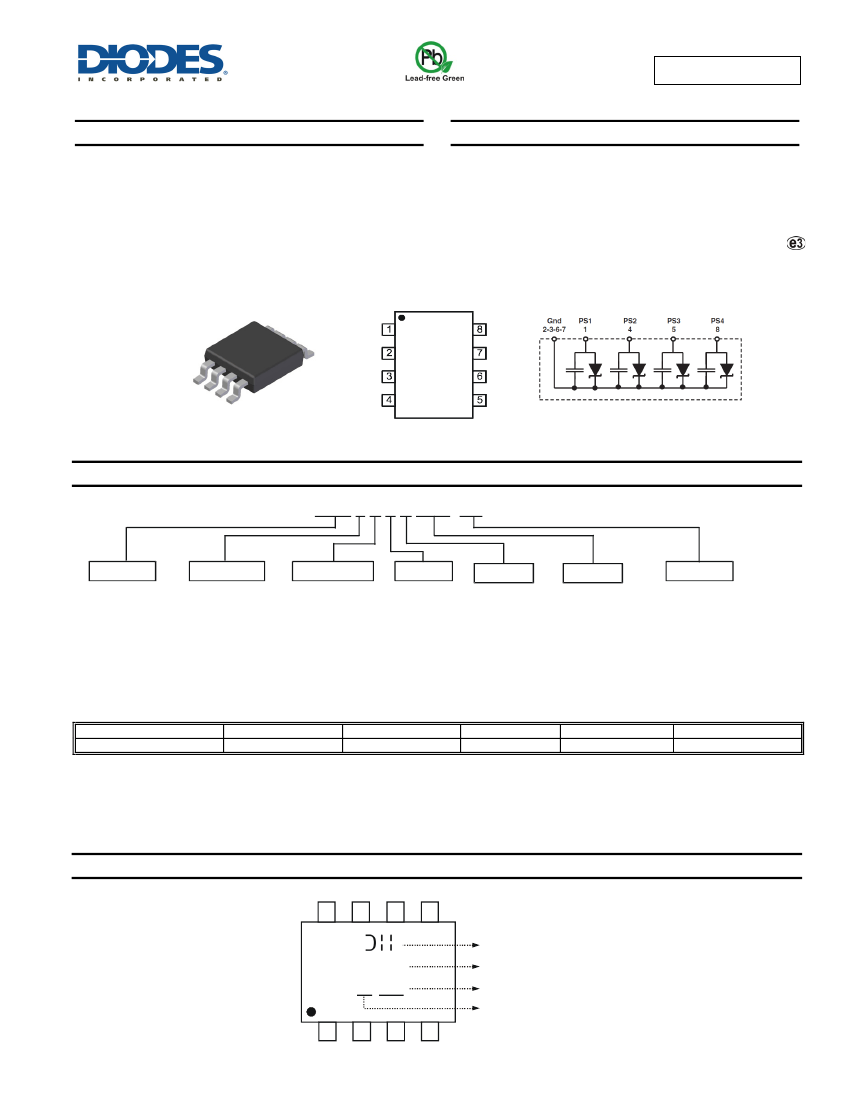

Features



2.7kW Peak Pulse Power (tp = 8x20µs)

Provides ESD Protection per IEC 61000-4-2 Standard:

Air

±30kV,

Contact

±30kV

4 Channels of ESD Protection and 4 Decoupling Capacitances

Typically Used in Power Over Ethernet PSE Equipment against

Line Overvoltages



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

SO-8

PS1

GND

PS2

Mechanical Data



Case: SO-8

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Copper leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.08 grams (approximate)

ADVANCED NEW PRODUCT

INFORMATION



PS4

GND

PS3

Top View

Pin Configuration

Device Schematic

Ordering Information

(Note 4)

D58V0 M X B X XXX- XX

Voltage

Capacitance

# of Channels

1: 1 Channel

2: 2 Channels

4: 4 Channels

6: 6 Channels

Polarity

B: Bidirectional

(Symmetrical)

U: Unidirectional

A: Bidirectional

(Asymmetrical)

# of Pins

2: 2 Pins

3: 3 Pins

5: 5 Pins

6: 6 Pins

8: 8 Pins

10: 10 Pins

Package

LP3: X3-DFN0603-2

LP: X1-DFN1006-2

LP4: X2-DFN1006-2

WS: SOD323

T: SOD523/SOT523

SO: SOT23/SOT25

W: SOD123/SOT323

TS: TSOT25/TSOT26

S: SOT353/SOT363

V:SOT553/SOT563

Tape width(mm)

Packing

7: 7” reel

7B: 7” reel (DFN1006

Package Only)

13: 13” reel

5V0: 5.0 Volts X: Extremely Low (<0.5pF)

58V0: 58.0 Volts F: Ultra Low (0.5 ~ 1.0pF)

P: Very Low (1.1 ~ 10pF)

L: Low (10.1 ~ 20pF)

M: Medium (>20pF)

Product

D58V0M4U8MR-13

Notes:

Compliance

Standard

Marking

TV58

Reel size(inches)

Quantity per reel

2500/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Top View

Logo

TV58

YY WW

1 of 5

www.diodes.com

April 2014

Part Marking

Xth week: 01 ~ 53

Year: “13” = 2013

D58V0M4U8MR

Document number: DS36183 Rev. 2 - 2

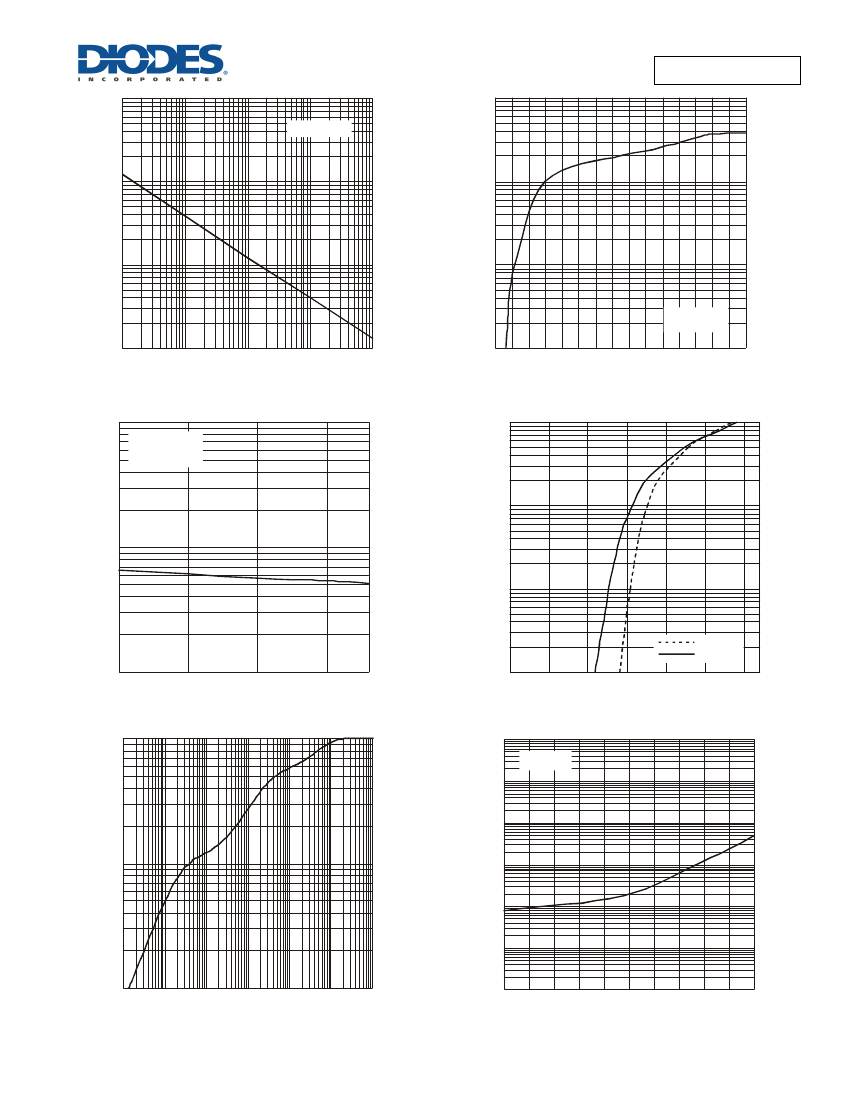

D58V0M4U8MR

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

ADVANCED NEW PRODUCT

INFORMATION

D58V0M4U8MR

Document number: DS36183 Rev. 2 - 2

5 of 5

www.diodes.com

April 2014
