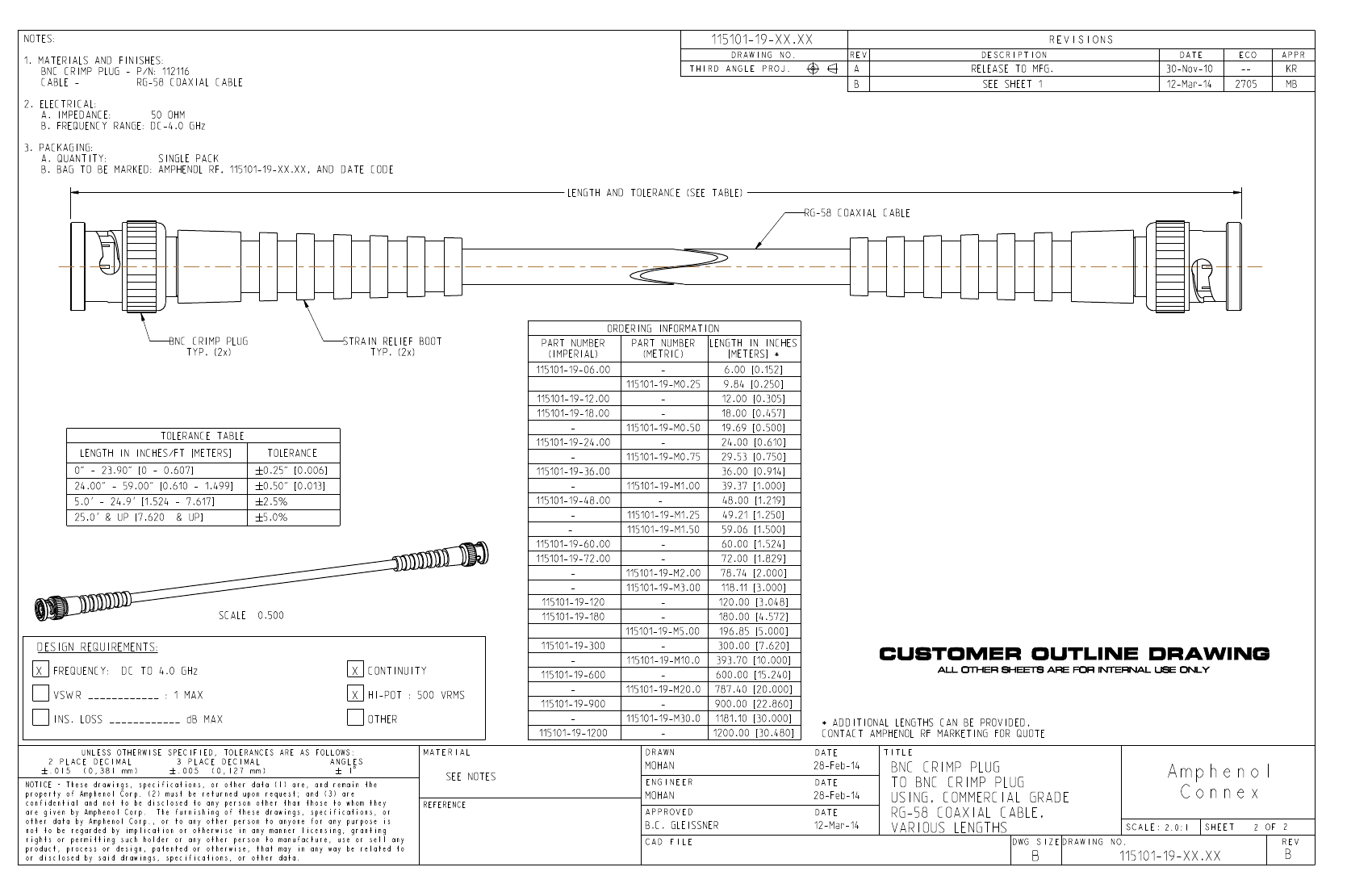

NOTES:
1. MATERIALS AND FINISHES:
BNC CRIMP PLUG - P/N: 112116
CABLE -
RG-58 COAXIAL CABLE
2. ELECTRICAL:
A. IMPEDANCE:
50 OHM
B. FREQUENCY RANGE: DC-4.0 GHz
3. PACKAGING:
A. QUANTITY:
SINGLE PACK
B. BAG TO BE MARKED: AMPHENOL RF, 115101-19-XX.XX, AND DATE CODE
115101-19-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
RELEASE TO MFG.
SEE SHEET 1
DESCRIPTION
30-Nov-10
DATE
ECO
12-Mar-14
2705
--
APPR
KR
MB
LENGTH AND TOLERANCE (SEE TABLE)
RG-58 COAXIAL CABLE
BNC CRIMP PLUG
TYP. (2x)
STRAIN RELIEF BOOT
TYP. (2x)
115101-19-06.00
115101-19-12.00
115101-19-18.00
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620 & UP]
TOLERANCE
#
0.50" [0.013]
#
5.0%
#
2.5%
#
0.25" [0.006]
115101-19-24.00
115101-19-36.00
115101-19-48.00
-
-
-
-
-
PART NUMBER
(IMPERIAL)
ORDERING INFORMATION
PART NUMBER
(METRIC)
-
LENGTH IN INCHES
[METERS] *
9.84 [0.250]
6.00 [0.152]
115101-19-M0.25
-
-
-
12.00 [0.305]
19.69 [0.500]
29.53 [0.750]
39.37 [1.000]
49.21 [1.250]
60.00 [1.524]
78.74 [2.000]
72.00 [1.829]
18.00 [0.457]
24.00 [0.610]
36.00 [0.914]
48.00 [1.219]
115101-19-M0.50
115101-19-M0.75
115101-19-M1.00
115101-19-M1.25
115101-19-M1.50
-
-
-
115101-19-72.00
-
-
115101-19-60.00
59.06 [1.500]
SCALE
0.500
115101-19-180
115101-19-300
115101-19-120
115101-19-M3.00 118.11 [3.000]
-
-
-
180.00 [4.572]
300.00 [7.620]
120.00 [3.048]
115101-19-M2.00
DESIGN REQUIREMENTS:
X
FREQUENCY:
DC TO 4.0 GHz
115101-19-M5.00 196.85 [5.000]
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
115101-19-600
115101-19-900
115101-19-1200
-
-
-
115101-19-M10.0 393.70 [10.000]
115101-19-M20.0 787.40 [20.000]
-
-
-
600.00 [15.240]
900.00 [22.860]
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
115101-19-M30.0 1181.10 [30.000]
DRAWN
1200.00 [30.480]
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
28-Feb-14
28-Feb-14
12-Mar-14
DATE
DATE
DATE
TITLE
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
SEE NOTES
REFERENCE
MOHAN
ENGINEER
MOHAN
APPROVED
CAD FILE
B.C. GLEISSNER
BNC CRIMP PLUG
TO BNC CRIMP PLUG
USING, COMMERCIAL GRADE
RG-58 COAXIAL CABLE,
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 2.0:1
SHEET
2 OF 2
REV
DWG SIZE DRAWING NO.
115101-19-XX.XX
B
