NOTES:
1. MATERIALS AND FINISHES:
REVERSE POLARITY SMA BULKHEAD CRIMP JACK IP 67 - P/N: 132422RP-10
MICRO COAX RIGHT ANGLE PLUG TERMINATED USING 1.13 MM CABLE - P/N:A-1PA-113-XXXB2
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM, NOMINAL
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. BAG TO BE MARKED: AMPHENOL RF, 336320-12-XXXX, AND DATE CODE
336320-12-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
RELEASE TO MFG.
DESCRIPTION
17-Dec-14
DATE
2838
ECO
CL/BCG
APPR
SCALE 1.250
LENGTH AND TOLERANCE (SEE TABLE)
HEAT SHRINK TUBE
1.13 MM CABLE
GASKET
LOCK WASHER
HEX NUT
'D' FLAT
REVERSE POLARITY
SMA BULKHEAD CRIMP JACK IP 67
336320-12-0050
336320-12-0100
336320-12-0150
336320-12-0200
336320-12-0250
336320-12-0300
CONNEX NUMBER
CABLE LENGTH (IN) CABLE LENGTH (MM)
1.968 # 0.150
3.936 # 0.150
5.905 # 0.150
7.873 # 0.200
11.810 # 0.200
9.842 # 0.200
100 # 3.81
150 # 3.81
200 # 5.08
250 # 5.08
300 # 5.08
50 # 3.81
DESIGN REQUIREMENTS:
X
FREQUENCY: DC TO 6 GHz
VSWR _____ : 1 MAX
INS. LOSS _____ dB MAX
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
X
CONTINUITY
X
HI-POT :200 VRMS
OTHER
MATERIAL
DRAWN
DATE
DATE
DATE
TITLE

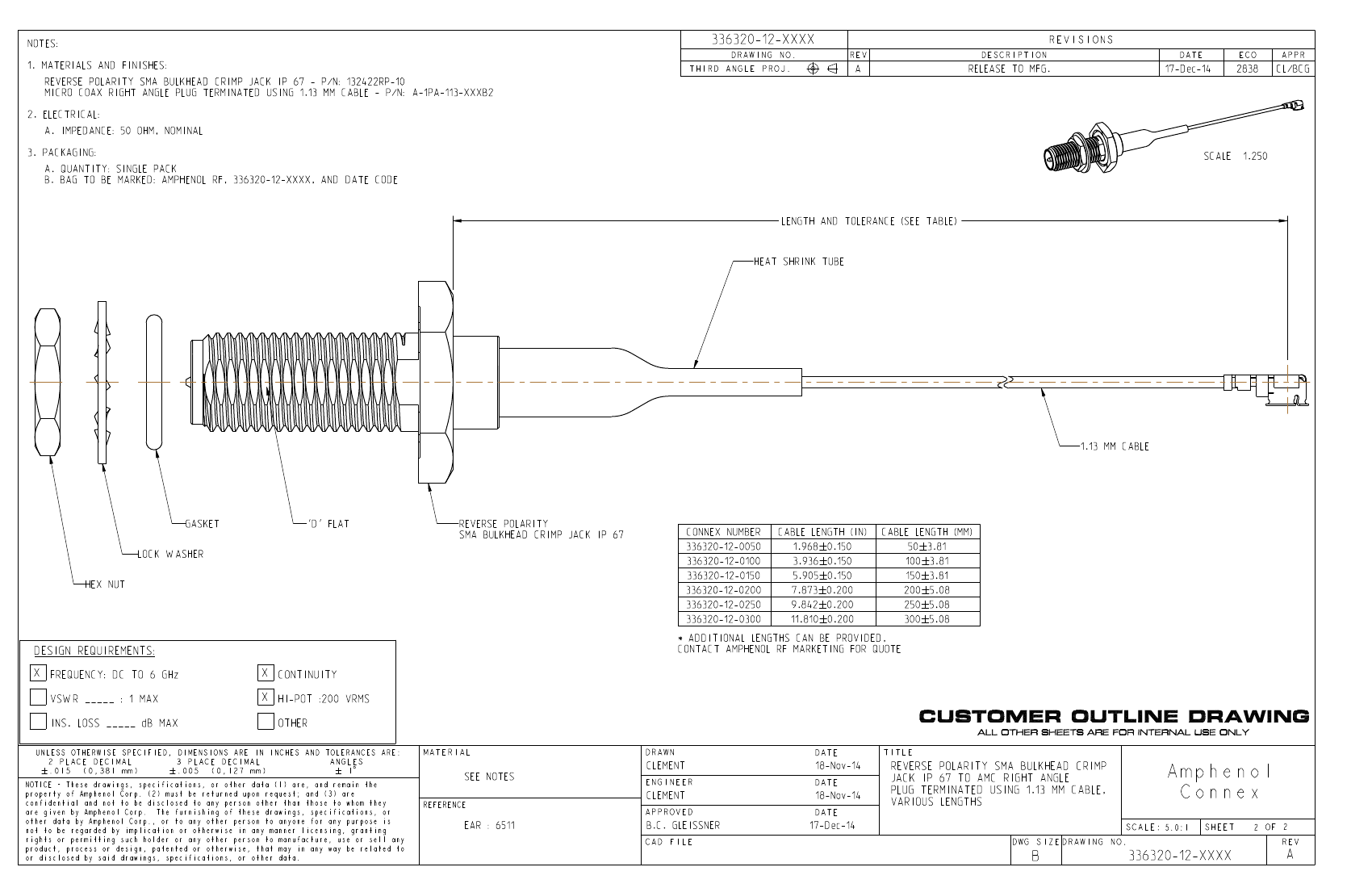

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
SEE NOTES
REFERENCE
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
CLEMENT
CLEMENT
18-Nov-14
18-Nov-14
17-Dec-14
ENGINEER
APPROVED
CAD FILE
REVERSE POLARITY SMA BULKHEAD CRIMP
JACK IP 67 TO AMC RIGHT ANGLE
PLUG TERMINATED USING 1.13 MM CABLE,
VARIOUS LENGTHS
DWG SIZE DRAWING NO.
Amphenol
Connex
SCALE: 5.0:1
SHEET
2 OF 2
REV
EAR : 6511
B.C. GLEISSNER
B
336320-12-XXXX
A
