Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOD323
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Weight: 0.004 grams (approximate)

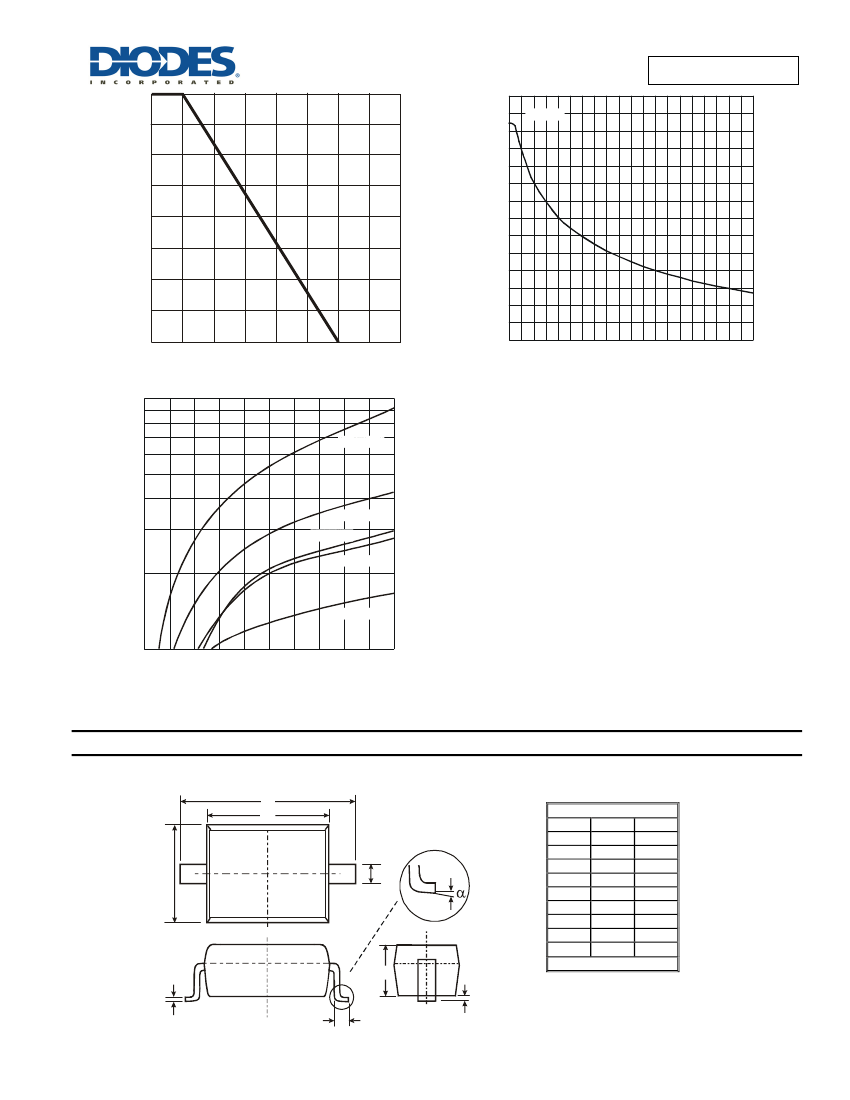

SOD323
1
2
Top View
Device Schematic
Ordering Information
(Note 4)
D 20V0 L X B X XXX- XX
Voltage
Capacitance
# of Channels
1: 1 Channel
2: 2 Channels
4: 4 Channels
6: 6 Channels
Polarity
B: Bidirectional
(Symmetrical)
U: Unidirectional
A: Bidirectional
(Asymmetrical)
# of Pins
2: 2 Pins
3: 3 Pins
5: 5 Pins
6: 6 Pins
8: 8 Pins
10: 10 Pins
Package
LP3: X3-DFN0603-2
LP: X1-DFN1006-2
LP4: X2-DFN1006-2
WS: SOD323
T: SOD523/SOT523
SO: SOT23/SOT25
W: SOD123/SOT323
TS: TSOT25/TSOT26
S: SOT353/SOT363
V:SOT553/SOT563
Packing
7: 7” reel
7B: 7” reel (DFN1006
Package Only)
13: 13” reel
5V0: 5.0 Volts X: Extremely Low (<0.5pF)
20V0: 20.0 Volts F: Ultra Low (0.5 ~ 1.0pF)
40V0: 40.0 Volts P: Very Low (1.1 ~ 10pF)
L: Low (10.1 ~ 20pF)
M: Medium (>20pF)
Product
D20V0L1B2WS-7
D20V0L1B2WSQ-7
Notes:
Compliance
AEC-Q101
Automotive
Marking
H/H
H/H
Reel Size (inches)
7
7
Tape Width (mm)
8
8
Quantity per Reel
3,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

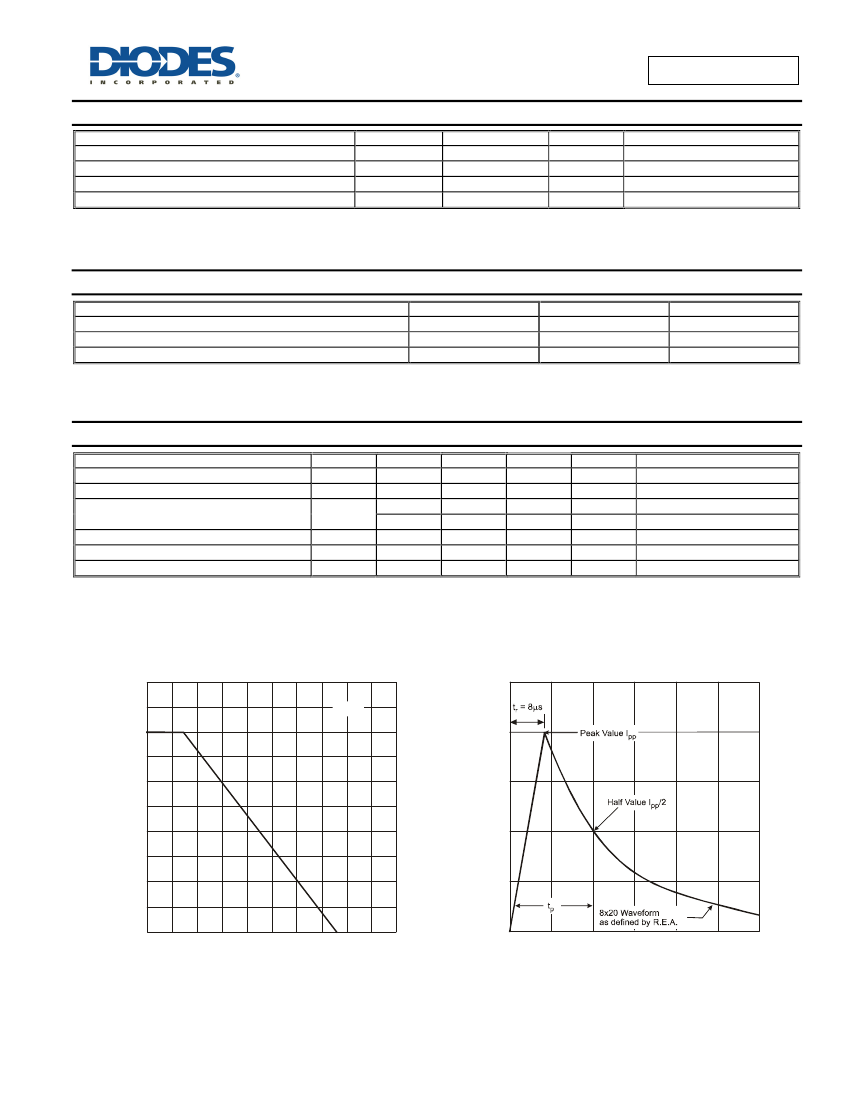

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
