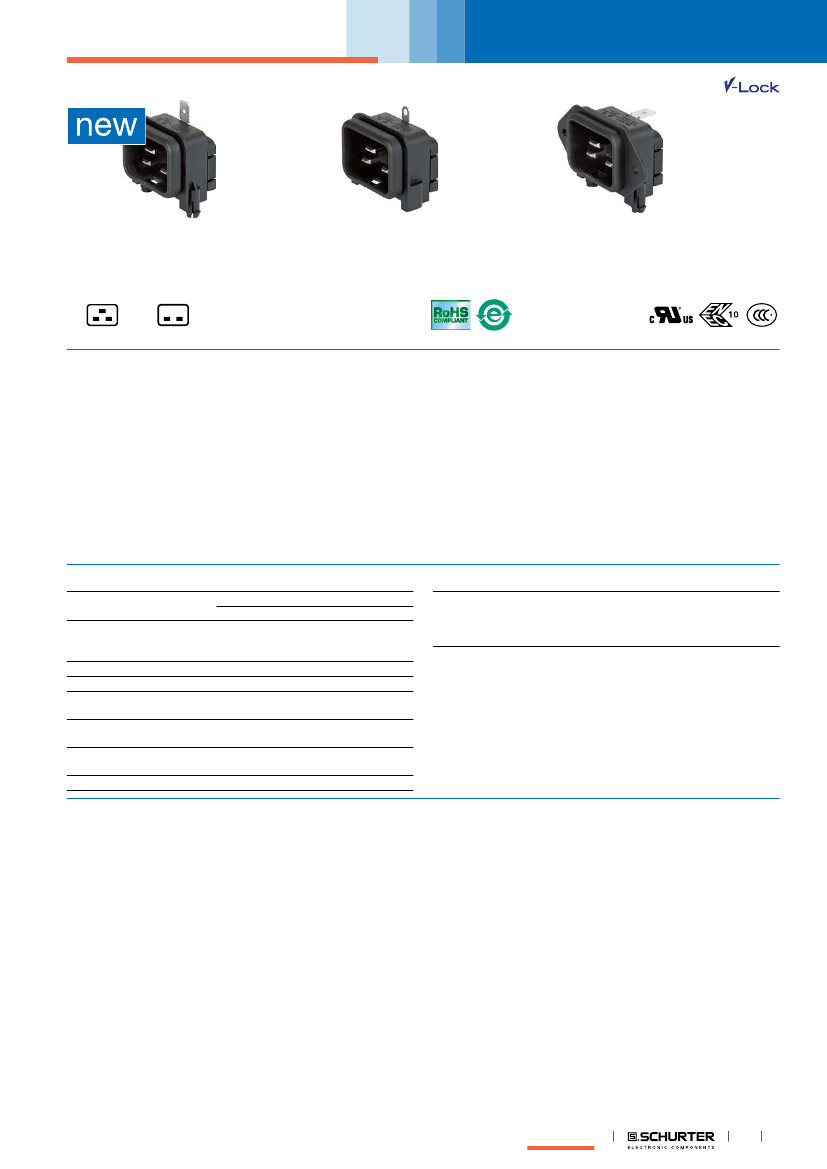

IEC Appliance Inlet C20 or C24, Split panel or screw-on mounting, PCB Terminal
GSP4
Split panel mounting, Snap-in PCB,
Additional earth terminal 90° to
connector axis
Split panel mounting, Screw-on PCB,
Additional earth terminal 90° to
connector axis
Screw-on panel mounting, Snap-in PCB,
Additional earth terminal
in connector axis
C20
70° C
C24
70° C
Description
- Panel Mount:
Splitpanel (sandwich) or screw-on from backside
- Appliance Inlet, Pin temperature 70 °C, protection class I or II
- V-Lock notch standard
- Additional ground terminal
- Meets the requirements of IEC 60335-1 for appliances in unattended
use. This includes the enhanced requirements of glow wire tests acc.
to IEC 60695-2-12 and -13.
- Variants with protection cover on rear side
- For PCB mounting
Other versions on request
- Further colours on request
Weblinks
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating
Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-
Check, CAD-Drawings, Accessories, Detailed request for product
Approvals
- VDE Certificate Number: 40035923
- UL File Number: E96454
- CCC File Number: 2013010204591237
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
16 A / 250 VAC; 50 Hz
20 A / 250 VAC; 60 Hz
> 1.5 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
PCB terminals , additional ground ter-
minal
for sandwich mounting
1/1.2/1.5/2/2.5/3/4 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C20 or C24 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1-
11 (for cold conditions) pin-temperature
70 °C, 16 A, Protection Class I or II
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Connectors
1
GSP4

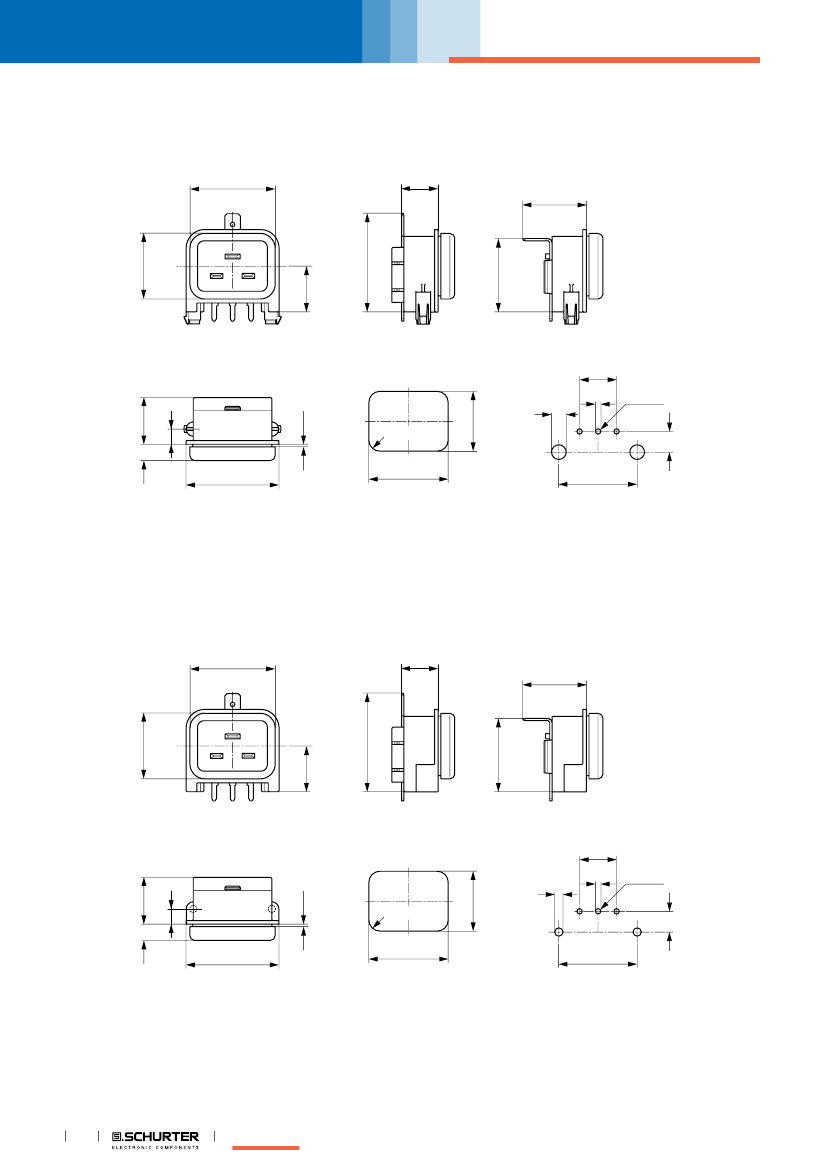

Dimensions
Split panel mounting / Snap-in on PCB
Connectors (Inlets/Outlets)
www.schurter.com/PG07
34.9
B
Z
26.9
A
18.75
2)
Y
15.1
+0.1
0
Panel
ø 6
± 0.05
ø 2.2
PCII w/o
6.2
6.7
37.9
32.4
+0.1
0
32
± 0.1
Dimension
Quick connect 6.3x0.8 mm
Solder
2) with protection cover
A
40.3
37.3
B
15.0
15.0
Y
30.0
30.0
Z
25.9
22.9
Split panel mounting / Screw-on mounting on PCB
34.9
B
Z
26.9
A
1)
18.75
2)
Y
15.1
+0.1
0
Panel
ø 3.4
ø 2.2
PCII w/o
6.2
6.7
37.9
32.4
+0.1
0
32
± 0.1
Dimension
Quick connect 6.3x0.8 mm
Solder
A
40.3
37.3
B
15.0
15.0
Y
30.0
30.0
Z
25.9
22.9
1) Mounting screw torque max. 0.3 Nm
2) with protection cover
2
Connectors
8.3
max.R4.5
24.4
19
8.3
max.R4.5
24.4
19
Connectors (Inlets/Outlets)
www.schurter.com/PG07
GSP4

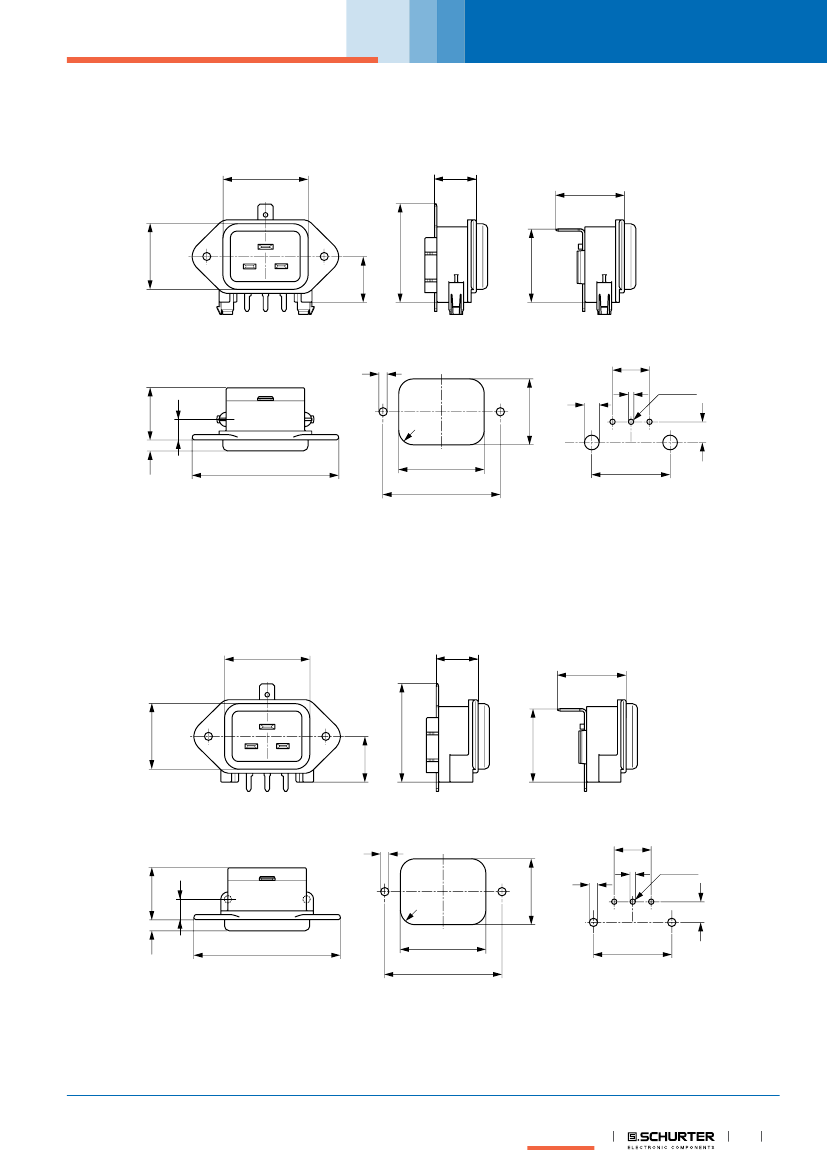

Screw-on rear side / Snap-in on PCB
34.9
B
Z
26.9
A
18.75
2)
Y
ø3.4/M3
+0.1
0
15.1
ø 6
± 0.05
ø 2.2
PCII w/o
21.1
8.3
4.6
60
35
+0.1
0
32
± 0.1
48
± 0.1
Dimension
Quick connect 6.3x0.8 mm
Solder
2) with protection cover
A
40.3
37.3
B
17.1
17.1
Y
30.0
30.0
Z
28.0
25.0
Screw-on rear side / Screw-on mounting on PCB
34.9
B
Z
26.9
A
1)
18.75
2)
Y
ø3.4/M3
+0.1
0
15.1
ø 3.4
ø 2.2
PCII w/o
21.1
8.3
4.6
60
35
+0.1
0
32
± 0.1
48
± 0.1
Dimension
Quick connect 6.3x0.8 mm
Solder
A
40.3
37.3
B
17.1
17.1
Y
30.0
30.0
Z
28.0
25.0
1) Mounting screw torque max. 0.3 Nm
2) with protection cover
Connectors
8.3
R6
27
8.3
R6
27
3
GSP4
All Variants
Protection
Class
Panel mounting
Panel Thick-
ness s [mm]
PCB mounting
Additional ground terminal
Terminal
I
I
I
I
I
I
I
I
I
I
II
█
Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
With screw mounting on PCB, 2 screws are included
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Screw
Screw
Screw
Screw
Sandwich
1.0
1.5
1.5
1.5
3.0
3.0
-
-
-
-
1.5
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Screw
Snap-in
Snap-in
Snap-in
Snap-in
solder terminal
Quick connect terminal 6.3 x 0.8 mm
solder terminal
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
-
Terminal direction
90° to connector axis
in connector axis
90° to connector axis
in connector axis
in connector axis
in connector axis
in connector axis
90° to connector axis
in connector axis
in connector axis
-
Connectors (Inlets/Outlets)
www.schurter.com/PG07
Cover
Order Number
none
none
none
none
none
mounted
none
none
none
mounted
mounted
GSP4.010C.11
GSP4.0107.13
GSP4.010C.13
GSP4.0207.13
GSP4.0207.16
GSP4.0217.16
GSP4.0107.10
GSP4.0205.10
GSP4.0207.10
GSP4.0217.10
GSP4.0210.13
█
█
█
█
█
█
█
█
█
█
█
Packaging unit
50 Pcs

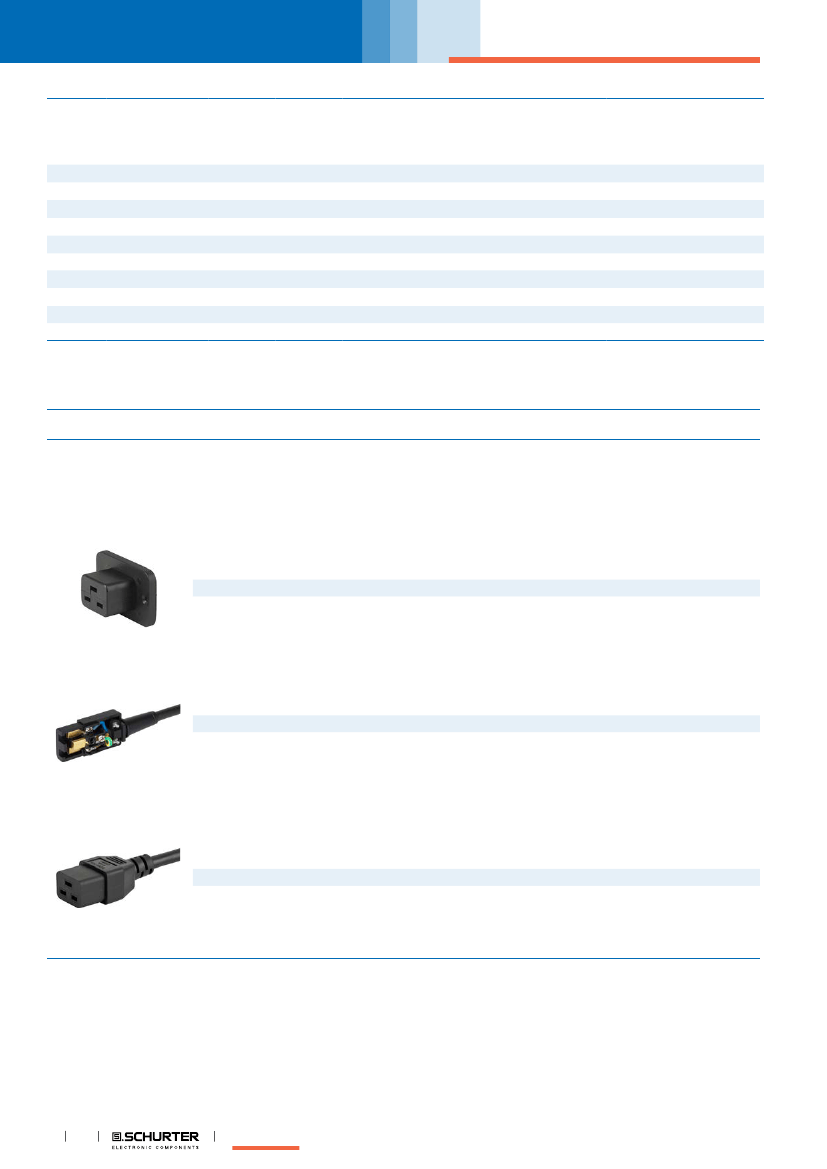

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet J, Screw-on Mounting, Front Side, Quick-connect Terminal
Appliance Outlet further types to GSP4
5017
Connector Overview complete
IEC Connector C19, Rewireable, Straight
IEC Connector C19, Rewireable, Angled
Connector further types to GSP4
4795
4790
Power Supply Cord Overview complete
Cord Sets 16 A, Europlug, 2.5 m, Connector IEC C19, cord end:
Power Supply Cord further types to GSP4
6004.0395
4
Connectors
Connectors (Inlets/Outlets)
www.schurter.com/PG07
GSP4
Mating Outlets/Connectors shuttered
Power Cord Overview complete
Overview Power Cord with IEC Appliance Connector C19, V-Lock, straight
Power Cord further types to GSP4
VAC19KS
