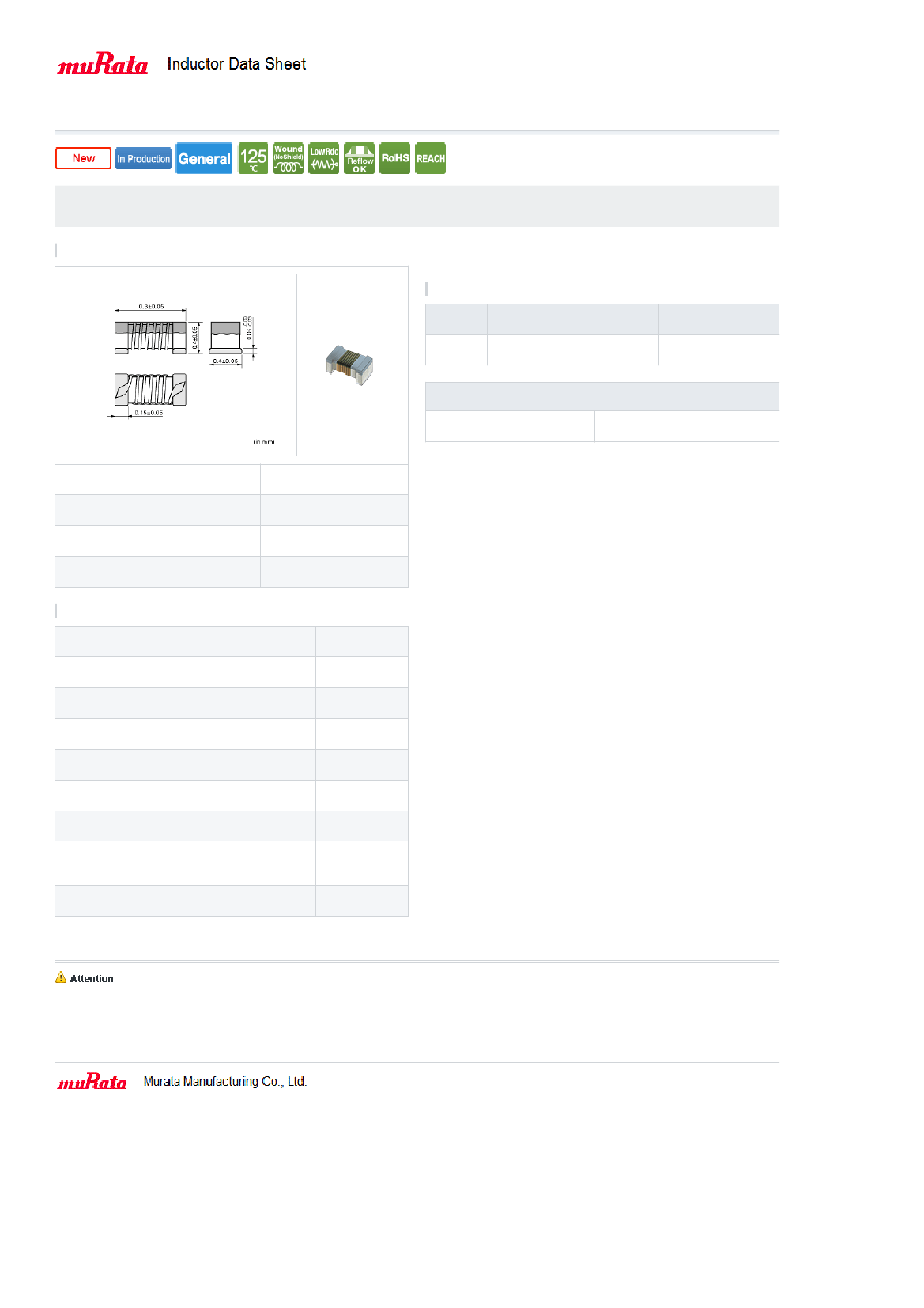

LQW04AN43NJ10: DescriptionInductance; File Size82KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet View All

LQW04AN43NJ10 Overview

Inductance

Preview

Download Datasheet

View All

LQW04AN43NJ10#

# indicates a package specification code.

< List of part numbers with package codes >

LQW04AN43NJ10D

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

Minimum quantity

10000

Mass (Typ.)

1 piece

0.0003g

L size

W size

T size

Size code in inch (mm)

0.8 ±0.05mm

0.4 ±0.05mm

03015 (0804)

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not

included)

Class of magnetic shield

43nH ±5%

100MHz

180mA

1.2Ω

250MHz

1.6GHz

-55∼125℃

No magnetic shield

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
