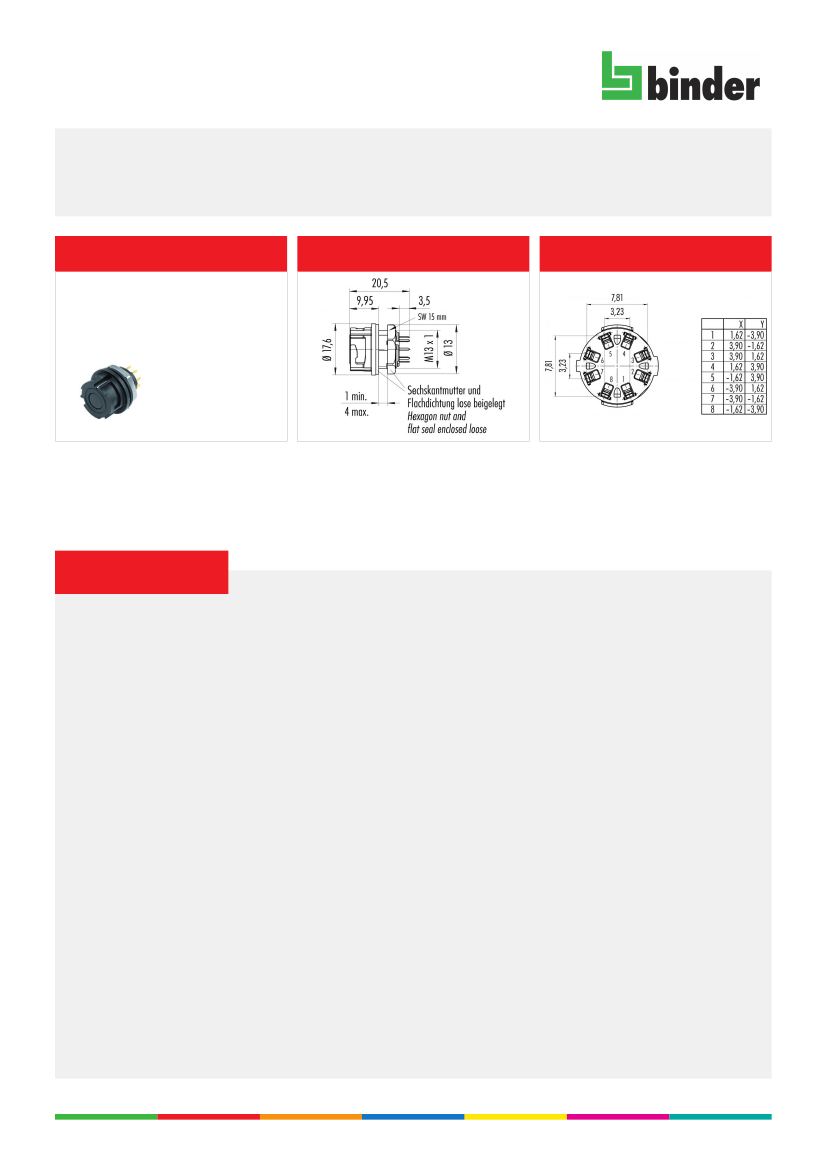

Product sheet
Miniature connector
Product
Area
Article number
Contacts: 8, Female panel mount connector, dip-solder
Bayonet NCC Series 770
09 0774 090 08
Illustration
Scale drawing
Contact Arrangement
You can find the item description and assembly instruction on the next page.
Technical data
Common values
Connector Design
Connector locking system
Termination
Wire gauge (mm)
Wire gauge (AWG)
Upper temperature
Lower temperature
Female panel mount connector
Bayonet
dip-solder
0.25 mm²
max. 24
85 °C
-25 °C
Electrical values
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Material group
Rated current (40°C)
Volume resistivity
EMV compliance
Degree of protection
Mechanical operation
175 V
1750 V
2
II
II
2A
≤ 15 mΩ
-
IP67 auch ungesteckt
> 5000 mating cycles
Material
Material of contact
Contact plating
Material of contact body
Material of housing
CuSn (Bronze)
Au (Gold)
PA (UL 94 V-0)
PA (UL 94 HB)
Date: 2016-01-13 - Page 1 of 2
Product sheet
Miniature connector
Product
Area
Article number
Contacts: 8, Female panel mount connector, dip-solder
Bayonet NCC Series 770
09 0774 090 08

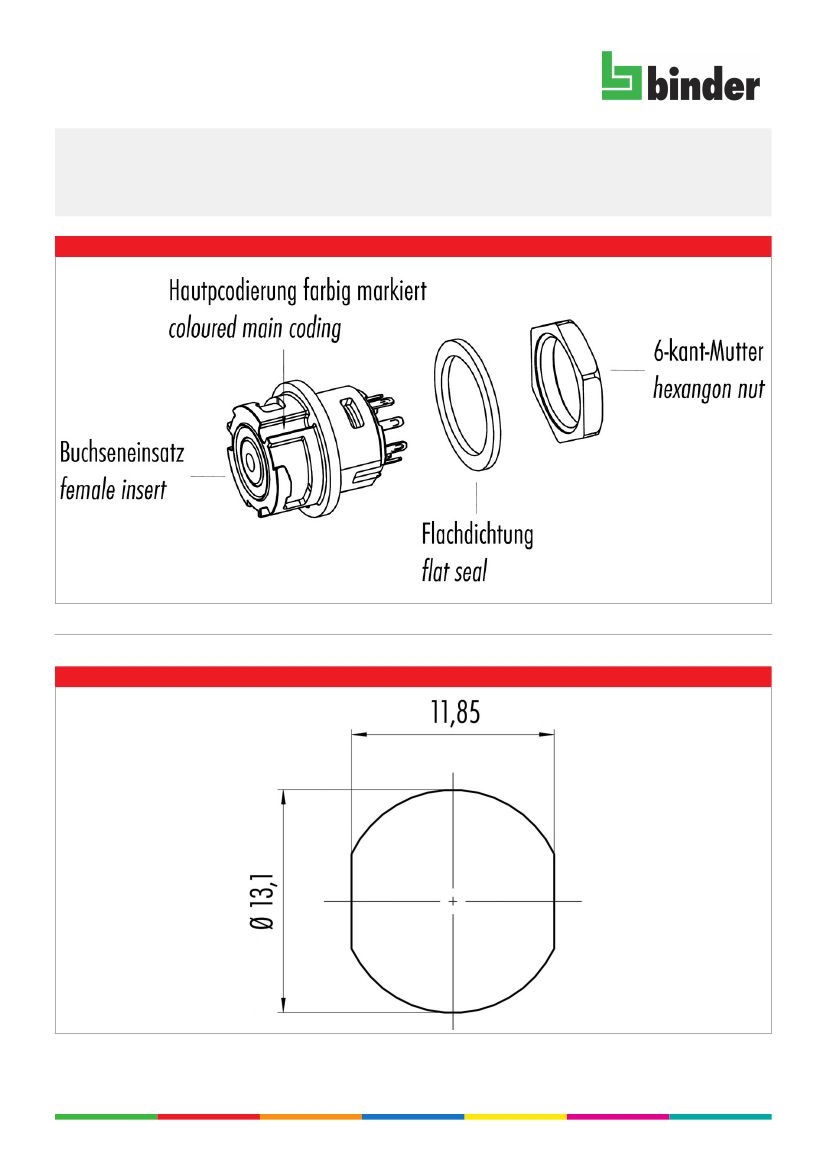

Item description
Installation instructions / Mounting cutout
Date: 2016-01-13 - Page 2 of 2
