BAV103 — High Voltage, General Purpose Diode

April 2013

BAV103

High Voltage, General Purpose Diode

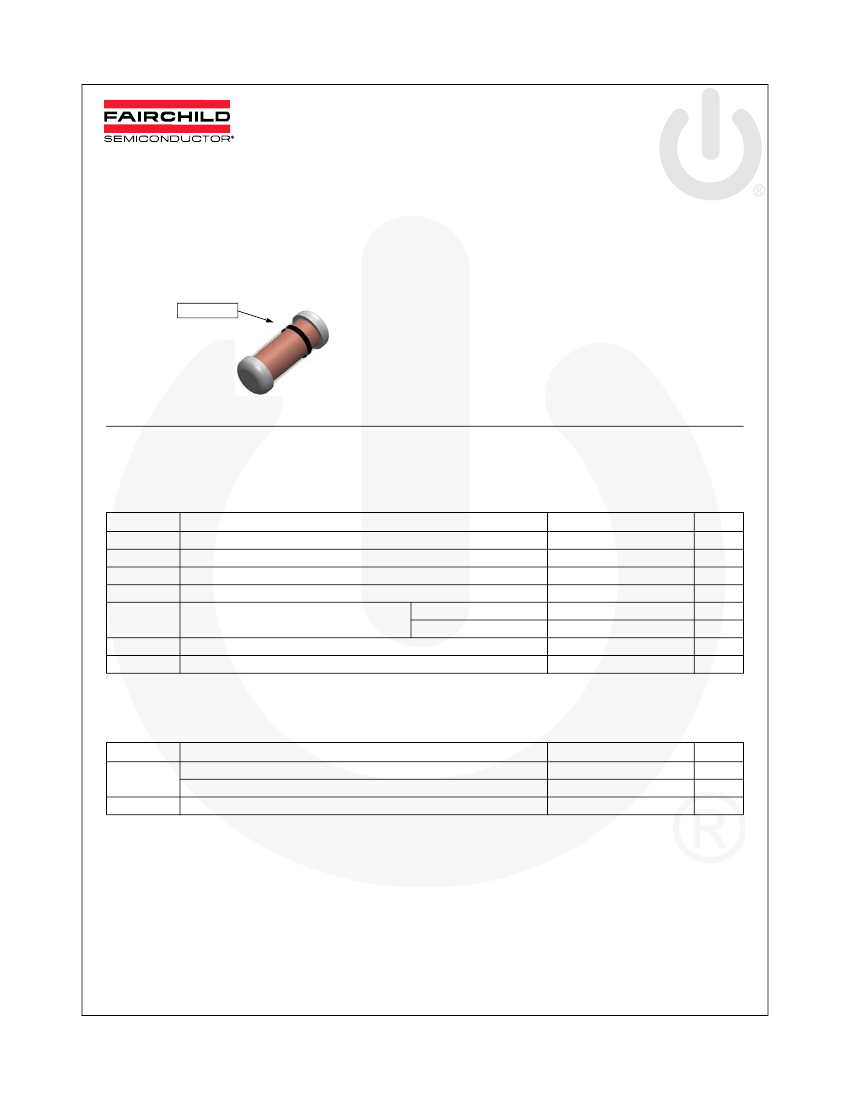

Description

Cathode Band

A general purpose diode that couples high forward con-

ductance fast swiching speed and high blocking volt-

ages in a glass leadless LL-34 surface mount package.

Placement of the expansion gap has no relationship to

the location of the cathode terminal which is indicated by

the first color band.

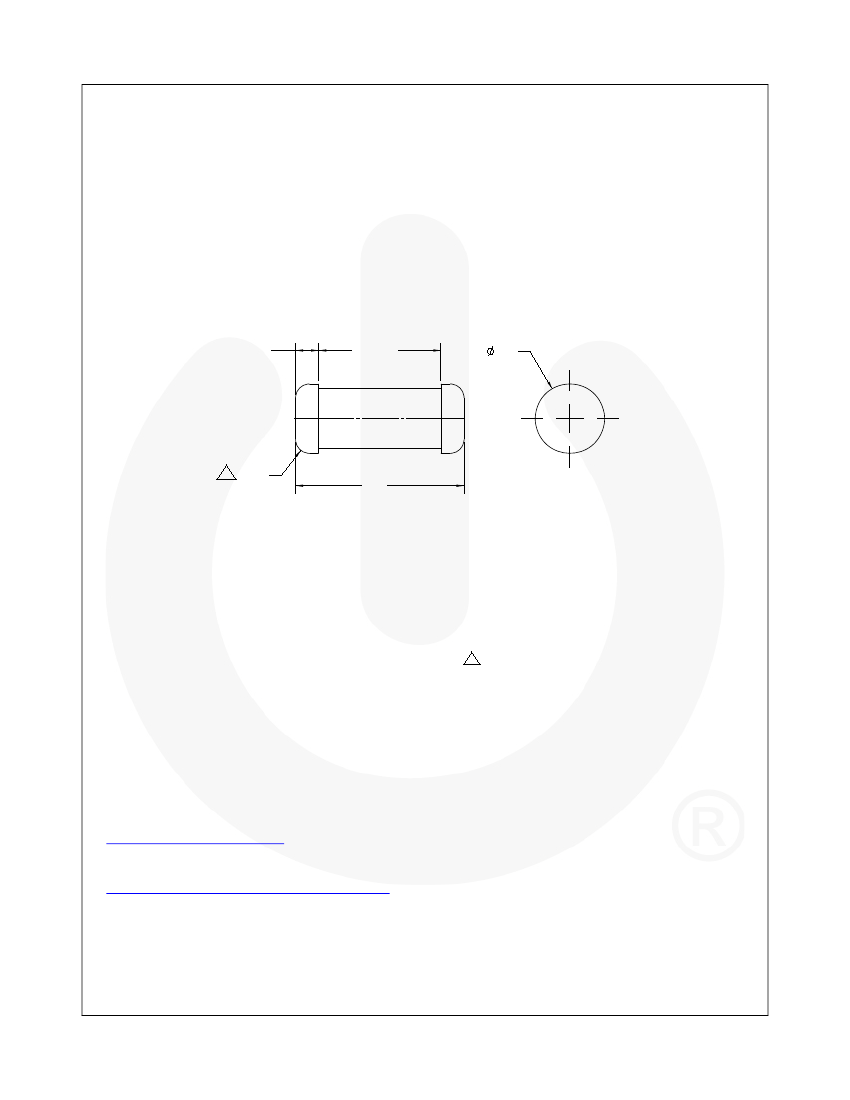

SOD80

Absolute Maximum Ratings

(1)

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-

ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-

tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The

absolute maximum ratings are stress ratings only. Values are at T

= 25°C unless otherwise noted.

Symbol

FSM

STG

Parameter

Working Inverse Voltage

Average Rectified Current

DC Forward Current

Recurrent Peak Forward Current

Non-repetitive Peak Forward Current

Storage Temperature Range

Operating Junction Temperature

Pulse Width = 1.0 s

Pulse Width = 1.0

μs

Value

200

500

600

1.0

4.0

-65 to +200

Units

°C

Note:

1. These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics

Symbol

θJA

Parameter

Power Dissipation

Linear Derating Factor from T

= 25°C

Thermal Resistance, Junction to Ambient

Value

500

3.33

350

Units

mW/°C

°C/W

BAV103 Rev. 1.1.0

www.fairchildsemi.com
