C2012C0G2W101K060AA
TDK Item Description : C2012C0G2W101KT****
Application & Main Feature
Commercial Grade ( Mid Voltage (100 to 630V) )
Series
C2012 [EIA CC0805]
Dimensions
L
W
T
B
G
2.00mm
1.25mm
0.60mm
0.20mm
+/-0.2mm
+/-0.2mm
+/-0.15mm
Min.
|Z|, ESR/ohm
|Z|, ESR vs. Freq. Characteristics
1000
100
10
1
0.1
0.01
1
10
100
1000
10000
5
4
3
2
1
0
-1
-2
-3
-4
-5
0
100
DC Bias Characteristic
Temperature Characteristic

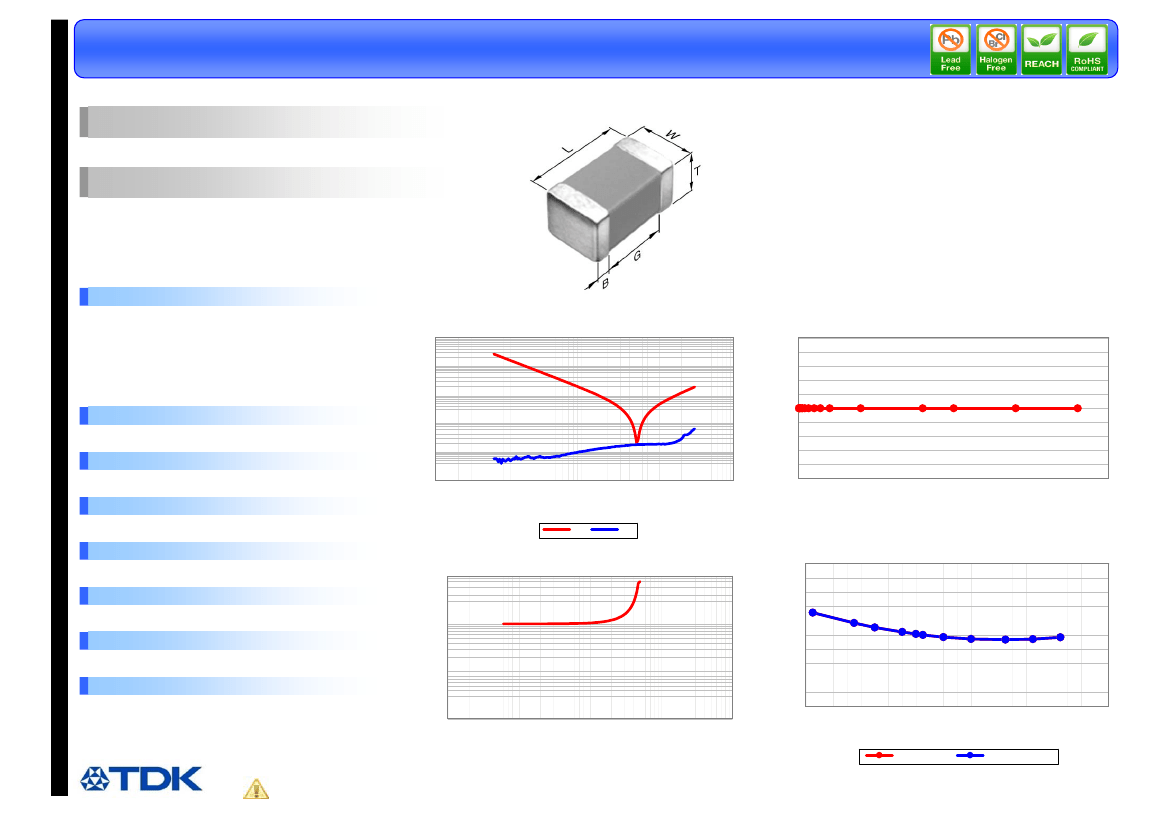

Characterization Sheet ( Multilayer Ceramic Chip Capacitors )
C0G (-55 to 125 degC 0+/-30ppm/degC)
2W (450Vdc)
100pF
Rated Voltage
Capacitance
Cap. Change/%
200
300
400
500
Frequency/MHz
|Z|
ESR
DC Bias/V
Capacitance Tolerance
K (+/-10%)
1000 Min.
Cap./pF
1000
Cap. vs. Freq. Characteristic
Cap. Change/%
Temperature Characteristics
0.5
0.4
0.3
0.2
0.1
0
-0.1
-0.2
-0.3
-0.4
-0.5
Q Factor
100
Insulation Resistance
10Gohm Min.
10
AEC-Q200
Not Applicable
1
1
10
100
1000
10000
-60
-40
-20
0
20
40
60
80
100
120
140
160
Frequency/MHz
Temperature/degC
Temp.Chara.
TCBias(1/2Rated)
All specifications are subject to change without notice.
January 3, 2016
