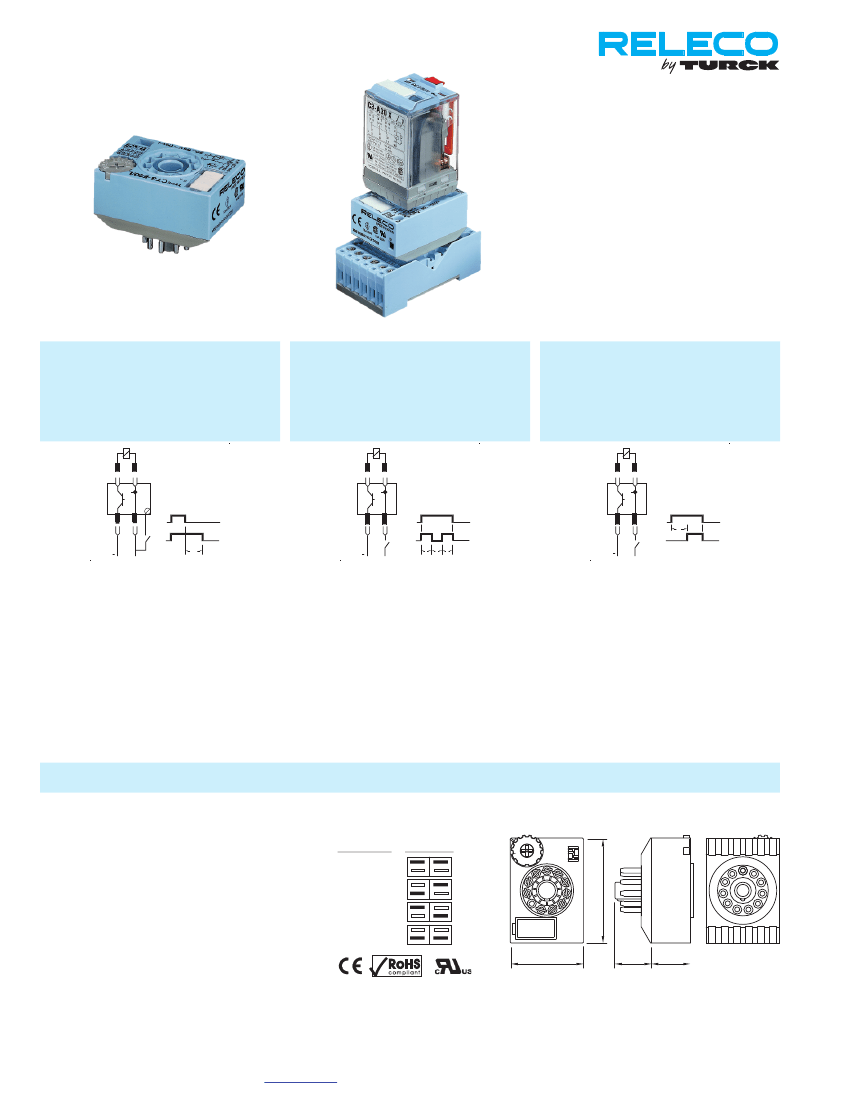

TIME CUBE
8 and 11-Pin, Time Cube
The modules
CT 2
and
CT 3
are electronic
timers that are designed to be inserted
beween a standard plug-in relay and its
socket, enabling the relay to be operated
as a timer relay.
The
CT
modules are able to accept any
standard 8 or 11-Pin RELECO series C2
or C3 as well as those from any other
supplier.
The relay coil voltage must be in the range
shown for each model.
CT 2A CT 3A CT 2B CT 3B CT 2E CT 3E
Off delay
Blinker
On delay
The timing starts when S is switched off.
The relay drops out at time (t).
R
The relay blinks ON/OFF at time (t) when
switch S is closed. First pulse, ON.
R
The timing starts when the switch S is
closed. The relay pulls in at the time (t).
R
Function A
10
(7)
2
S
Function B
10
(7)
S
+
Function E
10
(7)
2
S
S
S
R
S
t
R
R
t
~
CT
CT
CT
CT
CT
CT
CT
CT
+
~
t t t
~
S
+
2-A30/S*
.......9.5-18 V
2-A30/L
..........20-65 V
2-A30/M
.......90-150 V
2-A30/U
.....180-265 V
3-A30/S*
.......9.5-18 V
3-A30/L
..........20-65 V
3-A30/M
.......90-150 V
3-A30/U
.....180-265 V
CT 2-B30/S*
........
9.5-18 V
CT 2-B30/L
...........
20-65 V
CT 2-B30/H
........
90-265 V
CT 3-B30/S*
........
9.5-18 V
CT 3-B30/L
...........
20-65 V
CT 3-B30/H
........
90-265 V
CT 2-E30/S*
........
9.5-18 V
CT 2-E30/L
...........
20-65 V
CT 2-E30/H
........
90-265 V
CT 3-E30/S*
........
9.5-18 V
CT 3-E30/L
...........
20-65 V
CT 3-E30/H
........
90-265 V
*All types are for AC/DC except “S” voltage range (only DC)
CT2... (8-Pin) and CT3... (11-Pin) types with time range from 0.2 seconds to 30 minutes (range 30)
Specifications
Time accuracy
Repetition
+0.5%/20 ms
Supply voltage
1 ms / volt.
Ambient temperature
-0.25% / K
Reset time (types E, W, B)
<150 ms
Reset time (types A, K)
<200 ms
Triggering time: AC, 80 ms;
DC, 50 ms
Ambient temperature
-10°C to +60°C
Transient protection
IEC 255.4
Housing material
Noryl SE1 (UL94 V-1)
Protection class (DIN 40050)
IP 40
Weight avg.
35 g
Time Range Setting
Range 30
0.2-3 s
Dip - Sw
Dimensions
76
5
4
10
9
8
3
2
1
5
4
50
6
7
8
9
2-30 s
0.2-3 min
2-30 min
35
3
2
1
1
1
10
12.5
24.5
84 B1201
www.turck.us
•
1-800-544-7769 •
Fax: (763) 553-0708
•
TURCK Inc. Minneapolis, MN 55441
