750-517 / 753-517
2-Channel Relay Output Module AC 230 V, DC 300 V
isolated outputs; 2 changeover contacts
Status
relay 1
K1 K2
A
B
C
D
Status
relay 2
Data contacts
1
5
14 24
DO 1
11 21
DO 2
N
14
24
DO
Status
2
6
L1
12 22
L2
11
3
7
L
21
————
DO 1
————
DO 2
N
12
4
8
———
DO
22
750-517
750-517

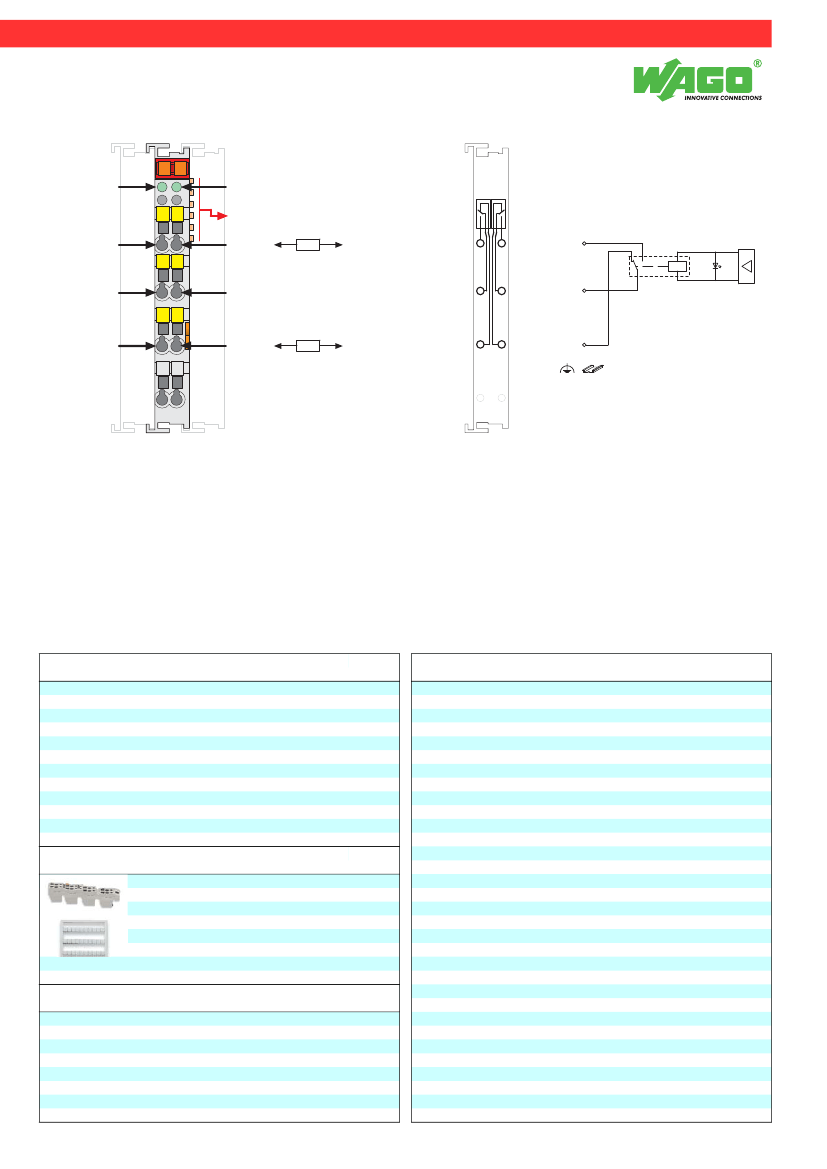

Fig. Series 750 / Technical data see page 28 / Delivery without Mini WSB marker
Series 750 / 753 marking see pages 16 ... 17 / 18 ... 19
The connected load is switched via the digital output (relay contacts) from the
control system.
The internal system voltage is used to trigger the relay.
The SPDT contacts are electrically isolated.
The switched status of the relay is shown by a LED.
Description
2DO 230V AC 1.0A/ Relay 2CO/ Potential
Free
2DO 230V AC 1.0A/ Relay 2CO/ Potential
Free (without connector)
Item no.
750-517
753-517
Pack.
unit
1
1
Technical Data
No. of outputs
Current consumption max. (internal)
Switching voltage (max.)
Switching current (min.)
Switching current (max.)
Switching rate (max.)
Pull-in time (max.)
Drop-out time (max.)
Contact material
Mechanical life
Electrical life
2 changeover contacts
90 mA
AC 250 V / DC 300 V
100 mA / 12 V DC
AC 1A DC 1 A at 40 V
DC 0.15 A at DC 300 V
6 / min (at nominal load)
8 ms
4 ms
Silver alloy
5 x 10
6
switching operations
1 x 10
6
switching operations
(AC 1 A/250 V)
1.5 kV eff. (field/system)*;
* 2.5 kV rated surge voltage;
Overvoltage category III
2 bits
CAGE CLAMP
®
0.08 mm² ... 2.5 mm² / AWG 28 ... 14
8 ... 9 mm / 0.33 in
9 ... 10 mm / 0.37 in
12 mm
52.5 g
acc. to EN 50082-2 (1996)
acc. to EN 50081-1 (1993)
acc. to Germanischer Lloyd (2003)
acc. to Germanischer Lloyd (2003)
Accessories
753 Series connector
Coding elements
Item no.
753-110
753-150
Pack.
unit
25
100
Isolation
Miniature WSB quick marking system,
plain
248-501
with marking
see pages 256 ... 257
5
Internal bit width
Wire connection
Cross sections
Stripped lengths (750 / 753 Series)
Width
Weight
EMC
1-Immunity
to interference
EMC
1-Emission
of interference
EMC marine applications -
Immunity to interference
EMC marine applications -
Emission of interference
Approvals
Series 750 and 753
Conformity marking
r
UL 508
Series 750
4
EN 50021
Marine applications
1
II 3 G EEx nC II C T4
see "Approvals Overview" in section 1
Subject to design changes
10.09.2008
