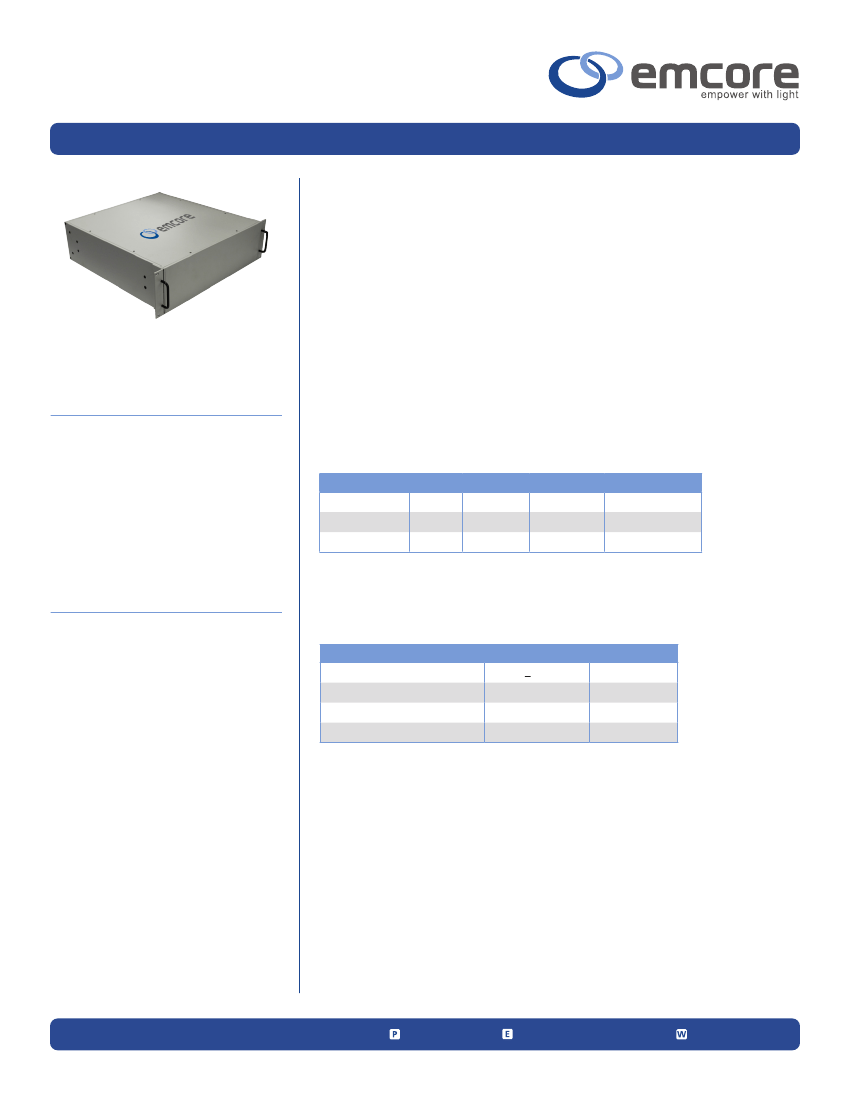

359B Series 1550 nm
Zero Dispersion Modules
DATASHEET | NOVEMBER 2014
MICROWAVE
The 359B Series Zero Dispersion Modules provide a rack mountable dispersion
shifted fiber spool providing a total final output with no chromatic dispersion.
These fiber spools provide precise delay time references for radar calibration
applications. They can also be used in site diversity applications when system tim-
ing is critical These spools can be used to mimic existing fiber in the ground as a
transparent switch between the local and diverse site.
The 359X platform works with a wide range of fiber optic transport products for
satellite and microwave communications from 1 MHz to 40 GHz. These units can
be used to construct transparent inter- and intra-facility links from 1 meter to
>100 km for RF and microwave signal transport, antenna remoting, video trans-
Applications
Radar Testing/Calibration
Signal Processing
Phased Array Antennas
Phase Noise Processing
Antenna Site Diversity
port, electronic warfare systems and other high-dynamic-range applications.
Delay Length Specifications
Product
359B - 1
359B - 3
359B - 5
Size
1 RU
3 RU
5 RU
Max Delay
110 µs
350 µs
600 µs
Max. Length
24 km
72 km
120 km
Total Dispersion
~0
~0
~0
Features
Delays Up to 600 microseconds
120 KM
Small Size
Optical Specifications
The 359B Series modules are designed to use multiple different times of fiber
to operate, optical specifications given are averaged over length of entire coil
Parameter
Attenuation @ 1550 nm
IOR @ 1550 nm
Zero Dispersion Wavelength
Typical Total Dispersion @ 1550 nm
Typical
< 0.21
1.4684
~1550
0
nm
ps/nm-km
Units
dB/km
Flat RF Amplitude Response and Phase
© 2014 EMCORE Corporation
|
REV 2014.11
+1 626-293-3400
satcom-sales@emcore.com
www.emcore.com
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
359B Series 1550 nm
Zero Dispersion Modules
DATASHEET | NOVEMBER 2014
MICROWAVE
Mechanical Specifications
Description
Body Dimensions
1 RU
3 RU
5 RU
Faceplate Dimensions
1 RU
3 RU
5 RU
Storage Temperature
Operating Temperature
Value
16.75 (425.4) x 1.72 (43.7) x 12 (304.8)
16.75 (425.4) x 5.22 (132.6) x 18 (458)
16.75 (425.4) x 8.72 (221.5) x 18 (458)
19 (482.6) x 1.75 (44.5)
19 (482.6) x 5.25 (133.4)
19 (482.6) x 8.75 (222.3)
-60 to +85
-40 to +85
Units
in (mm)
in (mm)
°C
°C
Ordering Information
Product Number
359B-WW-XXXXXX-YY-ZZ
When ordering replace “WW” with one of the Rack Unit Size Options
When ordering replace “XXXXXX” with one of the Delay Options
When ordering replace “YY” with one of the Connector Type Options
When ordering replace “Z”Z with one of the Optional Features
Coil Type
“B”
B = Zero Compensation
Dispersion
Rack Unit Size
“WW”
1U = 19” x 1.75” (1 RU)
3U = 19” x 5.25” (3 RU)
5U = 19” x 8.75” (5 RU)
Delay in
µS
“XXXXXX”
001000 = 10 µs Delay
010000 = 100 µs Delay
100000 = 1000 µs Delay
Connector Type
“YY”
SA = SC/APC
FA = FC/APC
LA = LC/APC
EA = E2000/APC
Optional Features*
“ZZ”
P = Pigtail Leads
B = Bulkhead
PM = Midspan Breakout - Pigtail
BM = Midspan Breakout - Bulkhead
Midspan Breakouts - For some applications, particularly coils greater than 50 km in length for 1550 nm applications, higher signal levels and more configurability
is required. For these cases, midspan breakouts can be placed at every 50 km (about every 245 µs) interval of the 359A Series Delay and Dispersion Compensation
Modules to allow the insertion of optical amplification (EDFA).
Pigtail Leads - If preferred, the standard bulkhead connector input and output of the 359A Series Delay and Dispersion Compensation Modules can be replaced
with a one meter long pigtail with a male connector on the end.
