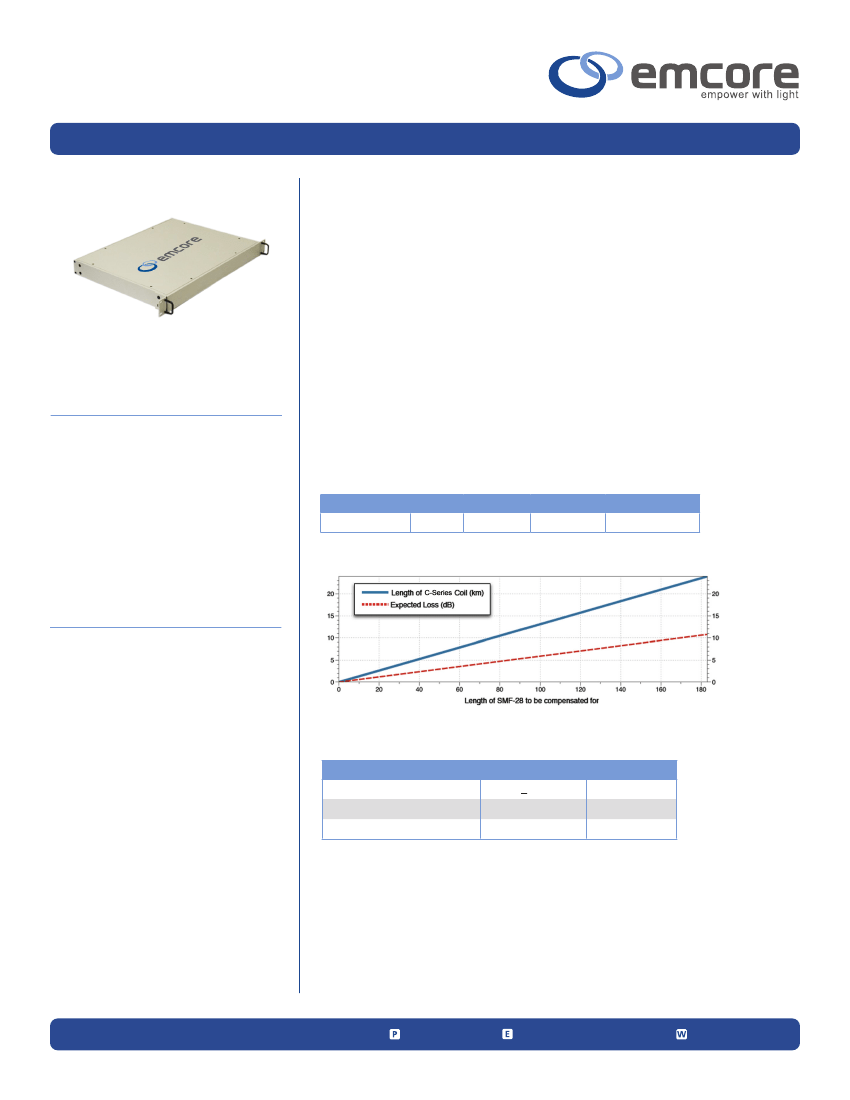

359C Series 1550 nm
Dispersion Compensation Module
DATASHEET | NOVEMBER 2014
MICROWAVE
The 359C Series Dispersion Compensation Module provides a solution for deal-
ing with existing high dispersion legacy installations. By providing a negative
dispersion, fiber with high positive dispersion can be fully compensated. Typical
dispersion compensation modules can increase the total fiber length by as much
as 65%, while these highly efficient high dispersion fibers only increase the total
fiber length of the system by approximately 13%. Thus lessening the requirement
on the EDFA modules required to compensate for the total fiber loss.
The 359X platform works with a wide range of fiber optic transport products for
satellite and microwave communications from 1 MHz to 40 GHz. These units can
be used to construct transparent inter- and intra-facility links from 1 meter to
Applications
Radar Testing/Calibration
Signal Processing
Phased Array Antennas
Phase Noise Processing
Antenna Site Diversity
>100 km for RF and microwave signal transport, antenna remoting, video trans-
port, electronic warfare systems and other high-dynamic-range applications.
Delay Length & Dispersion Specifications
Product
359C
Size
1 RU
Max Delay
110 µs
Max. Length
24 km
Total Dispersion
-1.6*10
5
ps/nm
Note: Max length of SMF-28 brought to 0 dispersion is 183.4 km.
Features
Delays Up to 110 microseconds
24 KM
Small Size
Flat RF Amplitude Response and Phase
Optical Specifications
Parameter
Attenuation @ 1550 nm
IOR @ 1550 nm
Typical Total Dispersion @ 1550 nm
Typical
< 0.25
1.469
-130
ps/nm-km
Units
dB/km
© 2014 EMCORE Corporation
|
REV 2014.11
+1 626-293-3400
satcom-sales@emcore.com
www.emcore.com
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
359C Series 1550 nm
Dispersion Compensation Module
DATASHEET | NOVEMBER 2014
MICROWAVE
Mechanical Specifications
Description
Body Dimensions
1 RU
3 RU
5 RU
Faceplate Dimensions
1 RU
3 RU
5 RU
Storage Temperature
Operating Temperature
Value
16.75 (425.4) x 1.72 (43.7) x 12 (304.8)
16.75 (425.4) x 5.22 (132.6) x 18 (458)
16.75 (425.4) x 8.72 (221.5) x 18 (458)
19 (482.6) x 1.75 (44.5)
19 (482.6) x 5.25 (133.4)
19 (482.6) x 8.75 (222.3)
-60 to +85
-40 to +85
Units
in (mm)
in (mm)
°C
°C
Ordering Information
Product Number
359C-WW-XXXXXX-YY-ZZ
When ordering replace “WW” with one of the Rack Unit Size Options
When ordering replace “XXXXXX” with one of the Delay Options
When ordering replace “YY” with one of the Connector Type Options
When ordering replace “Z”Z with one of the Optional Features
Coil Type
“C
C = Zero Compensation
Dispersion
Rack Unit Size
“WW”
1U = 19” x 1.75” (1 RU)
Delay in
µS
“XXXXXX”
001000 = 10 µs Delay
010000 = 100 µs Delay
Connector Type
“YY”
SA = SC/APC
FA = FC/APC
LA = LC/APC
EA = E2000/APC
Optional Features*
“ZZ”
P = Pigtail Leads
B = Bulkhead
Pigtail Leads - If preferred, the standard bulkhead connector input and output of the 359C Series Delay and Dispersion Compensation Modules
can be replaced with a one meter long pigtail with a male connector on the end.
© 2014 EMCORE Corporation
|
REV 2014.11
+1 626-293-3400
satcom-sales@emcore.com
www.emcore.com
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
