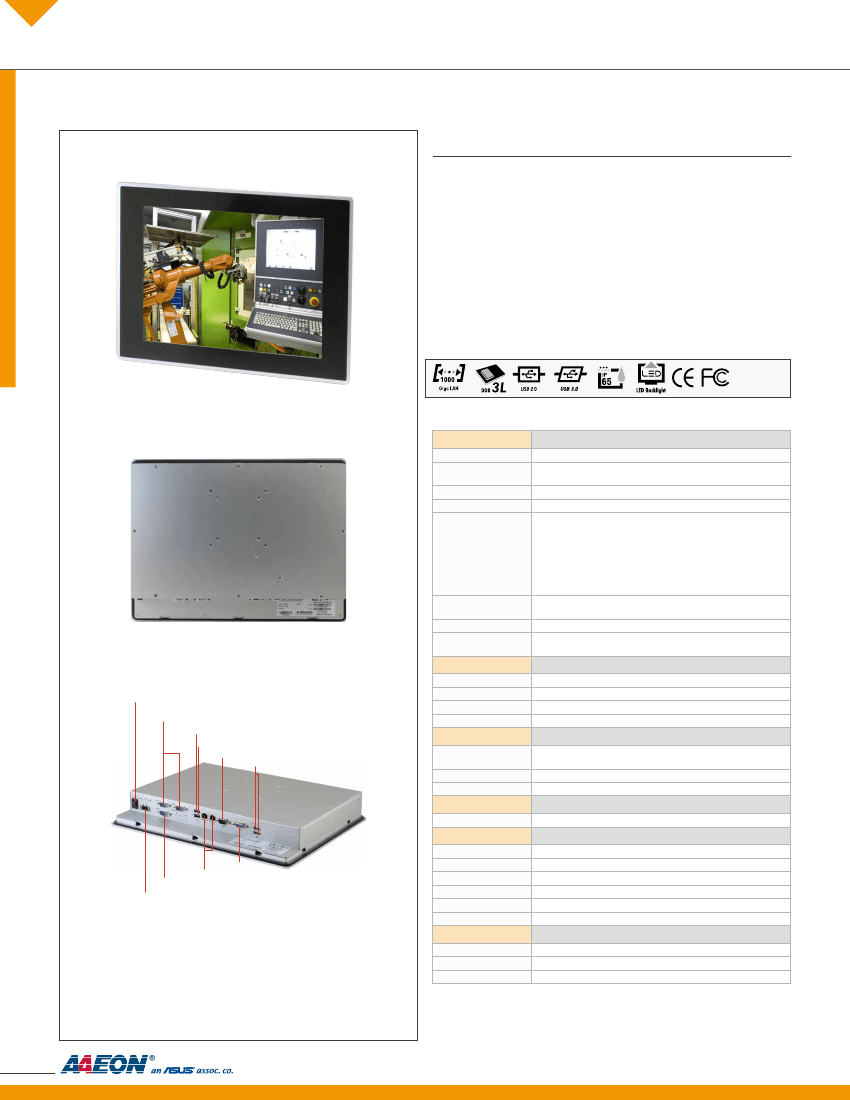

01
Industrial HMI Touch Panel Solutions
01-1
AHP-1154
15” XGA HMI Touch Panel PC with Onboard Intel® Celeron® J1900/N2807 Processor, 2 GB RAM
Features
■
■
Intel® Celeron® J1900, 2.0 GHz/ N2807, 1.58 GHz
■
■
15” LCD with 450 nits XGA LED Backlight
■
■
IP65 Plastic Front Bezel
■
■
RS-232/422/485 x 2, RS-232 x 2
■
■
Fanless Operation
Specifications
System
Processor
System Memory
LCD/CRT Controller
Ethernet
Intel® Celeron® J1900 ,2 GHz / N2807, 1.58 GHz
204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB (J1900), 4 GB (N2807)
Default 2 GB
Integrated in processor
10/100/1000Base-TX, RJ-45 x 2
USB type A x 1 for USB 3.0
USB type A x 3 for USB 2.0
DB-9 for RS-485/422/232 x 2 (COM2, COM3)
DB-9 for RS-232 x 2
RJ-45 x 2 for 10/100/1000Base-TX
DB-15 x 1 for VGA
3-pin terminal block x 1
Power button x 1
CFast™ Socket x 1
SATA 2.5” HDD bay x 1
Mini-Card x 2 (Full Size, Half Size)
Windows® 10, Windows® 8.1, Windows® 7, WES 7, Linux kernel 2.6.x or
above, Android 4.4.4
I/O Port
Storage Disk Drive
Expansion Slot
OS support
Mechanical
Construction
Power Button
RS-232/422/485 x 2
USB 2.0 x 1
USB 3.0 x 1
RS-232 x 1
USB 2.0 x 2
Mounting
Dimension
Gross Weight
Plastic (ABS) front bezel + metal chassis
VESA 100/ VESA 75/ Panel mount
16.02” x 12.22” x 2.3” (407mm x 310.5mm x 58.3mm)
14.96 lb (6.8 kg)
Environmental
Operating Temperature
Storage Temperature
Storage Humidity
-10°C ~ 60°C with 0.5 m/s airflow (N2807)
-10°C ~ 50°C with 0.5 m/s airflow (J1900)
-4°F ~ 158°F (-20°C ~ 70°C)
90% @40°C, non-condensing
Power Supply
DC input
DC 12V/DC 9 ~ 30 V
LCD
Display type
RJ-45 x 2
VGA
Max Resolution
Max. Colors
Luminance
Viewing Angle
Back Light MTBF (Hours)
15" TFT-LCD, LED backlight
1024 x 768
16.7M colors (8-bit for R,G,B)
450 cd/m
2
160°(H), 140°(V)
100,000
RS-232 x 1
DC 9-30V input
* DC 12V input is supported by A2 and A4 SKU
Touchscreen
Type
Light Transmission
Life Time
5-wire, analog resistive
80%
10 million activations
Note: All specifications are subject to change without notice.
AHP-1154
Dimension
Unit: mm
Ordering Information
Part Number
AHP-
1154HTT-A1-1011
AHP-
1154HTT-A2-1011
AHP-
1154HTT-A3-1011
AHP-
1154HTT-A4-1011
Display
Type
15" TFT-
LCD
15" TFT-
LCD
15" TFT-
LCD
15" TFT-
LCD
Max.
Resolution
1024 x 768
Luminance
View
Angle
160°(H),
140°(V)
160°(H),
140°(V)
160°(H),
140°(V)
160°(H),
140°(V)
Backlight MTBF
(Hours)
100,000
CPU
Intel® Celeron®
J1900, 2 GHz
Intel® Celeron®
J1900, 2 GHz
Intel® Celeron®
N2807, 1.58 GHz
Intel® Celeron®
N2807, 1.58 GHz
LAN
USB
RS-232
RS-
485/422/232
2
Storage
CFast™ Socket x 1
SATA 2.5” HDD bay
x1
CFast™ Socket x 1
SATA 2.5” HDD bay
x1
CFast™ Socket x 1
SATA 2.5” HDD bay
x1
CFast™ Socket x 1
SATA 2.5” HDD bay
x1
RAM
Display
Expansion
Mini-Card x 2
(Full-size, Half-
size)
Mini-Card x 2
(Full-size, Half-
size)
Mini-Card x 2
(Full-size, Half-
size)
Mini-Card x 2
(Full-size, Half-
size)
Mounting
VESA 100/ VESA
75/ Panel mount
VESA 100/ VESA
75/ Panel mount
VESA 100/ VESA
75/ Panel mount
VESA 100/ VESA
75/ Panel mount
Power
Temp.
Touch
450
2
4
2
2GB
VGA x 1
-10°C ~ 50°C
DC 9
5-wire
with 0.5 m/s
~ 30 V
resistive
airflow
DC
12V
-10°C ~ 50°C
5-wire
with 0.5 m/s
resistive
airflow
1024 x 768
450
100,000
2
4
2
2
2GB
VGA x 1
1024 x 768
450
100,000
2
4
2
2
2GB
VGA x 1
-10°C ~ 60°C
DC 9
5-wire
with 0.5 m/s
resistive
~ 30 V
airflow
DC
12V
-10°C ~ 60°C
5-wire
with 0.5 m/s
resistive
airflow
1024 x 768
450
100,000
2
4
2
2
2GB
VGA x 1
Packing List
•
Phoenix Power Connector
•
Mounting Brackets and Screws
•
Product DVD
•
AHP-1154
Optional Accessories
•
AP-OT9789LA1000
LCD monitor Stand 230mm.LA-100
•
1702031802
Power Cord (US Type)
•
1702031803
Power Cord (European Type)
•
170203180E
Power Cord (Japanese Type)
•
1255900841
12V 84W Power Adapter w/ 3-pin Terminal Block
•
9761215303
Wireless Module
•
OS-WES7-010-01154-EN
WES7 for AHP-1154 (32-bit)
•
OS-WES7-020-01154-EN
WES7 for AHP-1154 (64-bit)
Note: All specifications are subject to change without notice.
