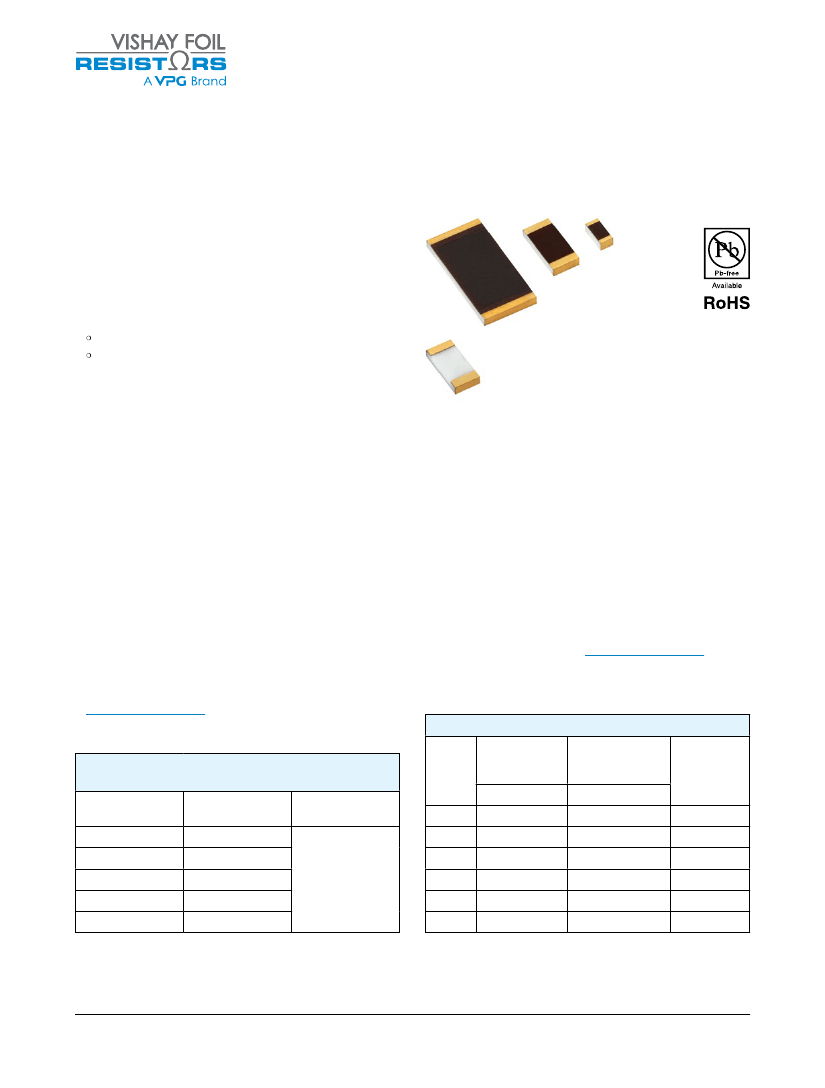

FRSG es Foilechnology) Foil 1206, 2010,
FRSG Series (Z1 0805,Technology)
Seri (Z1 T
0603,
1506, 2512
0603, 0805, 1206, 1506, 2010, 2512
Ultra Foil Wraparound Surface Mount
Ultra High-Precision High-Precision Foil Wraparound Chip Resistor
Surface Mount Chip Resistor
with Gold Plated Terminals for High Temperature Applications up to +250°C
FEATURES
• Temperature coefficient of resistance (TCR):
2.5 ppm/°C max (–55°C to +200°C, +25°C ref.)
• Resistance range: 10
Ω
to 125 kΩ (for higher and lower
values, please contact us)
• Resistance tolerance: to ±0.01%
•
Working power
(1)
:
to 750 mW at +70°C
to 300 mW at +200°C
•
Long-term stability: ±0.02% at +225 °C for 1000 h,
no power
•
Load-life stability: ±0.05% at 200°C for 2000 h, at
working power
• High temperature exposure up to +250°C
(unmounted), ±0.05%
(2)
• Bulk Metal Foil resistors are not restricted to standard
values; we can supply specific “as required” values at
no extra cost or delivery (e.g., 1K2345 vs. 1K)
• Thermal stabilization time <1 s (nominal value achieved
within 10 ppm of steady state value)
• Electrostatic discharge (ESD) up to 25 kV
• Non-inductive, non-capacitive design
• Rise time: 1 ns effectively no ringing
• Current noise: 0.010 μV
RMS
/V of applied voltage
(<–40 dB)
• Voltage coefficient: 0.1 ppm/V
• Non-inductive: <0.08 μH
• Non hot spot design
• Terminal finish: soft gold plating
• For sample prototype quantities, please contact
foil@vpgsensors.com.
Top View
1206
Bottom View
INTRODUCTION
Vishay Foil Resistors (VFR) introduces an advanced
line of Ultra Precision Bulk Metal
®
Z1 Foil Technology:
wraparound surface mount chip resistors with gold-plated
terminals for high temperature up to +250°C
(1)
.
The FRSG series incorporates Z1 Foil Technology
to extend its critical performance features to high-
temperature environments, while maintaining the same
low TCR. The gold-plated terminals support the use of
popular mounting methods used in the industry, therefore,
facilitating any design considerations required.
The FRSG is available in any value within the specified
resistance range. Our application engineering department
is available to advise and make recommendations.
For non-standard technical requirements and special
applications, please contact
foil@vpgsensors.com.
Table 2—Specifications
Table 1—Tolerance and TCR vs. Resistance
Value
(1)
(–55°C to +200°C, +25°C Ref.)
Resistance Value
(Ω)
250 to 125k
100 to <250
50 to <100
25 to <50
10 to <25
Tolerance
(%)
±0.01%
±0.02%
±0.05%
±0.1%
±0.25%
±2.5
Max TCR
(ppm/°C)
Chip
Size
0603
0805
1206
1506
2010
2512
Rated Power
at +70°C
(mW)
FR4 PCB
100
200
300
350
500
750
Working Power
at +200°C
(mW)
Ceramic PCB
33
83
140
167
220
300
Resistance
Range
(Ω)
100 to 4k
10 to 8k
10 to 25k
10 to 30k
10 to 70k
10 to 125k
Note
(1)
Performances obtained with ceramic PCB.
(2)
As shown +0.01 Ω to allow for measurement errors at low values.
9668-EN
Rev 06-Mar-2020
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
1
FRSG Series (Z1 Foil Technology)
FRSG es Foilechnology) 0805, 1506, 2512
Seri (Z1 T
0603, 1206, 2010,
0603, 0805, 1206, 1506, 2010, 2512
Figure 1—Power Derating Curve
125
% of Rated Power
100
75
50
25
0
–75 –50 –25
0
25
50
Polyimide
Board
75 100 125 150 175 200 225 250
Figure 2—Trimming to Values
(conceptual illustration)
Ceramic
Board
Unmounted
POWER DERATING CURVE
+70°C
Interloop
capacitance
reduction
in series
Mutual
inductance
reduction
due to change
in current
direction
Current path
before trimming
Current path after trimming
Temperature (°C)
Trimming process
removes this material
from shorting strip area
changing current path
and increasing
resistance
Foil shown in black, etched spaces in white
Note
To acquire a precision resistance value, the Bulk Metal
®
Foil
chip is trimmed by selectively removing built-in “shorting bars.”
To increase the resistance in known increments, marked
areas are cut, producing progressively smaller increases in
resistance. This method reduces the effect of “hot spots” and
improves the long-term stability of VFR resistors.
Table 3—Dimensions and Land Pattern
in Inches (Millimeters)
Protective
Overcoat
T
D
Top View
L
Gold-Plated
Wraparound
Terminals
W
Recommended Land Pattern
X
G
Z
Footprint
Chip
Size
0603
0805
1206
1506
2010
2512
L
±0.005 (0.13)
0.063 (1.60)
0.080 (2.03)
0.126 (3.20)
0.150 (3.81)
0.198 (5.03)
0.249 (6.32)
W
±0.005 (0.13)
0.032 (0.81)
0.050 (1.27)
0.062 (1.57)
0.062 (1.57)
0.097 (2.46)
0.127 (3.23)
Thickness
Maximum
D
±0.005 (0.13)
0.011 (0.28)
0.015 (0.38)
Z
(1)
0.102 (2.59)
0.122 (3.10)
0.175 (4.45)
0.199 (5.05)
0.247 (6.27)
0.291 (7.39)
G
(1)
0.031 (0.78)
0.028 (0.71)
0.059 (1.50)
0.083 (2.11)
0.115 (2.92)
0.150 (3.81)
X
(1)
0.031(0.78)
0.050 (1.27)
0.071 (1.80)
0.071 (1.80)
0.103 (2.62)
0.127 (3.23)
0.025 (0.64)
0.020 (0.51)
0.020 (0.51)
0.025 (0.64)
0.032 (0.81)
Note
(1)
Land Pattern Dimensions are per IPC-7351A.
www.vishayfoilresistors.com
2
For any questions, contact
foil@vpgsensors.com
9668-EN
Rev 06-Mar-2020
FRSG es Foilechnology) Foil 1206, 2010,
FRSG Series (Z1 0805,Technology)
Seri (Z1 T
0603,
1506, 2512
0603, 0805, 1206, 1506, 2010, 2512
Table 4—Performances
(1)
Test and Conditions
Short time overload,
6.25 x P
nom
High temperature exposure,
+225°C, no power
Low temperature operation,
–65°C, 45 min at rated power
Resistance to soldering heat,
per MIL-PRF-55342 (p.4.8.8.1)
Moisture resistance,
per MIL-PRF-55342 (p. 4.8.9)
Humidity test,
85°C/85% RH, 1000 h
Stability under load,
+200°C for 2000 h, derated power (see table 2), ceramic PCB
Load-life test,
+70°C for 2000 h at rated power (see Table 2), ceramic PCB and FR4 PCB
Thermal shock,
5 x (–65°C to +200°C)
Notes
(1)
As shown + 0.01 Ω to allow for measurement errors at low values.
(2)
Performances obtained with ceramic PCB.
(3)
For R ≥ 100 Ω. For other resistance values please contact Application Engineering.
100 hrs
1,000 hrs
Typical Limit %
(ppm)
±0.005% (50)
±0.01% (100)
(2)
±0.02% (200)
(2)(3)
±0.005% (50)
±0.005% (50)
±0.005% (50)
±0.005% (50)
±0.05% (500)
(2)(3)
±0.01% (100)
±0.01% (100)
Max Limit %
(ppm)
±0.01% (100)
±0.02% (200)
(2)
±0.05% (500)
(2)(3)
±0.01% (100)
±0.01% (100)
±0.01% (100)
±0.01% (100)
±0.1% (1,000)
(2)(3)
±0.02% (200)
±0.02% (200)
Figure 3—Global Part Number Information
(1)
NEW GLOBAL PART NUMBER: Y408412K7560Q9R (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
Ω
K
=k
TERMINAL/CHARACTERISTICS
9
= gold plated
1 to 999
= custom
Y
4
0
8
4
1
2
K
7
5
6
0
Q
9
R
4081
= FRSG0603
4082
= FRSG0805
4083
= FRSG1206
4084
= FRSG1506
4085
= FRSG2010
4086
= FRSG2512
PRODUCT CODE
RESISTANCE TOLERANCE
T
= ±0.01%
Q
= ±0.02%
A
= ±0.05%
B
= ±0.10%
C
= ±0.25%
D
= ±0.5%
F
= ±1.0%
R
= tape and reel
W
= waffle pack
PACKAGING
FOR EXAMPLE: ABOVE GLOBAL ORDER Y4084 12K7560 Q 9 R:
TYPE: FRSG1506
VALUES: 12.7560 kΩ
ABSOLUTE TOLERANCE: 0.02%
TERMINATION: gold plated
PACKAGING: tape and reel
HISTORICAL PART NUMBER: FRSG1506 12K756 TCR2.5 Q B T (will continue to be used)
FRSG1506
MODEL
FRSG 0603
FRSG 0805
FRSG 1206
FRSG 1506
FRSG 2010
FRSG 2512
12K756
RESISTANCE
VALUE
12.756 kΩ
TCR2.5
TCR
CHARACTERISTICS
Q
TOLERANCE
T
= ±0.01%
Q
= ±0.02%
A
= ±0.05%
B
= ±0.10%
C
= ±0.25%
D
= ±0.5%
F
= ±1.0%
B
TERMINATION
B
= gold plated
T
PACKAGING
T
= tape and reel
W
= waffle pack
Note
(1)
Customizations are available; contact application engineering at foil@vpgsensors.com.
9668-EN
Rev 06-Mar-2020
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
3
