JFCW SERIES
Up to 15 Watts
DC/DC Converter
Single and Dual Output
Size: 1.0in x 1.0in x 0.39in (25.4mm x 25.4mm x 9.9mm)
OPTIONS
•
•
•
•
•
Negative Logic Remote On/Off
Without Trim
Without On/Off Pin
Input Voltage
Output Voltage
FEATURES
•
•
•
•
•
•
Six-Sided Shielding
High Efficiency up to 91%
Fixed Switching Frequency
1600VDC Input to Output Isolation
4:1 Ultra Wide Input Voltage Range
ISO90001 Certified Manufacturing
Facilities
•
Compliant to RoHS II & Reach
Small Size and Low Profile: 1” x 1” x 0.39”
UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
CE Marked
Input Under Voltage, Over Current, Short Circuit, and Over
Voltage Protection
•
Single and Dual Outputs Available
•
Negative logic remote On/Off Optional
•
Input Voltage of 9~36VDC or 18~75VDC
•
•
•
•
APPLICATIONS
•
•
•
•
•
Measurement
Telecom/Datacom
Wireless Networks
Industry Control Systems
Semiconductor Equipment
DESCRIPTION
The JFCW series of single and dual output DC DC converters provide up to 15 watts output power in an
industry standard package and footprint. These units are specifically designed to meet power needs in a low
profile package. All models feature a 4:1 wide input voltage range of 9~36VDC or 18~75VDC. Some
features include positive or negative remote on/off, 1600VDC I/O isolation, and trimmable output voltage. All
models are protected against over current, over voltage, input under voltage, and short circuit conditions.
MODEL SELECTION TABLE
Single Output Models
Model Number
JFCW24S3.3-4000
JFCW24S5-3000
JFCW24S12-1300
JFCW24S15-1000
JFCW24S24-625
JFCW48S3.3-4000
JFCW48S5-3000
JFCW48S12-1300
JFCW48S15-1000
JFCW48S24-625
Input Voltage
Range
Output
Voltage
3.3VDC
5VDC
12VDC
15VDC
24VDC
3.3VDC
5VDC
12VDC
15VDC
24VDC
Output Current
4000mA
3000mA
1300mA
1000mA
625mA
4000mA
3000mA
1300mA
1000mA
625mA
Ripple & Noise
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
No Load
Output
Input Current
(1)
Power
45mA
70mA
20mA
20mA
12mA
25mA
35mA
12mA
12mA
10mA
Maximum
Capacitive Load
(2)
12000µF
6000µF
1000µF
660µF
200µF
12000µF
6000µF
1000µF
660µF
200µF
Efficiency
(3)
86%
86%
87%
87%
90%
86%
87%
87%
87%
91%
9~36
(24VDC)
Up to
15W
18~75
(48VDC)
Up to
15W
JFCW24D5-1500
JFCW24D12-625
JFCW24D15-500
JFCW24D24-315
JFCW48D5-1500
JFCW48D12-625
JFCW48D15-500
JFCW48D24-315
9~36
(24VDC)
18~75
(48VDC)
±5VDC
±12VDC
±15VDC
±24VDC
±5VDC
±12VDC
±15VDC
±24VDC
±1500mA
±625mA
±500mA
±315mA
±1500mA
±625mA
±500mA
±315mA
Dual Output Models
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
20mA
20mA
20mA
15mA
12mA
15mA
20mA
10mA
Up to
15W
Up to
15W
±3000µF
±520µF
±330µF
±100µF
±3000µF
±520µF
±330µF
±100µF
85%
87%
88%
91%
85%
86%
87%
91%
SPECIFICATIONS
7/8/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 1 of 11
Rev H
JFCW SERIES
Up to 15 Watts
DC/DC Converter
Single and Dual Output
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Operating Input Voltage Range
Input Reflected Ripple Current
Start-Up Voltage
Shutdown Voltage
Input Surge Voltage
Input Filter
OUTPUT SPECIFICATIONS
Output Voltage
Voltage Accuracy
Line Regulation
Load Regulation
Voltage Adjustability
(4)
Cross Regulation
Output Power
Output Current
Maximum Capacitive Load
TEST CONDITIONS
24Vin(nom)
48Vin(nom)
Nominal Input and Full Load
24Vin(nom)
48Vin(nom)
24Vin(nom)
48Vin(nom)
100ms, max.
Min
9
18
Typ
24
48
30
Max
36
75
9
18
50
100
Unit
VDC
mAp-p
VDC
VDC
VDC
24Vin(nom)
48Vin(nom)
8
12
Pi Type
-1.0
-0.2
-0.5
-0.2
-1.0
-10
-10
-5.0
Low Line to High Line at Full Load
No Load to Full Load
Single Output
Asymmetrical load 25%/100% FL, Dual
Single
Dual
Single
Dual
24Vout
All Others
Ripple & Noise (20MHz bandwidth)
With a 1µF M/C X7R and a 10µF T/C
With a 1µF M/C X7R and a 10µF T/C
With a 6.8µF/50V X7R MLCC
Single
3.3Vout, 5Vout
12Vout, 15Vout
24Vout
See Table
+1.0
+0.2
+0.5
+0.2
+1.0
+20
+10
+5.0
See Table
See Table
See Table
75
100
100
100
100
250
%
%
%
%
%
mVp-p
Transient Response Recovery Time
Start-Up Time
Temperature Coefficient
REMOTE ON/OFF CONTROL
Positive Logic (Standard)
Negative Logic (Option)
Input Current of CTRL Pin
Remote OFF Input Current
PROTECTION
Short Circuit Protection
Over Load Protection
Over Voltage Protection
ENVIRONMENTAL SPECIFICATIONS
Operating Ambient Temperature
Maximum Case Temperature
Storage Temperature Range
Relative Humidity
Thermal Shock
Thermal Impedance
(5)
Vibration
MTBF
Dual
With a 4.7µF/50V X7R MLCC for each output
24Vout
With a 1µF M/C X7R and a 10µF T/C for each output Others
25% Load Step Change
Power Up
Constant Resistive Load
Remote On/Off
DC-DC On
DC-DC Off
DC-DC On
DC-DC Off
-0.02
30
30
+0.02
µS
ms
%/ºC
Referred to –Vin pin
Referred to –Vin pin
-0.5
Open or 3~15VDC
Short or 0~1.2VDC
Short or 0~1.2VDC
Open or 3~15VDC
1.0
2.5
mA
mA
% of lout rated; Hiccup mode
3.3Vout
5Vout
12Vout
15Vout
24Vout
Continuous, Automatic Recovery
150
%
3.7
5.4
5.6
7.0
13.5
19.6
VDC
16.8
20.5
29.1
32.1
-40
+60
-55
5
+60
+105
105
+125
95
MIL-STD-810F
18.2
15.8
MIL-STD-810F
1.459 x 10
6
hrs
ºC
ºC
ºC
%RH
ºC/W
Without Derating
With Derating
Natural Convention (20LFM)
MIL-HDBK-217F, Full Load
Without Heat-Sink
With Heat-Sink
7/8/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 2 of 11
Rev H
JFCW SERIES
Up to 15 Watts
DC/DC Converter
Single and Dual Output
SPECIFICATIONS
SPECIFICATION
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
GENERAL SPECIFICATIONS
Efficiency
Switching Frequency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Case Material
Base Material
Potting Material
SAFETY & EMC CHARACTERISTICS
Safety Approvals
EMI
(6)
ESD
Radiated Immunity
Fast Transient
(7)
Surge
(7)
Conducted Immunity
Power Frequency Magnetic Field
1 minute
500VDC
TEST CONDITIONS
Min
360
Typ
400
Max
440
Unit
kHz
VDC
See Table
Input to Output
Input (Output) to Case
1600
1000
1
1000
0.53oz (15g)
1in x 1in x 0.39in
(25.4mm x 25.4mm x 9.9mm)
Nickel-Coated Copper
FR4 PCB
Epoxy (UL94 V-0)
GΩ
pF
Pending: JFCWxxS24-xxxx, JFCWxxD24-xxxx
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Air ±8kV and Contact ±6kV
10 V/m
±2kV
±1kV
3 Vr.m.s
100A/m continuous; 1000A/m 1 second
UL60950-1
(8)
EN60950-1
IEC60950-1
Class A, Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
NOTES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Typical value at nominal input voltage and no load.
Test by minimum input and constant resistive load.
Typical value at nominal input voltage and full load.
Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external
resistor between the Trim pin and either +Vout pin or –Vout pin.
For Heat Sink option add the suffix “HS” to part number (Ex: JFCW48S5-3000HS) (P/N: 7G-0047C-F).
See attached drawings for more details (pg 5-7).
The standard module meets EN55022 Class A and Class B with external capacitors connected in parallel to the input pins.
Recommended: 24Vin: 6.8µF/50V * 2 pcs 1812 MLCC
48Vin: 2.2µF/100 * 2 pcs 1812 MLCC
An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor suggested is Nippon chemi-con KY Series, 220µF/100V, ESR 48mΩ
This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Caution:
This power module is not internally fused. An input line fuse must always be used.
7/8/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 3 of 11
Rev H
JFCW SERIES
Up to 15 Watts
DC/DC Converter
Single and Dual Output

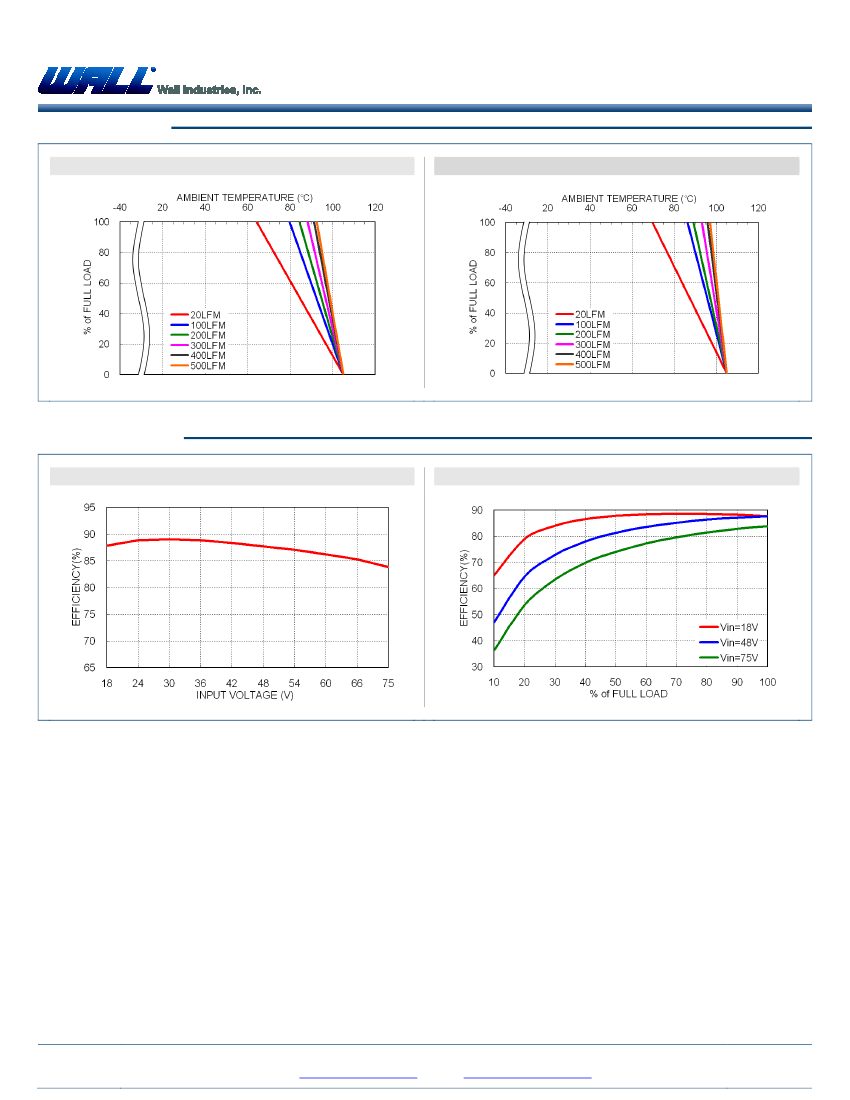

DERATING CURVES
JFCW48S5-3000 Derating Curve
JFCW48S5-3000 Derating Curve with Heat-Sink
EFFICIENCY GRAPHS
JFCW48S5-3000 Efficiency vs. Input Voltage
JFCW48S5-3000 Efficiency vs. Output Load
7/8/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 4 of 11
Rev H
JFCW SERIES
Up to 15 Watts
DC/DC Converter
Single and Dual Output
MECHANICAL DRAWINGS
PIN Connection
SINGLE
DUAL
+Vin
+Vin
-Vin
-Vin
Ctrl
Ctrl
+Vout
+Vout
Trim
Common
-Vout
-Vout
PIN
1
2
3
4
5
6
External Output Trimming
Output can be externally trimmed by
using the method shown below
1. All dimensions in inch (mm)
2. Tolerance: x.xx±0.02 (x.xx±0.5)
x.xxx±0.01 (x.xx±0.25)
3. Pin pitch tolerance ±0.01 (0.25)
4. Pin dimension tolerance ±0.004 (0.1)
Option
Negative Remote ON/OFF
Positive Remove ON/OFF
Without ON/OFF Pin
Without ON/OFF & Trim Pin
Negative Remote ON/OFF without TRIM pin
Positive Remote ON/OFF without TRIM pin
Heatsink
Product Standard Table
Suffix
R
Blank
D
G
RE
F
HS
HEATSINK OPTIONS
Equip heat-sink for lower temperature and higher reliability of the module. There are two types to choose from.
1” x 1” Heat-Sink
Dimensions in inch (mm)
7/8/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 5 of 11
