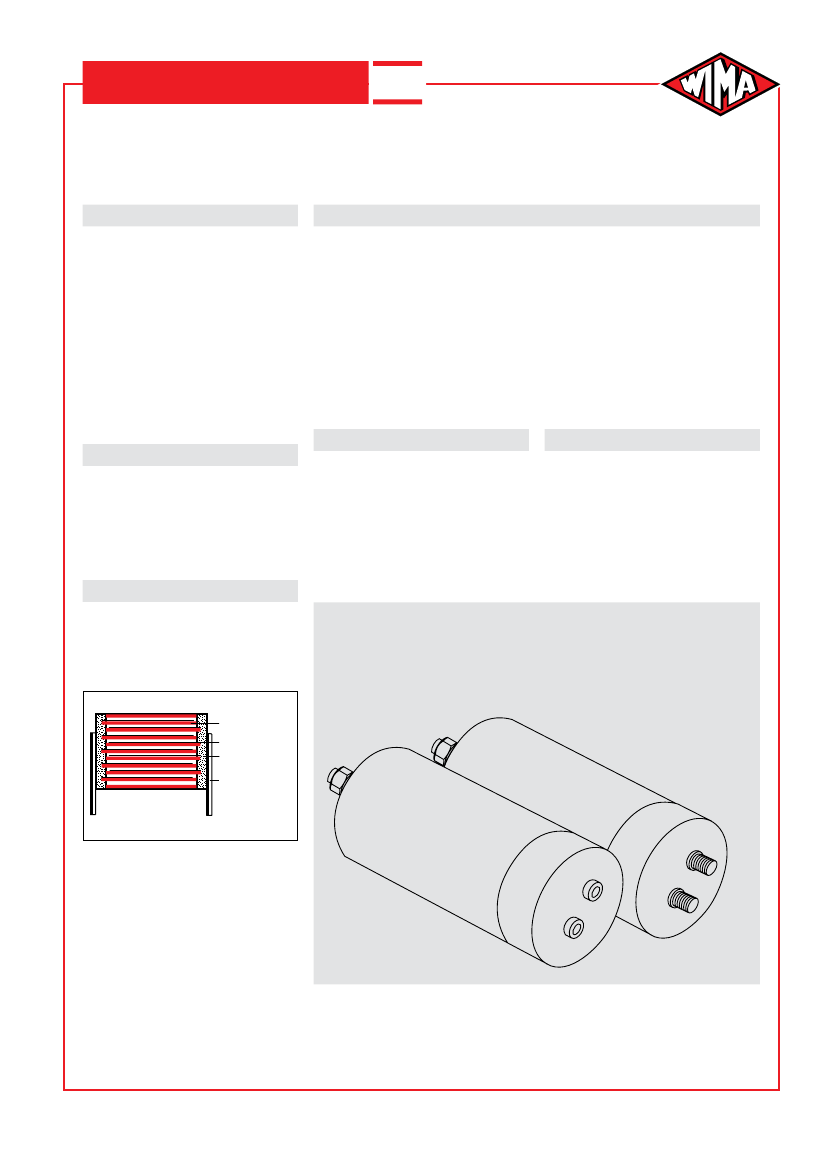

WIMA DC-LINK MKP 6
NEW
Metallized Polypropylene (PP) - Capacitors in Cylindrical Case
MKP 6 with High Volume/Capacitance Ratio
MKP 6 HP with Higher Current Carrying Capability
Special Features
˜
Very high volume/capacitance ratio
˜
Self-healing properties
˜
With cylindrical aluminium case for
bus bar mounting
˜
Dry construction without electrolyte
or oil
˜
No internal fuse required
˜
Negative capacitance change
versus temperature
˜
Very low dielectric absorption
˜
According to RoHS 2011/65/EU
˜
Customer-specific capacitances or
voltages on request
D
Electrical Data
Capacitance range:
75
mF
to 4920
mF
Rated voltages:
600 VDC, 700 VDC,
900 VDC,1100 VDC, 1300 VDC, 1500 VDC
Capacitance tolerances:
±20%, ±10%
(±5% available subject to special enquiry)
Operating temperature range:
–40+ C to +85+ C
Insulation resistance
at +20+ C:
5 000 sec (M¸ x
mF)
(mean value: 20 000 sec)
Measuring voltage: 100 V/1 min.
Dielectric loss factor
tan
d
0
:
2
x 10
-4
Test voltage between terminals
at +25° C: 1.5 U
r DC
, 10sec
Test voltage between terminals and case
at +25° C and 50 Hz: 3 kV
AC
, 1 min.
Dielectric absorption:
0.05 %
Reliability:
Operational life
100 000 hours
Failure rate < 50 fit (hot spot
70° C)
Typical Applications
DC capacitors with high capacitances
for applications in power electronics
also at non-sinusoidal voltages and
currents e.g. in
˜
Wind power systems
˜
Inverters
Mounting Recommendation
Excessive mechanical strain, e.g. pressure
or shock onto the capacitor body, is to be
avoided during mounting and usage of the
capacitors.
Packing
Transportation-safe packing in
cardboard boxes.
For further details and graphs please refer
to Technical Information.
Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Plastic film
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Termination
The capacitors are non-polarized and
are optionally available with „male“ and
„female“ terminations. The earth bolt is
electrically inactive and serves for fixing
and/or earthing of the metal case.
Encapsulation:
Aluminium case with PU-sealing, UL 94 V-0

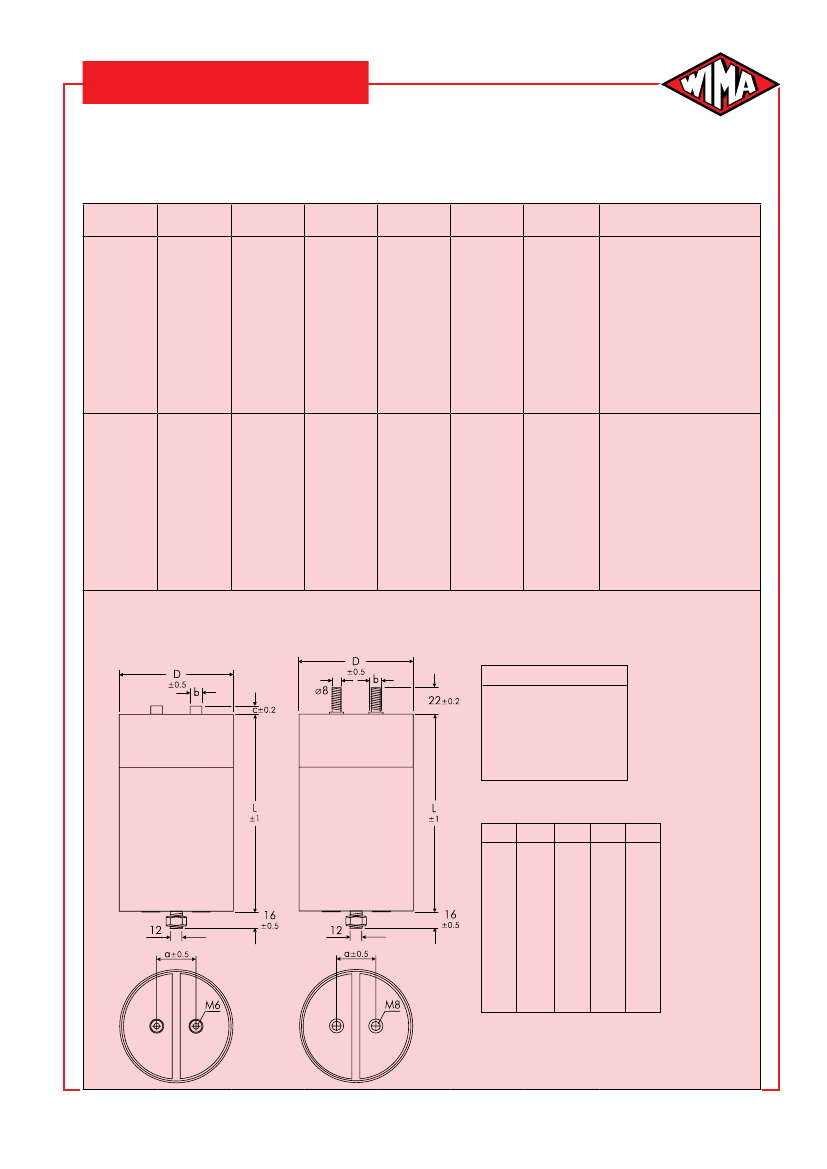

Terminations:
Screw connection (male or female), screw
bolt M12 x 16.
Marking:
Colour: Metallic. Marking: Black on silver
label.
02.14
115
