2D200W-03M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2D200W-03M

2D200W-03M: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

2D200W-03M Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE

2D200W-03M Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	7/16-M, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	53.01 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD/SILVER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

Attenuators

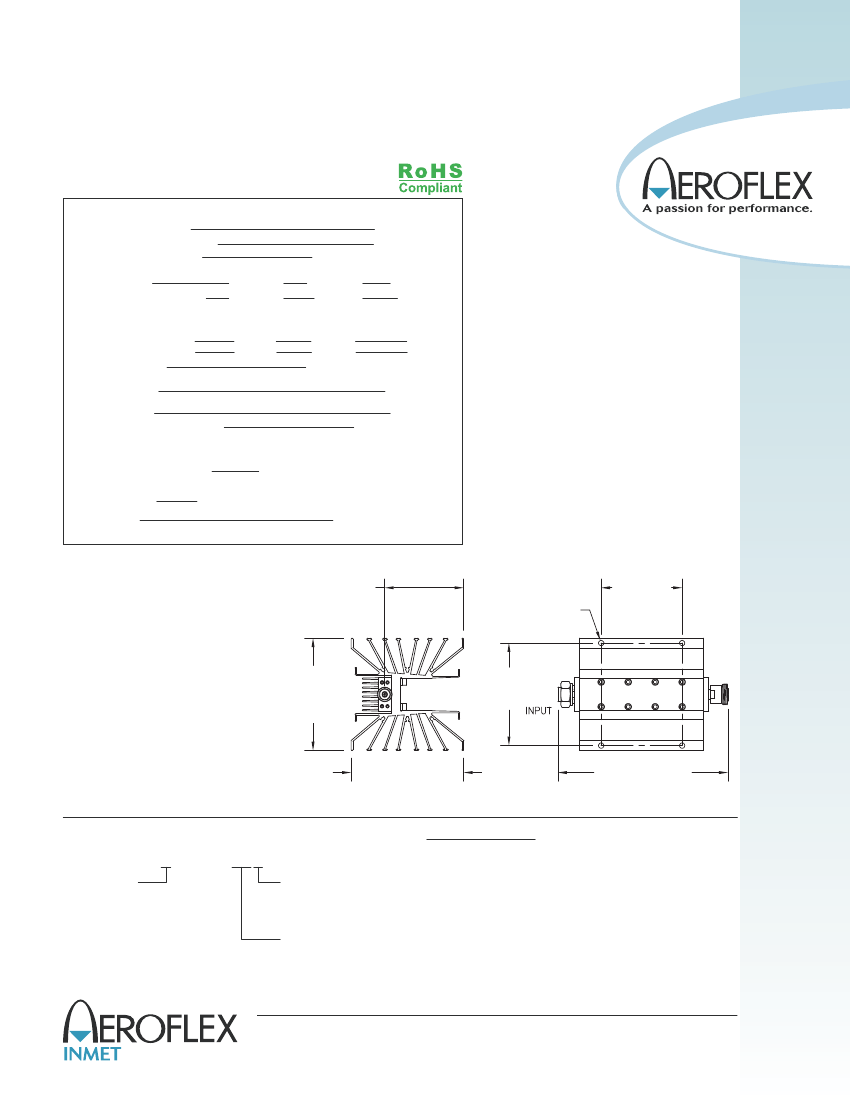

7/16 DIN, up to 4 GHz, 200 Watts

SPECIFICATIONS:

Models: XD200W-XX, XD200W-XXF, XD200W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy

3 & 6 dB

10, 20, 30 & 40 dB

Input VSWR (Max.)

3, 6, 10 & 20 dB

30 & 40 dB

Input Power

Peak Power

Impedance

Operating Temp. Range

DC - 4 GHz

2.5 & 4 GHz

3, 6, 10, 20, 30 & 40 dB

1.5-2.5GHz

2.5-4GHz

±0.50 dB

±0.75 dB

±1.0 dB

±1.5 dB

DC- GHz

1.5

±0.50 dB

±0.75 dB

1. 5:1

1.25:1

1.35:1

1.25:1

1.50:1

200 Watts Avg. @ +25°C

Derated Linearly to 40 Watts @ +1 C

2 kW Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-54°C to +125°C

Mechanical:

7/16 - DIN Connectors

Mates with DIN 47 223

Silver or White Bronze Plated Brass

Conductors

Housing

Silver or White Bronze Plated Beryllium Copper

Anodized Aluminum

Note: Units are unidirectional. Units must

be positioned in such a way as to allow free

air flow around fins to assure performance.

Model Number:

XD200W-XX

Male/Female Connectors

Length: 9.44 ±. 0 [239.78 ±2.54]

Pictured

4.38±.07

[111.25±1.78]

8X .302 [Ø7.67]

THRU ONE FIN

THIS SIDE AND

OPPOSITE SIDE

2X 4.50

[114.3]

Model Number:

XD200W-XXF

Female/Female Connectors

Length: 9.57 ±. 0 [243.08 ±2.54]

6.25±.12

[158.75±3.05]

2X 5.70

[144.78]

Model Number:

XD200W-XXM

Male/Male Connectors

Length: 9.3 ±. 0 [236.47 ±2.54]

1 1

6.25±.12

[158.75±3.05]

9.44±.10

[239.78±2.54]

HOW TO ORDER:

Model Number:

Ordering Examples:

Model Number:

2D200W-10

DC - 2.5 GHz, 10 dB; 7/16 - DIN, Male/Fem

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Model Number:

2D200W-40F

DC - 2.5 GHz, 40 dB; 7/16 - DIN, Fem/Fem

Model Number:

4D200W-30M

DC - 4 GHz, 30 dB; 7/16 - DIN, Male/Male

XD200W-XXY

Freq. Range

2 = DC - 2.5 GHz

4 = DC - 4 GHz

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

XD200W-ATT: REV L

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
