LCX020BK
1.8cm (0.7-inch) Color LCD Panel
Description
The LCX020BK is a 1.8cm diagonal active matrix
TFT-LCD panel addressed by polycrystalline silicon
super thin film transistors with built-in peripheral driving
circuit. This panel provides full-color representation.
RGB dots are arranged in a striped pattern optimum
for data applications and capable of displaying fine
text and vertical lines.
The adoption of an advanced on-chip black matrix
realizes a high luminance screen, and high picture
quality is possible with built-in cross talk free and
ghost free circuits.
This panel has a polysilicon TFT high-speed
scanner and built-in function to display images
up/down and/or right/left inverse. In addition, the
built-in 5V interface circuit leads to lower voltage of
timing and control signals.
The panel contains a display area varying circuit
which supports Macintosh16
∗
1
/SVGA/VGA/PC98
∗
2
data signals by changing the display area according
to the type of input signal. In addition, double-speed
processed NTSC/PAL/WIDE can also be supported.
∗
1
"Macintosh" is a trademark of Apple Company Inc.
∗
2
"PC98" is a trademark of NEC.
Features
•
Number of active dots: 1,557,000, 1.8cm (0.7-inch) in diagonal
•
Supports Macintosh16 (832
×
624), SVGA (800
×
600), VGA (640
×
480) and PC98 (640
×
400) display
•
Supports NTSC (640
×
480), PAL (762
×
572) and WIDE (832
×
480) display by processing the video signal
at double speed
•
High optical transmittance: 1% (typ.)
•
Built-in cross talk free circuit
•
High contrast ratio with normally white mode: 70 (typ.)
•
Built-in H and V drivers (built-in input level conversion circuit, 5V driving possible)
•
Up/down and/or right/left inverse display function
Element Structure
•
Dots: 2496 (H)
×
624 (V) = 1,557,504
•
Built-in peripheral driving circuit using polycrystalline silicon super thin film transistors
Applications
•
Liquid crystal EVFs for personal PCs/DVDs
•
Small monitors, etc.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
–1–
E99210-PS
V Shift Register (Bidirectional Scanning)
Precharge
Control Circuit
Black Frame Control Circuit
Black Frame Control Circuit
V Shift Register (Bidirectional Scanning)
–2–
2
3
4
PSIGR
PSIGG
PSIGB
Up/Down and/or Right/Left
Inversion Control Circuit
HST
HCK1
HCK2
BLK
RGT
VST
VCK
PCG
DWN
ENB
MODE1
MODE2
MODE3
HV
DD
VV
DD
V
SS
28 29 30
32
Input Signal
Level Shifter
Circuit
H Shift Register (Bidirectional Scanning)
Black Frame Control Circuit

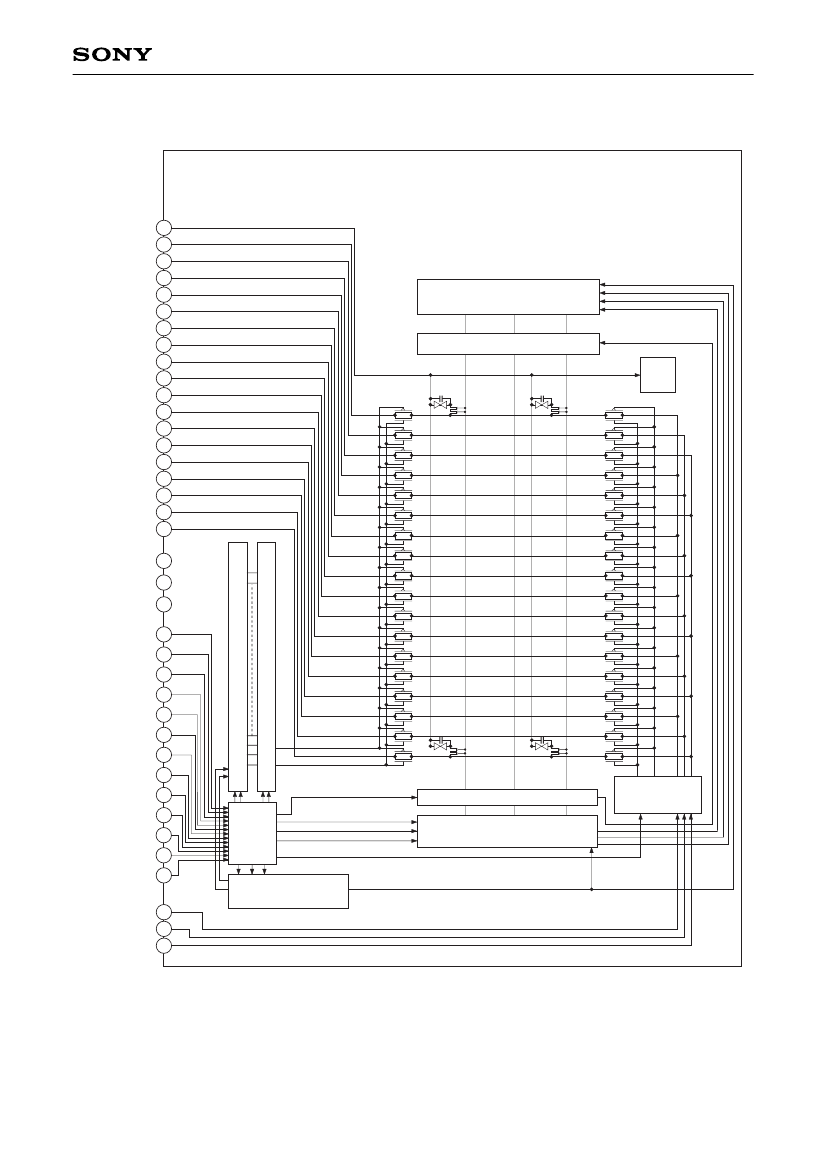

Block Diagram
The Block Diagram of the panel is shown below.
24 35
34 37
36
33
27
26
25
23
38
31
5
6
7
8
SIGR1
SIGR2
SIGR3
SIGR4
SIGR5
SIGR6
SIGG1
SIGG2
SIGG3
SIGG4
SIGG5
SIGG6
SIGB1
SIGB2
SIGB3
SIGB4
SIGB5
SIGB6
COM
9 10 11 12 13 14 15 16 17 18 19 20 21 22 1
COM
Pad
LCX020BK
LCX020BK
Absolute Maximum Ratings
(Vss = 0V)
•
H driver supply voltage
HV
DD
•
V driver supply voltage
VV
DD
•
Common pad voltage
COM
•
H shift register input pin voltage
HST, HCK1, HCK2,
RGT
•
V shift register input pin voltage
VST, VCK, PCG,
BLK, ENB, DWN
MODE1, MODE2, MODE3
•
Video signal input pin voltage
SIGR1 to SIGR6,
SIGG1 to SIGG6,
SIGB1 to SIGB6,
PSIGR, PSIGG, PSIGB
Topr
Tstg
–1.0 to +20
–1.0 to +20
–1.0 to +17
–1.0 to +17
–1.0 to +17
V
V
V
V
V
–1.0 to +15
V
•
Operating temperature
•
Storage temperature
–10 to +70
–30 to +85
°C
°C
Operating Conditions
(Vss = 0V)
•
Supply voltage
15.5 ± 0.3V
HV
DD
VV
DD
15.5 ± 0.3V
•
Input pulse voltage (Vp-p of all input pins except video signal and uniformity improvement signal input pins)
Vin
5.0 ± 0.5V
Pin Description
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Symbol
COM
PSIGR
PSIGG
PSIGB
SIGR1
SIGR2
SIGR3
SIGR4
SIGR5
SIGR6
SIGG1
SIGG2
SIGG3
SIGG4
Common voltage of panel
Uniformity improvement signal input (R)
Uniformity improvement signal input (G)
Uniformity improvement signal input (B)
Video signal input to panel (R-1)
Video signal input to panel (R-2)
Video signal input to panel (R-3)
Video signal input to panel (R-4)
Video signal input to panel (R-5)
Video signal input to panel (R-6)
Video signal input to panel (G-1)
Video signal input to panel (G-2)
Video signal input to panel (G-3)
Video signal input to panel (G-4)
–3–
Description
LCX020BK
Pin
No.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Symbol
SIGG5
SIGG6
SIGB1
SIGB2
SIGB3
SIGB4
SIGB5
SIGB6
HV
DD
RGT
MODE3
MODE2
MODE1
HST
HCK1
HCK2
V
SS
BLK
ENB
VCK
VST
DWN
PCG
VV
DD
SOUT
Video signal input to panel (G-5)
Video signal input to panel (G-6)
Video signal input to panel (B-1)
Video signal input to panel (B-2)
Video signal input to panel (B-3)
Video signal input to panel (B-4)
Video signal input to panel (B-5)
Video signal input to panel (B-6)
Power supply input for H driver
Description
Drive direction input for H shift register (H: normal, L: reverse)
Display area switching 3 input
Display area switching 2 input
Display area switching 1 input
Start pulse input for H shift register drive
Clock pulse input for H shift register drive
Clock pulse input for H shift register drive
GND (H, V drivers)
Black frame display pulse input
Gate selection pulse enable input
Clock pulse input for V shift register drive
Start pulse input for V shift register drive
Drive direction input for V shift register (H: normal, L: reverse)
Uniformity improvement pulse input
Power supply input for V driver
H and V shift register drive checking (Test pin; no connection.)
–4–
LCX020BK
Input Equivalent Circuits
To prevent static charges, protective diodes are provided for each pin except the power supplies. In addition,
protective resistors are added to all pins except video signal inputs. All pins are connected to Vss with a high
resistance of 1MΩ (typ.). The equivalent circuit of each input pin is shown below: (Resistor value: typ.)
(1) SIGR1 to SIGR6, SIGG1 to SIGG6, SIGB1 to SIGB6, PSIGR, PSIGG, PSIGB
HV
DD
Input
1MΩ
Signal line
(2) HCK1, HCK2
HV
DD
250Ω
250Ω
Level conversion circuit
(2-phase input)
1MΩ
250Ω
1MΩ
Input
250Ω
(3) RGT, MODE1, MODE2, MODE3
HV
DD
2.5kΩ
Input
1MΩ
2.5kΩ
Level conversion circuit
(single-phase input)
(4) HST
Input
HV
DD
250Ω
250Ω
Level conversion circuit
(single-phase input)
1MΩ
(5) PCG, VCK
Input
VV
DD
250Ω
250Ω
Level conversion circuit
(single-phase input)
1MW
(6) VST, BLK, ENB, DWN
VV
DD
2.5kΩ
2.5kΩ
Level conversion circuit
(single-phase input)
Input
1MΩ
(7) COM
VV
DD
Input
1MΩ
LC
–5–
