LCX021AM
4.1cm (1.6-inch) LCD Panel (with microlens)
Description
The LCX021AM is a 4.1cm diagonal active matrix
TFT-LCD panel addressed by polycrystalline silicon
super thin film transistors with built-in peripheral driving
circuit. This panel allows full-color representation
without color filters through the use of a microlens.
The striped arrangement suitable for data projectors
is capable of displaying fine text and vertical lines.
The adoption of an advanced on-chip black matrix
realizes high picture quality by incorporating a high
luminance screen, cross-talk free and ghost free
circuits.
This panel has a polysilicon TFT high-speed
scanner and built-in function to display images
up/down and/or right/left inverse. The built-in 5V
interface circuit leads to lower voltage of timing and
control signals.
The panel contains an active area variable circuit
which supports SVGA 4:3/PC98
∗
1
8:5 data signals
by changing the active area according to the type of
input signal.
∗
1
"PC98" is a trademark of NEC Corporation.
Features
•
The number of active dots: 1,456,000 (1.6-inch; 4.1cm in diagonal)
•
Supports SVGA (804
×
3
×
604) and PC98
∗
1
(804
×
3
×
500)
•
Effective aperture ratio: 70% (reference value)
•
Built-in cross talk free and ghost free circuits
•
High contrast ratio with normally white mode: 150 (typ.)
•
Built-in H and V drivers (built-in input level conversion circuit, 5V driving possible)
•
Up/down and/or right/left inverse display function
Element Structure
•
Dots: 804
×
3 (H)
×
604 (V) = 1,456,848
•
Built-in peripheral driver using polycrystalline silicon super thin film transistors
Applications
•
Liquid crystal data projectors
•
Liquid crystal projectors
•
Liquid crystal rear projection TV, etc.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
–1–
E98501A94-PS
V Shift Register
(Bidirectional Scanning)
Black Frame Control Circuit
Precharge
Control Circuit
Black Frame Control Circuit
V Shift Register
(Bidirectional Scanning)
–2–

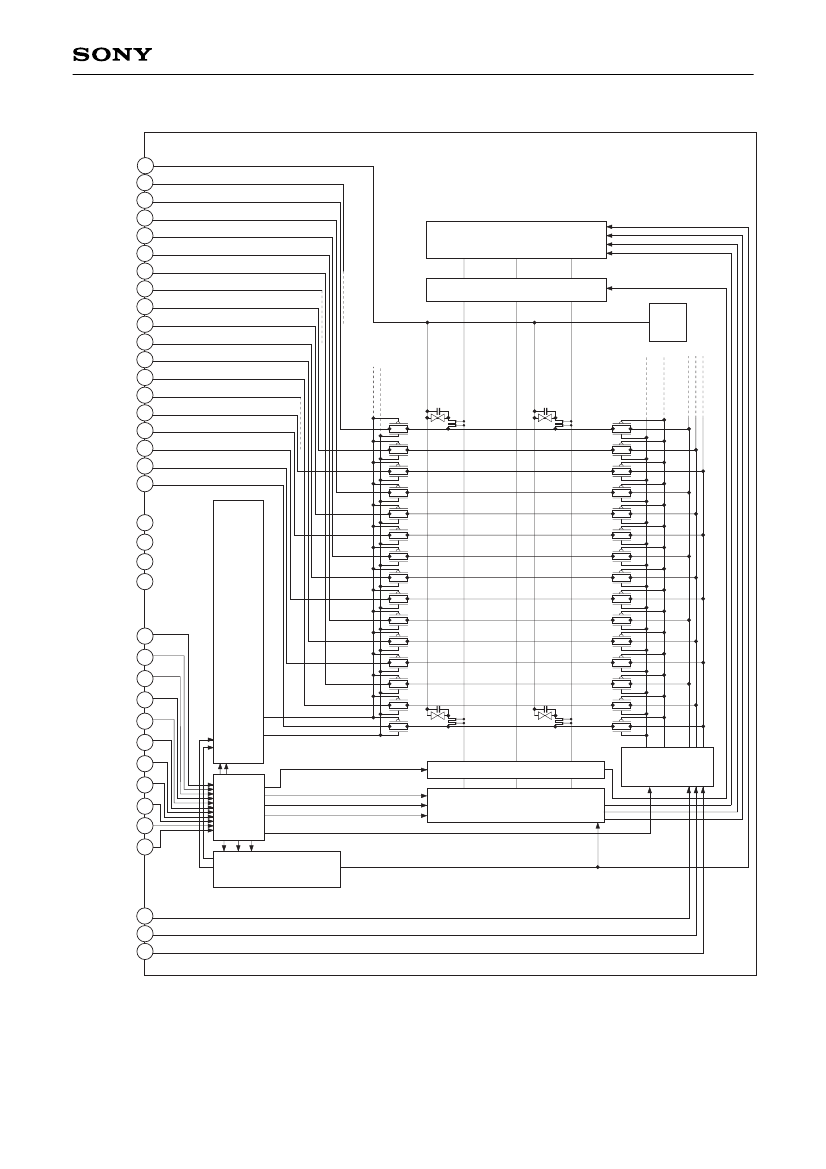

Block Diagram
3
4
5
PSIGB
PSIGG
PSIGR
Up/Down and/or Right/Left
Inversion Control Circuit
RGT
DWN
HST
HCK1
HCK2
BLK
ENB
VCK
VST
PCG
MODE
25
34 26
27
Input Signal
Level
Shifter Circuit
H Shift Register (Bidirectional Scanning)
28 30
31 32
33 35
36
24 37 29 38
6
7
8
HV
DD
VV
DD
V
SS
TEST
SIGB1
SIGB2
SIGB3
SIGB4
SIGB5
SIGB6
SIGG1
SIGG2
SIGG3
SIGG4
SIGG5
SIGG6
SIGR1
SIGR2
SIGR3
SIGR4
SIGR5
SIGR6
COM
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 39
COM
PAD
LCX021AM
LCX021AM
Absolute Maximum Ratings
(V
SS
= 0V)
•
H driver supply voltage
HV
DD
•
V driver supply voltage
VV
DD
•
Common pad voltage
COM
•
H shift register input pin voltage HST, HCK1, HCK2,
RGT
•
V shift register input pin voltage VST, VCK, PCG,
BLK, ENB, DWN, MODE
•
Video signal input pin voltage
SIGB1, SIGB2, SIGB3, SIGB4,
SIGB5, SIGB6, SIGG1, SIGG2,
SIGG3, SIGG4, SIGG5, SIGG6,
SIGR1, SIGR2, SIGR3, SIGR4,
SIGR5, SIGR6, PSIGB, PSIGG,
PSIGR
Topr
Tstg
–1.0 to +20
–1.0 to +20
–1.0 to +17
–1.0 to +17
–1.0 to +17
–1.0 to +15
V
V
V
V
V
V
•
Operating temperature
•
Storage temperature
Operating Conditions
(V
SS
= 0V)
–10 to +70
–30 to +85
°C
°C
•
Supply voltage
HV
DD
15.5 ± 0.5V
VV
DD
15.5 ± 0.5V
•
Input pulse voltage (Vp-p of all input pins except video signal and uniformity improvement signal input pins)
Vin
5.0 ± 0.5V
–3–
LCX021AM
Pin Description
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Symbol
NC
NC
PSIGB
PSIGG
PSIGR
SIGB1
SIGB2
SIGB3
SIGB4
SIGB5
SIGB6
SIGG1
SIGG2
SIGG3
SIGG4
SIGG5
SIGG6
SIGR1
SIGR2
SIGR3
Description
Leave this pin open.
Leave this pin open.
Blue uniformity improvement
signal
Green uniformity improvement
signal
Red uniformity improvement
signal
Video signal B1 to panel
Video signal B2 to panel
Video signal B3 to panel
Video signal B4 to panel
Video signal B5 to panel
Video signal B6 to panel
Video signal G1 to panel
Video signal G2 to panel
Video signal G3 to panel
Video signal G4 to panel
Video signal G5 to panel
Video signal G6 to panel
Video signal R1 to panel
Video signal R2 to panel
Video signal R3 to panel
Pin
No.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Symbol
SIGR4
SIGR5
SIGR6
HV
DD
RGT
HST
HCK1
HCK2
V
SS
BLK
ENB
VCK
VST
DWN
PCG
MODE
VV
DD
TEST
COM
NC
Description
Video signal R4 to panel
Video signal R5 to panel
Video signal R6 to panel
Power supply for H driver
Drive direction pulse for V shift
register (H: normal, L: reverse)
Start pulse for H shift register
drive
Clock pulse 1 for H shift register
drive
Clock pulse 2 for H shift register
drive
GND (H, V drivers)
Black frame display pulse
Enable pulse for gate selection
Clock pulse for V shift register
drive
Start pulse for V shift register
drive
Drive direction pulse for V shift
register (H: normal, L: reverse)
Improvement pulse for uniformity
Display area switching
(H: SVGA, L: PC98)
Power supply for V driver
Test; Open
Common voltage of panel
Leave this pin open.
Note)
RGB video signals of Pins 6 to 23 is an example. The order of RGB can be changed.
–4–
LCX021AM
Input Equivalent Circuit
To prevent static charges, protective diodes are provided for each pin except the power supplies. In addition,
protective resistors are added to all pins except video signal inputs. All pins are connected to V
SS
with a high
resistor of 1MΩ (typ.). The equivalent circuit of each input pin is shown below: (The resistor value: typ.)
(1) SIGB1, SIGB2, SIGB3, SIGB4, SIGB5, SIGB6, SIGG1, SIGG2, SIGG3, SIGG4, SIGG5, SIGG6,
SIGR1, SIGR2, SIGR3, SIGR4, SIGR5, SIGR6, PSIGB, PSIGG, PSIGR
HV
DD
Input
1MΩ
Signal line
(2) HCK1, HCK2
HV
DD
250Ω
250Ω
Level conversion circuit
(2-phase input)
1MΩ
250Ω
1MΩ
Input
250Ω
(3) RGT
Input
HV
DD
2.5kΩ
2.5kΩ
Level conversion circuit
(single-phase input)
1MΩ
(4) HST
Input
HV
DD
250Ω
250Ω
Level conversion circuit
(single-phase input)
1MΩ
(5) PCG, VCK
VV
DD
250Ω
Input
1MΩ
250Ω
Level conversion circuit
(single-phase input)
(6) VST, BLK, ENB, DWN, MODE
VV
DD
2.5kΩ
Input
1MΩ
2.5kΩ
Level conversion circuit
(single-phase input)
(7) COM
Input
VV
DD
1MΩ
LC
