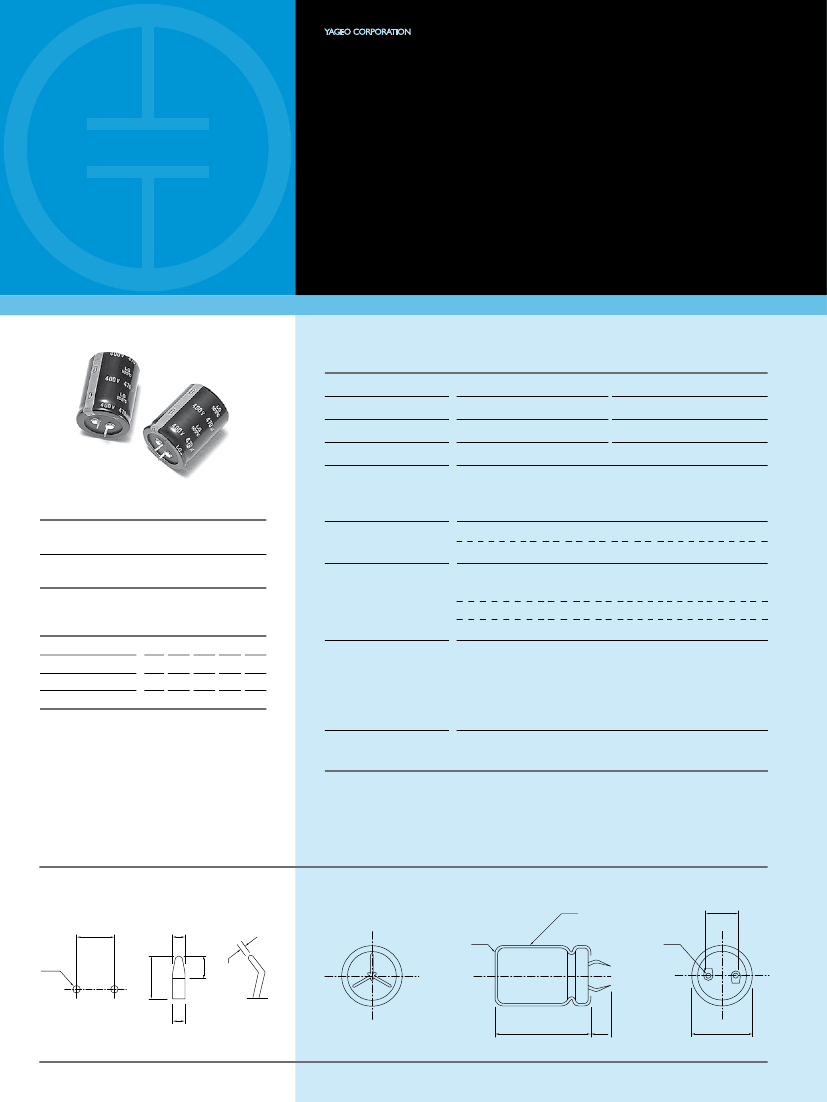

YAGEO CORPORATION
ELECTROLYTIC CAPACITORS
Large Can Aluminum
Electrolytic Capacitors
LG
[ For General ]
For Printed Circuit Board High-Performance Aluminum Electrolytic Power Supply
Input and Output Filter Capacitors
ELECTRICAL CHARACTERISTICS
Operating Temperature Range -40 to +105°C
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
6.3 to 100VDC
560 ~ 82000µF
±20% at 120Hz, 20°C
I = 0.02CV, L = 20m/m, I = 0.03CV or 3mA whichever is smaller.
(After 5 Minutes Application of DC Working Voltage at 20°C)
I = Leakage Current (µA), C = Nominal Capacitance (µF),V = Rated Voltage (V)
Dissipation Factor (tanδ)
Rate Voltage (V)
D.F. (%)
Low Temperature Stability
Impedance Ratio (Max.)
MULTIPLIER FOR RIPPLE CURRENT
Frequency Coefficient
FREQUENCY (Hz)
6.3~100V
160~250V
315~450V
50
60
120 1K
10K
Endurance
0.88 0.90 1.00 1.15 1.16
0.85 0.88 1.00 1.15 1.20
0.88 0.90 1.00 1.10 1.15
6.3
60
10
55
16
55
25
45
35
35
50
30
63-100 160-400 450
25
15
20
-25 to +105°C
160 to 450VDC
47 ~ 2200µF
DESCRIPTION
Endurance : 105°C 2000 hours, higher temperature
than LH.
Ideally suitable for using in switching power supplies
and other industrial / commercial applications.
Measurement frequency: 120Hz
Rated Voltage (V)
Z(-25°C) / Z(20°C)
Z(-40°C) / Z(20°C)
6.3~16 25
4
15
3
10
35
3
8
50~63
2
6
80~10 160~400 450
2
5
4
-
8
-
After the rated voltage and rated ripple current have been applied at 105°C
for 2000 hours, the capacitors shall meet the following requirements.
(a)
Capacitance Change:
≤
±20% of the Initial Value
(b)
Dissipation Factor:
≤
200% of the Initial Specified Value
(c) Leakage Current:
≤
the Initial Specified Value
Shelf Life
After having been placed at 105°C without voltage applied for 1000 hours,
the capacitors shall meet the same requirements as Endurance.
DIAGRAM OF DIMENSIONS
Location of P.C.B. Holes
Vinyl Sleeve
0.9
±
0.1
10
±
0.5
2mm x 2
3.0
0.8+0.2 / -0.1
Unit: mm
10
±
0.5
Negative
Botton Plate
5.8
±
1.0
1.5+0.2 /-0.1
Safety Device
L+2 Max.
5.8
±
1
D
±
1
107
CASE SIZE & PERMISSIBLE RIPPLE CURRENT OF STANDARD PRODUCTS
CAP. (μF)
RATED VOLTAGE W V (SURGE VOLTAGE W V)
6.3 (8)
SIZE
4700
5600
6800
8200
22 x 25
22 x 30
25 x 25
10000
22 x 25
25 x 25
1.55
1.55
22 x 30
25 x 25
1.55
1.70
1.70
1.95
1.95
RIPPLE
10 (13)
SIZE
RIPPLE
16 (20)
SIZE
RIPPLE
25 (32)
SIZE
22 x 25
22 x 30
25 x 25
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
35 x 25
12000
22 x 25
1.55
22 x 30
1.75
22 x 35
25 x 30
30 x 25
15000
22 x 30
25 x 25
1.70
1.70
22 x 30
25 x 25
1.90
1.90
22 x 40
25 x 35
30 x 30
35 x 25
18000
22 x 30
25 x 25
1.95
1.95
22 x 35
25 x 30
2.20
2.25
22 x 45
25 x 40
30 x 30
35 x 25
22000
22 x 35
25 x 30
30 x 25
27000
22 x 40
25 x 35
30 x 30
35 x 25
33000
22 x 45
25 x 40
30 x 30
35 x 25
39000
25 x 50
30 x 35
35 x 30
47000
56000
68000
82000
25 x 50
30 x 40
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
2.25
2.25
2.25
2.55
2.55
2.55
2.55
2.90
2.95
2.90
2.95
3.25
3.25
3.30
3.70
3.70
4.15
4.10
4.70
4.70
5.30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
3.70
3.70
3.65
4.20
3.80
4.65
4.65
5.50
35 x 45
5.45
30 x 50
35 x 40
4.80
4.80
22 x 40
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
2.50
2.55
2.45
2.95
2.90
2.85
2.80
3.30
3.30
3.30
30 x 45
35 x 35
4.30
4.25
35 x 50
5.40
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
2.20
2.25
2.30
2.55
2.60
2.60
2.65
2.90
2.90
2.90
2.95
3.30
3.30
3.30
3.80
3.75
3.75
35 x 45
4.70
30 x 45
35 x 35
4.05
3.80
25 x 50
30 x 40
35 x 35
3.55
3.55
3.55
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
D x L: mm
RIPPLE
1.50
1.65
1.65
1.85
1.85
2.10
2.10
2.15
2.40
2.40
2.40
2.40
2.70
2.75
2.70
2.75
3.15
3.15
3.25
Note: 1. Ripple Current: (A/rms) 105°C, 120Hz
108
CASE SIZE & PERMISSIBLE RIPPLE CURRENT OF STANDARD PRODUCTS
CAP. (μF)
RATED VOLTAGE W V (SURGE VOLTAGE W V)
35 (44)
SIZE
820
1000
RIPPLE
50 (63)
SIZE
RIPPLE
63 (79)
SIZE
RIPPLE
80 (100)
SIZE
22 x 25
22 x 30
25 x 25
1200
22 x 25
1.20
22 x 30
25 x 25
1500
22 x 30
25 x 25
1.30
1.30
22 x 35
25 x 30
30 x 25
1800
22 x 25
1.30
22 x 30
25 x 25
1.50
1.50
22 x 40
25 x 35
30 x 25
2200
22 x 30
25 x 25
1.55
1.55
22 x 35
25 x 30
30 x 25
1.70
1.75
1.80
22 x 45
25 x 35
30 x 30
35 x 25
2700
22 x 30
25 x 25
1.70
1.70
22 x 40
25 x 35
30 x 25
3300
22 x 25
1.40
22 x 35
25 x 30
1.95
1.85
22 x 50
25 x 40
30 x 30
35 x 25
3900
22 x 30
25 x 25
1.55
1.55
22 x 40
25 x 35
30 x 25
4700
22 x 35
25 x 25
1.80
1.80
22 x 45
25 x 40
30 x 30
35 x 25
Note: 1. Ripple Current: (A/rms) 105°C, 120Hz
2.15
2.20
1.95
2.45
2.45
2.45
2.50
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
2.00
2.00
1.95
2.30
2.30
2.25
2.10
2.55
2.55
2.55
2.85
2.85
2.80
30 x 50
35 x 40
3.40
3.40
30 x 45
35 x 35
3.00
3.00
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
D x L: mm
RIPPLE
1.10
1.20
1.20
1.40
1.40
1.60
1.60
1.65
1.80
1.85
1.80
2.05
2.00
2.05
2.05
2.35
2.35
2.35
2.70
2.70
2.55
109
CASE SIZE & PERMISSIBLE RIPPLE CURRENT OF STANDARD PRODUCTS
CAP. (μF)
RATED VOLTAGE W V (SURGE VOLTAGE W V)
35 (44)
SIZE
5600
22 x 35
25 x 30
30 x 25
RIPPLE
19.5
1.95
2.00
50 (63)
SIZE
22 x 50
25 x 40
30 x 35
35 x 30
6800
22 x 40
25 x 35
30 x 30
35 x 25
8200
22 x 50
25 x 40
30 x 30
35 x 25
10000
25 x 45
30 x 35
35 x 30
12000
25 x 50
30 x 40
35 x 30
15000
30 x 45
35 x 35
18000
22000
35 x 40
35 x 50
2.20
2.25
2.30
2.35
2.55
2.50
2.75
2.75
2.85
2.90
2.95
3.25
3.25
3.15
3.70
3.65
4.35
4.90
30 x 50
35 x 50
35 x 40
35 x 45
4.05
4.05
4.00
4.55
35 x 50
4.40
30 x 45
35 x 35
3.60
3.55
35 x 45
3.90
35 x 60
4.00
25 x 50
30 x 40
35 x 30
RIPPLE
2.75
2.70
2.75
2.75
3.30
3.30
3.25
30 x 50
35 x 40
3.65
3.65
35 x 50
3.90
63 (79)
SIZE
30 x 45
35 x 35
RIPPLE
3.20
3.20
80 (100)
SIZE
35 x 45
D x L: mm
RIPPLE
3.80
Note: 1. Ripple Current: (A/rms) 105°C, 120Hz
110
CASE SIZE & PERMISSIBLE RIPPLE CURRENT OF STANDARD PRODUCTS
CAP. (μF)
RATED VOLTAGE W V (SURGE VOLTAGE W V)
100 (125)
SIZE
150
180
220
22 x 20
0.80
22 x 20
22 x 25
0.75
0.85
RIPPLE
160 (200)
SIZE
RIPPLE
180 (225)
SIZE
RIPPLE
200 (250)
SIZE
22 x 20
22 x 20
22 x 25
25 x 20
270
22 x 25
1.00
22 x 25
25 x 20
330
22 x 25
25 x 20
1.20
1.15
22 x 25
22 x 30
25 x 25
390
22 x 30
25 x 25
1.30
1.30
22 x 30
25 x 25
0.95
0.90
1.20
1.10
1.10
1.30
1.30
22 x 30
22 x 35
25 x 30
30 x 25
470
22 x 30
22 x 35
25 x 25
1.30
1.40
1.40
22 x 30
22 x 35
25 x 30
30 x 25
560
22 x 25
1.05
22 x 40
25 x 30
30 x 25
680
22 x 25
1.20
22 x 45
25 x 35
30 x 25
1.50
1.50
1.50
1.70
1.70
1.70
22 x 40
25 x 35
30 x 25
22 x 45
22 x 50
25 x 35
25 x 40
30 x 30
35 x 25
820
22 x 30
25 x 25
1.30
1.33
22 x 50
25 x 40
30 x 30
35 x 25
1.95
2.00
2.00
1.90
22 x 50
25 x 40
25 x 45
30 x 35
35 x 25
Note: 1. Ripple Current: (A/rms) 105°C, 120Hz
1.30
1.35
1.40
1.40
1.50
1.55
1.50
1.70
1.70
1.70
1.75
1.70
1.70
1.95
2.00
2.00
2.00
1.90
25 x 50
30 x 35
35 x 30
2.05
2.00
2.05
22 x 35
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
35 x 25
1.30
1.30
1.30
1.30
1.40
1.40
1.40
1.50
1.55
1.55
1.55
1.75
1.75
1.75
1.70
22 x 25
25 x 25
22 x 30
25 x 25
D x L: mm
RIPPLE
0.65
0.70
0.80
0.80
0.85
0.85
1.20
1.20
