Embedded & Industrial Motherboards

10-15

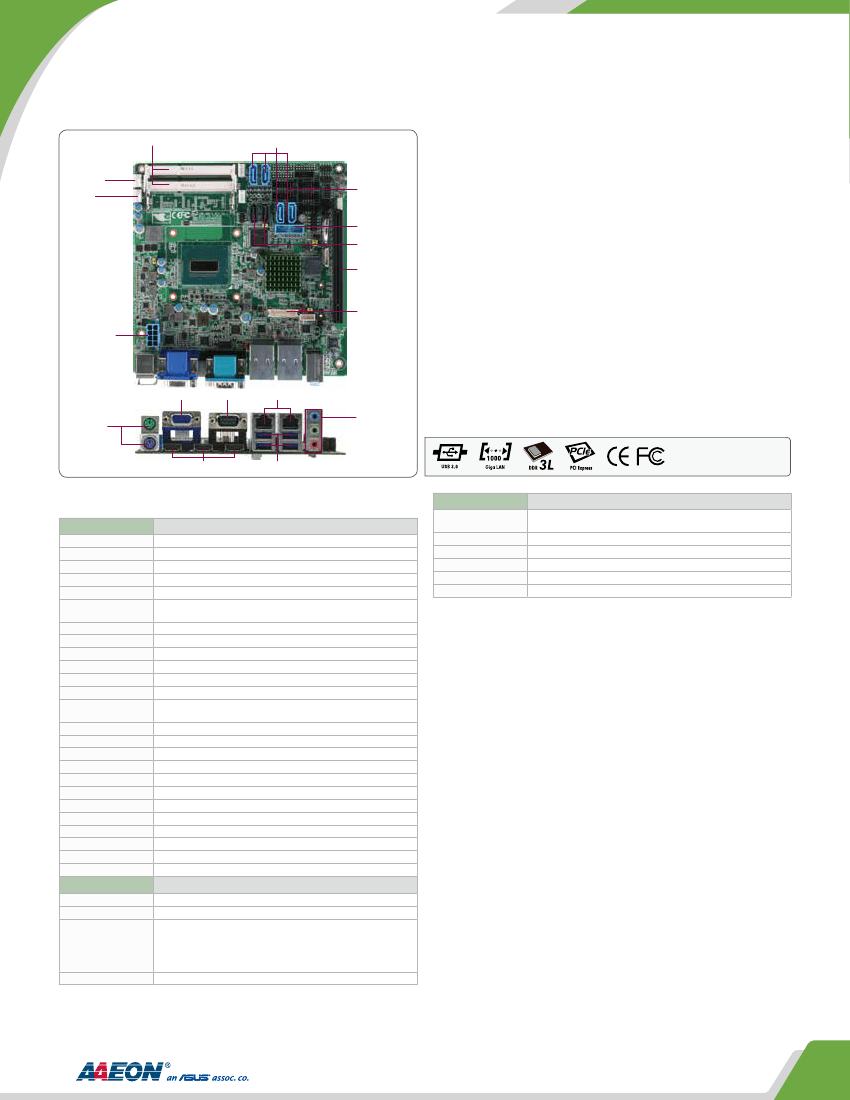

Embedded Motherboard with Onboard Intel® 4th Generation BGA 1364 Processor

DDR3L1600/1333 SDRAM x 2

SATA 6.0 Gb/s x 4

EMB-QM87A

Features

COM x 4

System Fan

CPU Fan

USB3.0 x 2

SATA 3.0 Gb/s x 2

PCI-E [x16] x 1

4th Generation BGA 1364 Processor

■

204-pin DDR3L 1600/1333 MHz SDRAM x 2, Up to 16 GB

■

HDMI x 3, VGA, 24-bit Dual-Channel LVDS

■

Audio Jack x 3 with BTX Type (Mic-in, Line-in, Line-out)

■

LAN 1 : Intel® I217-LM Gigabit Ethernet

LAN 2 : Realtek RTL 8111E Gigabit Ethernet

■

SATA 6.0 Gb/s x 4, SATA 3.0 Gb/s x 2, Support RAID 0,1,5,10

■

PCI-E[x16] x 1, Mini-PCIe x 1, COM x 5

■

Onboard Intel®

LVDS

12V DC Power

Input

VGA

Keyboard &

Mouse Mini

Din x 2

COM

LAN x 2

Audio

HDMI x 3

USB3.0 x 4

Specifications

System

Form Factor

Processor

System Memory

Chipset

I/O Chipset

Ethernet

BIOS

Wake on LAN

Watchdog Timer

H/W Status Monitoring

Expansion Interface

Power Requirement

Power

Consumption(Typical)

Board Size

Gross Weight

Operation temperature

Storage Temperature

Operation Humidity

MTBF (Hours)

Operating Humidity

Smart Fan Control

Power State

Power Requirement

Power Compliance

Certificate

Mini-ITX

Onboard Intel® 4th Generation BGA 1364 Processor

204-pin Dual-Channel DDR3L 1600/1333 MHz SDRAM x 2, Up to 16 GB

Intel® QM87

Fintek F81866D-I

LAN 1: Intel® I217-LM Gigabit Ethernet

LAN 2: Realtek RTL 8111E Gigabit Ethernet

AMI BIOS - 128 MB ROM

Yes

System Reset: 1~255 steps programmable

Supports System temperature, Voltage, and Cooling fan status monitoring

PCI-E[x16] x 1, Mini-PCIe x 1

+12V 8-pin connector x 1

Intel® Core™ i7-4700EQ 3.40 GHz, DDR3L 1600 MHz 8 GB,

4.23A@ +12V/Full loading 50.5W

6.7" x 6.7" (170 mm x 170 mm)

1.32 lb (0.6 kg)

32 °F ~ 140 °F (0 °C ~ 60 °C)

-40 °F ~ 176 °F (-40 °C ~ 80 °C)

0% ~ 90% R/H, non-condensing

106,000

0%~90% RH, non-condensing

CPU Fan / Chassis Fan

S3, S4, S5

4/8-pin ATX 12V Power Connector x1

Compliant with EuP / ErP

CE & FCC

Intel® Core™i7/i5 + QM87

Shared System Memory up to 256 MB

Up to 4096 x 2304 @ 24 Hz for 1st HDMI

Up to 4096 x 2304 @ 24 Hz for 2nd HDMI

Up to 3840 x 2160 @ 60 Hz for 3rd HDMI

Up to 1920 x 1200 @ 60 Hz for VGA

Up to 3200 x 2000 @ 60 Hz for LVDS

HDMI, VGA, LVDS

I/O

Storage

Serial Port

Universal Serial Bus

Digital I/O

PS/2 port

Audio

SATA 6.0 Gb/s x 4, SATA 3.0 Gb/s x 2

Support RAID 0,1,5,10

RS-232 x 4, RS-232/422/485 x 1

USB 3.0 x 6, USB 2.0 x 4

8-bit programmable(4-in/4-out)

Mini-Din PS/2 K/B and Mouse x 1

Line-in, Mic-in, Line-out

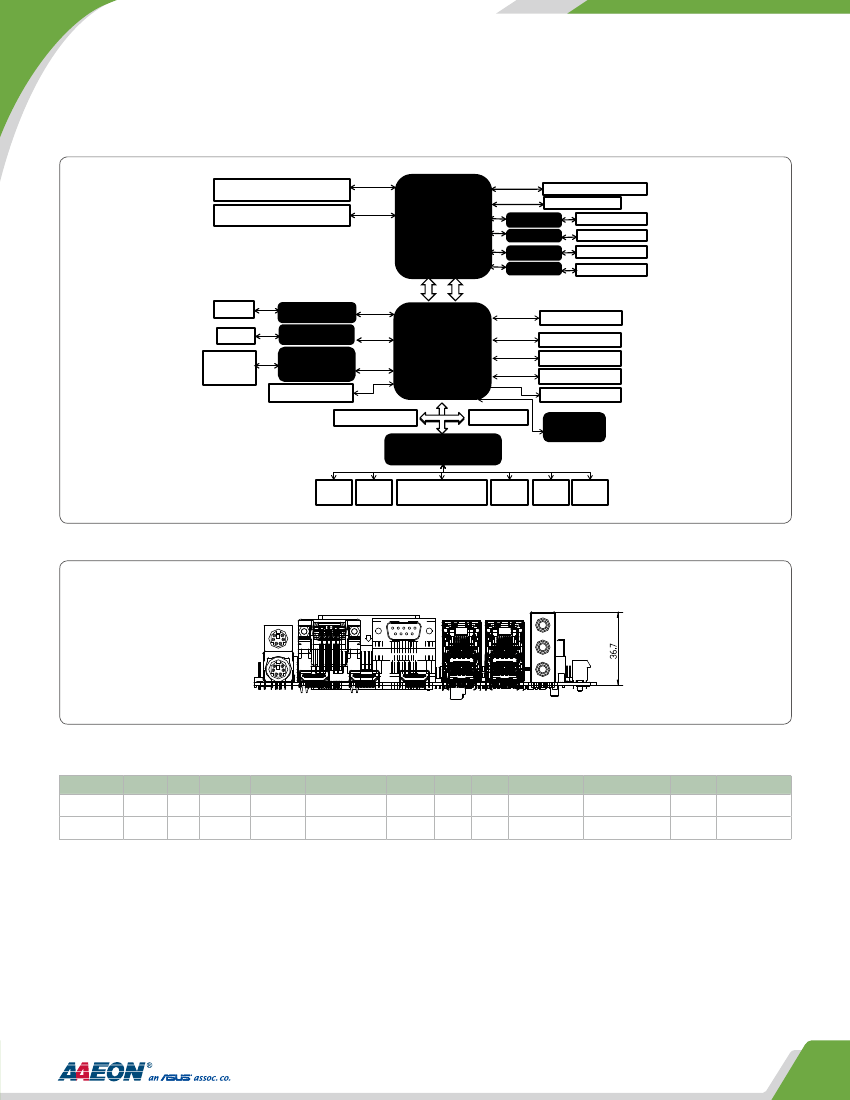

Packing List

•

M20QM87000

(TF)Metal, Sus, I/O Shield, Rev.0.0, EMB-QM87, Northern Queen, 60038-1

•

1709070800

(TF)SATA CABLE, 7P Pitch 1.27mm, 80cm, w/Lock

•

1702151201

(TF)Power Cable, 4P 2.5mm Housing, 15P SATA (F), 12cm, for FWS-2150

•

9657666600

(TF)Accessory, for All Series Jumper

•

17592QM871

(TF)CPU Cooler, FAN+Heat Sink, 4P, 60*60*26.5mm, for GENE-QM87, COOLJAG, JACDD04A-3-2300

•

Product DVD

•

EMB-QM87A

Display

Chipset

Memory

Resolution

Output Interface

2015/02/24

www.aaeon.com
