ZP7-10-SS-G2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ZP7-10-SS-G2T

ZP7-10-SS-G2T: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

ZP7-10-SS-G2T Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

ZP7-10-SS-G2T Parametric

Parameter Name	Attribute value
Objectid	303145778
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.215 inch
subject depth	0.222 inch
body length	0.671 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	ZP7
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	CTR AND 1 DETENT
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

ZP7 Series

Specifications

Contact Resistance:

Insulation Resistance:

Current Rating:

Operating Temperature Range:

Withstanding Voltage:

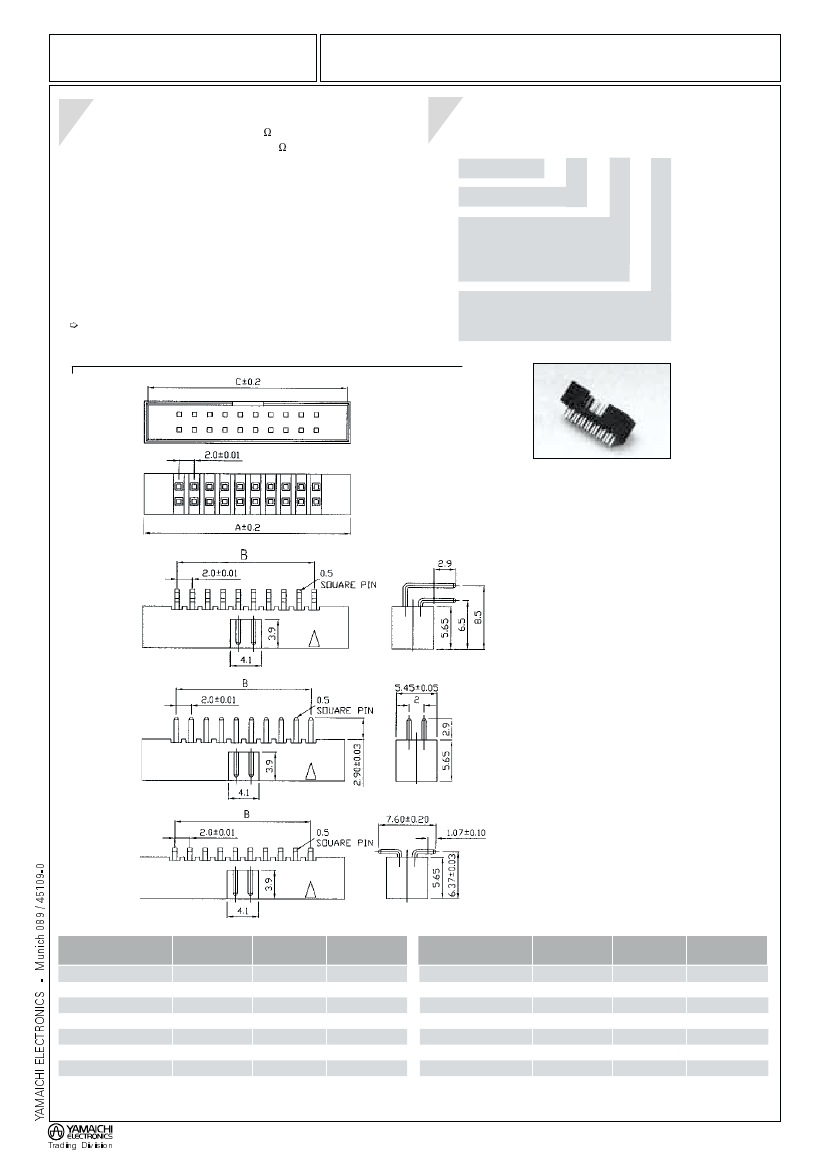

180° (SMT / TH) and 90° (TH) Dual Row Box Header

Part Number

(Details)

30m max. at 6 V DC

1,000M min at 500 V DC

–40°Cto +105°C

500 V AC for 1 minute

ZP7

Series No.

- ** - * - *

No. of Contact Pins

Terminal Style:

A = 90° (TH)

S = 180° (TH)

SS = 180° (SMT)

Mating Face Plating:

G = Gold Flash

G2T = Selective Gold

Materials and Finish

Housing:

PBT and glass reinforced, UL 94V-0

Terminals:

Copper Alloy

Contact Plating: Gold Flash or Tin

Features

Pin count from 4 to 50

Dimensional Information

Part Number

ZP7-4-*-*

ZP7-6-*-*

ZP7-8-*-*

ZP7-10-*-*

ZP7-12-*-*

ZP7-14-*-*

ZP7-20-*-*

ZP7-24-*-*

n o i s i v i D g n i d a rT

Outline Connector Dimensions

Terminal Style (TH)

90° (A)

Terminal Style (TH)

180° (S)

Terminal Style (SMT)

180° (SS)

Dim. A

11.02

13.07

15.08

17.05

19.03

21.05

27.14

31.20

Dim. B

2.00

4.00

6.00

8.00

10.00

12.00

18.00

22.00

Dim. C

10.00

12.02

14.08

16.08

18.08

20.08

26.15

30.20

Part Number

ZP7-26-*-*

ZP7-30-*-*

ZP7-32-*-*

ZP7-36-*-*

ZP7-40-*-*

ZP7-44-*-*

ZP7-50-*-*

Dim. A

33.09

37.20

39.20

43.21

47.26

51.26

57.29

Dim. B

24.00

28.00

30.00

34.00

38.00

42.00

48.00

Dim. C

32.16

36.18

38.20

42.22

46.20

50.26

56.25

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

ZP7-10-SS-G2T Related Products

	ZP7-10-SS-G2T	ZP7-4-S-G	ZP7-4-S-G2T	ZP7-32-A-G2T	ZP7-4-A-G	ZP7-24-SS-G	ZP7-24-SS-G2T
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	NONE	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch
subject depth	0.222 inch	0.222 inch	0.222 inch	0.335 inch	0.335 inch	0.222 inch	0.222 inch
body length	0.671 inch	0.434 inch	0.434 inch	1.543 inch	0.434 inch	1.228 inch	1.228 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	ZP7	ZP7	ZP7	ZP7	ZP7	ZP7	ZP7
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	CTR AND 1 DETENT	CTR AND 1 DETENT	CTR AND 1 DETENT	CTR AND 1 DETENT	CTR AND 1 DETENT	CTR AND 1 DETENT	CTR AND 1 DETENT
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	0.114 inch	0.114 inch	0.114 inch	0.114 inch	-	-
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	4	4	32	4	24	24
PCB contact row spacing	-	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	-	-
