DBMY-25P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBMY-25P

DBMY-25P: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .087-.098, Plug,; CategoryThe connector The connector; File Size62KB，2 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

DBMY-25P Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .087-.098, Plug,

DBMY-25P Parametric

Parameter Name	Attribute value
Objectid	1463375103
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1250VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .087-.098
Installation option 2	DUAL FLOAT BUSHING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	ZINC
Shell material	STEEL
Housing size	3/B
Terminal length	0.077 inch
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

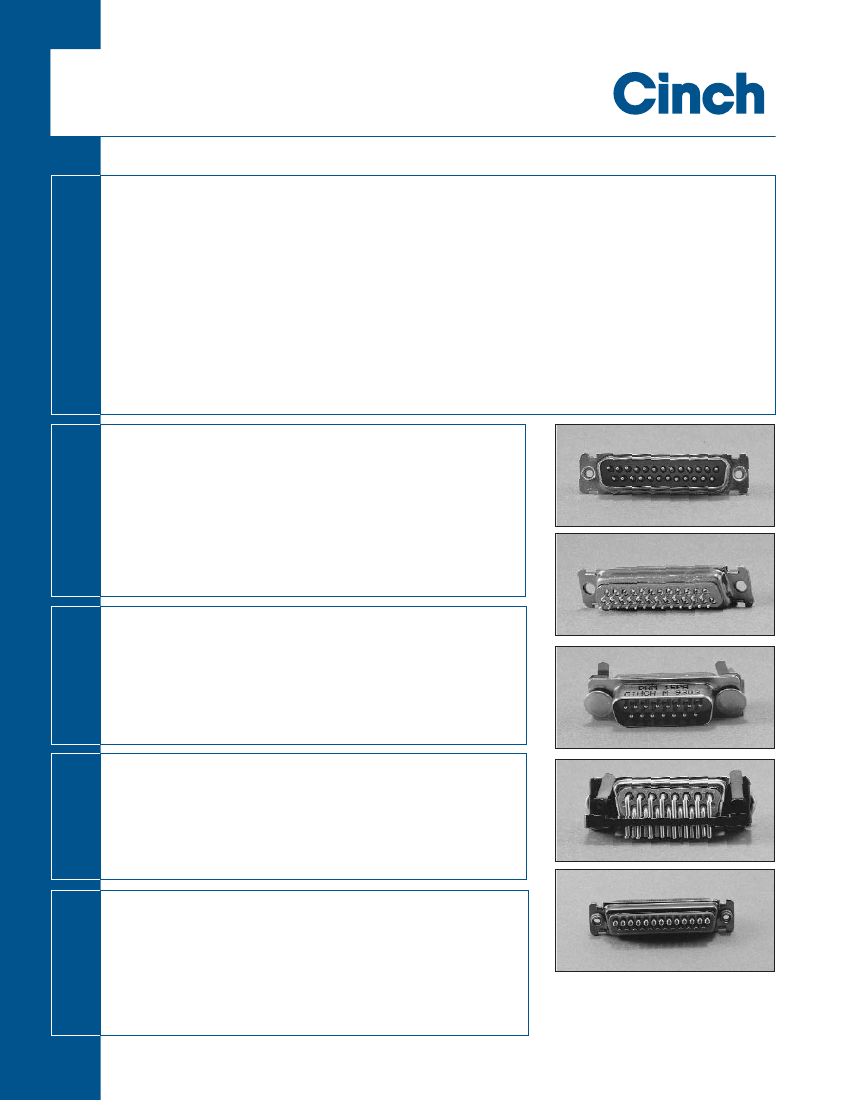

D-subminiature Metal Shell

Solder Cup, Right-Angle, and Vertical PCB

Series 1 - High Reliability

■

Available in vertical and right-angle dip solder PCB connectors and solder cup version for

wire termination.

■

Commercial version of M24308 military connectors with tin-plated or zinc-plated shell

and 30µin. gold plating.

■

Monoblock green diallyl phthalate insulator for improved electrical performance.

■

Machined contacts for precision performance.

■

Offered in 9, 15, 25, 37, and 50 (except right-angle version) position plugs and sockets.

■

Offered with .120 mounting holes, 4-40 clinch nuts (except right-angle version), or dual

float bushings (except right-angle version).

■

Approvals:

• UL Recognized - Files E170218 (UL1977)and E130965 (UL1863).

• CSA Approved - File LR31996.

■

See pages 4-5 thru 4-10 for standard dimensions, contact arrangements, and panel

mounting specifications.

Insulator Material:

Glass-filled diallyl phthalate (green)

UL 94V-0 rated

Connector Shell:

Steel with zinc plating and yellow chromate finish or

tin plating (grounding indents on plug)

Contact Material:

Plug - Brass (machined), Socket - Phosphor

bronze (machined)

Contact Plating:

30µin. gold over nickel

4-40 Clinch Nut:

Steel with cadmium plating and yellow chromate finish

Dual Float Bushing:

Stainless steel, passivated

NVIRONMENTAL

ATERIALS

EATURES

Operating Temperature:

-65°C to + 125°C

Shock:

50G peak per MIL-STD-202, Method 213, Condition G

Vibration:

12 cycles in three perpendicular directions @ 10-2000Hz, per

MIL-STD-202, Method 204, Condition D

Moisture Resistance:

90-95% relative humidity @ 40°C for 96 hours per

MIL-STD-202, Method 103

ECHANICAL

ELECTRICAL

Withstanding Voltage:

Current Rating:

Contact Resistance:

Insulation Resistance:

Minimum 1250V RMS @ sea level

5 Amps

2.7 milliohms maximum

5000 megohms maximum (initial);

1000 megohms (minimum) after

environmental testing

Individual Contact Insertion and

Separation Force (minimum/maximum):

0.7 oz./12 oz.

Durability:

500 mating cycles
