05002-330KGML datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 05002-330KGML

05002-330KGML: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.000033uF, 0603,; CategoryPassive components capacitor; File Size107KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

05002-330KGML Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.000033uF, 0603,

05002-330KGML Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	763527323
package instruction	, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.000033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.91 mm
length	1.6 mm
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
positive tolerance	2%
Rated (DC) voltage (URdc)	250 V
series	SIZE(DSCC)
size code	0603
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
width	0.81 mm

Preview

Download Datasheet

View All

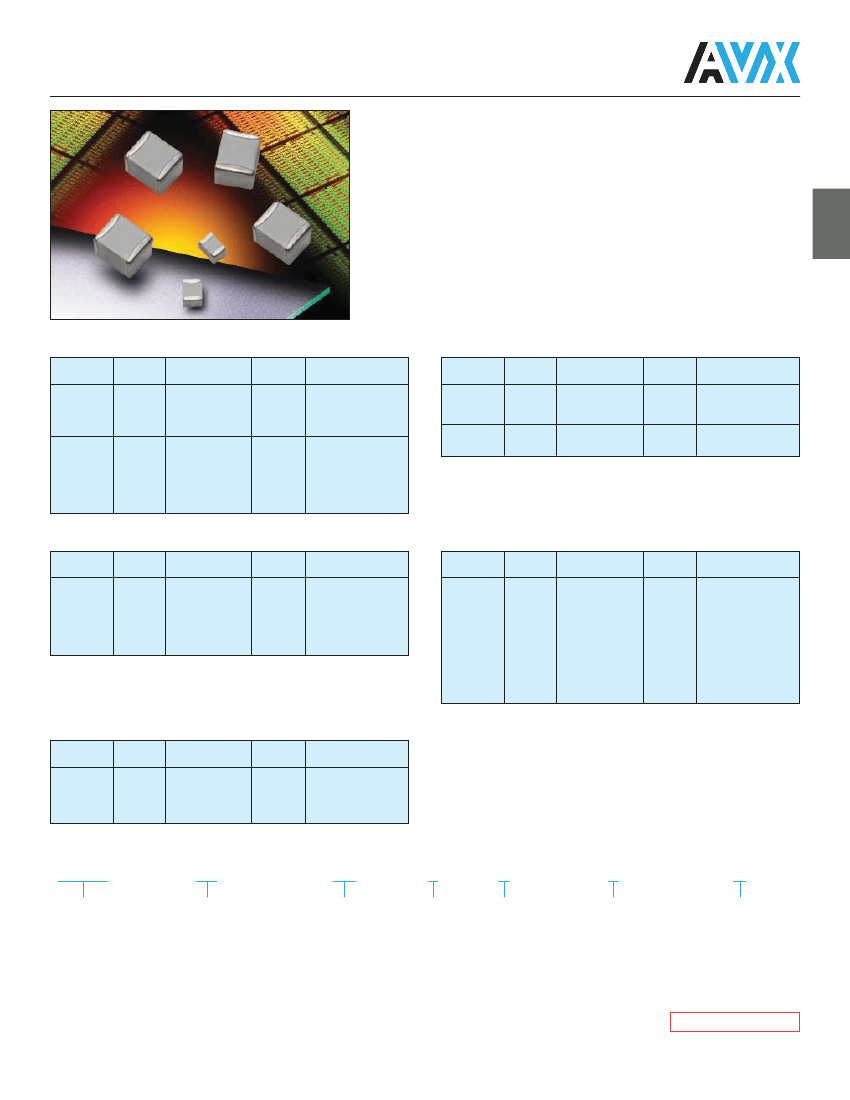

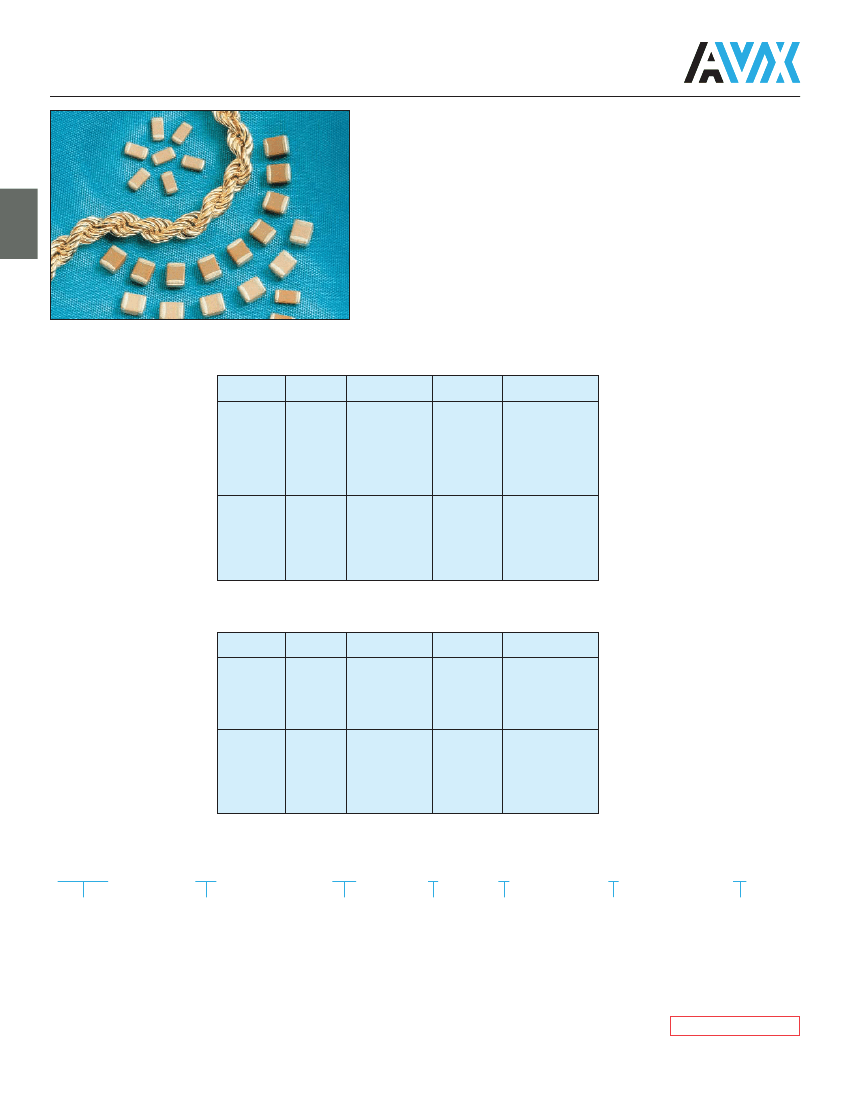

Additional Surface Mount MLCC

with DSCC Approvals

These additional ranges of surface mount multilayer ceramic capacitors

provide additional capability in 0603 and 0402 case sizes. DSCC 03028

covers 0603 case size BP and BR dielectric and DSCC 03029 is for

0402 case size in BP and BR dielectric.

For RF surface mount capacitor versions DSCC 06019 covers 0605

case size for BP and BG dielectric. DSCC 06022 is for 1210 case size

and BP and BG dielectric devices.

DSCC 05002 covers RF capacitors in 0603 case size, C0G dielectric.

DSCC 03028 0603 Case Size

Type

DSCC 03028

Dielectric

Capacitance

0.5 - 9.1

10 - 330

390 - 1,000

1,200 - 1,500

100 - 1,000

1,200 - 12,000

15,000 - 39,000

47,000

56,000 - 100,000

120,000 - 220,000

Tolerance

C,D

F,G,J

K,M

Voltage

WVDC

6.3/10/16/25/50/100

6.3/10/16/25/50

6.3/10/16/25

6.3/10/16/25/50/100/200

6.3/10/16/25/50/100

6.3/10/16/25/50

6.3/10/16/25

6.3/10/16

6.3/10

DSCC 03029 0402 Case Size

Type

DSCC 03029

Dielectric

Capacitance

0.5 - 9.1

10 - 220

270 - 330

100 - 3,300

3,900 - 4,700

Tolerance

C,D

F,G,J

K,M

Voltage

WVDC

6.3/10/16/25/50

6.3/10/16

6.3/10/16/25/50

6.3/10/16/25

DSCC 06019 RF Capacitor 0605 Case Size

Type

DSCC 06019

Dielectric

BP,BG

Capacitance

0.1 - 0.2

0.3 - 0.4

0.5 - 6.2

6.8 - 9.1

10 - 100

110 - 1,000

Tolerance

B,C

B,C,D

B,C,J,K,M

F,G,J,K,M

Voltage

WVDC

50/150

DSCC 06022 RF Capacitor 1210 Case Size

Type

DSCC 06022

Dielectric

BP,BG

Capacitance

0.1 - 0.2

0.3 - 0.4

0.5 - 6.2

6.8 - 9.1

10 - 100

110 - 200

220 - 470

510 - 620

680 - 1,000

1,100 - 5,100

Tolerance

B,C

B,C,D

B,C,J,K,M

F,G,J,K,M

Voltage

WVDC

200/500

200/300

200

100

DSCC 05002 0603 Case Size

Type

DSCC 05002

Dielectric

C0G

Capacitance

0.1 - 0.2

0.3 - 1

1.1 - 6.2

6.8 - 100

Tolerance

A,B

A,B,C

A,B,C,D

B,C,J,K,M

Voltage

WVDC

50/100/200/250

HOW TO ORDER

03028

Case Size

03028 (0603)

03029 (0402)

05002 (0603)

05006 (0805)

05007 (1206)

06022 (1210)

06019 (0605)

Voltage Temperature

Limits

BP = 0 ± 30 ppm/ºC

without voltage;

0 ± 30 ppm/ºC with rated

voltage from

-55ºC to +125ºC

BR = ±15% without voltage;

+15 -40% with rated voltage

from -55ºC to +125ºC

BX = ±15% without voltage;

+15 -25% with rated voltage

from -55ºC to +125ºC

102

Capacitance

EIA Capacitance

Code in pF

First two digits =

significant figures or

“R” for decimal place

Third digit = number

of zeros or after “R”

significant figures.

Rated

Voltage

W = 6.3V

X = 10V

Y = 16V

Z = 25V

A = 50V

B = 100V

C = 200V

Capacitance

Tolerance

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Termination Finish

M = Palladium Silver

U = Solder Coated

(4% Lead min)

Melting Point of 200ºC

Z = Tin/Lead Alloy with

4% Lead

—

Options

C = Full Group G

L = 2000 Hour Life

M = 1000 Hour Life

H = Low Voltage

Humidity

Not RoHS Compliant
