14.3 x 9.3 mm, OVEN-CONTROLLED, HCMOS, SMD, XO
Page 1 of 2
Model: FTP300H Series
RoHS Compliant (exemption 7c-I) / REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 7/15/2014
• PART NUMBER SELECTION
Part Number
Model Number
850-Frequency-xxxxx FTP301AH
850B-Frequency-xxxxx FTP301BH
850C-Frequency-xxxxx FTP301CH
850D-Frequency-xxxxx FTP302AH
850E-Frequency-xxxxx FTP302BH
850F-Frequency-xxxxx FTP302CH
850G-Frequency-xxxxx FTP303AH
850H-Frequency-xxxxx FTP303BH
850J-Frequency-xxxxx FTP303CH
Frequency Stability
100ppb
(-40~+85°C)
50ppb
(-40~+85°C)
200ppb
(-40~+85°C)
100ppb
(-30~+70°C)
50ppb
(-30~+70°C)
200ppb
(-30~+70°C)
100ppb
(0~+70°C)
50ppb
(0~+70°C)
200ppb
(0~+70°C)
Frequency Range
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
5 MHz to 40 MHz
FEATURES
• SMD
• 3.3V Operation (5V Avail)
• HCMOS Output
• ELECTRICAL CHARACTERISTICS
PARAMETERS
MAX
(unless otherwise noted)
5.000 ~ 40.000 MHz
See table above
±20 PPB
See table above
-40ºC ~ +85ºC
3.3V
dc
±5%
15 pF Typ
0.1V Typ, 0.4V Max
3.3V Typ, 2.8V Min
-60dBc Max
45% / 55%
Positive
±5 PPM Min
±10 %
0V to 3.3V
100k Ω
5 Minutes
500mA Max
0.6 W Max at 25ºC
±5 PPB / day Max
±4 PPM Max
-90 dBc/Hz Max
-115 dBc/Hz Max
-135 dBc/Hz Max
-145 dBc/Hz Max
1
Au
5.4 grams
+250ºC Max, 10º
s
Fort Myers, Florida 33905
Frequency Range (F
o
)
Frequency Stabilty vs.:
Operating Temperature (T
opr
)
Change of V
dd
(±5%)
Temperature Range
Operating
(T
opr
)
Storage
(T
stg
)
Supply Voltage
(V
dd
)
5V is available - contact Fox
Output Load
SineWave is available - contact Fox
Output Wave Shape
(V
ol
)
(V
oh
)
Spurious
Symmetry
Control Voltage
Slope
Frequency Change (∆
f
)
Non-Linearity (0.8V to (V
dd
)
Voltage Control (V
c
)
Input Impedance (Z
in
)
Warm up
Time (to ±100 PPB)
(Referenced to f
c
@ 60min after turn-on)
Referenced to +25ºC after 1 hour
Others availabe -
contact Fox
Warm-Up Current
Operating Power
Aging
Short-term Aging
(After 30 days)
Long Term
(10-years ALL effects)
Phase Noise
@ 10 Hz Offset:
@ 100 Hz Offset:
@ 1 kHz Offset:
@ 10 kHz Offset:
Mosisture Sensitivity Level
(MSL)
Termination Finish
Weight
(Typical)
Reflow Limits
Fox Electronics
All dimensions are in millimeters.
Pin Connections
#1 V
c
or N.C.
#2 Not Connected
#3 GND / Case
#4 RF Output
#5 Not Connected
#6 V
DD
5570 Enterprise Parkway
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
14.3 x 9.3 mm, OVEN-CONTROLLED, HCMOS, SMD, XO
Page 2 of 2
Model: FTP300H Series
RoHS Compliant (exemption 7c-I) / REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 7/15/2014
• DEVELOPED FREQUENCIES
10 MHz
19.2 MHz
12.8 MHz
20 MHz
15.36 MHz
25 MHz
16.384 MHz

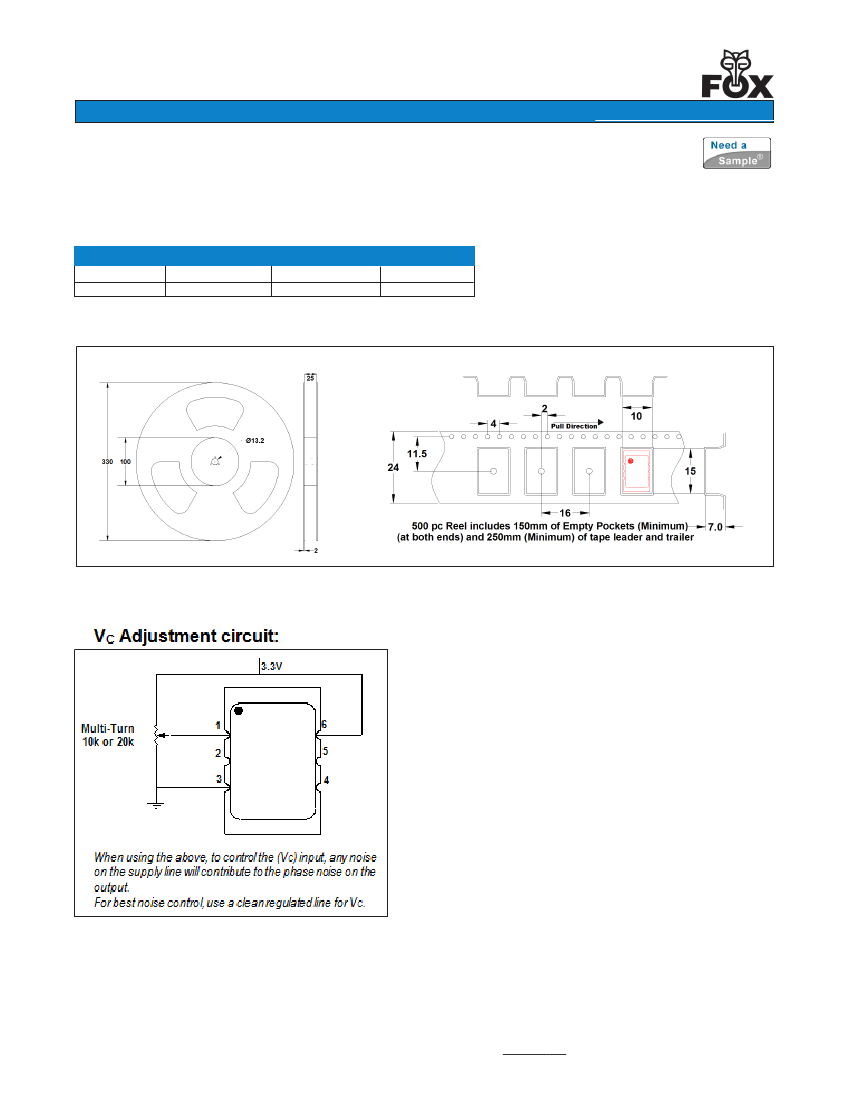

•Tape and Reel Specs
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
