T49470X01476KAN datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T49470X01476KAN

T49470X01476KAN: DescriptionCeramic Capacitor, Ceramic, 50V, BX, -/+15ppm/Cel TC, 47uF; CategoryPassive components capacitor; File Size417KB，9 Pages; ManufacturerAVX

Download Datasheet Parametric View All

T49470X01476KAN Overview

Ceramic Capacitor, Ceramic, 50V, BX, -/+15ppm/Cel TC, 47uF

T49470X01476KAN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1171265597
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	16.51 mm
JESD-609 code	e0
length	27.3 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	PCB Mount
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-49470/1
surface mount	NO
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT
width	12.7 mm

Preview

Download Datasheet

View All

SMPS Stacked MLC Capacitors

SM Style SM Military Styles MIL-PRF-49470

AVX IS QUALIFIED TO MIL-PRF-49470/1 AND

MIL-PRF-49470/2

The SMPS capacitors are designed for high current, high-power

and high-temperature applications. These capacitors have very

low ESR (Equivalent Series Resistance) and ESL (Equivalent Series

Inductance). SMPS Series capacitors offer design and component

engineers a proven technology specifically designed for programs

requiring high reliability performance in harsh environments.

MIL-PRF-49470 SMPS Series capacitors are primarily used

in input/output filters of high-power and high-voltage power

supplies as well as in bus filters and DC snubbers for high power

inverters and other high-current applications. These capacitors

are available with through-hole and surface mount leads. The

operating temperature is -55°C to +125°C.

The MIL-PRF-49470 capacitors are preferred over the DSCC

drawing 87106 capacitors. MIL-PRF-49470 specification was

created to produce a robust replacement for DSCC 87106. MIL-

PRF-49470 offers two product levels.

Level “B” is the standard reliability. Level “T” is the high reliability

suitable for space application.

AVX is qualified to supply MIL-PRF-49470/1 parts. These are

unencapsulated ceramic dielectric, switch mode power supply

capacitors. AVX is also qualified to supply MIL-PRF-49470/2 parts.

These are encapsulated ceramic dielectric, switch mode power

supply capacitors.

PLEASE CONTACT THE DLA WEBSITE

http://www.landandmaritime.dla.mil/programs/milspec/DocS

earch.aspx

for details on testing, electrical, mechanical and part

number options.

PLEASE CONTACT THE DLA WEBSITE

http://www.landandmaritime.dla.mil/Programs/QmlQpl/

for the

latest QPL (Qualified Products List).

Not RoHS Compliant

HOW TO ORDER

M49470

Performance

specification

indicating

MIL-PRF-49470

Characteristic

P = BP

Q = BQ

R = BR

X = BX

Performance

specification

sheet number

01 – indicating

MIL-PRF-49470/1

02 – indicating

MIL-PRF-49470/2

474

Capacitance

Tolerance

BP:

J = ±5%

K = ±10%

BX, BR & BQ:

K = ±10%

M = ±20%

Rated Voltage

Z = 25V

A = 50V

B = 100V

C = 200V

E = 500V

Configuration

(Lead Style)

See chart for

Lead configurations

For “T” level parts, replace the “M” in the pin with “T” (for example

M49470R01474KCN

becomes

T49470R01474KCN)

MIL-

PRF-49470 contains additional capacitors that are not available

in 87106, such as additional lead configurations and lower profile

parts.

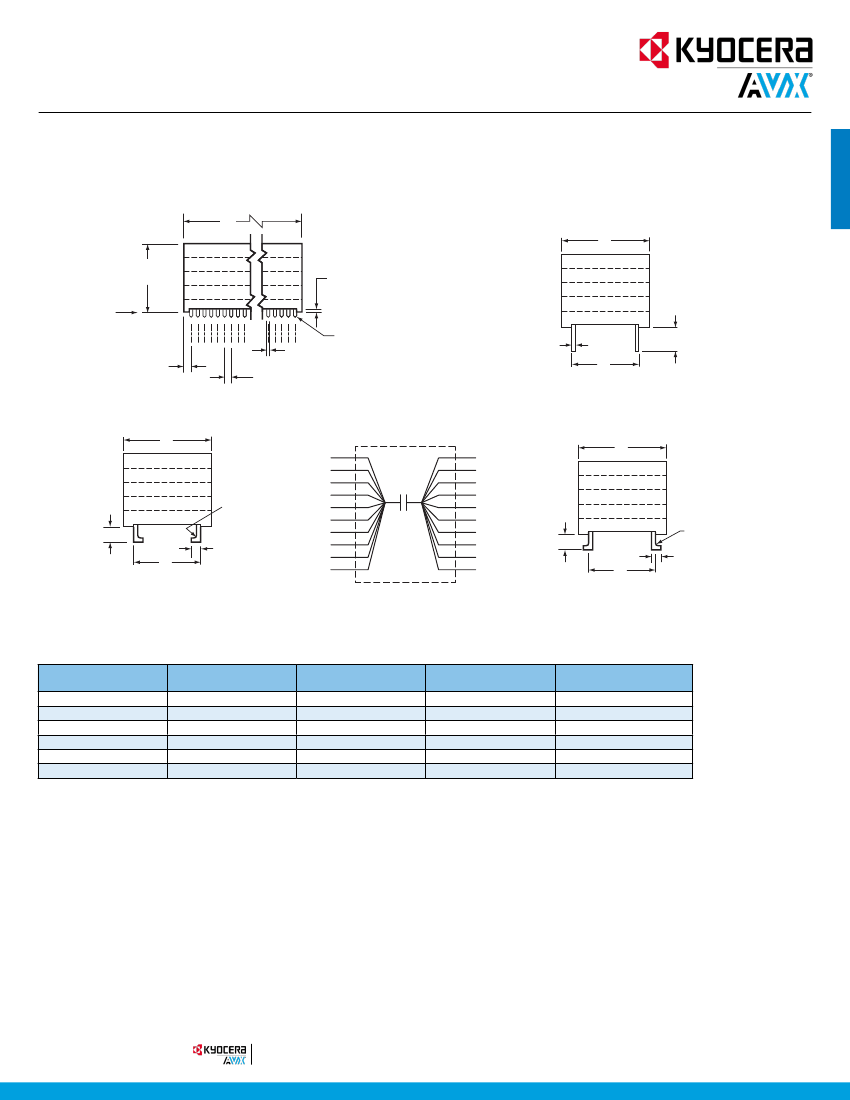

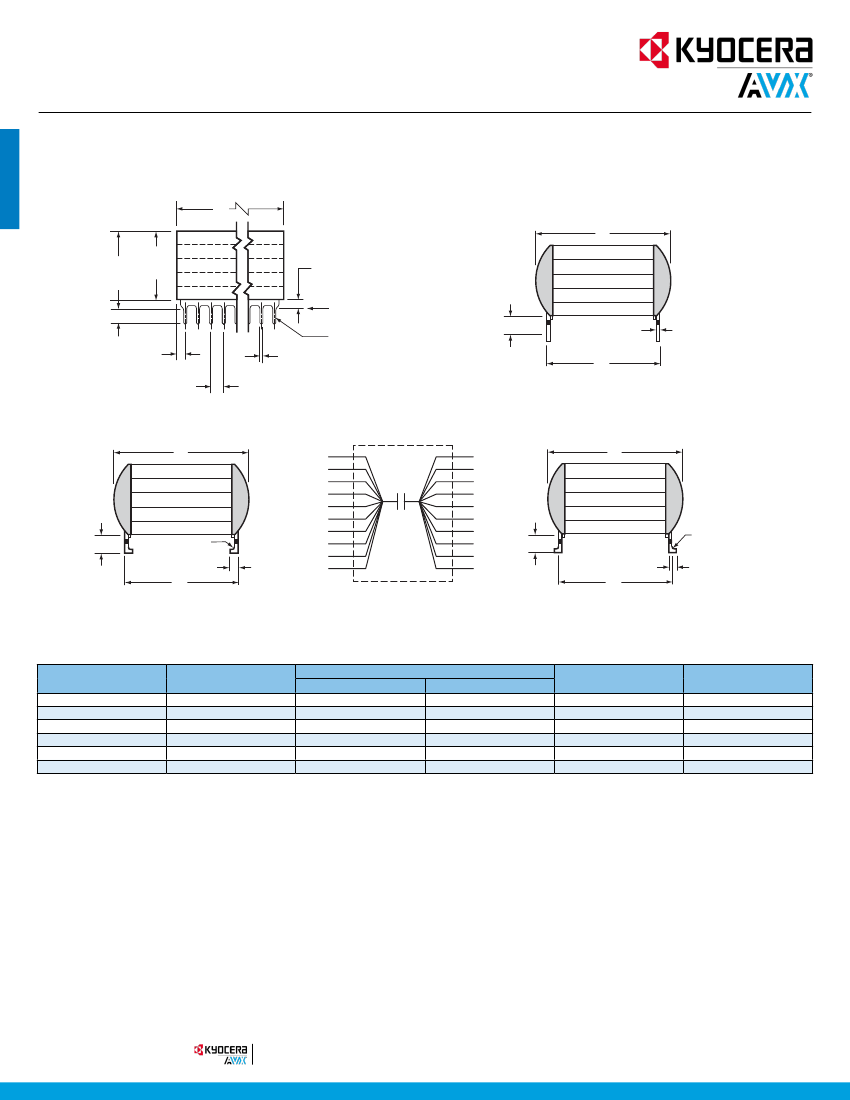

On the pages to follow is the general dimensional outline along with

a cross reference from 87106 parts to MIL-PRF-49470 parts.

LEAD CONFIGURATION

Symbol (Last digit of military PN,

12th digit of AVX PN)

millimeters (inches)

Lead Style

N (straight)

L (formed)

J (formed)

N (straight)

L (formed)

J (formed)

Height Profile

(Dimension A)

Standard

Low

Formed lead length,

N/A

1.78 ± 0.25 (0.070 ± 0.010)

1.14 ± 0.25 (0.045 ± 0.010)

1.78 ± 0.25 (0.070 ± 0.010)

1.14 ± 0.25 (0.045 ± 0.010)

N/A

1.78 ± 0.25 (0.070 ± 0.010)

1.14 ± 0.25 (0.045 ± 0.010)

1.78 ± 0.25 (0.070 ± 0.010)

1.14 ± 0.25 (0.045 ± 0.010)

Note: Lead options available marked with a “-” as a place holder. See lead configuration column for available lead options to replace the “-”.

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/download/software/SpiCalci-AVX.zip

The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or

available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.

011419

–
