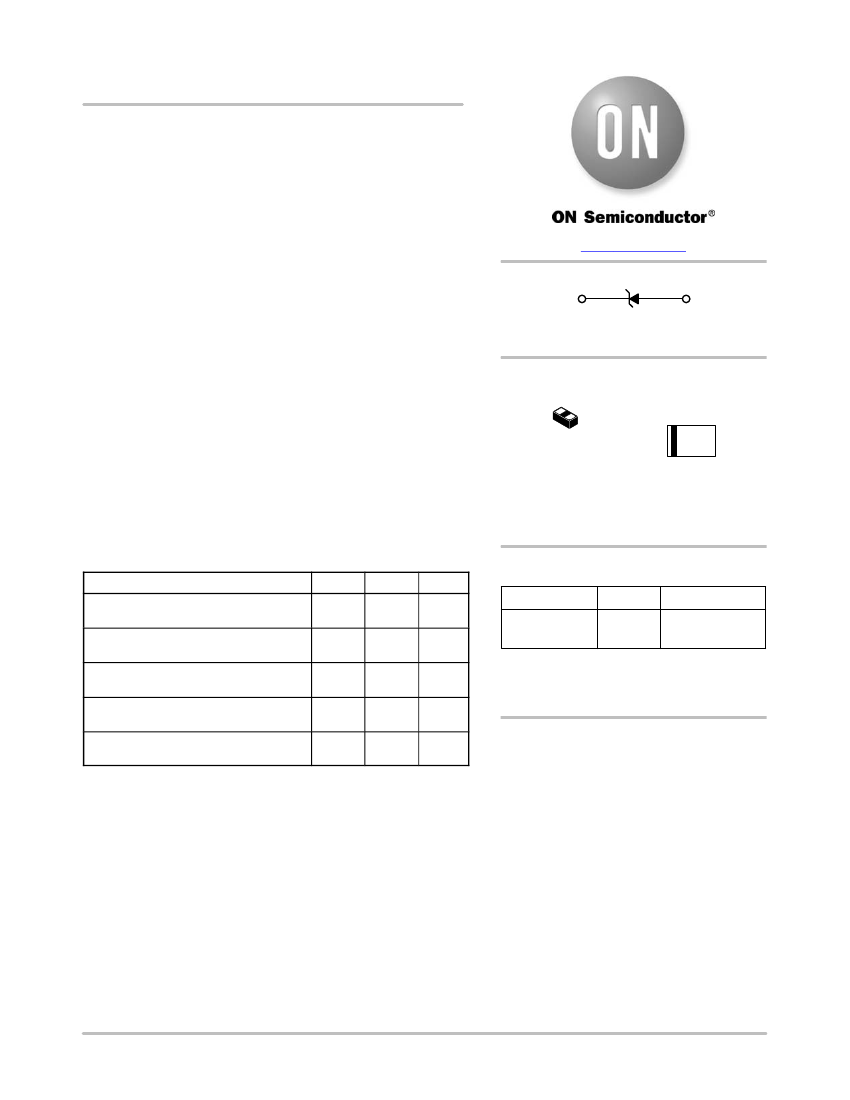

NZD5V1MU Series
Zener Voltage Regulators
200 mW Micro Packaged
This Zener diode is designed to provide voltage regulation
protection and is especially attractive in situations where space is at a
premium. Because of its small size, it is suited for use in mobile
applications.
Specification Features:
www.onsemi.com
•
Standard Zener Breakdown Voltage Range:
•
•
•
•
•
2.4 V to 24 V
Steady State Power Rating of 300 mW
Small Body Outline Dimensions:
0.60 mm x 0.30 mm
Low Body Height: 0.30 mm
ESD Rating of Class 3 (>16 kV) per Human Body Model
These are Pb−Free Devices
1
Cathode
2
Anode
MARKING
DIAGRAM
PIN 1
X3DFN2
CASE 152AF
XM
Mechanical Characteristics:
MOUNTING POSITION:
Any
QUALIFIED MAX REFLOW TEMPERATURE:
260°C
Device Meets MSL 1 Requirements
MAXIMUM RATINGS
Rating
IEC 61000−4−2 (ESD)
Contact
Air
P
D
R
qJA
T
J
, T
stg
T
L
Symbol
Max
±20
±20
300
400
−55 to
+150
260
Unit
kV
mW
°C/W
°C
°C
X
M
= Specific Device Code
= Month Code
ORDERING INFORMATION
Device
NZDxxxMUT5G
Package
X3DFN
(Pb−Free)
Shipping†
10000 / Tape &
Reel
Total Device Dissipation FR−5 Board,
(Note 1) @ T
A
= 25°C
Thermal Resistance from
Junction−to−Ambient
Junction and Storage Temperature Range
Lead Solder Temperature − Maximum
(10 Second Duration)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
DEVICE MARKING INFORMATION
See specific marking information in the device marking
column of the Electrical Characteristics tables starting on
page 3 of this data sheet.
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR−5 = 1.0 x 0.75 x 0.62 in.
This document contains information on some products that are still under development.
ON Semiconductor reserves the right to change or discontinue these products without
notice.
©
Semiconductor Components Industries, LLC, 2016
1
May, 2016 − Rev. 4
Publication Order Number:
NZD5V1MU/D
NZD5V1MU Series
PACKAGE DIMENSIONS
X3DFN2, 0.62x0.32, 0.355P, (0201)
CASE 152AF
ISSUE A
D
PIN 1
INDICATOR
(OPTIONAL)
A B
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
DIM
A
A1
b
D
E
e
L2
MILLIMETERS
MIN
MAX
0.25
0.33
−−−
0.05
0.22
0.28
0.58
0.66
0.28
0.36
0.355 BSC
0.17
0.23
TOP VIEW
E
0.05 C
A
2X
0.05 C
A1
SIDE VIEW
C
SEATING
PLANE
RECOMMENDED
MOUNTING FOOTPRINT*
0.74
1
2X
0.30
e
2X
1
2
b
2X
0.31
DIMENSIONS: MILLIMETERS
2X
L2
C A B
BOTTOM VIEW
0.05
M
C A B
See Application Note AND8398/D for more mounting details
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
0.05
M
