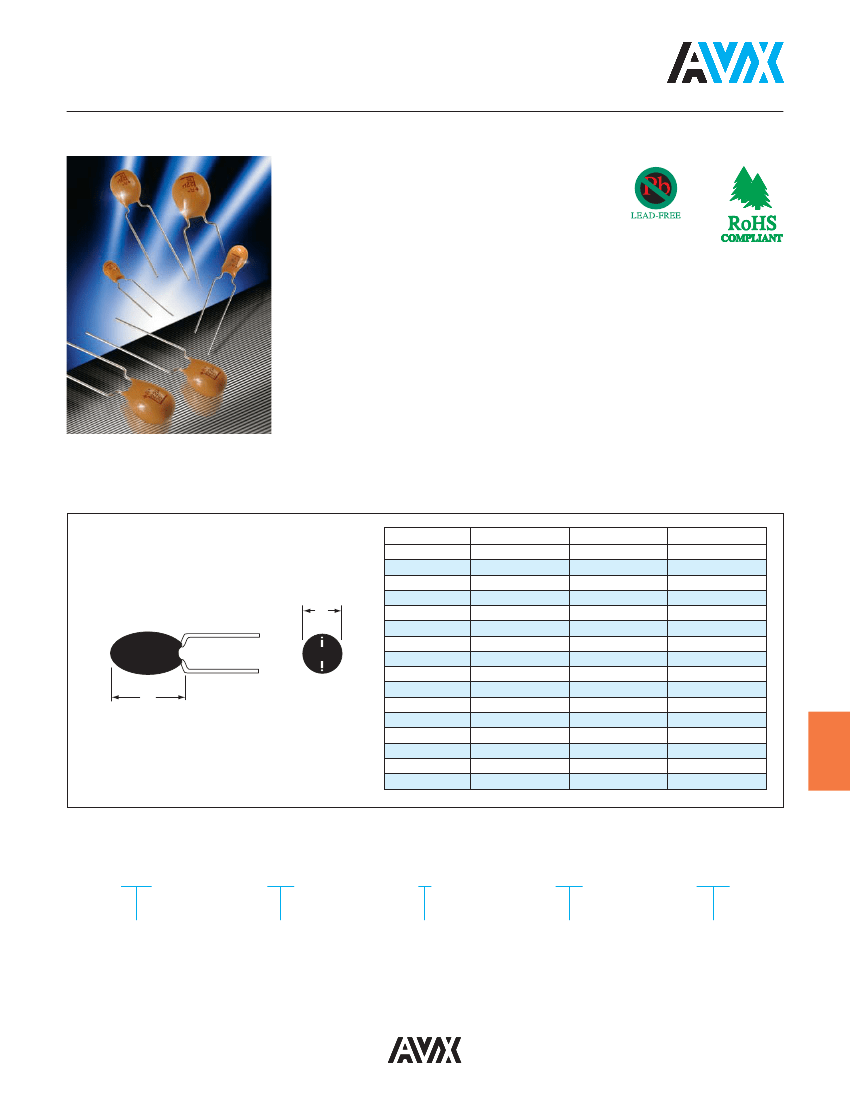

TAP685K006CRW: DescriptionSOLID TANTALUM RESIN DIPPED CAPACITORS; File Size136KB，4 Pages; ManufacturerAVX

Download Datasheet Compare View All

TAP685K006CRW Overview

SOLID TANTALUM RESIN DIPPED CAPACITORS

Preview

Download Datasheet

View All

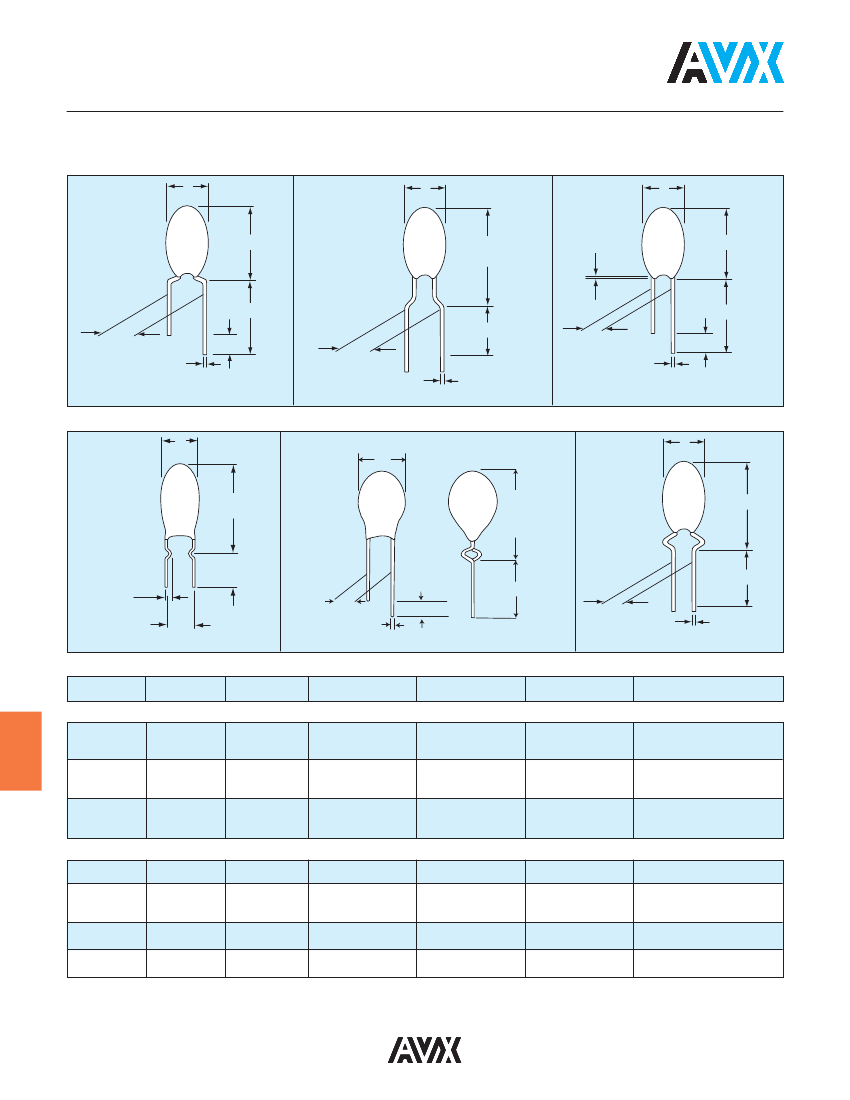

Dipped Radial Capacitors

Wire Form Outline

SOLID TANTALUM RESIN DIPPED TAP/TEP

Preferred Wire Forms

Figure 1

Figure 2

Figure 3

2.0(0.08)

max

+ 4 (0.16)

max

Wire Form C

2.0 (0.079)

min

Wire Form B

Wire Form S

2 (0.079)

min

Non-Preferred Wire Forms

(Not recommended for new designs)

Figure 4

Figure 5

Figure 6

H + 3.8 (0.15)

max

1.10

+0.25

-0.10

+0.010

)

(0.4

-0.004

Wire Form F

Wire Form D

max

+0.118

(3.0)

0.079 (2)

min

Wire Form G

DIMENSIONS

Wire Form

Figure

Case Size

L (see note 1)

millimeters (inches)

Packaging

Suffixes Available*

CCS

CRW

CRS

BRW

BRS

SCS

SRW

SRS

Bulk

Tape/Reel

Tape/Ammo

Tape/Reel

Tape/Ammo

Bulk

Tape/Reel

Tape/Ammo

Preferred Wire Forms

Figure 1

A - R*

16.0±4.00

(0.630±0.160)

16.0±4.00

(0.630±0.160)

16.0±4.00

(0.630±0.160)

5.00±1.00

(0.200±0.040)

5.00±1.00

(0.200±0.040)

2.50±0.50

(0.100±0.020)

0.50±0.05

(0.020±0.002)

0.50±0.05

(0.020±0.002)

0.50±0.05

(0.020±0.002)

Figure 2

Figure 3

A - J*

Non-Preferred Wire Forms

(Not recommended for new designs)

Figure 4

Figure 5

Figure 6

Similar to

Figure 1

A-R

A - H*

A-J

A-R

3.90±0.75

(0.155±0.030)

16.0±4.00

(0.630±0.160)

16.0±4.00

(0.630±0.160)

16.0±4.00

(0.630±0.160)

5.00±0.50

(0.200±0.020)

2.50±0.75

(0.100±0.020)

3.18±0.50

(0.125±0.020)

6.35±1.00

(0.250±0.040)

0.50±0.05

(0.020±0.002)

0.50±0.05

(0.020±0.002)

0.50±0.05

(0.020±0.002)

0.50±0.05

(0.020±0.002)

FCS

DCS

DTW

DTS

GSB

HSB

Bulk

Tape/Reel

Tape/Ammo

Bulk

Notes: (1) Lead lengths can be supplied to tolerances other than those above and should be specified in the ordering information.

(2) For D, H, and H

dimensions, refer to individual product on following pages.

For case size availability in tape and reel, please refer to pages 199-200.

192
