LQP15MN1N5B02J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQP15MN1N5B02J

LQP15MN1N5B02J: Description1 ELEMENT, 0.0015 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size65KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQP15MN1N5B02J Overview

1 ELEMENT, 0.0015 uH, GENERAL PURPOSE INDUCTOR, SMD

LQP15MN1N5B02J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	0402
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Confidence	2
Samacsys Status	Released
Samacsys PartID	3447921
Samacsys Pin Cou	2
Samacsys Part Category	Induc
Samacsys Package Category	Othe
Samacsys Footprint Name	0402 (1005) T=0.35±0.1mm
Samacsys Released Date	2019-10-01 12:21:37
Is Samacsys	N
uppercase and lowercase codes	0402
structure	Chi
DC Resistance	0.2 Ω
Nominal inductance(L)	0.0015 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.35 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR, Paper, 13 Inch
Minimum quality factor (at nominal inductance)	13
Maximum rated current	0.28 A
self resonant frequency	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE TOLERANCE IS 0.1 NANO HENRY
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	500 MHz
Tolerance	6.667%
Base Number Matches	1

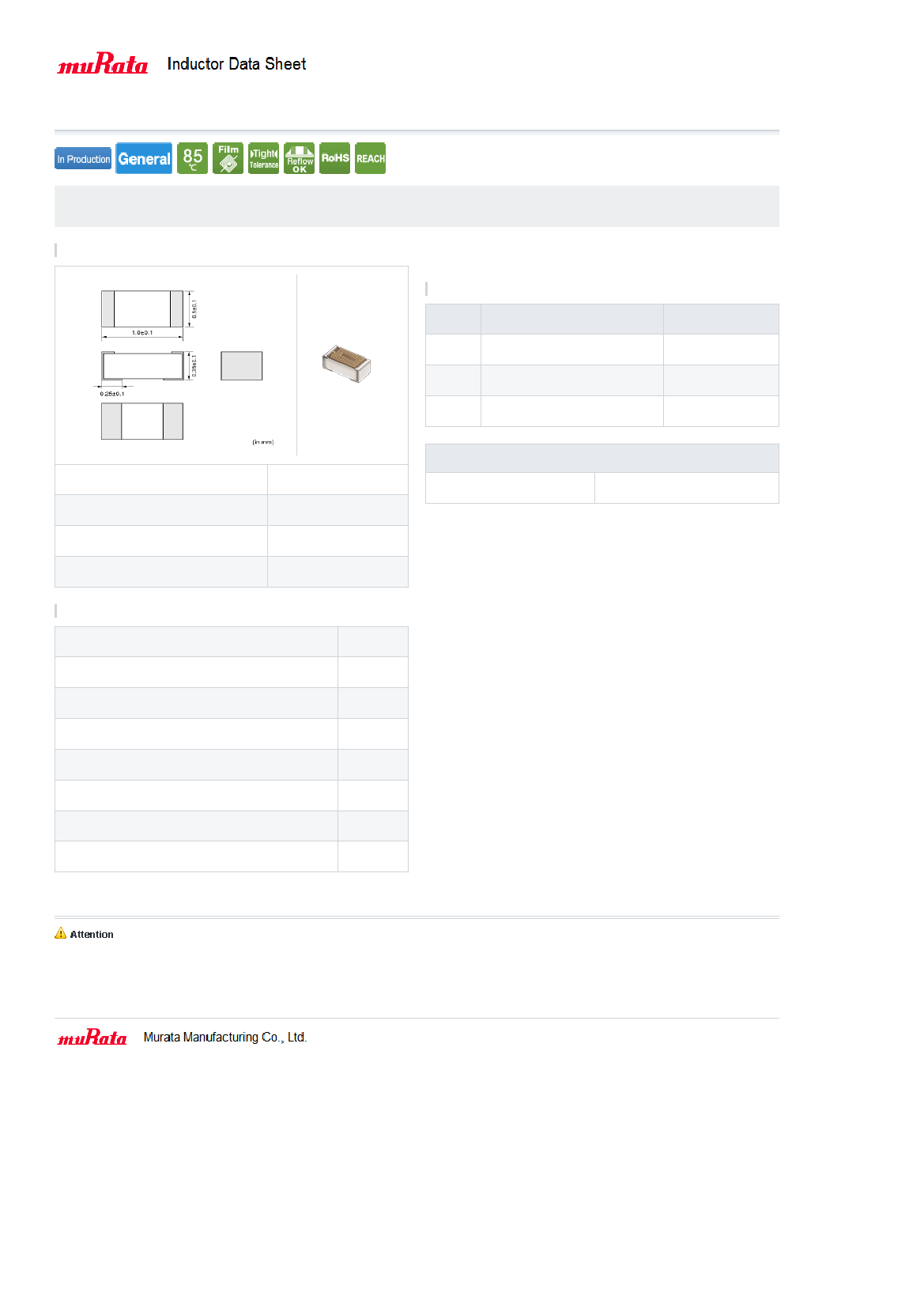

Preview

Download Datasheet

View All

LQP15MN1N5B02#

# indicates a package specification code.

< List of part numbers with package codes >

LQP15MN1N5B02D , LQP15MN1N5B02J , LQP15MN1N5B02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

500

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.1mm

0.5 ±0.1mm

0.35 ±0.1mm

0402 (1005)

1 piece

0.0006g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

1.5nH ±0.1nH

500MHz

280mA

0.2Ω

500MHz

6000MHz

-40∼85℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
