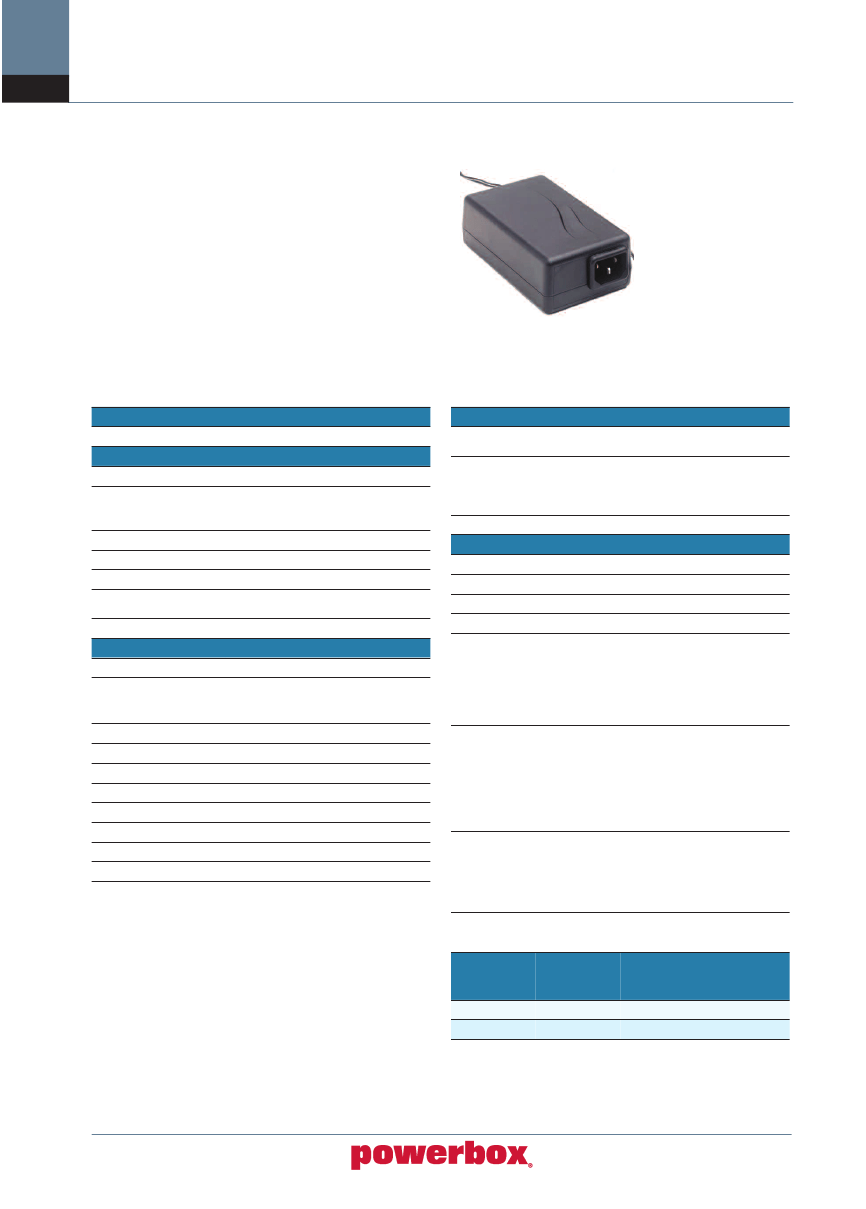

PBN14C Series

BATTERY CHARGER & SYSTEMS

6 0 W AT T T H R E E S T E P C H A R G E R

FEATURES

•

3-step charge control with timer

Universal input voltage (90-264 VAC)

Order mains cord separately

Mounting bracket available

Waterproof (IP67) version available

Approvals:

- Medically certified (EN 60601)

- UL approved (UL 60601-1)

SPECIFICATIONS

INPUT

STANDARDS AND APPROVALS

Input voltage

OUTPUT

90-264VAC

PBN14C-12K

12V

14.7V ±0.2V

13.8V ±0.2V

60 W

4A ±0.3A

40khz

≤

200µA

≤100MV

p-p

≥80

Mains fues

Auto, resettable fuse protects the charger

against wrong polarity

Class 1 (Class 2 optional)

24V 2A

29.5V

27.6V

PBN14C-24K

24V

29.5V ±0.2V

27.7V ±0.3V

60 W

2A ±0.2A

Electrical safety

EMC standards

* Medical

* Emission

* Immunity

C-Tick

MECHANICAL

EN69601-1, EN60950-1,

EN60335-2-29, UL60601-1

EN 60601-1-2

EN 61000-6-3

EN 61000-6-1

AS/NZS2064 CISPR11: Group 1, Class A

135x80x44mm

350g

IEC320 3-pin connector

Battery clips,push-on

Model numbers

Output Voltage

* Cycle mode

* Standby mode

Max. output power

Current limit

Switch frequency

Leakage current

with mains disconnected

Ripple

OPERATING

Dimensions (LxWxH)

Weight

Mains connection

Output terminals

Efficiency (at 100% load)

Protection

LED indications for 12V

Quick Charge

ORANGE

The charger is in constant current mode.

Charge current is maximum (4A).

The battery capacity is something between 0 and

80%.

YELLOW

Absorption Charge

The charger is in timer/constant cycle

voltage mode.

Charge current is less than maximum (<4A).

The battery capacity is something between 80

and 90% fully charged when the

LED-indicator changed to yellow.

Float Charge

Charge current is normally very low.

The battery is 100% fully charged.

The charge voltage is at float/standby level

(13.8V).

Insulation class

Indicator 3 colour LED

* Orange (constant current) 12V 4A

* Yellow (constant voltage)

Timer

Temperature range

Cooling

14.7V

2H ±30%

-10 – 40 degC

Free convection

* Green (constant voltage) 13.8V

GREEN

SELECTION TABLE

MODEL

NUMBER

NOMINAL

OUTPUT

VOLTAGE

OUTPUT

CURRENT

MAX POWER

PBN14C-12K

PBN14C-24K

13.8V

27.6V

60W

298

Doc. No. PBC9 Rev.C 28-4-11
